2021 Ford Transit Connect XLT specs & colors

Full-size Passenger Van

Change trim
MSRP
XL SWB w/Rear Liftgate
$24,655
XL SWB w/Rear Symmetrical Doors
$24,655
XL LWB w/Rear Liftgate
$25,655
XL LWB w/Rear Symmetrical Doors
$25,655
XLT SWB w/Rear Symmetrical Doors
$27,080
XLT SWB w/Rear Liftgate
$27,080
XL LWB w/Rear Liftgate
$27,400
XL LWB w/Rear Symmetrical Doors
$27,400
XLT LWB w/Rear Liftgate
$28,080
XLT LWB w/Rear Symmetrical Doors
$28,080
XLT LWB w/Rear Symmetrical Doors
$29,515
XLT LWB w/Rear Liftgate
$29,515
Titanium LWB w/Rear Liftgate
$31,600
$29,515
Starting MSRP
Current listing price
2021 Ford Transit Connect XLT

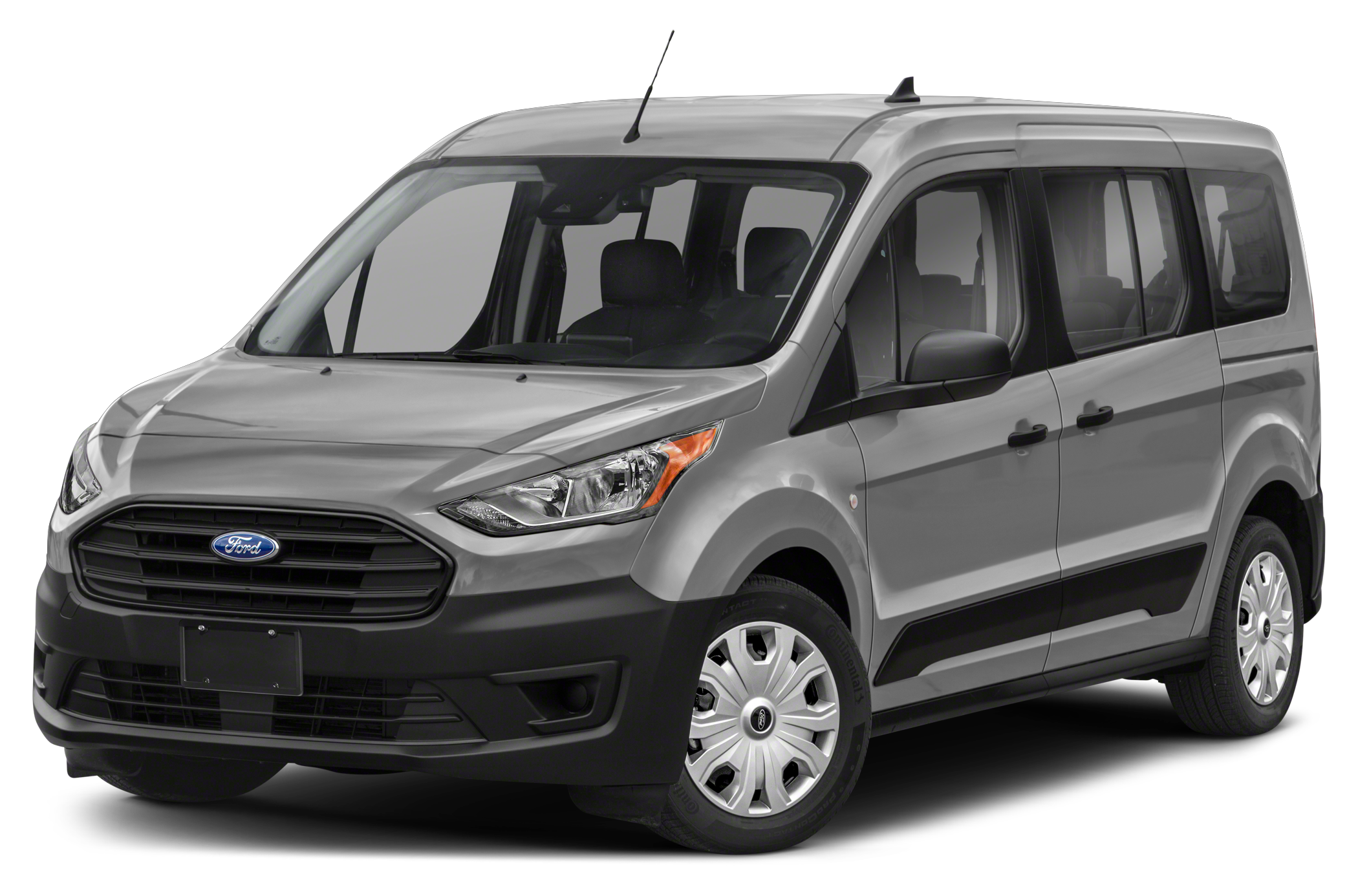

Showing the 2021 Ford Transit Connect XLT LWB w/Rear Liftgate

Shop Now

Key specs

Color options

Interior
Topaz
Black
Anthracite

Packages

  • $1,990

    Starting MSRP

    • 6-Way Pwr Dr Htd Seat/4-Way Pass Man Htd Seat
    • driver fore/aft
    • up/down and power recline w/manual lumbar and passenger seat fore/aft
    See more detail

    $1,990

    Starting MSRP

    • 6-Way Pwr Dr Htd Seat/4-Way Pass Man Htd Seat
    • driver fore/aft
    • up/down and power recline w/manual lumbar and passenger seat fore/aft
    • lever recline w/manual lumbar and non fold-flat back
    • Wheels: 16" 5-Spoke Premium Luster Nickel-Painted
    • Premium-alloy
    • Aircraft-Style Mid-Vehicle Overhead Console
    • Radio: SYNC 3 w/Navigation
    • FordPass Connect/telematics modem w/WiFi hotspot connects up to 10 devices ( a trial subscription of 3 months or 3 gigabytes - whichever comes first
    • wireless service plan required after trial subscription ends)
    • remotely start
    • lock and unlock vehicle
    • schedule specific times to remotely start vehicle
    • locate parked vehicle and check vehicle status ( service for 1 year from the vehicle sale date as recorded by the dealer)
    • 6.5" LCD touch screen
    • AM/FM stereo receiver
    • SiriusXM satellite radio
    • HD Radio
    • 911 Assist
    • AppLink
    • Apple CarPlay compatibility
    • Android Auto compatibility
    • 2 smart-charging USB ports and 9-speaker premium audio,4-Spoke Leather-Wrapped Steering Wheel
    • satin chrome shells
    • High Intensity Discharge (HID) Headlamps

  • $0

    Starting MSRP

Specifications

Highlights

Regular Unleaded I-4
Engine Type
24 City / 29 Hwy
MPG
162 hp
162 hp
Horsepower
5
Seating Capacity

Brakes

4-Wheel Disc
Brake Type
4-Wheel
Brake ABS System
N/A
Brake ABS System (Second Line)
Yes
Disc - Front (Yes or )
Yes
Disc - Rear (Yes or )
N/A
Front Brake Rotor Diam x Thickness
N/A
Rear Brake Rotor Diam x Thickness
N/A
Drum - Rear (Yes or )

Electrical

800
Cold Cranking Amps @ 0° F (Primary)
220
Maximum Alternator Capacity (amps)

Engine

Regular Unleaded I-4
Engine Type
2.0 L/122
Displacement
162 @ 6500
SAE Net Horsepower @ RPM
144 @ 4500
SAE Net Torque @ RPM
8-Speed A/T
A/T
Transmission w/Dual Shift Mode
Transmission Options
24 City / 29 Hwy
MPG
N/A
Total Cooling System Capacity

Entertainment

Optional
Bluetooth®

Measurements

6
Passenger Capacity
167 ft³
Passenger Volume
47 in
Front Head Room
42 in
Front Leg Room
58 in
Front Shoulder Room
54 in
Front Hip Room
46 in
Second Head Room
38 in
Second Leg Room
59 in
Second Shoulder Room
58 in
Second Hip Room
42 in
Third Head Room
35 in
Third Leg Room
56 in
Third Shoulder Room
47 in
Third Hip Room
121 in
Wheelbase
190 in
Length, Overall
72 in
Width, Max w/o mirrors
72 in
Height, Overall
61 in
Track Width, Front
62 in
Track Width, Rear
6 in
Min Ground Clearance
N/A
Rear Door Opening Height
N/A
Rear Door Opening Width
86 in
Cargo Area Length @ Floor to Seat 1
50 in
Cargo Area Length @ Floor to Seat 2
17 in
Cargo Area Length @ Floor to Seat 3
N/A
Cargo Area Width @ Beltline
47 in
Cargo Box Width @ Wheelhousings
43 in
Cargo Box (Area) Height
22 in
Liftover Height
106 ft³
Cargo Volume to Seat 1
60 ft³
Cargo Volume to Seat 2
16 ft³
Cargo Volume to Seat 3
N/A
Trunk Volume

Safety

Standard
Stability Control
Standard
Backup Camera
Optional
Lane Departure Warning
Optional
Blind Spot Monitor
Standard
Blind Spot Monitor

Steering

Rack-Pinion
Steering Type
N/A
Steering Ratio (:1), Overall
N/A
Lock to Lock Turns (Steering)
40 ft
Turning Diameter - Curb to Curb
N/A
Turning Diameter - Wall to Wall

Suspension

Strut
Suspension Type - Front
Torsion Beam
Suspension Type - Rear
Strut
Suspension Type - Front (Cont.)
Torsion Beam
Suspension Type - Rear (Cont.)

Tires & Wheels

P215/55HR16
Front Tire Size
P215/55HR16
Rear Tire Size
Full-Size
Spare Tire Size
16 X 6.5 in
Front Wheel Size
16 X 6.5 in
Rear Wheel Size
Full-Size in
Spare Wheel Size
Steel
Front Wheel Material
Steel
Rear Wheel Material
Steel
Spare Wheel Material

Weight & Capacity

4,028 lbs
Base Curb Weight
N/A
Dead Weight Hitch - Max Trailer Wt.
N/A
Dead Weight Hitch - Max Tongue Wt.
N/A
Wt Distributing Hitch - Max Tongue Wt.
16 gal
Fuel Tank Capacity, Approx
N/A
Aux Fuel Tank Capacity, Approx
N/A
Wt Distributing Hitch - Max Trailer Wt.
