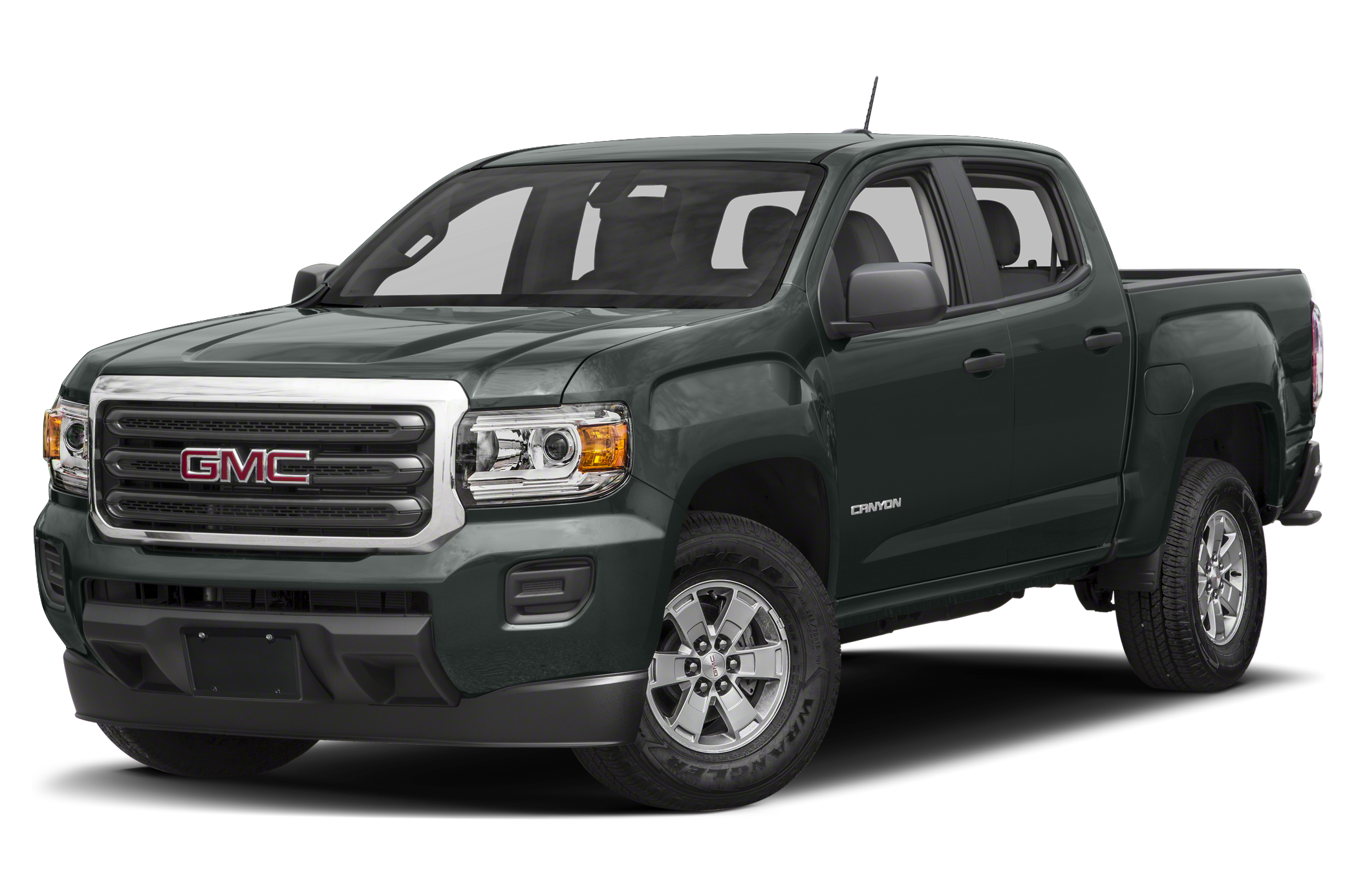

2016 GMC Canyon 2WD SL specs & colors

Extended Cab Pickup

Change trim

$20,940

Starting MSRP
Current listing price

2016 GMC Canyon 2WD SL

Showing the 2016 GMC Canyon 2WD Ext Cab 128.3" SL

Shop Now

No inventory available.
Shop 2016 GMC Canyon

Key specs

2-door
2 seats
200.0-hp, 2.5-liter, 4 Cylinder Engine (Gasoline Fuel)
22 combined MPG
212.4" length, 70.30" height
Rear Wheel Drive

Color options

Exterior

Summit White

Interior

Jet Black / Dark Ash

Packages

SL Preferred Equipment Group

$0

Starting MSRP
- includes standard equipment

Specifications

Highlights

Engine Type: Gas I4
MPG: 19 City / 26 Hwy
Horsepower: 200 hp
Seating Capacity: 2

Brakes

Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): N/A
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 12.2 x 1.0 in
Rear Brake Rotor Diam x Thickness: 12.8 x 0.7 in
Drum - Rear (Yes or ): N/A

Electrical

Cold Cranking Amps @ 0° F (Primary): N/A
Maximum Alternator Capacity (amps): N/A

Engine

Engine Type: Gas I4
Displacement: 2.5L/150
SAE Net Horsepower @ RPM: 200 @ 6300
SAE Net Torque @ RPM: 191 @ 4400
Transmission Options: M/T
6-Speed M/T
MPG: 19 City / 26 Hwy
Total Cooling System Capacity: 14.8 qts

Measurements

Passenger Capacity: 2
Front Head Room: 41 in
Front Leg Room: 45 in
Front Shoulder Room: 58 in
Front Hip Room: 55 in
Second Head Room: 37 in
Second Leg Room: 29 in
Second Shoulder Room: 57 in
Second Hip Room: 52 in
Wheelbase: 128 in
Length, Overall w/o rear bumper: 212 in
Length, Overall w/rear bumper: N/A
Length, Overall: N/A
Width, Max w/o mirrors: 74 in
Height, Overall: 70 in
Overhang, Front: 37 in
Overhang, Rear w/o bumper: N/A
Cab to End of Frame: N/A
Ground to Top of Load Floor: 34 in
Ground Clearance, Front: 8 in
Ground Clearance, Rear: 8 in
Cargo Box Length @ Floor: 74 in
Cargo Box Width @ Top, Rear: N/A
Cargo Box Width @ Floor: 58 in
Cargo Box Width @ Wheelhousings: 44 in
Cargo Box (Area) Height: N/A
Tailgate Width: N/A
Cargo Volume: 50 ft³
Ext'd Cab Cargo Volume: N/A

Safety

Backup Camera: Standard
Stability Control: Standard

Steering

Steering Type: Pwr
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: 41 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Front: Independent
Suspension Type - Rear: 2-Stage Multi-Leaf
Axle Type - Front: N/A
Axle Type - Rear: N/A

Tires & Wheels

Front Tire Size: P265/70R16
Rear Tire Size: P265/70R16
Spare Tire Size: T175/80R18
Front Wheel Size: 16 x 7 in
Rear Wheel Size: 16 x 7 in
Spare Wheel Size: 18 x 4.5 in
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum

Weight & Capacity

Base Curb Weight: N/A
Curb Weight - Front: N/A
Curb Weight - Rear: N/A
Option Weight - Front: 0 lbs
Option Weight - Rear: 0 lbs
As Spec'd Curb Weight: N/A
As Spec'd Payload: N/A
Maximum Payload Capacity: N/A
Gross Combined Wt Rating: 8,500 lbs
Dead Weight Hitch - Max Trailer Wt.: 3,500 lbs
Dead Weight Hitch - Max Tongue Wt.: 350 lbs
Wt Distributing Hitch - Max Trailer Wt.: 3,500 lbs
Wt Distributing Hitch - Max Tongue Wt.: 350 lbs
Fifth Wheel Hitch - Max Trailer Wt.: N/A
Fifth Wheel Hitch - Max Tongue Wt.: N/A
Maximum Trailering Capacity: 3,500 lbs
Fuel Tank Capacity, Approx: 21 gal
Aux Fuel Tank Capacity, Approx: N/A
Gross Axle Weight Rating: 6,200 lbs
Curb Weight: N/A
Total Option Weight: 0 lbs
Gross Vehicle Weight Rating: 5,400 lbs
