2021 GMC Savana 2500 LT specs & colors
Full-size Passenger Van
MSRP
- RWD 2500 135"
- $33,000
- RWD 2500 155"
- $34,900
- RWD 2500 135" LS
- $37,200
- RWD 2500 135" LT
- $37,200
$37,200
Starting MSRP
Current listing price
Current listing price

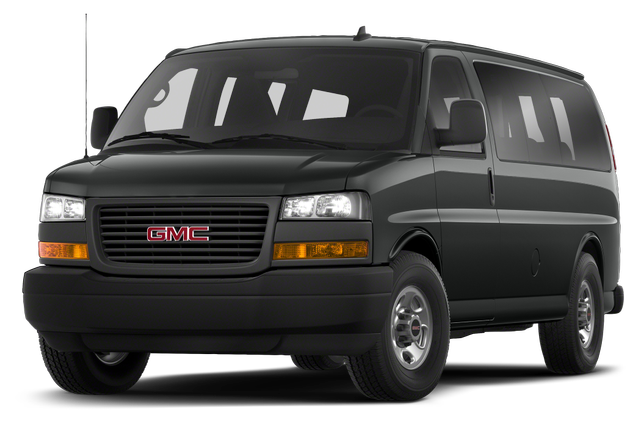

Showing the 2021 GMC Savana 2500 RWD 2500 135" LT
Shop 2021 GMC Savana 2500
Key specs
Color options
Interior
Medium Pewter
Packages
$100
Starting MSRP
- (Includes (K05) engine block heater. Includes (K08) auxiliary heat generator when ordered with (LWN) 2.8L Duramax Turbo-Diesel engine.)
$2,100
Starting MSRP
- Includes Standard Equipment
Specifications
Highlights
|
Gas V6
Engine Type
|
|
-
MPG
|
|
401 hp
181 hp 276 hp Horsepower
|
|
12
Seating Capacity
|
Brakes
|
13 x 1.1 in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Pwr
Brake Type
|
|
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
N/A
Drum - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
N/A
Brake ABS System (Second Line)
|
Electrical
|
150
Maximum Alternator Capacity (amps)
|
|
600
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
4.3L/-TBD-
Displacement
|
|
Gas V6
Engine Type
|
|
276 @ 5200
SAE Net Horsepower @ RPM
|
|
298 @ 3900
SAE Net Torque @ RPM
|
|
6-Speed A/T
Transmission Overdrive Switch 8-Speed A/T A/T Transmission w/Dual Shift Mode Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
N/A
Ext'd Cab Cargo Volume
|
|
32 in
Ground to Top of Load Floor
|
|
N/A
Cab to End of Frame
|
|
N/A
Cargo Box Width @ Floor
|
|
38 in
Fourth Head Room
|
|
52 in
Cargo Box (Area) Height
|
|
28 in
Step Up Height - Side
|
|
219 ft³
Cargo Volume to Seat 1
|
|
135 in
Wheelbase
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
66 in
Third Shoulder Room
|
|
65 in
Front Hip Room
|
|
155 in
Cargo Area Length @ Floor to Console
|
|
N/A
Cargo Volume to Seat 3
|
|
28 in
Step Up Height - Front
|
|
N/A
Side Door Opening Width
|
|
69 in
Front Shoulder Room
|
|
N/A
Cargo Volume to Seat 4
|
|
9 in
Ground Clearance, Rear
|
|
53 in
Rear Door Opening Width
|
|
12
Passenger Capacity
|
|
36 in
Second Leg Room
|
|
37 in
Third Leg Room
|
|
41 in
Front Leg Room
|
|
N/A
Tailgate Width
|
|
69 in
Fourth Shoulder Room
|
|
50 in
Cargo Box Width @ Wheelhousings
|
|
66 in
Fourth Hip Room
|
|
10 in
Ground Clearance, Front
|
|
47 in
Side Door Opening Height
|
|
N/A
Overhang, Rear w/o bumper
|
|
40 in
Overhang, Front
|
|
126 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Volume to Seat 2
|
|
47 in
Rear Door Opening Height
|
|
37 in
Fourth Leg Room
|
|
224 in
Length, Overall
|
|
79 in
Width, Max w/o mirrors
|
|
39 in
Third Head Room
|
|
63 in
Third Hip Room
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Cargo Volume
|
|
85 in
Height, Overall
|
|
38 in
Second Head Room
|
|
N/A
Cargo Area Width @ Beltline
|
|
69 in
Second Shoulder Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
66 in
Second Hip Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
41 in
Front Head Room
|
Safety
|
Standard
Backup Camera
|
|
Standard
Stability Control
|
|
Optional
Lane Departure Warning
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
Pwr
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
49 ft
Turning Diameter - Curb to Curb
|
Suspension
|
Semi-Floating
Axle Type - Rear
|
|
Coil Spring
Suspension Type - Front
|
|
Hypoid Drive
Suspension Type - Rear
|
|
Independent
Axle Type - Front
|
Tires & Wheels
|
LT245/75R16E
Spare Tire Size
|
|
Steel
Spare Wheel Material
|
|
Steel
Front Wheel Material
|
|
Steel
Rear Wheel Material
|
|
16 x 6.5 in
Rear Wheel Size
|
|
16 x 6.5 in
Front Wheel Size
|
|
16 x 6.5 in
Spare Wheel Size
|
|
LT245/75R16E
Rear Tire Size
|
|
LT245/75R16E
Front Tire Size
|
Weight & Capacity
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
670 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
9,460 lbs
Gross Axle Weight Rating
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
2,770 lbs
Maximum Payload Capacity
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
5,830 lbs
Curb Weight
|
|
0 lbs
Total Option Weight
|
|
2,781 lbs
Curb Weight - Rear
|
|
5,916 lbs
As Spec'd Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
3,049 lbs
Curb Weight - Front
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
9,600 lbs
Maximum Trailering Capacity
|
|
31 gal
Fuel Tank Capacity, Approx
|
|
0 lbs
Option Weight - Front
|
|
2,684 lbs
As Spec'd Payload
|
|
N/A
Base Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
8,600 lbs
Gross Vehicle Weight Rating
|
|
6,700 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
