2024 GMC Savana 2500 LS specs & colors

$44,900
Starting MSRP
Current listing price

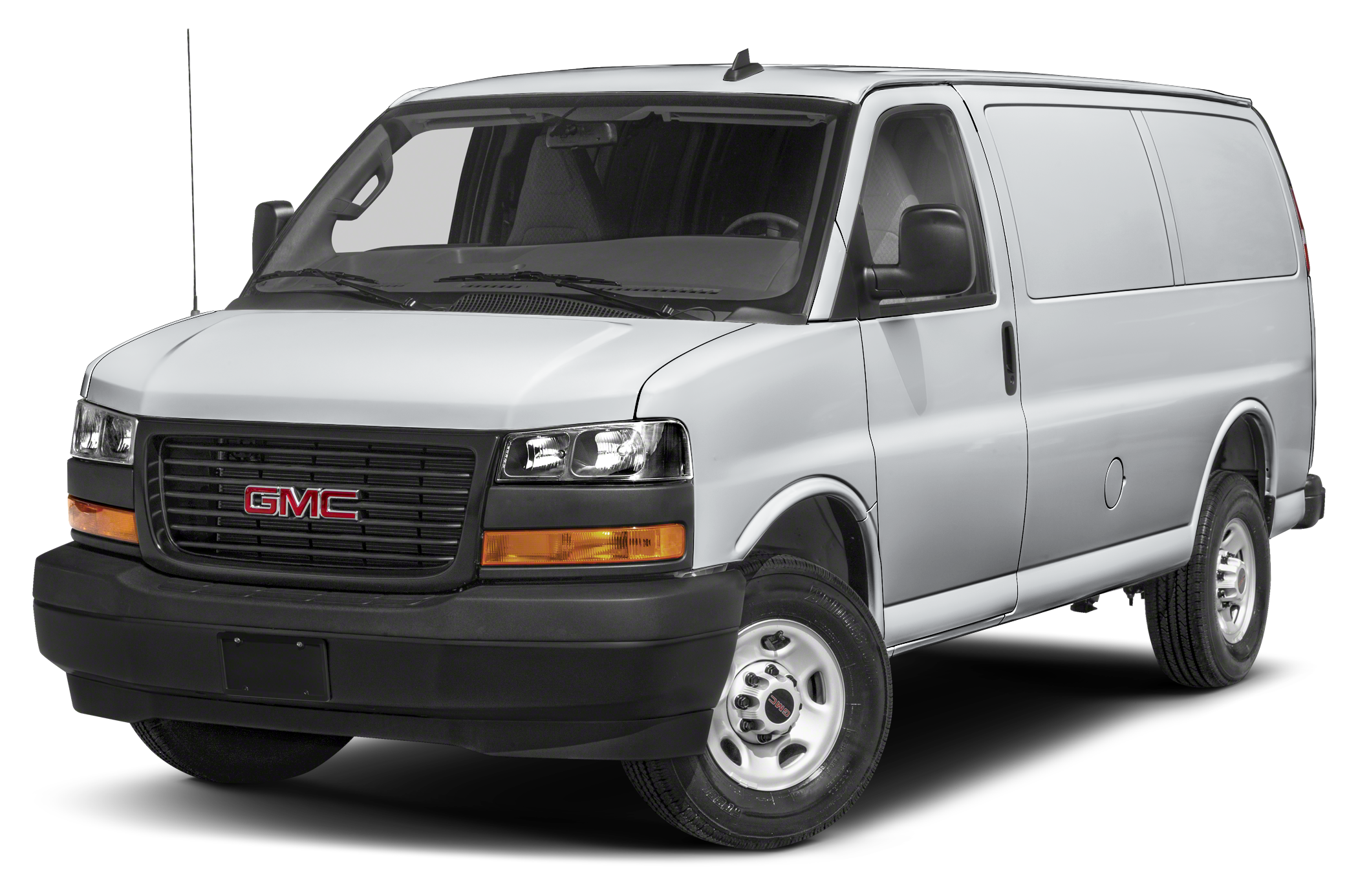

2024 GMC Savana 2500 LS

Showing the 2024 GMC Savana 2500 RWD 2500 135" LS

Shop Now

Key specs

Color options

Interior

Medium Pewter


Packages

$395

Starting MSRP

  • includes (N33) Tilt-Wheel and (K34) cruise control

$0

Starting MSRP

  • includes standard equipment

$100

Starting MSRP

  • (Includes (K05) engine block heater.)

Specifications

Rear Door Type Dual Swing-Out
Spare Wheel Material Steel
Rear Wheel Size 16 x 6.5 in
Front Wheel Size 16 x 6.5 in
Front Wheel Material Steel
Spare Wheel Size 16 x 6.5 in
Rear Wheel Material Steel
Maximum Alternator Capacity (amps) 150
Cold Cranking Amps @ 0° F (Primary) 600
SAE Net Horsepower @ RPM 276 @ 5200
Engine Oil Cooler Yes
Engine Type Gas V6
Displacement 4.3L/-TBD-
SAE Net Torque @ RPM 298 @ 3900
EPA Fuel Economy Est - Hwy N/A MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy N/A mi
Cruising Range - City N/A mi
Estimated Battery Range N/A mi
EPA Fuel Economy Est - City N/A MPG
Third Gear Ratio (:1) 2.08
Reverse Ratio (:1) 3.82
Second Gear Ratio (:1) 2.97
Seventh Gear Ratio (:1) 0.85
Drivetrain Rear Wheel Drive
Eighth Gear Ratio (:1) 0.65
Trans Power Take Off N/A
Transfer Case Gear Ratio (:1), High N/A
Trans Type 8
Trans Description Cont. Again N/A
Trans Description Cont. Automatic
Transfer Case Gear Ratio (:1), Low N/A
Sixth Gear Ratio (:1) 1.00
Transfer Case Model N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Power Take Off N/A
Fourth Gear Ratio (:1) 1.69
Fifth Gear Ratio (:1) 1.27
First Gear Ratio (:1) 4.56
Axle Type - Front Independent
Suspension Type - Rear Hypoid Drive
Axle Type - Rear Semi-Floating
Suspension Type - Front Coil Spring
Frame Type Ladder-Type
Side Door Type Swing-Out
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.8 x 1.5 in
Brake Type Pwr
Rear Brake Rotor Diam x Thickness 13 x 1.1 in
Disc - Front (Yes or ) Yes
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Drum - Rear (Yes or ) N/A
Fuel Tank Capacity, Approx 31 gal
Aux Fuel Tank Capacity, Approx N/A gal
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A
Steering Type Pwr
Turning Diameter - Curb to Curb 49.2 ft
Front Tire Size LT245/75R16E
Rear Tire Size LT245/75R16E
Spare Tire Size LT245/75R16E
Maximum Trailering Capacity 9600 lbs
Wt Distributing Hitch - Max Trailer Wt. 6700 lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. 670 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Base Curb Weight N/A lbs
Total Option Weight 0.00 lbs
Curb Weight - Rear 2877 lbs
Gross Axle Weight Rating 9460.00 lbs
Option Weight - Front 0.00 lbs
As Spec'd Curb Weight 5844.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Payload 2756.00 lbs
Curb Weight 5844.00 lbs
Maximum Payload Capacity 2756.00 lbs
Gross Vehicle Weight Rating 8600.00 lbs
Curb Weight - Front 2967 lbs
Gross Combined Wt Rating 15000 lbs
Third Shoulder Room 65.75 in
Second Head Room 38.42 in
Ground Clearance, Rear 8.6 in
Fourth Shoulder Room 69.1 in
Second Shoulder Room 68.6 in
Fourth Head Room 38.3 in
Cargo Area Width @ Beltline N/A in
Front Head Room 40.85 in
Cargo Area Length @ Floor to Seat 3 N/A in
Third Head Room 38.5 in
Cargo Area Length @ Floor to Console 154.70 in
Cargo Area Length @ Floor to Seat 2 N/A in
Cab to End of Frame N/A in
Fourth Leg Room 36.58 in
Length, Overall w/rear bumper N/A in
Ground to Top of Load Floor 31.9 in
Cargo Box Width @ Wheelhousings 50.4 in
Cargo Volume to Seat 4 N/A ft³
Ground Clearance, Front 9.7 in
Cargo Volume to Seat 2 N/A ft³
Rear Door Opening Width 53.42 in
Step Up Height - Side 28.1 in
Width, Max w/o mirrors 79.25 in
Third Leg Room 36.58 in
Cargo Volume N/A ft³
Cargo Volume to Seat 3 N/A ft³
Height, Overall 84.5 in
Front Hip Room 65.48 in
Step Up Height - Front 27.6 in
Second Hip Room 65.62 in
Length, Overall 223.95 in
Wheelbase 135.2 in
Front Shoulder Room 68.85 in
Front Leg Room 41.35 in
Cargo Box Width @ Floor N/A in
Cargo Volume to Seat 1 218.5 ft³
Ext'd Cab Cargo Volume N/A ft³
Cargo Box Width @ Top, Rear N/A in
Second Leg Room 36.3 in
Tailgate Width N/A in
Overhang, Front 39.7 in
Rear Door Opening Height 47.2 in
Side Door Opening Width N/A in
Fourth Hip Room 65.65 in
Third Hip Room 63.25 in
Passenger Capacity 12
Side Door Opening Height 46.7 in
Cargo Area Length @ Floor to Seat 1 126.2 in
Cargo Box (Area) Height 51.8 in
Overhang, Rear w/o bumper N/A in
Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio or (WP9) Communications Package on orders placed prior to October 2, 2023.) (STD) Standard
Tire, spare LT245/75R16E all-season, blackwall Standard
Tires, front LT245/75R16E all-season, blackwall Standard
Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) Standard
Tires, rear LT245/75R16E all-season, blackwall Standard
Glass, swing-out side door windows Standard
Headlamps, dual halogen composite Standard
Glass, swing-out rear cargo door windows Standard
License plate kit, front Standard
Grille, Black composite Standard
Body, standard (STD) Standard
Mirrors, outside heated power-adjustable, Black, manual-folding Standard
Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash Standard
Wipers, front intermittent wet-arm with pulse washers Standard
Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.) Standard
Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare Standard
Bumpers, front and rear painted Black with step-pad (Deleted when (V37) front and rear chrome bumpers is ordered) Standard
Door, swing-out passenger-side, 60/40 split (STD) Standard
Power outlets 2 auxiliary on engine console cover with covers, 12-volt Standard
Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (STD) Standard
Compass, 8-point digital located in the Driver Information Center Standard
Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.) Standard
Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side Standard
Power outlet, 120-volt Standard
Air conditioning, single-zone manual Standard
Seats, front bucket with vinyl trim and head restraints, includes inboard armrests (Requires (93W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.) (STD) Standard
Mirror, inside rearview, with Rear Vision Camera display Standard
Assist handles, driver and right-front passenger Standard
Lighting, interior with 2 dome lights defeat switch and door handle-activated switches Standard
Steering wheel steel sleeve column with theft-deterrent locking feature, Black Standard
Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure Standard
Lighting, auxiliary with reading lights Standard
Cup holders, 3 on the engine console cover Standard
Defogger, front and side windows Standard
Floor covering, full-length Black rubberized-vinyl Standard
Heater, rear auxiliary Standard
Warning tones, headlamp on and key-in-ignition Standard
Driver Information Center includes fuel range, average speed, oil life, tire pressure monitoring, fuel used, ice warning, engine hours, average fuel economy, tachometer, and maintenance reminders. Compass and outside temperature available if equipped. Standard
Theft-deterrent system, vehicle, PASS-Key III Standard
Console, engine cover with open storage bin Standard
Air conditioning, rear Standard
Headliner, cloth Standard
Oil life monitor Standard
Windows, power (Included with (ZQ2) Power Convenience Package.) Standard
Rear axle, 3.42 ratio (Reference the Engine/Axle page for availability.) Standard
Frame, ladder-type Standard
Cooling, External Engine Oil Cooler Standard
Suspension, rear hypoid drive axle with multi-leaf springs Standard
Rear-wheel drive Standard
Alternator, 150 amps Standard
Tow/haul mode selector, instrument panel-mounted Standard
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
Engine, 4.3L V6 with Direct Injection and Variable Valve Timing, includes aluminum block construction (276 hp [206 kW] @ 5200 rpm, 298 lb-ft of torque [404 Nm] @ 3900 rpm) (Reference the Engine/Axle page for availability.) (STD) Standard
Steering, power Standard
Transmission, 8-speed automatic, electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking, Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD) (Requires (LV1) 4.3L gas V6 engine. Reference the Engine/Axle page for availability.) Standard
Suspension, front independent with coil springs and stabilizer bar Standard
Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power Standard
GVWR, 8600 lbs. (3901 kg) (Reference the Engine/Axle page for availability.) Standard
Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L) Standard
Brakes, 4-wheel antilock, 4-wheel disc Standard
Power Convenience Package includes (A31) power windows and (AU3) power door locks Standard
Brake/transmission shift interlock for automatic transmissions Standard
Airbags, frontal, front driver and right front passenger includes passenger-side frontal airbag deactivation switch (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
GMC Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.) Standard
OnStar and GMC connected services capable (Terms and limitations apply. See onstar.com or dealer for details.) Standard
Hill Start Assist Standard
Door beams, steel-side Standard
Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain provides coverage for outboard seating positions for first 3-rows only. Enhanced-technology glass is provided for fourth row with (ZX5) 12-passenger seating and fourth and fifth rows with (ZP3) 15-passenger seating (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
Airbag deactivation switch, frontal passenger-side (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
Child seat anchors all three passenger rear seats have two anchors for outboard seating positions and tethers for two seating positions. See the Owner's Manual for more information Standard
Rear Vision Camera (Display is included with (DRJ) Inside rearview mirror.) Standard
Daytime Running Lamps Standard
Tire Pressure Monitoring System (does not apply to spare tire) Standard
StabiliTrak, traction assistance and vehicle stability enhancement system Standard
