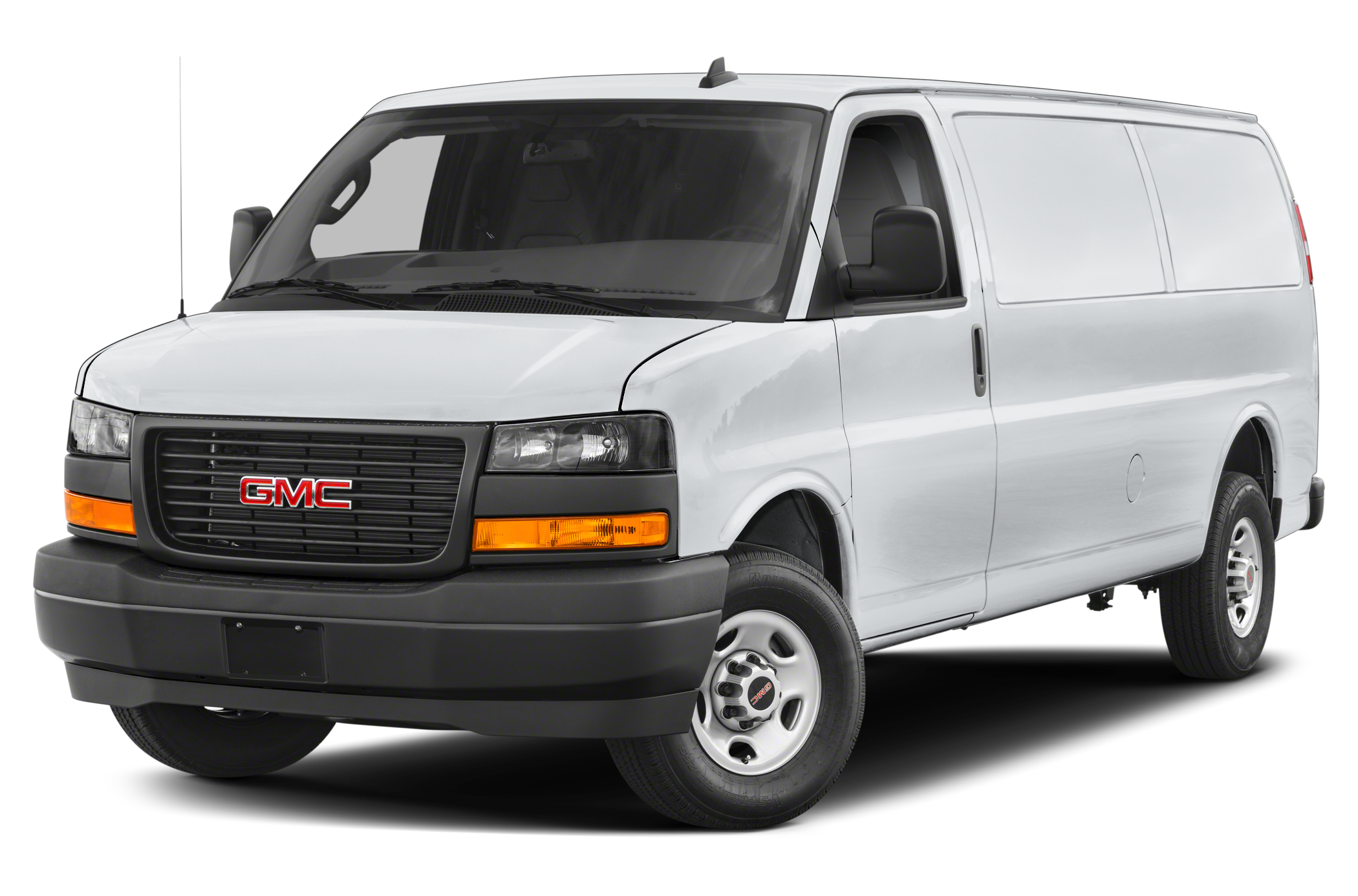

2025 GMC Savana 2500 LS specs & colors
Full-size Passenger Van
MSRP
- RWD 2500 135"
- $41,800
- RWD 2500 155"
- $43,700
- RWD 3500 155"
- $46,550
- RWD 2500 135" LS
- $47,350
- RWD 2500 135" LT
- $47,350
$47,350
Starting MSRP
Current listing price
Current listing price
Showing the 2025 GMC Savana 2500 RWD 2500 135" LS
Shop 2025 GMC Savana 2500
Key specs
Color options
Interior
Medium Pewter
Packages
$395
Starting MSRP
- includes (N33) Tilt-Wheel and (K34) cruise control
$100
Starting MSRP
- (Includes (K05) engine block heater.)
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Gas V6
Engine Type
|
|
-
MPG
|
|
401 hp
276 hp Horsepower
|
|
12
Seating Capacity
|
Brakes
|
N/A
Drum - Rear (Yes or )
|
|
13 x 1.1 in
Rear Brake Rotor Diam x Thickness
|
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
Yes
Disc - Front (Yes or )
|
|
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Rear (Yes or )
|
Electrical
|
600
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
4.3L/-TBD-
Displacement
|
|
298 @ 3900
SAE Net Torque @ RPM
|
|
276 @ 5200
SAE Net Horsepower @ RPM
|
|
Gas V6
Engine Type
|
|
Transmission Overdrive Switch
8-Speed A/T A/T Transmission w/Dual Shift Mode Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
224 in
Length, Overall
|
|
28 in
Step Up Height - Front
|
|
39 in
Third Head Room
|
|
41 in
Front Leg Room
|
|
135 in
Wheelbase
|
|
52 in
Cargo Box (Area) Height
|
|
47 in
Rear Door Opening Height
|
|
155 in
Cargo Area Length @ Floor to Console
|
|
66 in
Third Shoulder Room
|
|
66 in
Second Hip Room
|
|
50 in
Cargo Box Width @ Wheelhousings
|
|
36 in
Second Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
69 in
Fourth Shoulder Room
|
|
38 in
Fourth Head Room
|
|
66 in
Fourth Hip Room
|
|
79 in
Width, Max w/o mirrors
|
|
N/A
Cargo Volume to Seat 2
|
|
N/A
Cargo Volume
|
|
37 in
Fourth Leg Room
|
|
219 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Area Width @ Beltline
|
|
37 in
Third Leg Room
|
|
53 in
Rear Door Opening Width
|
|
N/A
Tailgate Width
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Side Door Opening Width
|
|
28 in
Step Up Height - Side
|
|
47 in
Side Door Opening Height
|
|
N/A
Cab to End of Frame
|
|
63 in
Third Hip Room
|
|
32 in
Ground to Top of Load Floor
|
|
41 in
Front Head Room
|
|
N/A
Cargo Volume to Seat 4
|
|
126 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Length, Overall w/rear bumper
|
|
65 in
Front Hip Room
|
|
N/A
Overhang, Rear w/o bumper
|
|
69 in
Second Shoulder Room
|
|
N/A
Cargo Box Width @ Floor
|
|
N/A
Cargo Volume to Seat 3
|
|
10 in
Ground Clearance, Front
|
|
40 in
Overhang, Front
|
|
85 in
Height, Overall
|
|
12
Passenger Capacity
|
|
9 in
Ground Clearance, Rear
|
|
38 in
Second Head Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
69 in
Front Shoulder Room
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
Safety
|
Standard
Stability Control
|
|
Standard
Navigation System
|
|
Standard
Backup Camera
|
Steering
|
49 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
|
Pwr
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
Suspension
|
Hypoid Drive
Suspension Type - Rear
|
|
Semi-Floating
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
|
Coil Spring
Suspension Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
LT245/75R16E
Front Tire Size
|
|
Steel
Front Wheel Material
|
|
16 x 6.5 in
Rear Wheel Size
|
|
Steel
Rear Wheel Material
|
|
16 x 6.5 in
Spare Wheel Size
|
|
LT245/75R16E
Spare Tire Size
|
|
16 x 6.5 in
Front Wheel Size
|
|
LT245/75R16E
Rear Tire Size
|
Weight & Capacity
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
0 lbs
Option Weight - Front
|
|
2,756 lbs
Maximum Payload Capacity
|
|
2,756 lbs
As Spec'd Payload
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
9,600 lbs
Maximum Trailering Capacity
|
|
9,460 lbs
Gross Axle Weight Rating
|
|
5,844 lbs
As Spec'd Curb Weight
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
31 gal
Fuel Tank Capacity, Approx
|
|
2,967 lbs
Curb Weight - Front
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
8,600 lbs
Gross Vehicle Weight Rating
|
|
670 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
2,877 lbs
Curb Weight - Rear
|
|
N/A
Base Curb Weight
|
|
6,700 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
0 lbs
Total Option Weight
|
|
0 lbs
Option Weight - Rear
|
|
5,844 lbs
Curb Weight
|
