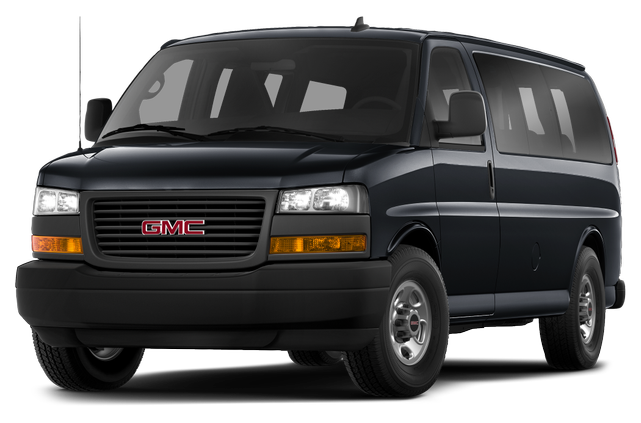

2025 GMC Savana 3500 LS specs & colors
Full-size Passenger Van
MSRP
- RWD 3500 135"
- $45,750
- RWD 3500 135" LS
- $48,550
- RWD 3500 135" LT
- $48,550
- RWD 3500 155" LS
- $49,350
- RWD 3500 155" LT
- $49,350
$48,550
Starting MSRP
Current listing price
Current listing price
Showing the 2025 GMC Savana 3500 RWD 3500 135" LS
Shop 2025 GMC Savana 3500
Key specs
Color options
Interior
Medium Pewter
Packages
$0
Starting MSRP
- includes standard equipment
$100
Starting MSRP
- (Includes (K05) engine block heater.)
Specifications
Highlights
|
Gas V6
Engine Type
|
|
-
MPG
|
|
401 hp
276 hp Horsepower
|
|
12
Seating Capacity
|
Brakes
|
13 x 1.1 in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Drum - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
Pwr
Brake Type
|
|
N/A
Brake ABS System (Second Line)
|
|
12.8 x 1.5 in
Front Brake Rotor Diam x Thickness
|
Electrical
|
600
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
298 @ 3900
SAE Net Torque @ RPM
|
|
276 @ 5200
SAE Net Horsepower @ RPM
|
|
4.3L/-TBD-
Displacement
|
|
Gas V6
Engine Type
|
|
Transmission Overdrive Switch
8-Speed A/T A/T Transmission w/Dual Shift Mode Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
219 ft³
Cargo Volume to Seat 1
|
|
79 in
Width, Max w/o mirrors
|
|
41 in
Front Leg Room
|
|
10 in
Ground Clearance, Front
|
|
66 in
Second Hip Room
|
|
47 in
Rear Door Opening Height
|
|
12
Passenger Capacity
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Floor
|
|
85 in
Height, Overall
|
|
66 in
Fourth Hip Room
|
|
N/A
Ext'd Cab Cargo Volume
|
|
28 in
Step Up Height - Front
|
|
69 in
Front Shoulder Room
|
|
66 in
Third Shoulder Room
|
|
28 in
Step Up Height - Side
|
|
69 in
Second Shoulder Room
|
|
37 in
Third Leg Room
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Volume to Seat 3
|
|
36 in
Second Leg Room
|
|
47 in
Side Door Opening Height
|
|
39 in
Third Head Room
|
|
126 in
Cargo Area Length @ Floor to Seat 1
|
|
155 in
Cargo Area Length @ Floor to Console
|
|
53 in
Rear Door Opening Width
|
|
63 in
Third Hip Room
|
|
37 in
Fourth Leg Room
|
|
224 in
Length, Overall
|
|
9 in
Ground Clearance, Rear
|
|
38 in
Second Head Room
|
|
N/A
Cargo Volume to Seat 4
|
|
69 in
Fourth Shoulder Room
|
|
38 in
Fourth Head Room
|
|
N/A
Side Door Opening Width
|
|
52 in
Cargo Box (Area) Height
|
|
N/A
Length, Overall w/rear bumper
|
|
32 in
Ground to Top of Load Floor
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
135 in
Wheelbase
|
|
N/A
Cab to End of Frame
|
|
N/A
Cargo Volume to Seat 2
|
|
N/A
Overhang, Rear w/o bumper
|
|
41 in
Front Head Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
50 in
Cargo Box Width @ Wheelhousings
|
|
65 in
Front Hip Room
|
|
40 in
Overhang, Front
|
|
N/A
Cargo Volume
|
Safety
|
Standard
Backup Camera
|
|
Standard
Stability Control
|
|
Standard
Navigation System
|
Steering
|
Pwr
Steering Type
|
|
49 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
|
N/A
Steering Ratio (:1), Overall
|
Suspension
|
Coil Spring
Suspension Type - Front
|
|
Full-Floating
Axle Type - Rear
|
|
Independent
Axle Type - Front
|
|
Hypoid Drive
Suspension Type - Rear
|
Tires & Wheels
|
16 x 6.5 in
Front Wheel Size
|
|
Steel
Spare Wheel Material
|
|
LT245/75R16E
Spare Tire Size
|
|
16 x 6.5 in
Spare Wheel Size
|
|
LT245/75R16E
Rear Tire Size
|
|
LT245/75R16E
Front Tire Size
|
|
Steel
Front Wheel Material
|
|
16 x 6.5 in
Rear Wheel Size
|
|
Steel
Rear Wheel Material
|
Weight & Capacity
|
9,600 lbs
Maximum Trailering Capacity
|
|
0 lbs
Option Weight - Front
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
0 lbs
Option Weight - Rear
|
|
5,861 lbs
As Spec'd Curb Weight
|
|
N/A
Base Curb Weight
|
|
0 lbs
Total Option Weight
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
2,945 lbs
Curb Weight - Front
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
9,600 lbs
Gross Vehicle Weight Rating
|
|
2,916 lbs
Curb Weight - Rear
|
|
3,739 lbs
As Spec'd Payload
|
|
6,700 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
670 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
5,861 lbs
Curb Weight
|
|
10,384 lbs
Gross Axle Weight Rating
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
3,739 lbs
Maximum Payload Capacity
|
|
15,000 lbs
Gross Combined Wt Rating
|
|
31 gal
Fuel Tank Capacity, Approx
|
