2011 GMC Sierra 3500 SRW Work Truck specs & colors

Crew Cab Pickup

Change trim

$36,920

Starting MSRP
Current listing price

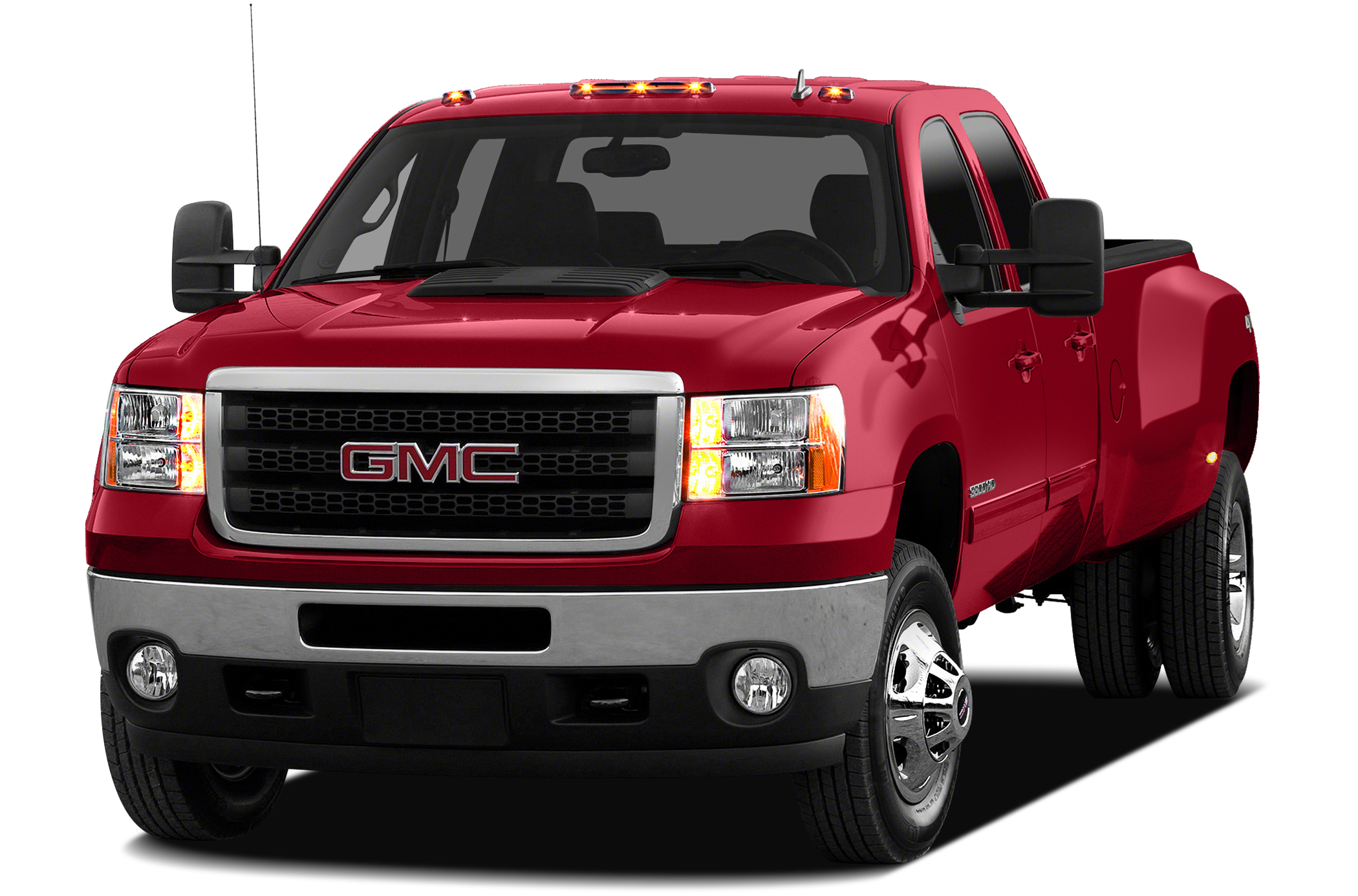

2011 GMC Sierra 3500 SRW Work Truck

Showing the 2011 GMC Sierra 3500 4WD Crew Cab 153.7" SRW Work Truck

Shop Now

No inventory available.
Shop 2011 GMC Sierra 3500

Key specs

4-door
6 seats
322.0-hp, 6.0-liter, 8 Cylinder Engine (Gasoline Fuel)
0 combined MPG
229.5" length, 77.3" height
Four Wheel Drive

Color options

Exterior

Silver Lining

Interior

Dark Titanium

Packages

Specifications

Highlights

Engine Type: Gas V8
MPG: -
Horsepower: 397 hp
322 hp
Seating Capacity: 6

Brakes

Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): Not Available
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 13.98 x 1.57 in
Rear Brake Rotor Diam x Thickness: 14.17 x 1.34 in
Drum - Rear (Yes or ): Not Available

Electrical

Cold Cranking Amps @ 0° F (Primary): 600
Maximum Alternator Capacity (amps): 125

Engine

Engine Type: Gas V8
Displacement: 6.0L/366
SAE Net Horsepower @ RPM: 322 @ 4400
SAE Net Torque @ RPM: 380 @ 4200
Transmission Options: 6-Speed A/T
Transmission Overdrive Switch
A/T
MPG: -
Total Cooling System Capacity: N/A

Measurements

Cargo Box (Area) Height: 21 in
Tailgate Width: 62 in
Cargo Volume: 61 ft³
Ext'd Cab Cargo Volume: N/A
Ground Clearance, Front: 10 in
Ground Clearance, Rear: 8 in
Cargo Box Length @ Floor: 79 in
Cargo Box Width @ Top, Rear: N/A
Cargo Box Width @ Floor: 63 in
Cargo Box Width @ Wheelhousings: 51 in
Ground to Top of Load Floor: 38 in
Front Head Room: 41 in
Front Leg Room: 41 in
Front Shoulder Room: 65 in
Front Hip Room: 60 in
Second Head Room: 41 in
Second Leg Room: 39 in
Second Shoulder Room: 65 in
Second Hip Room: 66 in
Wheelbase: 154 in
Length, Overall w/o rear bumper: 240 in
Length, Overall w/rear bumper: N/A
Length, Overall: N/A
Width, Max w/o mirrors: 80 in
Height, Overall: 77 in
Overhang, Front: 39 in
Overhang, Rear w/o bumper: 48 in
Cab to End of Frame: N/A
Passenger Capacity: 6

Safety

Automatic Emergency Braking: Standard

Steering

Steering Type: Pwr Recirculating Ball
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: 55 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Front: Independent
Suspension Type - Rear: Multi-Leaf
Axle Type - Front: Independent
Axle Type - Rear: Full-Floating

Tires & Wheels

Front Tire Size: LT265/70R18E
Rear Tire Size: LT265/70R18E
Spare Tire Size: Not Available
Front Wheel Size: 18 x 8.0 in
Rear Wheel Size: 18 x 8.0 in
Spare Wheel Size: 17 x -TBD- in
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel

Weight & Capacity

Gross Axle Weight Rating: 11,850 lbs
Curb Weight: 6,573 lbs
Total Option Weight: 0 lbs
Gross Vehicle Weight Rating: 10,800 lbs
Fuel Tank Capacity, Approx: 36 gal
Aux Fuel Tank Capacity, Approx: Not Available gal
Base Curb Weight: N/A
Curb Weight - Front: 3,719 lbs
Curb Weight - Rear: 2,854 lbs
Option Weight - Front: 0 lbs
Option Weight - Rear: 0 lbs
As Spec'd Curb Weight: 6,573 lbs
As Spec'd Payload: 4,227 lbs
Maximum Payload Capacity: 4,227 lbs
Gross Combined Wt Rating: 16,000 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Wt Distributing Hitch - Max Trailer Wt.: 9,200 lbs
Wt Distributing Hitch - Max Tongue Wt.: 1,380 lbs
Fifth Wheel Hitch - Max Trailer Wt.: 9,200 lbs
Fifth Wheel Hitch - Max Tongue Wt.: 2,300 lbs
Maximum Trailering Capacity: 13,700 lbs
