2026 GMC Sierra EV Extended Range Elevation specs & colors
Crew Cab Pickup
MSRP
- e4WD Crew Cab Standard Range Elevation
- $62,400
- e4WD Crew Cab Standard Range Denali
- $69,700
- e4WD Crew Cab Extended Range Elevation
- $70,600
- e4WD Crew Cab Extended Range Denali
- $77,900
- e4WD Crew Cab Extended Range AT4
- $79,300
- e4WD Crew Cab Max Range AT4
- $89,600
- e4WD Crew Cab Max Range Denali
- $98,600
$70,600
Starting MSRP
Current listing price
Current listing price

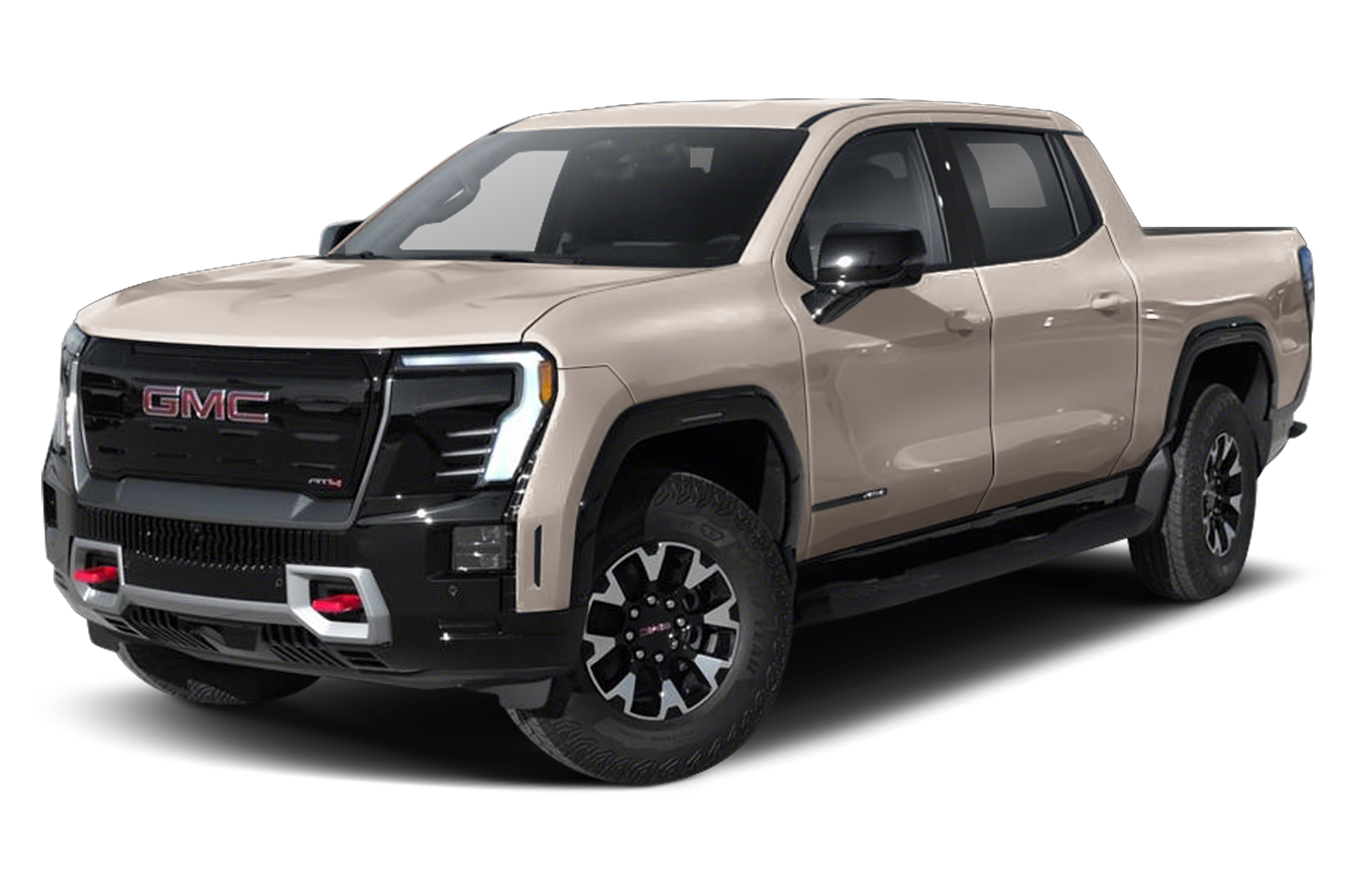

Showing the 2026 GMC Sierra EV e4WD Crew Cab Extended Range Elevation
Shop NowKey specs
Color options
Interior
After Dark (Black)
Packages
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Electric
Engine Type
|
|
-
MPG
|
|
645 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
N/A
Brake ABS System
|
|
Yes
Disc - Front (Yes or )
|
|
14.5 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
13.5 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Brake ABS System (Second Line)
|
|
N/A
Drum - Rear (Yes or )
|
|
Pwr
Brake Type
|
Electrical
|
N/A
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
Electric
Engine Type
|
|
765
SAE Net Torque @ RPM
|
|
645
SAE Net Horsepower @ RPM
|
|
N/A
Displacement
|
|
1-Speed A/T
A/T Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
22 in
Cargo Box (Area) Height
|
|
N/A
Cab to End of Frame
|
|
61 in
Front Hip Room
|
|
N/A
Length, Overall w/o rear bumper
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Length, Overall w/rear bumper
|
|
8 in
Ground Clearance, Rear
|
|
49 in
Cargo Box Width @ Wheelhousings
|
|
61 in
Second Hip Room
|
|
N/A
Tailgate Width
|
|
233 in
Length, Overall
|
|
37 in
Overhang, Front
|
|
44 in
Front Head Room
|
|
63 in
Second Shoulder Room
|
|
84 in
Width, Max w/o mirrors
|
|
N/A
Ground to Top of Load Floor
|
|
8 in
Ground Clearance, Front
|
|
71 in
Cargo Box Length @ Floor
|
|
5
Passenger Capacity
|
|
39 in
Second Head Room
|
|
44 in
Second Leg Room
|
|
N/A
Overhang, Rear w/o bumper
|
|
146 in
Wheelbase
|
|
45 in
Front Leg Room
|
|
64 in
Front Shoulder Room
|
|
78 in
Height, Overall
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
57.3 (Bed)/11 (eTrunk) ft³
Cargo Volume
|
|
65 in
Cargo Box Width @ Floor
|
Safety
|
Standard
Rear Cross Traffic Alert
|
|
Standard
Third Row Seating
|
|
Optional
Lane Departure Warning
|
|
Standard
Navigation System
|
|
Standard
Stability Control
|
Steering
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Steering Type
|
|
44.0 (2-Wheel Steer) ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
N/A
Axle Type - Rear
|
|
Coil Suspension
Suspension Type - Rear
|
|
Coil Suspension
Suspension Type - Front
|
|
N/A
Axle Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
Aluminum
Front Wheel Material
|
|
LT265/70R18
Rear Tire Size
|
|
LT225/65R18
Spare Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
18 X 8.5 in
Rear Wheel Size
|
|
18 X 8 in
Spare Wheel Size
|
|
LT265/70R18
Front Tire Size
|
|
18 X 8.5 in
Front Wheel Size
|
Weight & Capacity
|
N/A
Curb Weight - Front
|
|
N/A
Gross Axle Weight Rating
|
|
N/A
Gross Combined Wt Rating
|
|
1,250 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
0 lbs
Option Weight - Front
|
|
N/A
Maximum Payload Capacity
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
As Spec'd Payload
|
|
N/A
Fuel Tank Capacity, Approx
|
|
9,900 lbs
Gross Vehicle Weight Rating
|
|
0 lbs
Total Option Weight
|
|
0 lbs
Option Weight - Rear
|
|
N/A
Curb Weight - Rear
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
12,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
12,500 lbs
Maximum Trailering Capacity
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
As Spec'd Curb Weight
|
|
N/A
Curb Weight
|
|
N/A
Base Curb Weight
|
