2023 Honda Pilot EX-L 7 Passenger specs & colors
Sport Utility
MSRP
- LX 2WD
- $36,300
- LX AWD
- $38,400
- Sport 2WD
- $39,500
- Sport AWD
- $41,600
- EX-L 8 Passenger 2WD
- $42,300
- EX-L 7 Passenger 2WD
- $42,600
- EX-L 8 Passenger AWD
- $44,400
- EX-L 7 Passenger AWD
- $44,700
- Touring 2WD
- $46,800
- TrailSport AWD
- $48,700
- Touring AWD
- $48,900
- Elite AWD
- $52,380
$44,700
Starting MSRP
Current listing price
Current listing price

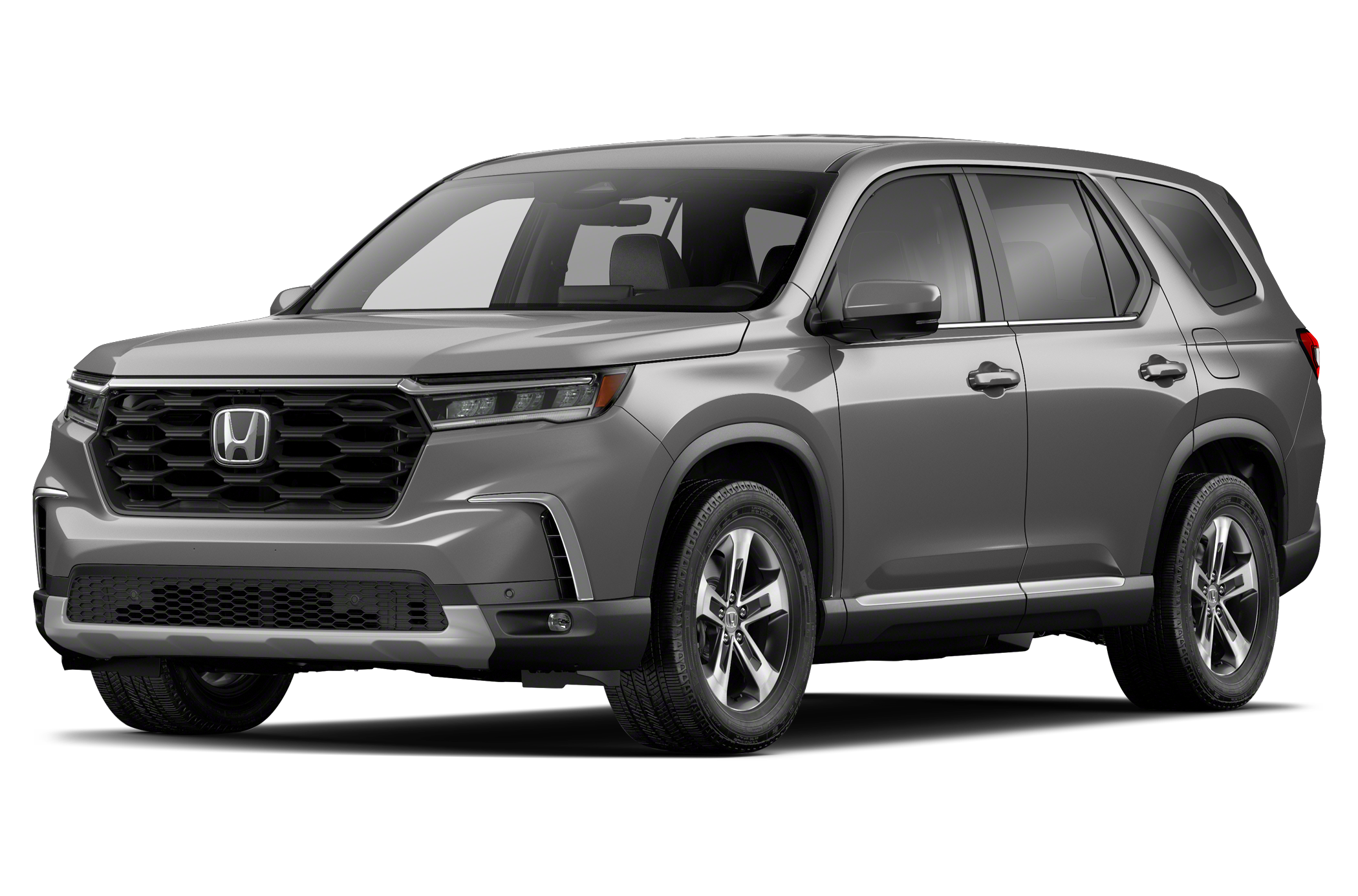

Showing the 2023 Honda Pilot EX-L 7 Passenger AWD
Shop NowKey specs
Color options
Interior
Vanilla / Blue
Gray
Packages
$405
Starting MSRP
- Cargo Cover (PPO)
- Cargo Net (PPO)
- First Aid Kit (PPO)
$290
Starting MSRP
- Door Sill Film
- Film Kit
$2,950
Starting MSRP
- Fender Flares (PPO)
- HPD Decals & Emblem
- Lower Door Trim
See more detail $2,950
Starting MSRP
- Fender Flares (PPO)
- HPD Decals & Emblem
- Lower Door Trim
- Wheels: 18" Bronze HPD Alloy (PPO)
$750
Starting MSRP
- Ball Mount
- Trailer Hitch (PPO)
- Hitch Panel
See more detail $750
Starting MSRP
- Ball Mount
- Trailer Hitch (PPO)
- Hitch Panel
- Trailer Hitch Harness (PPO)
$2,950
Starting MSRP
- Fender Flares (PPO)
- HPD Decals & Emblem
- Lower Door Trim
See more detail $2,950
Starting MSRP
- Fender Flares (PPO)
- HPD Decals & Emblem
- Lower Door Trim
- Black Wheel Lugs
- Wheels: 18" Black HPD Alloy (PPO)
Specifications
Highlights
|
Regular Unleaded V-6
Engine Type
|
|
19 City / 25 Hwy
MPG
|
|
285 hp
Horsepower
|
|
7
Seating Capacity
|
Brakes
|
14 in
Front Brake Rotor Diam x Thickness
|
|
4-Wheel Disc
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
13 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
N/A
Maximum Alternator Capacity (amps)
|
Engine
|
262 @ 5000
SAE Net Torque @ RPM
|
|
285 @ 6100
SAE Net Horsepower @ RPM
|
|
Regular Unleaded V-6
Engine Type
|
|
3.5 L/212
Displacement
|
|
10-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
19 City / 25 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
|
Optional
Bluetooth®
|
Measurements
|
N/A
Rear Door Opening Height
|
|
45 in
Third Hip Room
|
|
N/A
Liftover Height
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
114 in
Wheelbase
|
|
41 in
Front Leg Room
|
|
N/A
Cargo Box (Area) Height
|
|
60 in
Third Shoulder Room
|
|
40 in
Second Head Room
|
|
87 ft³
Cargo Volume to Seat 1
|
|
N/A
Rear Door Opening Width
|
|
41 in
Second Leg Room
|
|
58 in
Front Hip Room
|
|
41 in
Front Head Room
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Min Ground Clearance
|
|
62 in
Front Shoulder Room
|
|
39 in
Third Head Room
|
|
71 in
Height, Overall
|
|
7
Passenger Capacity
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
33 in
Third Leg Room
|
|
49 ft³
Cargo Volume to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
68 in
Track Width, Rear
|
|
62 in
Second Shoulder Room
|
|
79 in
Width, Max w/o mirrors
|
|
68 in
Track Width, Front
|
|
19 ft³
Cargo Volume to Seat 3
|
|
200 in
Length, Overall
|
|
158 ft³
Passenger Volume
|
|
57 in
Second Hip Room
|
Safety
|
Optional
Rear Cross Traffic Alert
|
|
Standard
Automatic Emergency Braking
|
|
Standard
Stability Control
|
|
Standard
Lane Departure Warning
|
|
Optional
Blind Spot Monitor
|
|
Standard
Backup Camera
|
Steering
|
N/A
Lock to Lock Turns (Steering)
|
|
Rack-Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Turning Diameter - Wall to Wall
|
|
38 ft
Turning Diameter - Curb to Curb
|
Suspension
|
Strut
Suspension Type - Front
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
|
Multi-Link
Suspension Type - Rear
|
|
Strut
Suspension Type - Front (Cont.)
|
Tires & Wheels
|
18 X 8 in
Rear Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
P255/60HR18
Rear Tire Size
|
|
Steel
Spare Wheel Material
|
|
Compact
Spare Tire Size
|
|
Aluminum
Front Wheel Material
|
|
P255/60HR18
Front Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
18 X 8 in
Front Wheel Size
|
Weight & Capacity
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Curb Weight
|
|
500 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Maximum Payload Capacity
|
|
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Curb Weight - Rear
|
|
N/A
Curb Weight - Front
|
|
0 lbs
Total Option Weight
|
|
19 gal
Fuel Tank Capacity, Approx
|
|
5,000 lbs
Maximum Trailering Capacity
|
|
4,464 lbs
Base Curb Weight
|
