2026 Honda Pilot EX-L specs & colors

Sport Utility

Change trim
MSRP
Sport 2WD
$42,395
Sport AWD
$44,495
EX-L 2WD
$44,695
EX-L AWD
$46,795
TrailSport AWD
$50,595
Touring AWD
$51,295
Touring S AWD
$52,495
Elite AWD
$53,695
Black Edition AWD
$55,195
$46,795
Starting MSRP
Current listing price
2026 Honda Pilot EX-L

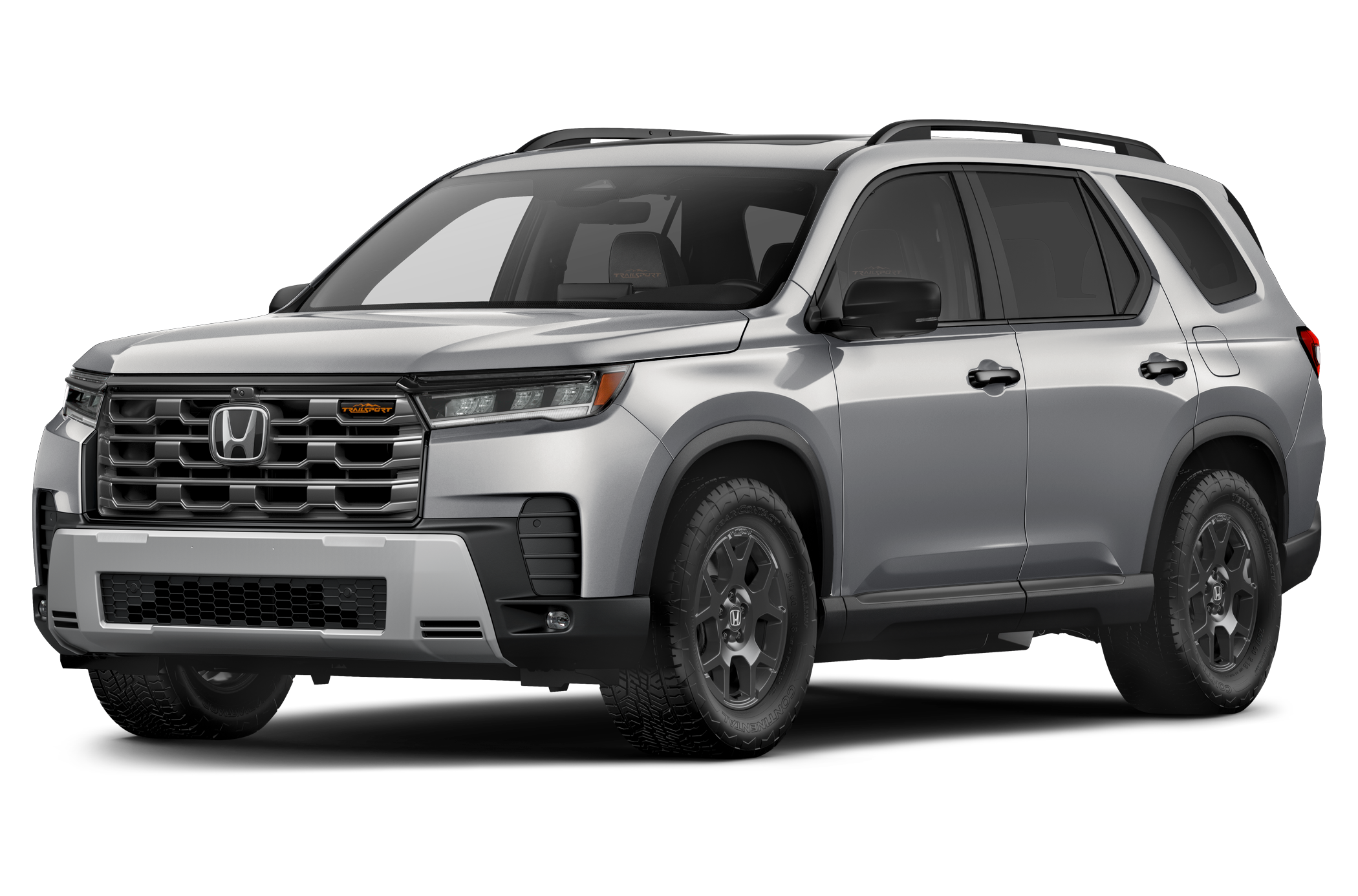

Showing the 2026 Honda Pilot EX-L AWD

Shop Now No inventory available.
Shop 2026 Honda Pilot

Key specs

  • 4-door
  • 8 seats
  • 285.0-hp, 3.5-liter, V6 Cylinder Engine (Gasoline Fuel)
  • 21 combined MPG
  • 200.1" length, 71" height
  • All Wheel Drive

Color options

Exterior

Midnight Blue

Interior
Vanilla / Blue
Gray

Packages

  • Black Emblem Package

    $210

    Starting MSRP

    • AWD Badge (PPO)
    • Pilot Badge (PPO)
    • H-Mark Emblem (PPO)
  • Adventure Package

    $1,645

    Starting MSRP

    • Running Boards (PPO)
    • Roof Platform (PPO)
  • Pet Package

    $750

    Starting MSRP

    • Cargo Barrier (PPO)
    • Seat Back Protector (PPO)
    • Cargo Tray (PPO)
  • Function Package

    $750

    Starting MSRP

    • Door Sill Film (PPO)
    • Rear Bumper Applique (PPO)
    • All Season Mat (PPO)
    See more detail

    $750

    Starting MSRP

    • Door Sill Film (PPO)
    • Rear Bumper Applique (PPO)
    • All Season Mat (PPO)
    • Cargo Cover (PPO)
  • Tow Package

    $895

    Starting MSRP

    • Ballmount (PPO)
    • Trailer Hitch (PPO)
    • Hitch Panel (PPO)
    See more detail

    $895

    Starting MSRP

    • Ballmount (PPO)
    • Trailer Hitch (PPO)
    • Hitch Panel (PPO)
    • Trailer Hitch Harness (PPO)

Specifications

Highlights

Engine Type
Regular Gasoline V-6
MPG
19 City / 25 Hwy
Horsepower
285 hp
Seating Capacity
8

Brakes

Brake Type
4-Wheel Disc
Front Brake Rotor Diam x Thickness
14 in
Brake ABS System (Second Line)
N/A
Brake ABS System
4-Wheel
Disc - Front (Yes or )
Yes
Rear Brake Rotor Diam x Thickness
13 in
Drum - Rear (Yes or )
N/A
Disc - Rear (Yes or )
Yes

Electrical

Cold Cranking Amps @ 0° F (Primary)
N/A
Maximum Alternator Capacity (amps)
N/A

Engine

Displacement
3.5 L/212
SAE Net Torque @ RPM
262 @ 5000
Engine Type
Regular Gasoline V-6
SAE Net Horsepower @ RPM
285 @ 6100
Transmission Options
10-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG
19 City / 25 Hwy
Total Cooling System Capacity
N/A

Entertainment

Bluetooth®
Standard

Measurements

Liftover Height
N/A
Front Head Room
41 in
Front Hip Room
58 in
Cargo Area Length @ Floor to Seat 3
N/A
Cargo Box (Area) Height
N/A
Passenger Volume
158 ft³
Cargo Area Length @ Floor to Seat 1
N/A
Track Width, Front
68 in
Width, Max w/o mirrors
79 in
Passenger Capacity
8
Cargo Box Width @ Wheelhousings
N/A
Third Shoulder Room
60 in
Second Shoulder Room
62 in
Cargo Area Length @ Floor to Seat 2
N/A
Third Head Room
39 in
Front Leg Room
41 in
Length, Overall
200 in
Second Leg Room
41 in
Rear Door Opening Height
N/A
Cargo Volume to Seat 2
49 ft³
Track Width, Rear
68 in
Third Leg Room
33 in
Cargo Volume to Seat 3
19 ft³
Min Ground Clearance
N/A
Second Hip Room
57 in
Second Head Room
40 in
Third Hip Room
45 in
Rear Door Opening Width
N/A
Front Shoulder Room
62 in
Height, Overall
71 in
Cargo Area Width @ Beltline
N/A
Wheelbase
114 in
Cargo Volume to Seat 1
87 ft³

Safety

Stability Control
Standard
Backup Camera
Standard
Rear Cross Traffic Alert
Standard
Blind Spot Monitor
Standard
Lane Departure Warning
Standard
Automatic Emergency Braking
Standard

Steering

Turning Diameter - Curb to Curb
38 ft
Turning Diameter - Wall to Wall
N/A
Steering Ratio (:1), Overall
N/A
Steering Type
Rack-Pinion
Lock to Lock Turns (Steering)
N/A

Suspension

Suspension Type - Rear
Multi-Link
Suspension Type - Front
Strut
Suspension Type - Front (Cont.)
Strut
Suspension Type - Rear (Cont.)
Multi-Link

Tires & Wheels

Front Tire Size
P255/60HR18
Rear Wheel Size
18 X 8 in
Rear Wheel Material
Aluminum
Rear Tire Size
P255/60HR18
Spare Tire Size
Compact
Spare Wheel Size
Compact in
Spare Wheel Material
Steel
Front Wheel Size
18 X 8 in
Front Wheel Material
Aluminum

Weight & Capacity

Wt Distributing Hitch - Max Trailer Wt.
5,000 lbs
Curb Weight
N/A
Dead Weight Hitch - Max Trailer Wt.
5,000 lbs
Base Curb Weight
4,528 lbs
Dead Weight Hitch - Max Tongue Wt.
500 lbs
Curb Weight - Front
N/A
Maximum Trailering Capacity
5,000 lbs
Wt Distributing Hitch - Max Tongue Wt.
500 lbs
Curb Weight - Rear
N/A
Fuel Tank Capacity, Approx
19 gal
Maximum Payload Capacity
N/A
Total Option Weight
0 lbs
Aux Fuel Tank Capacity, Approx
N/A

Compare trims

2026 Honda Pilot EX-L

Wondering which trim is right for you?

Our 2026 Honda Pilot trim comparison will help you decide.
