2024 Hyundai PALISADE Calligraphy specs & colors

Sport Utility

Change trim

$52,350

Starting MSRP
Current listing price

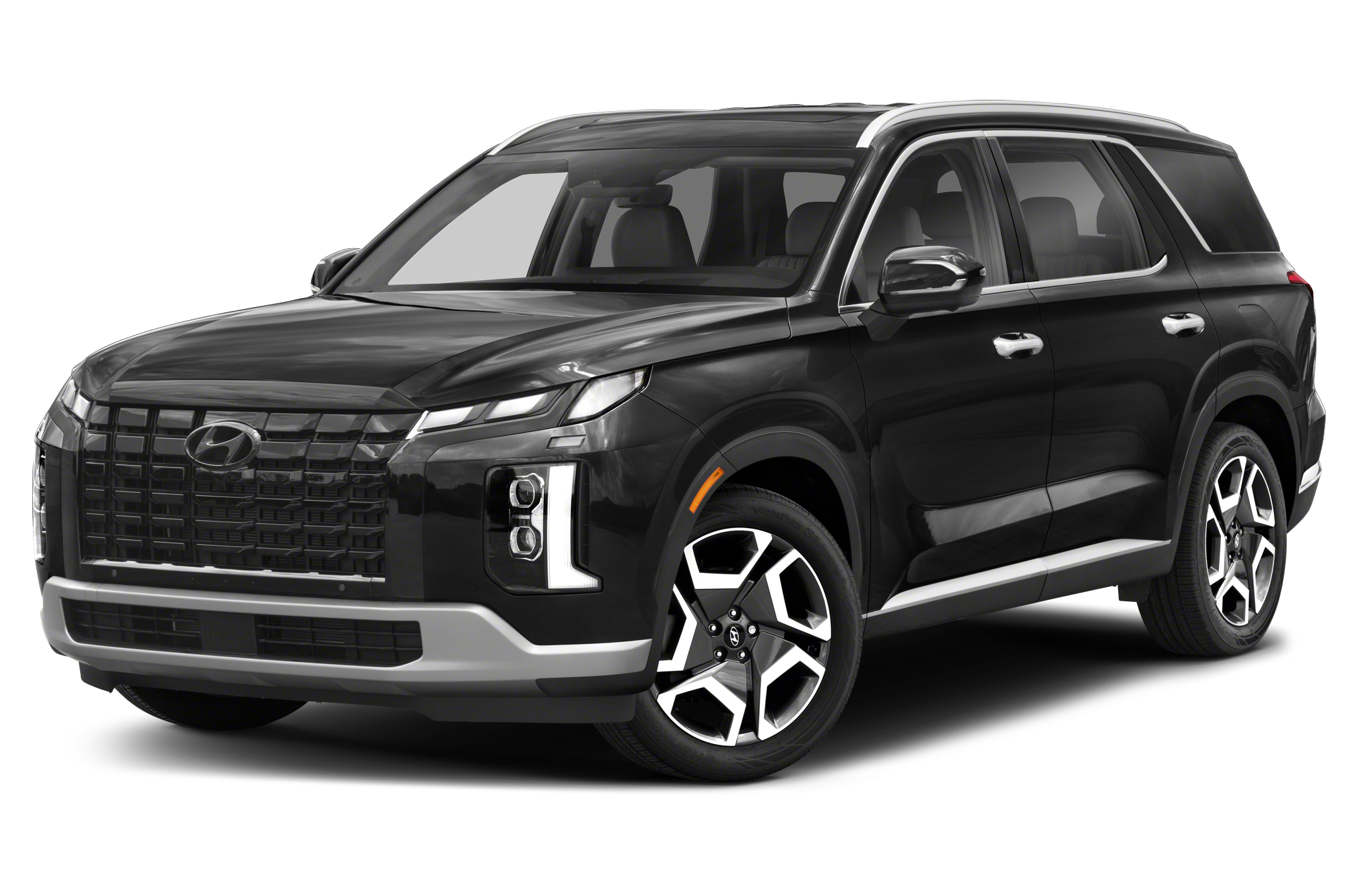

2024 Hyundai PALISADE Calligraphy

Showing the 2024 Hyundai PALISADE Calligraphy AWD

Shop Now

Key specs

4-door
7 seats
291.0-hp, 3.8-liter, V6 Cylinder Engine (Gasoline Fuel)
21 combined MPG
196.7" length, 68.9" height
All Wheel Drive

Color options

Exterior

Stellar Silver

Interior

Black

Beige

Packages

Option Group 01

$0

Starting MSRP
- standard equipment
Cargo Package

$235

Starting MSRP
- Cargo Tray
- Cargo Net
- Cargo Block

Specifications

Highlights

Engine Type: Regular Unleaded V-6
MPG: 19 City / 24 Hwy
Horsepower: 291 hp
Seating Capacity: 7

Brakes

Drum - Rear (Yes or ): N/A
Rear Brake Rotor Diam x Thickness: 12 in
Front Brake Rotor Diam x Thickness: 13 in
Disc - Rear (Yes or ): Yes
Disc - Front (Yes or ): Yes
Brake ABS System (Second Line): N/A
Brake ABS System: 4-Wheel
Brake Type: 4-Wheel Disc

Electrical

Maximum Alternator Capacity (amps): 180
Cold Cranking Amps @ 0° F (Primary): N/A

Engine

Engine Type: Regular Unleaded V-6
Displacement: 3.8 L/231
SAE Net Horsepower @ RPM: 291 @ 6000
SAE Net Torque @ RPM: 262 @ 5200
Transmission Options: 8-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG: 19 City / 24 Hwy
Total Cooling System Capacity: N/A

Entertainment

Bluetooth®: Optional
Bluetooth®: Standard

Measurements

Passenger Capacity: 7
Passenger Volume: 155 ft³
Cargo Volume to Seat 3: 18 ft³
Cargo Volume to Seat 2: 46 ft³
Cargo Volume to Seat 1: 86 ft³
Liftover Height: N/A
Cargo Box (Area) Height: N/A
Cargo Box Width @ Wheelhousings: N/A
Cargo Area Width @ Beltline: N/A
Cargo Area Length @ Floor to Seat 3: N/A
Cargo Area Length @ Floor to Seat 2: N/A
Cargo Area Length @ Floor to Seat 1: N/A
Rear Door Opening Width: N/A
Rear Door Opening Height: N/A
Min Ground Clearance: 8 in
Track Width, Rear: 68 in
Track Width, Front: 67 in
Height, Overall: 69 in
Width, Max w/o mirrors: 78 in
Length, Overall: 197 in
Wheelbase: 114 in
Third Hip Room: 44 in
Third Shoulder Room: 55 in
Third Leg Room: 31 in
Third Head Room: 37 in
Second Hip Room: 58 in
Second Leg Room: 42 in
Second Head Room: 39 in
Front Hip Room: 58 in
Front Shoulder Room: 61 in
Front Leg Room: 44 in
Front Head Room: 39 in
Second Shoulder Room: 61 in

Safety

Backup Camera: Optional
Lane Departure Warning: Standard
Blind Spot Monitor: Standard
Rear Cross Traffic Alert: Standard
Rear Cross Traffic Alert: Optional
Backup Camera: Standard
Automatic Parking: Optional
Stability Control: Standard

Steering

Turning Diameter - Wall to Wall: N/A
Turning Diameter - Curb to Curb: 39 ft
Lock to Lock Turns (Steering): N/A
Steering Ratio (:1), Overall: N/A
Steering Type: Rack-Pinion

Suspension

Suspension Type - Rear (Cont.): Multi-Link
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear: Multi-Link
Suspension Type - Front: Strut

Tires & Wheels

Spare Wheel Material: Steel
Rear Wheel Material: Aluminum
Front Wheel Material: Aluminum
Spare Wheel Size: Compact in
Rear Wheel Size: 20 X 7.5 in
Front Wheel Size: 20 X 7.5 in
Spare Tire Size: Compact
Rear Tire Size: P245/50TR20
Front Tire Size: P245/50TR20

Weight & Capacity

Base Curb Weight: 4,506 lbs
Curb Weight - Front: N/A
Curb Weight - Rear: N/A
Maximum Payload Capacity: N/A
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Wt Distributing Hitch - Max Trailer Wt.: 5,000 lbs
Wt Distributing Hitch - Max Tongue Wt.: 500 lbs
Maximum Trailering Capacity: 5,000 lbs
Total Option Weight: 0 lbs
Curb Weight: N/A
Aux Fuel Tank Capacity, Approx: N/A
Fuel Tank Capacity, Approx: 19 gal
