2001 Hyundai Sonata specs & colors

Starting MSRP
Current listing price

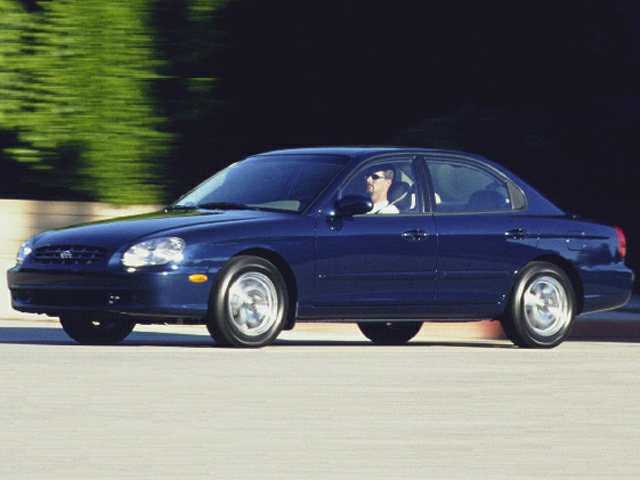

2001 Hyundai Sonata

Showing the 2001 Hyundai Sonata 4dr Sdn Manual

Shop Now

Key specs

Color options






Starting MSRP

  • base vehicle only


Starting MSRP

  • ETR AM/FM stereo w/CD player
  • pwr tilt/slide moonroof w/sunshade


EPA Classification Mid-Size
Front Wheel Material Aluminum
Spare Wheel Material -TBD -
Rear Wheel Material Aluminum
Rear Wheel Size 15 x 6.0 in
Front Wheel Size 15 x 6.0 in
Spare Wheel Size 15 x 4.0 in
Cold Cranking Amps @ 0° F (Primary) 550
Maximum Alternator Capacity (amps) 90
SAE Net Torque @ RPM 156 @ 3000
Displacement 2.4L/146
SAE Net Horsepower @ RPM 149 @ 5500
Engine Type Gas I4
Fuel Economy Est-Combined N/A MPG
EPA MPG Equivalent - Combined N/A
Cruising Range - City 378.40 mi
EPA MPG Equivalent - City N/A
EPA Fuel Economy Est - Hwy 30 MPG
Cruising Range - Hwy 516.00 mi
Estimated Battery Range N/A mi
EPA Fuel Economy Est - City 22 MPG
EPA MPG Equivalent - Hwy N/A
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.46
Third Gear Ratio (:1) 1.30
Fifth Gear Ratio (:1) 0.78
Trans Type 5
Reverse Ratio (:1) 3.46
Fourth Gear Ratio (:1) 0.94
Final Drive Axle Ratio (:1) 3.88
Drivetrain Front Wheel Drive
Second Gear Ratio (:1) 1.95
Trans Description Cont. Manual w/OD
Suspension Type - Rear Independent
Suspension Type - Rear (Cont.) Multi-Link
Suspension Type - Front (Cont.) Double-wishbone
Suspension Type - Front Independent
Brake ABS System Not Available
Rear Brake Rotor Diam x Thickness Not Available in
Brake Type Pwr-Assisted
Disc - Rear (Yes or ) Not Available
Drum - Rear (Yes or ) Yes
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Front Brake Rotor Diam x Thickness 10.9 x -TBD- in
Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 17.2 gal
Turning Diameter - Wall to Wall 20.8 ft
Lock to Lock Turns (Steering) 2.92
Steering Ratio (:1), Overall 14.1
Turning Diameter - Curb to Curb 34.4 ft
Steering Type Pwr Rack & Pinion
Spare Tire Size Compact
Front Tire Size P205/60HR15
Rear Tire Size P205/60HR15
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Dead Weight Hitch - Max Tongue Wt. 200 lbs
Dead Weight Hitch - Max Trailer Wt. 2000 lbs
Base Curb Weight 3072 lbs
Width, Max w/o mirrors 71.6 in
Track Width, Front 60.9 in
Height, Overall 55.5 in
Trunk Volume 113 ft³
Second Leg Room 36.2 in
Length, Overall 185.4 in
Wheelbase 106.3 in
Min Ground Clearance 6.34 in
Second Head Room 37.6 in
Front Hip Room 55.9 in
Front Leg Room 43.3 in
Passenger Volume 100.0 ft³
Passenger Capacity 5
Track Width, Rear 59.8 in
Liftover Height 27.1 in
Second Hip Room 54.3 in
Front Shoulder Room 56.9 in
Front Head Room 39.3 in
Second Shoulder Room 55.7 in
Delay-out interior lighting w/illuminated ignition Standard
Full cloth insert door trim Standard
Tinted glass w/windshield sunshade band Standard
Driver & front passenger front & side airbags w/passenger presence detection Standard
60/40 split fold-down rear seatback w/center armrest, adjustable headrests Standard
Reclining front bucket seats w/6-way adjustable driver seat w/lumbar support, headrests & adjustable height Standard
5-MPH bumpers Standard
Front door map pockets Standard
Halogen headlamps Standard
Front/rear assist grips (3) Standard
Unitized body construction Standard
Double-wishbone front suspension w/upper & lower A-arms Standard
Black window surround moldings Standard
Digital quartz clock Standard
5-mph body color bumpers Standard
2.4L (143) DOHC 16-valve 4-cyl inline engine Standard
Driver side sunvisor w/mirror Standard
Rear window defroster w/timer Standard
Pwr speed sensitive rack & pinion steering Standard
Carpeted cargo area side trim Standard
Fixed mast antenna Standard
Body-color body-side moldings/bumpers/grille/door handles Standard
15" x 6" 5-spoke aluminum wheels Standard
P205/60HR15 SBR Michelin tires Standard
Secondary pwr outlet Standard
Child seat anchor Standard
Variable intermittent windshield wipers Standard
Rear seatback storage pocket Standard
Tachometer, trip odometer, water temp gauges Standard
Center console w/armrest & storage Standard
Dual body-color pwr exterior mirrors Standard
Climate control air conditioning Standard
Pwr dual diagonal ventilated front disc/self-adjusting rear drum brakes Standard
5-speed manual transmission w/OD Standard
75-amp alternator Standard
Remote hood/fuel/trunk door releases w/trunk lock-out feature Standard
Independent multi-link rear suspension Standard
Front wheel drive Standard
3-point front seat belts w/height adjuster, dual-mode passenger retractor, belt pretensioners Standard
Front/rear stabilizer bars Standard
Rear child safety door locks Standard
Full cloth seat trim Standard
Cruise control mounted on steering wheel Standard
Low fuel, door/trunk ajar warning lights Standard
Color-keyed 4-spoke soft grip steering wheel w/tilt column Standard
Dual front cup holders in console Standard
Passenger side sunvisor vanity mirror Standard
Pwr windows w/driver-side express down Standard
17.2 Gallon fuel tank Standard
12-volt pwr accessory outlet Standard
ETR AM/FM stereo w/cassette Standard
Maintenance free 12-volt 55-amp/hour battery Standard
Pwr door locks Standard
Rear seat heater ducts Standard
Cargo area illumination Standard
3-point rear seat belts Standard
Lockable glove box Standard
Cut pile carpeting in cargo area floor & side trim Standard
City 22/hwy 30 (2.4L engine/5-speed manual trans) Standard
