2004 Hyundai Sonata specs & colors

Starting MSRP
Current listing price

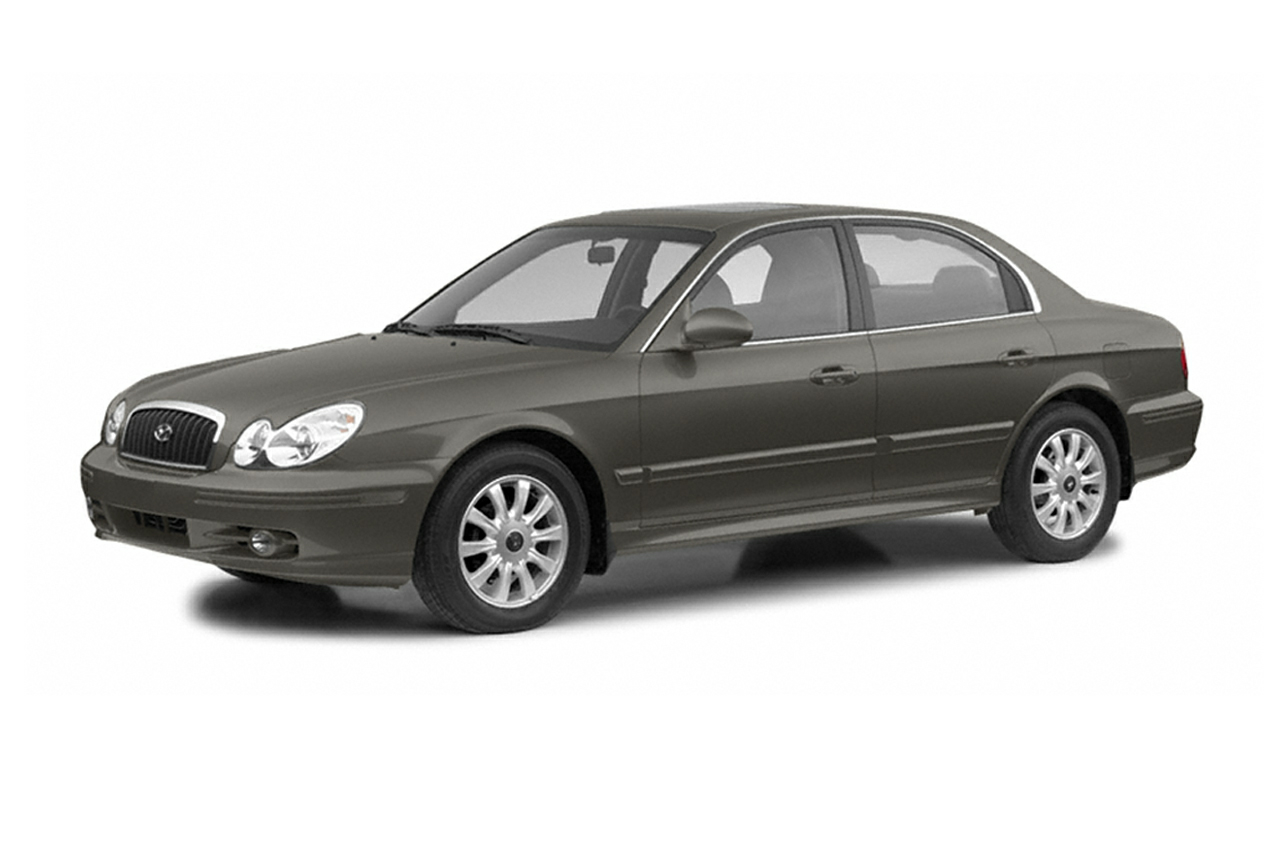

2004 Hyundai Sonata

Showing the 2004 Hyundai Sonata 4dr Sdn I4 Manual

Shop Now

Key specs

Color options






Starting MSRP

  • base vehicle only


Starting MSRP

  • anti-lock braking system (ABS)


EPA Classification Mid-Size
Front Wheel Size 15 x 6 in
Rear Wheel Size 15 x 6 in
Spare Wheel Size Compact in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) 95
Displacement 2.4L/143
SAE Net Horsepower @ RPM 138 @ 5500
SAE Net Torque @ RPM 147 @ 3000
Engine Type Gas I4
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi
EPA Fuel Economy Est - Hwy 30 MPG
Cruising Range - City 378.40 mi
EPA Fuel Economy Est - City 22 MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 516.00 mi
Trans Type 5
Trans Description Cont. Manual w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 3.46
Second Gear Ratio (:1) 1.95
Third Gear Ratio (:1) 1.30
Fourth Gear Ratio (:1) 0.94
Fifth Gear Ratio (:1) 0.78
Reverse Ratio (:1) 3.46
Final Drive Axle Ratio (:1) 3.88
Drivetrain Front Wheel Drive
Suspension Type - Front Independent
Suspension Type - Rear Independent
Suspension Type - Front (Cont.) Double-wishbone
Suspension Type - Rear (Cont.) Multi-Link
Brake Type Pwr-Assisted
Brake ABS System Not Available
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 11.0 x -TBD- in
Rear Brake Rotor Diam x Thickness 10.3 x -TBD- in
Drum - Rear (Yes or ) Not Available
Fuel Tank Capacity, Approx 17.2 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Pwr Rack & Pinion
Steering Ratio (:1), Overall 14.1
Lock to Lock Turns (Steering) 2.92
Turning Diameter - Curb to Curb 34.4 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P205/65R15
Rear Tire Size P205/65R15
Spare Tire Size Compact
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Base Curb Weight 3181 lbs
Front Head Room 39.3 in
Front Leg Room 43.3 in
Front Shoulder Room 56.9 in
Front Hip Room 55.8 in
Second Head Room 37.6 in
Second Leg Room 36.2 in
Second Shoulder Room 55.7 in
Second Hip Room 54.4 in
Wheelbase 106.3 in
Length, Overall 186.9 in
Width, Max w/o mirrors 71.7 in
Height, Overall 56.0 in
Track Width, Front 60.6 in
Track Width, Rear 60.2 in
Min Ground Clearance N/A in
Liftover Height N/A in
Trunk Volume 14.1 ft³
Passenger Capacity 5
Passenger Volume 100.0 ft³
Rear window defroster w/timer Standard
Digital quartz clock Standard
Fixed mast antenna Standard
Rear 3-point ELR/ALR seat belts Standard
Energy-absorbing front/rear crumple zones Standard
5-speed manual transmission w/OD Standard
Rear child safety door locks Standard
Rear seat heater ventilation Standard
Driver/front passenger side-impact airbags Standard
Independent double-wishbone MacPherson strut front suspension w/gas shocks Standard
Dual body-color pwr exterior mirrors Standard
ETR AM/FM stereo-inc: CD player, (6) speakers Standard
Variable-intermittent windshield wipers w/washers Standard
Front fog lamps Standard
Aerodynamic halogen headlamps Standard
Body-color body-side moldings Standard
Front 3-point seat belts-inc: height adjustable anchors, belt pretensioners, force limiters, driver-side ELR, passenger-side ELR/ALR Standard
Cruise control Standard
(3) child safety seat anchors Standard
Glove box Standard
Remote releases-inc: fuel, trunk door Standard
Pwr door locks Standard
Cloth reclining front bucket seats-inc: multi-adjustable driver seat, adjustable head restraints Standard
P205/65R15 all-season Michelin tires Standard
Full cut pile carpeting Standard
Tinted glass Standard
Energy-absorbing collapsible steering wheel Standard
Full instrumentation-inc: tachometer, warning lamps Standard
Multi-link rear suspension w/trailing arms Standard
Pwr assisted speed-sensitive rack & pinion steering Standard
2.4L (143) DOHC MPFI 16-valve 4-cyl I4 engine Standard
Transmission shift interlock Standard
Air conditioning Standard
Cloth insert door trim Standard
Front wheel drive Standard
Driver/front passenger front airbags w/passenger presence detection system Standard
Front door map pockets Standard
Driver/front passenger sunvisors w/vanity mirrors Standard
17.2 gallon fuel tank Standard
Cargo area 12-volt pwr outlet Standard
Fully trimmed cargo area-inc: trunk lid Standard
Pwr windows w/driver-side auto-down Standard
Front cup holders Standard
Central overhead lamp Standard
City 22/hwy 30 (2.4L engine/5-speed manual trans) Standard
Body-color door handles Standard
Front/rear assist grips Standard
Remote keyless entry system w/alarm Standard
4-spoke soft-grip tilt steering wheel Standard
Cargo area lamp Standard
Front/rear stabilizer bar Standard
60/40 split-folding rear seat Standard
15" steel wheels w/full wheel covers Standard
Pwr 4-wheel disc brakes Standard
Center console w/armrest & storage Standard
Body-color front/rear bumpers Standard
Temporary spare tire Standard
