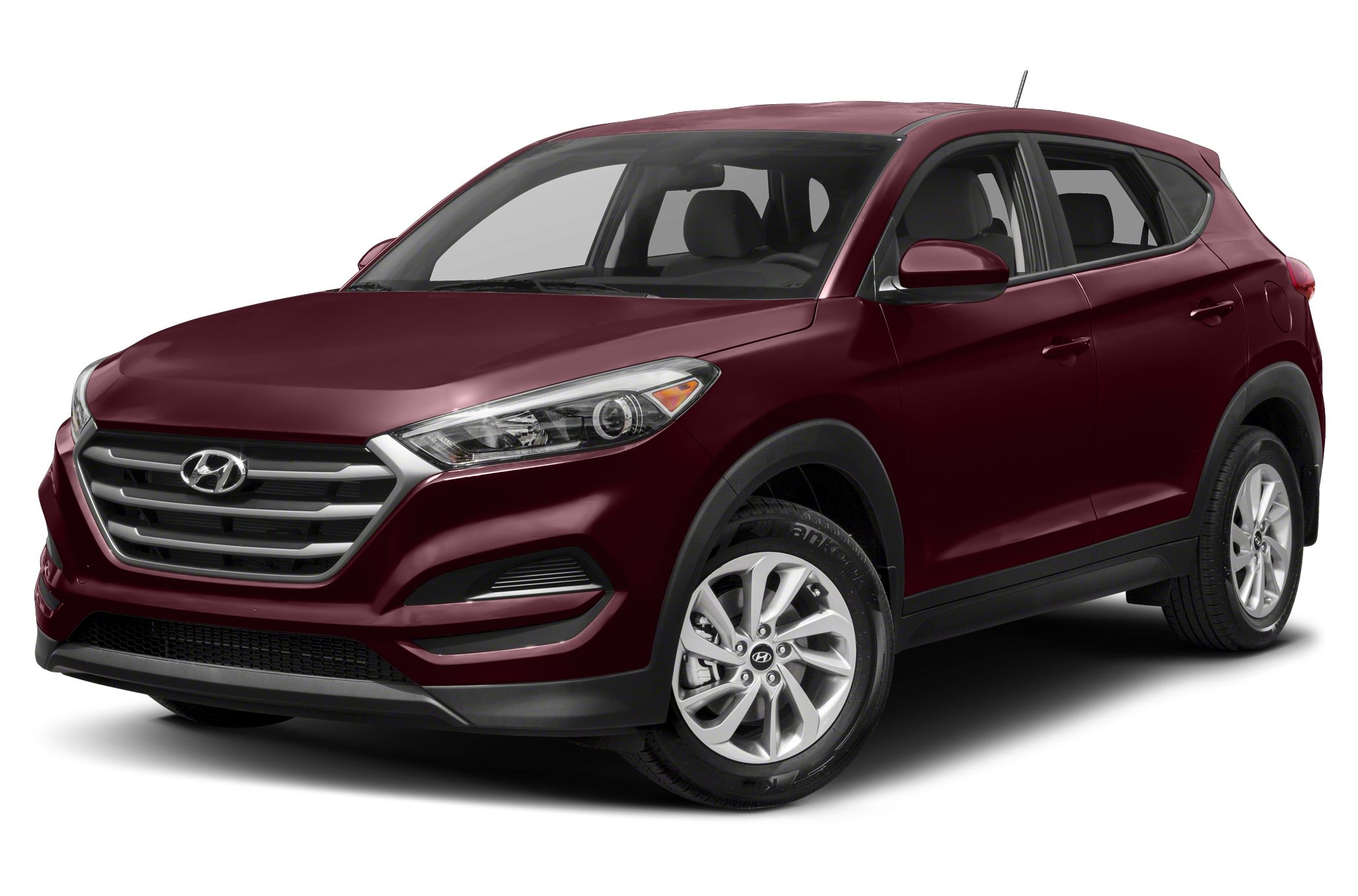

2017 Hyundai TUCSON Eco specs & colors
Sport Utility
MSRP
- SE FWD
- $22,700
- SE AWD
- $24,100
- Eco FWD
- $24,150
- Eco AWD
- $25,550
- Sport FWD
- $25,900
- Value FWD
- $26,550
- SE Plus FWD
- $26,750
- Sport AWD
- $27,300
- Night FWD
- $27,800
- Value AWD
- $27,950
- SE Plus AWD
- $28,150
- Night AWD
- $29,200
- Limited FWD
- $29,775
- Limited AWD
- $31,175
Key specs
Color options
Interior
Black
Gray
Beige
Packages
$180
Starting MSRP
- Cargo Tray
- rubber-like non-slip protective cover for rear cargo compartment
- Cargo Net
See more detail $180
Starting MSRP
- Cargo Tray
- rubber-like non-slip protective cover for rear cargo compartment
- Cargo Net
- First Aid Kit
$0
Starting MSRP
Specifications
Highlights
|
Intercooled Turbo Regular Unleaded I-4
Engine Type
|
|
25 City / 30 Hwy
MPG
|
|
175 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
12 in
Front Brake Rotor Diam x Thickness
|
|
12 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
130
Maximum Alternator Capacity (amps)
|
Engine
|
Intercooled Turbo Regular Unleaded I-4
Engine Type
|
|
1.6 L/97
Displacement
|
|
175 @ 5500
SAE Net Horsepower @ RPM
|
|
195 @ 1500
SAE Net Torque @ RPM
|
|
7-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
25 City / 30 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
5
Passenger Capacity
|
|
102 ft³
Passenger Volume
|
|
40 in
Front Head Room
|
|
42 in
Front Leg Room
|
|
57 in
Front Shoulder Room
|
|
56 in
Front Hip Room
|
|
39 in
Second Head Room
|
|
38 in
Second Leg Room
|
|
56 in
Second Shoulder Room
|
|
55 in
Second Hip Room
|
|
105 in
Wheelbase
|
|
176 in
Length, Overall
|
|
73 in
Width, Max w/o mirrors
|
|
65 in
Height, Overall
|
|
63 in
Track Width, Front
|
|
64 in
Track Width, Rear
|
|
6 in
Min Ground Clearance
|
|
N/A
Rear Door Opening Height
|
|
N/A
Rear Door Opening Width
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Liftover Height
|
|
62 ft³
Cargo Volume to Seat 1
|
|
31 ft³
Cargo Volume to Seat 2
|
|
N/A
Cargo Volume to Seat 3
|
Safety
|
Standard
Backup Camera
|
|
Standard
Stability Control
|
Steering
|
Rack-Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Lock to Lock Turns (Steering)
|
|
35 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Strut
Suspension Type - Front
|
|
Multi-Link
Suspension Type - Rear
|
|
Strut
Suspension Type - Front (Cont.)
|
|
Multi-Link
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
P225/60HR17
Front Tire Size
|
|
P225/60HR17
Rear Tire Size
|
|
Compact
Spare Tire Size
|
|
17 X 7 in
Front Wheel Size
|
|
17 X 7 in
Rear Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
3,499 lbs
Base Curb Weight
|
|
N/A
Curb Weight - Front
|
|
N/A
Curb Weight - Rear
|
|
N/A
Maximum Payload Capacity
|
|
1,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
100 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
1,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
100 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
1,000 lbs
Maximum Trailering Capacity
|
|
16 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Curb Weight
|
|
0 lbs
Total Option Weight
|
