2026 INEOS Grenadier Trialmaster Edition specs & colors
Sport Utility
MSRP
- 4x4
- $71,000
- Fieldmaster Edition 4x4
- $79,000
- Trialmaster Edition 4x4
- $79,000
- Black Edition 4x4
- $82,995
- Trialmaster X Edition 4x4
- $85,995
$79,000
Starting MSRP
Current listing price
Current listing price

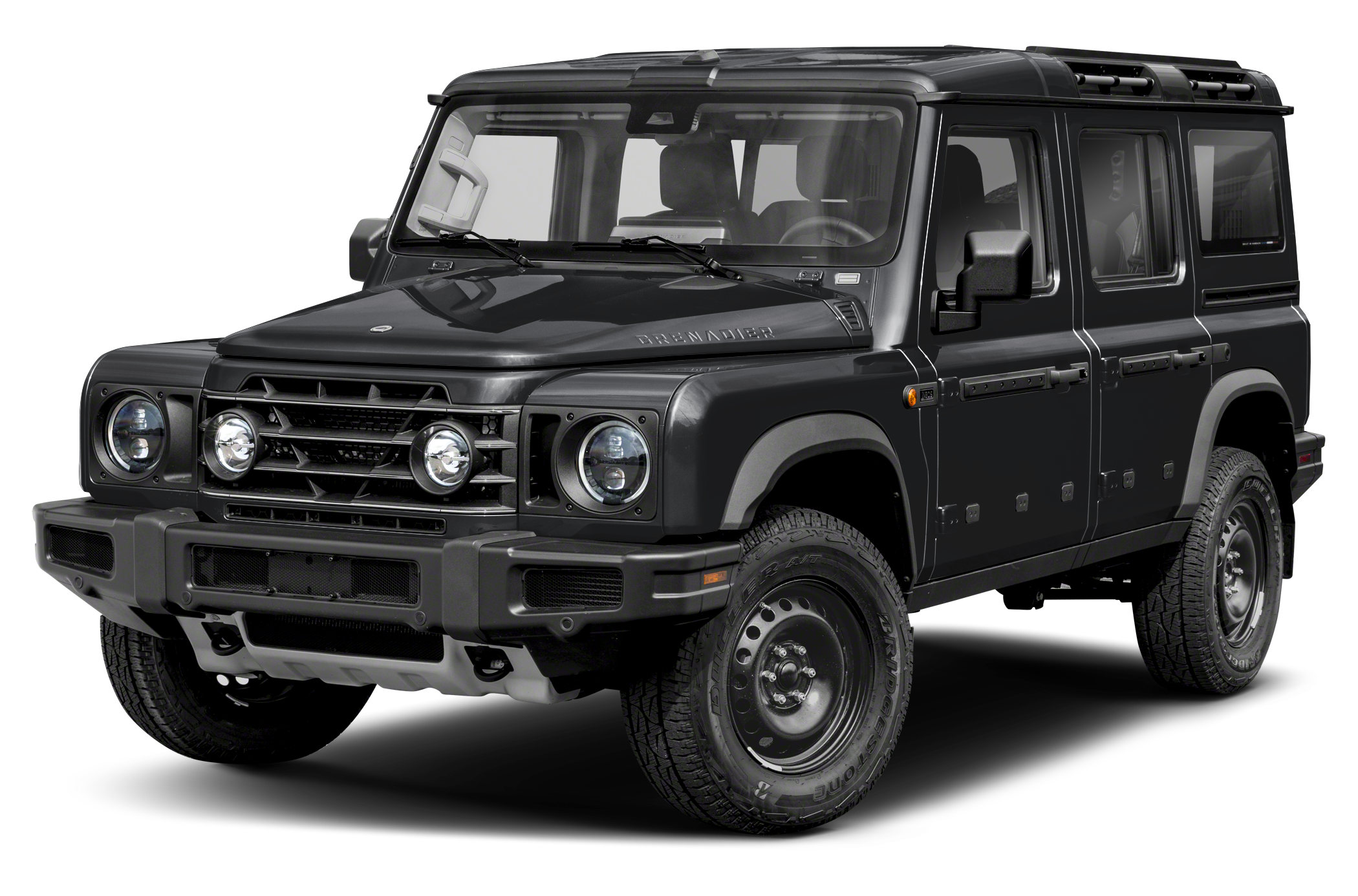

Showing the 2026 INEOS Grenadier Trialmaster Edition 4x4
Shop 2026 INEOS Grenadier
Key specs
Color options
Interior
Black
Gray / Black
Packages
Specifications
Highlights
|
Intercooled Turbo Premium Gasoline I-6
Engine Type
|
|
14 City / 14 Hwy
MPG
|
|
282 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
12 in
Front Brake Rotor Diam x Thickness
|
|
12 in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Rear (Yes or )
|
|
N/A
Drum - Rear (Yes or )
|
|
4-Wheel
Brake ABS System
|
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
Electrical
|
N/A
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
3.0 L/183
Displacement
|
|
282 @ 4750
SAE Net Horsepower @ RPM
|
|
332 @ 1750
SAE Net Torque @ RPM
|
|
Intercooled Turbo Premium Gasoline I-6
Engine Type
|
|
8-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
14 City / 14 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
N/A
Liftover Height
|
|
N/A
Cab to End of Frame
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Rear Door Opening Height
|
|
N/A
Ext'd Cab Cargo Volume
|
|
39 in
Front Leg Room
|
|
N/A
Front Hip Room
|
|
N/A
Track Width, Rear
|
|
191 in
Length, Overall
|
|
N/A
Cargo Volume
|
|
N/A
Ground to Top of Load Floor
|
|
72 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Box Width @ Floor
|
|
10 in
Min Ground Clearance
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Tailgate Width
|
|
5
Passenger Capacity
|
|
N/A
Front Shoulder Room
|
|
41 ft³
Cargo Volume to Seat 2
|
|
N/A
Ground Clearance, Rear
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Ground Clearance, Front
|
|
N/A
Second Hip Room
|
|
N/A
Track Width, Front
|
|
30 in
Second Leg Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Second Shoulder Room
|
|
41 in
Cargo Box (Area) Height
|
|
81 in
Height, Overall
|
|
76 in
Width, Max w/o mirrors
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Rear Door Opening Width
|
|
39 in
Front Head Room
|
|
39 in
Second Head Room
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Overhang, Front
|
|
115 in
Wheelbase
|
|
N/A
Length, Overall w/rear bumper
|
|
N/A
Cargo Volume to Seat 3
|
Safety
|
Standard
Backup Camera
|
|
Standard
Lane Departure Warning
|
|
Standard
Stability Control
|
Steering
|
Re-Circulating Ball
Steering Type
|
|
44 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
|
N/A
Steering Ratio (:1), Overall
|
Suspension
|
Multi-Link
Suspension Type - Front
|
|
Multi-Link
Suspension Type - Rear
|
|
Non-Independent
Axle Type - Front
|
|
Rigid Axle
Axle Type - Rear
|
Tires & Wheels
|
Full-Size in
Spare Wheel Size
|
|
Steel
Front Wheel Material
|
|
Full-Size
Spare Tire Size
|
|
LT265/70SR17
Rear Tire Size
|
|
Steel
Spare Wheel Material
|
|
LT265/70SR17
Front Tire Size
|
|
Steel
Rear Wheel Material
|
|
17 X 7 in
Front Wheel Size
|
|
17 X 7 in
Rear Wheel Size
|
Weight & Capacity
|
0 lbs
Option Weight - Front
|
|
N/A
Gross Axle Weight Rating
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
7,716 lbs
Gross Vehicle Weight Rating
|
|
24 gal
Fuel Tank Capacity, Approx
|
|
5,875 lbs
Base Curb Weight
|
|
0 lbs
Option Weight - Rear
|
|
7,716 lbs
Maximum Trailering Capacity
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
772 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
N/A
As Spec'd Curb Weight
|
|
N/A
Gross Combined Wt Rating
|
|
N/A
Curb Weight - Front
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
0 lbs
Total Option Weight
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Curb Weight - Rear
|
|
7,716 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
As Spec'd Payload
|
|
N/A
Curb Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
