2002 Jaguar XJ8 VDP Supercharged specs & colors

Starting MSRP
Current listing price

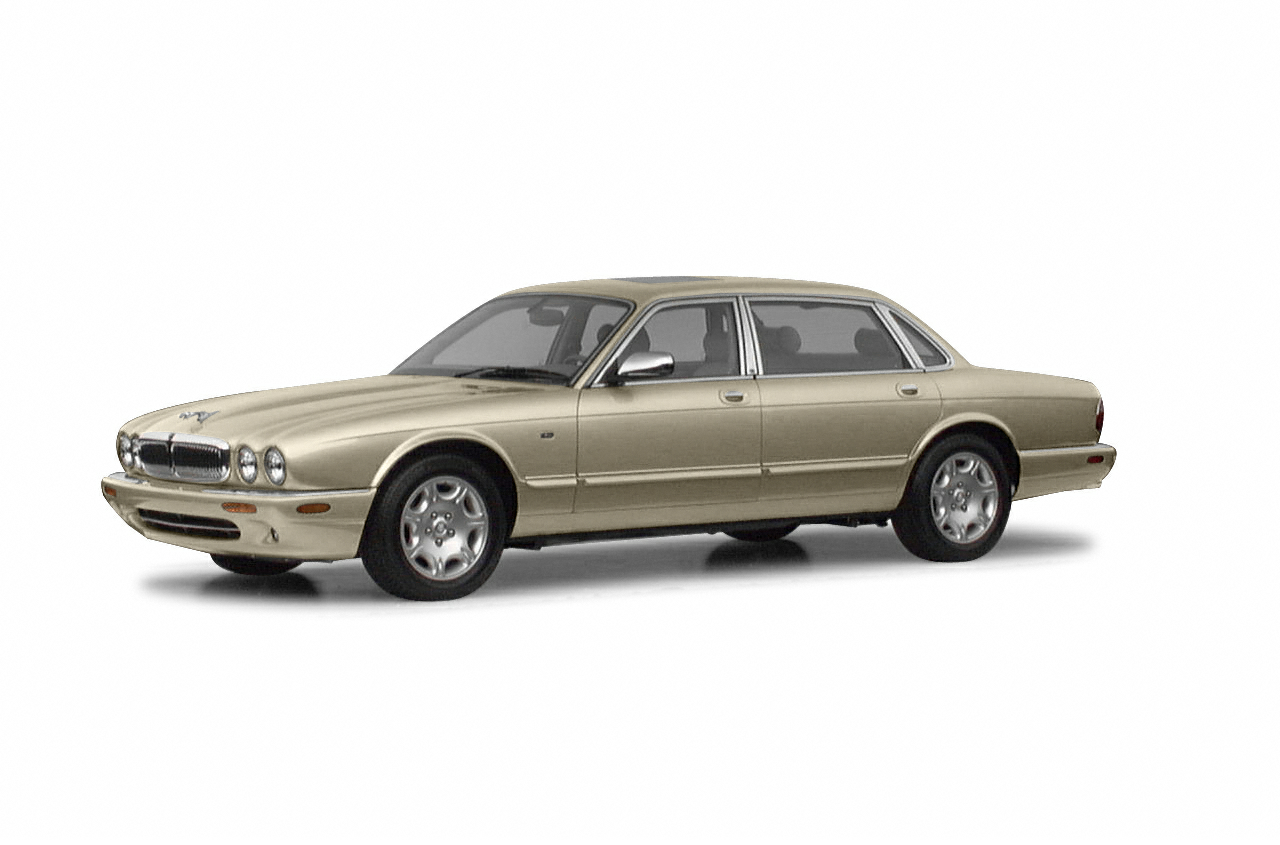

2002 Jaguar XJ8 VDP Supercharged

Showing the 2002 Jaguar XJ8 4dr Sdn VDP Supercharged

Shop Now

Key specs

Color options


No colors available



EPA Classification Mid-Size
Front Wheel Size 17 x 7.5 in
Rear Wheel Size 17 x 7.5 in
Spare Wheel Size 17 x 7.5 in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Aluminum
Cold Cranking Amps @ 0° F (Primary) 700
Maximum Alternator Capacity (amps) 120
Engine Type Gas V8
Displacement 4.0L/244
SAE Net Horsepower @ RPM 370 @ 6150
SAE Net Torque @ RPM 387 @ 3600
EPA Fuel Economy Est - Hwy 22 MPG
Cruising Range - City 369.60 mi
EPA Fuel Economy Est - City 16 MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 508.20 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi
Drivetrain Rear Wheel Drive
Trans Type 5
Trans Description Cont. Not Available
Trans Description Cont. Again Automatic w/OD
First Gear Ratio (:1) 3.59
Second Gear Ratio (:1) 2.19
Third Gear Ratio (:1) 1.41
Fourth Gear Ratio (:1) 1.00
Fifth Gear Ratio (:1) 0.83
Reverse Ratio (:1) 3.16
Final Drive Axle Ratio (:1) 3.06
Suspension Type - Front Fully Independent
Suspension Type - Rear Fully Independent
Suspension Type - Front (Cont.) Double Wishbone
Suspension Type - Rear (Cont.) Lower Wishbone
Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.8 x 1.1 in
Rear Brake Rotor Diam x Thickness 12.0 x 0.79 in
Drum - Rear (Yes or ) Not Available
Fuel Tank Capacity, Approx 23.1 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Speed-Sensitive Pwr Rack & Pinion
Steering Ratio (:1), Overall Variable
Lock to Lock Turns (Steering) 2.8
Turning Diameter - Curb to Curb 40.7 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P235/50ZR17
Rear Tire Size P235/50ZR17
Spare Tire Size P235/50ZR17
Dead Weight Hitch - Max Trailer Wt. Not Available lbs
Dead Weight Hitch - Max Tongue Wt. Not Available lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Base Curb Weight 4079 lbs
Passenger Capacity 5
Passenger Volume 102 ft³
Front Head Room 37.2 in
Front Leg Room 41.2 in
Front Shoulder Room 57.3 in
Front Hip Room 55.7 in
Second Head Room 36.9 in
Second Leg Room 39.2 in
Second Shoulder Room 57.3 in
Second Hip Room 60.3 in
Wheelbase 117.9 in
Length, Overall 202.7 in
Width, Max w/o mirrors 70.8 in
Height, Overall 53.2 in
Track Width, Front 59.1 in
Track Width, Rear 59.0 in
Min Ground Clearance 5.1 in
Liftover Height 20.9 in
Trunk Volume 12.7 ft³
Automatic stability/traction control Standard
5-speed automatic transmission w/OD, normal & sport shift modes Standard
Driver & front passenger front airbags Standard
Integrated 4-channel garage door/entry gate opener (Homelink compatible) Standard
Vehicle security system w/remote entry, engine immobilizer, audible verification Standard
Pwr 4-wheel ventilated disc brakes Standard
Fully independent front suspension w/double wishbones, coil springs, anti-roll bar, adaptive shocks, anti-dive geometry Optional
Central locking doors/trunk/fuel filler door Standard
Door-mounted curb illumination lamps Standard
Pwr tilt/telescopic steering wheel-inc: auto tilt-away feature, audio/speed controls Standard
Reverse park control (RPC) (Provides an audible warning to the driver of the distance to an obstacle behind the vehicle) Standard
Multi-adjustable pwr heated front bucket seats w/lumbar support Optional
Front passenger seat adjustment from rear Optional
4.0L (244) DOHC EFI 32-valve supercharged & intercooled aluminum alloy V8 engine w/fixed cam phasing Standard
Speed control Standard
Heated rear window Standard
Trip computer/message center/outside-temperature indicator Standard
Electrochromic rearview mirror Standard
4-wheel anti-lock brakes w/yaw control (ABS Plus) Standard
Premium Connolly leather trimmed interior Optional
117.9" wheelbase Standard
17" x 7.5" aluminum wheels Optional
Cellular phone pre-wiring Standard
Rear wheel drive Standard
One-touch pwr tilt/slide sunroof Standard
Automatic stability/traction control-inc: engine/brake intervention Standard
Chrome "leaper" hood ornament Standard
Front/rear fog lamps Standard
City 16/hwy 22 (4.0L supercharged engine/5-speed auto trans) Standard
23.1 gallon fuel tank Standard
Pwr heated chrome door mirrors Optional
Heated rear seat Optional
Driver & front passenger side airbags Standard
Integrated navigation system Optional
Rain-sensing variable intermittent windshield wiper Standard
Illuminated sun visors/map lights Standard
Fully independent rear suspension w/driveshafts acting as upper links, coil springs, adaptive shocks Optional
3-point rear safety belts Standard
320-watt Alpine audiophile sound system-inc: 6-disc CD autochanger Optional
Automatic climate control Standard
Child seat safety belt locking/tether anchorage Standard
Auto on/off headlamps Standard
4-wheel anti-lock brakes (ABS) Standard
Lambswool footwell rugs Optional
Rear seat cigar lighter Optional
3-position memory w/personalized remote activation-inc: door mirrors, driver seat, steering column position Standard
Speed-proportional, variable ratio, pwr rack & pinion steering Standard
P235/50ZR17 SBR Pirelli tires Optional
Touring-tuned computer active technology suspension system (CATS) Optional
Pwr windows w/one-touch down Standard
Burl walnut trim-inc: fold-out picnic trays, gearshift knob, steering wheel, Peruvian boxwood inlays Optional
3-point front safety belts w/height-adjustable upper anchorages, pretensioners Standard
Retractable cup holders Standard
Full-size spare wheel/tire Standard
