2025 Jeep Wagoneer Series II Limited specs & colors

MSRP
4x2
$59,945
4x4
$62,945
Series II 4x2
$63,945
Series II Carbide 4x2
$63,945
Series II 4x4
$66,945
Series II Limited 4x4
$66,945
Series II Overland 4x4
$66,945
Series II Carbide 4x4
$66,945
Series III Super 4x4
$73,945
Series III 4x4
$73,945
$66,945
Starting MSRP
Current listing price

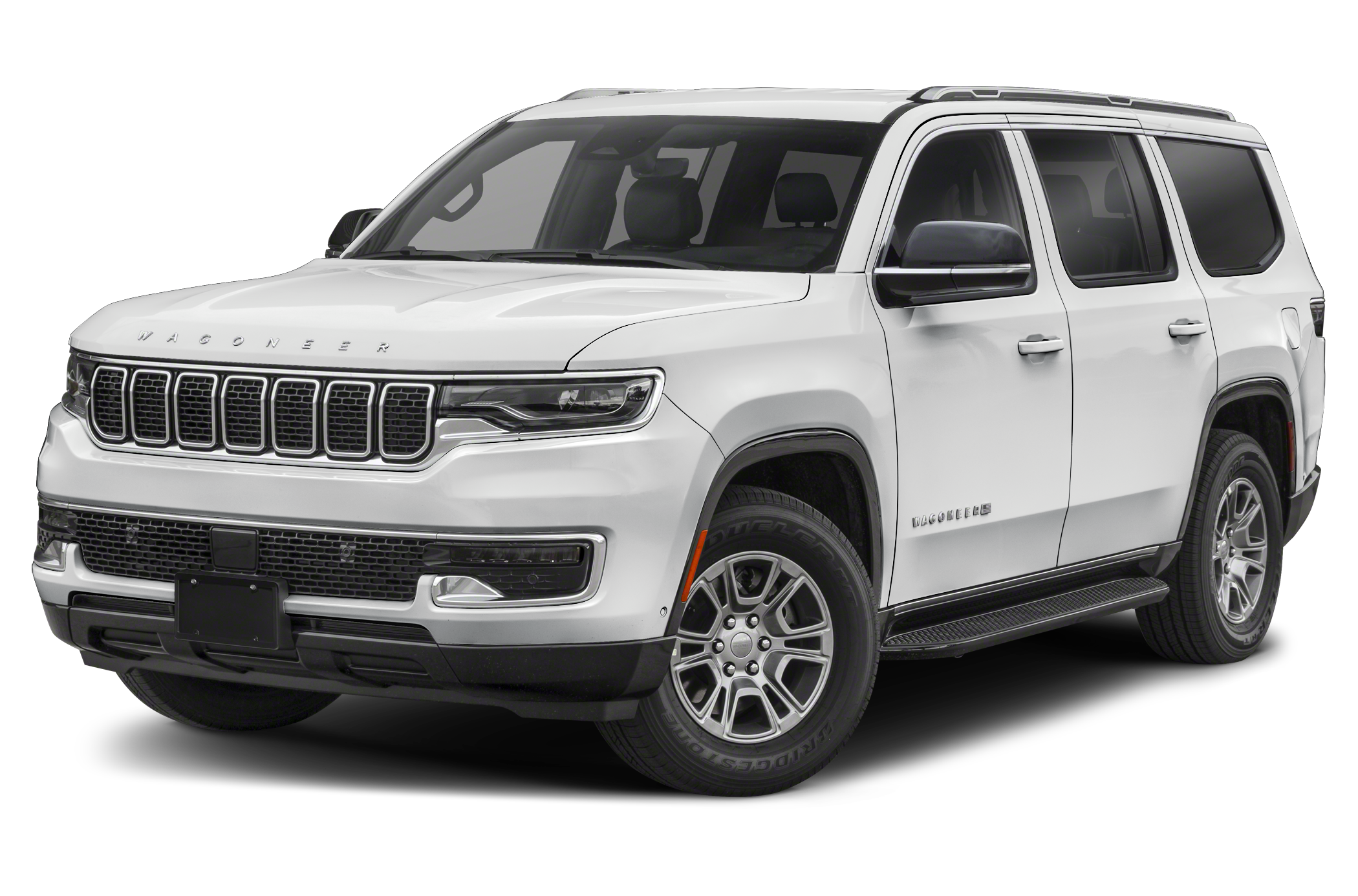

2025 Jeep Wagoneer Series II Limited

Showing the 2025 Jeep Wagoneer Series II Limited 4x4

Shop Now

Key specs

  • 4-door
  • 8 seats
  • 420.0-hp, 3.0-liter, Straight 6 Cylinder Engine (Gasoline Fuel)
  • 19 combined MPG
  • 214.7" length, 75.6" height
  • Four Wheel Drive

Color options

Exterior

River Rock

Interior
Global Black
Sea Salt / Black

Packages

  • MOPAR Interior Protection Package

    $395

    Starting MSRP

    • All-Season Floor Mats
    • Cargo Tray
  • 8-Passenger Seating Package

    $995

    Starting MSRP

    • 8 Passenger Seating
    • 40/20/40 2nd Row Bench Power Tip/Slide
    • 60/40 Power Recline 3rd Row Seat
    See more detail
    • 8 Passenger Seating
    • 40/20/40 2nd Row Bench Power Tip/Slide
    • 60/40 Power Recline 3rd Row Seat
    • Full Length Floor Console
    • GVWR: 7,600 lbs
  • Quick Order Package 25L Limited

    $7,495

    Starting MSRP

    • Engine: 3.0L I6 Hurricane SO Twin Turbo ESS
    • Transmission: 8-Speed Automatic (8HP75)
    • Side Distance Warning
    See more detail
    • Engine: 3.0L I6 Hurricane SO Twin Turbo ESS
    • Transmission: 8-Speed Automatic (8HP75)
    • Side Distance Warning
    • Quadra-Lift Air Suspension
    • 60/40 Power Recline 3rd Row Seat
    • Surround View Camera System
    • Semi Active Damping
    • Power Deployable Running Boards
    • Traffic Sign Recognition
    • Auto Power-Folding Mirrors
    • Auto High Beam Headlamp Control
    • P&P Park & Unpark Assist w/Stop System
    • Drowsy Driver Detection
    • Exterior Accents Limited
    • Intersection Collision Assist System
    • Auto Power Folding Exterior Mirrors
    • 3 Panel Sunroof

Specifications

Highlights

Engine Type
Twin Turbo Regular Gasoline I-6
MPG
16 City / 23 Hwy
Horsepower
420 hp
Seating Capacity
8

Brakes

Brake Type
4-Wheel Disc
Brake ABS System (Second Line)
4-Wheel
Front Brake Rotor Diam x Thickness
15 in
Rear Brake Rotor Diam x Thickness
15 in
Drum - Rear (Yes or )
N/A
Disc - Rear (Yes or )
Yes
Brake ABS System
4-Wheel
Disc - Front (Yes or )
Yes

Electrical

Maximum Alternator Capacity (amps)
230
Cold Cranking Amps @ 0° F (Primary)
700

Engine

SAE Net Torque @ RPM
468 @ 3500
SAE Net Horsepower @ RPM
420 @ 5200
Displacement
3.0 L/183
Engine Type
Twin Turbo Regular Gasoline I-6
Transmission Options
8-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG
16 City / 23 Hwy
Total Cooling System Capacity
N/A

Entertainment

Bluetooth®
Standard

Measurements

Front Head Room
41 in
Ground to Top of Load Floor
N/A
Height, Overall
76 in
Length, Overall w/rear bumper
N/A
Cargo Box (Area) Height
N/A
Second Shoulder Room
65 in
Length, Overall
215 in
Ground Clearance, Front
N/A
Cargo Volume to Seat 3
27 ft³
Front Leg Room
41 in
Cargo Volume
N/A
Liftover Height
34 in
Second Head Room
40 in
Front Hip Room
63 in
Min Ground Clearance
8 in
Second Leg Room
43 in
Third Leg Room
37 in
Ext'd Cab Cargo Volume
N/A
Rear Door Opening Height
N/A
Ground Clearance, Rear
N/A
Cargo Area Length @ Floor to Seat 1
N/A
Cargo Box Width @ Wheelhousings
N/A
Width, Max w/o mirrors
84 in
Cargo Volume to Seat 2
71 ft³
Cargo Area Length @ Floor to Seat 3
N/A
Wheelbase
123 in
Cargo Box Width @ Top, Rear
N/A
Cab to End of Frame
N/A
Overhang, Front
N/A
Tailgate Width
N/A
Third Head Room
39 in
Cargo Box Width @ Floor
N/A
Track Width, Front
68 in
Track Width, Rear
68 in
Cargo Volume to Seat 1
117 ft³
Second Hip Room
63 in
Third Shoulder Room
64 in
Front Shoulder Room
66 in
Overhang, Rear w/o bumper
N/A
Rear Door Opening Width
N/A
Cargo Area Length @ Floor to Seat 2
N/A
Third Hip Room
52 in
Passenger Capacity
7
Cargo Area Width @ Beltline
N/A

Safety

Blind Spot Monitor
Standard
Rear Cross Traffic Alert
Standard
Lane Departure Warning
Standard
Stability Control
Standard

Steering

Steering Ratio (:1), Overall
N/A
Steering Type
Rack-Pinion
Turning Diameter - Curb to Curb
38 ft
Turning Diameter - Wall to Wall
N/A

Suspension

Suspension Type - Rear
Multi-Link
Axle Type - Front
Independent
Suspension Type - Front
Short And Long Arm
Axle Type - Rear
Independent

Tires & Wheels

Front Tire Size
P285/45TR22
Front Wheel Material
Aluminum
Rear Wheel Material
Aluminum
Spare Tire Size
Full-Size
Spare Wheel Size
Full-Size in
Rear Tire Size
P285/45TR22
Spare Wheel Material
Aluminum
Front Wheel Size
22 X 9 in
Rear Wheel Size
22 X 9 in

Weight & Capacity

Curb Weight - Front
N/A
Wt Distributing Hitch - Max Trailer Wt.
5,890 lbs
Maximum Trailering Capacity
5,890 lbs
Aux Fuel Tank Capacity, Approx
N/A
Fifth Wheel Hitch - Max Trailer Wt.
N/A
Fifth Wheel Hitch - Max Tongue Wt.
N/A
As Spec'd Curb Weight
N/A
Curb Weight
N/A
Base Curb Weight
5,981 lbs
Gross Axle Weight Rating
N/A
Maximum Payload Capacity
N/A
Curb Weight - Rear
N/A
Option Weight - Front
0 lbs
Fuel Tank Capacity, Approx
27 gal
Wt Distributing Hitch - Max Tongue Wt.
589 lbs
Option Weight - Rear
0 lbs
Dead Weight Hitch - Max Tongue Wt.
500 lbs
As Spec'd Payload
N/A
Gross Combined Wt Rating
12,300 lbs
Gross Vehicle Weight Rating
7,400 lbs
Total Option Weight
0 lbs
Dead Weight Hitch - Max Trailer Wt.
5,000 lbs
