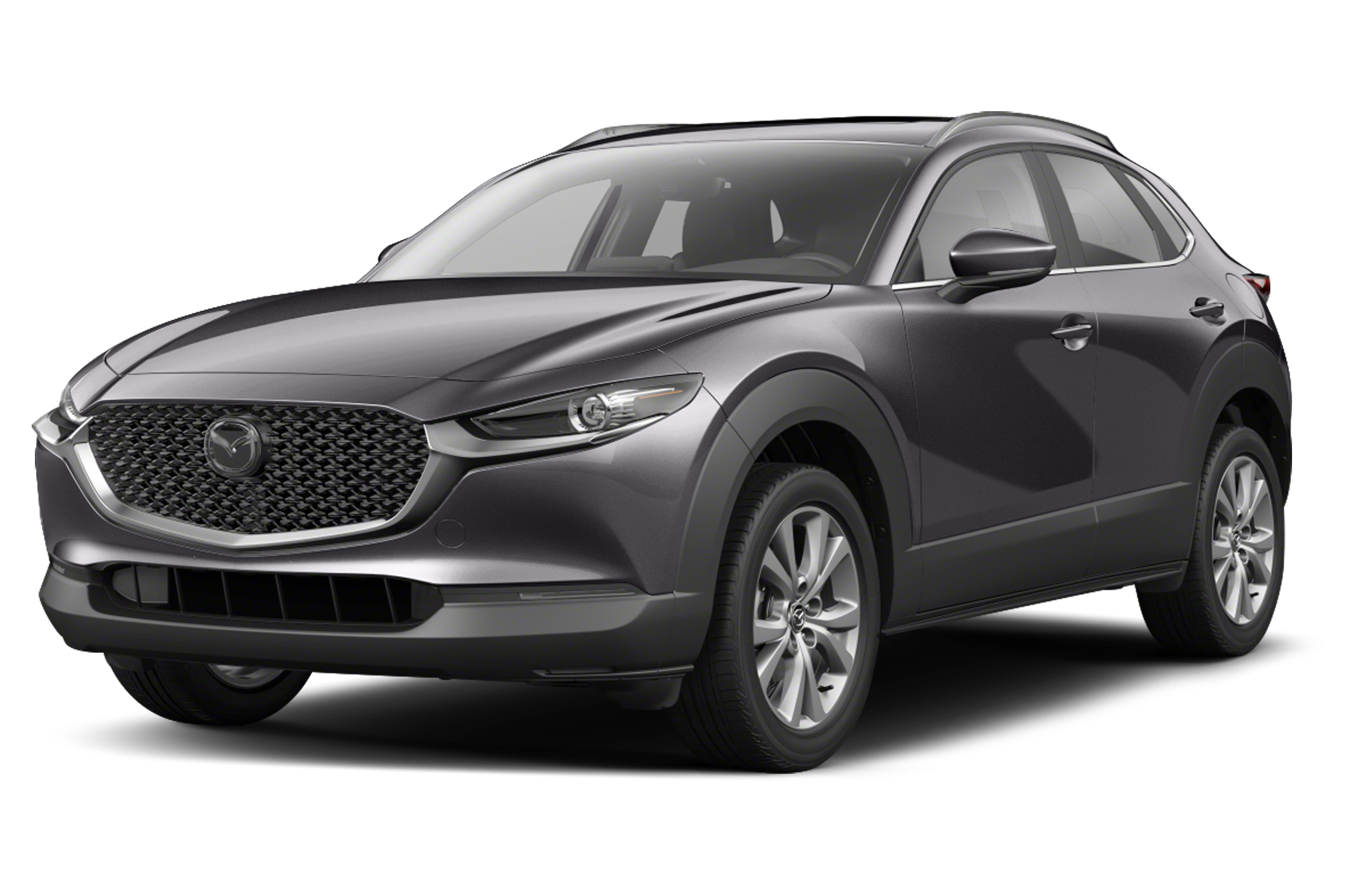

2024 Mazda CX-30 2.5 S specs & colors
Sport Utility
MSRP
- 2.5 S AWD
- $24,995
- 2.5 S Select Sport AWD
- $26,500
- 2.5 S Preferred Package AWD
- $28,790
- 2.5 S Carbon Edition AWD
- $29,790
- 2.5 S Premium Package AWD
- $31,990
- 2.5 Carbon Turbo AWD
- $32,790
- 2.5 Turbo Premium Package AWD
- $34,990
- 2.5 Turbo Premium Plus Package AWD
- $36,800
Key specs
Color options
Interior
Black
Packages
Specifications
Highlights
|
Regular Unleaded I-4
Engine Type
|
|
26 City / 33 Hwy
MPG
|
|
191 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
N/A
Drum - Rear (Yes or )
|
|
12 in
Front Brake Rotor Diam x Thickness
|
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
10 in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Rear (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
100
Maximum Alternator Capacity (amps)
|
Engine
|
186 @ 4000
SAE Net Torque @ RPM
|
|
2.5 L/152
Displacement
|
|
191 @ 6000
SAE Net Horsepower @ RPM
|
|
Regular Unleaded I-4
Engine Type
|
|
6-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
26 City / 33 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Standard
Bluetooth®
|
Measurements
|
38 in
Front Head Room
|
|
45 ft³
Cargo Volume to Seat 1
|
|
53 in
Second Hip Room
|
|
N/A
Rear Door Opening Height
|
|
5
Passenger Capacity
|
|
38 in
Second Head Room
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
62 in
Track Width, Rear
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
42 in
Front Leg Room
|
|
N/A
Cargo Volume to Seat 3
|
|
N/A
Cargo Area Width @ Beltline
|
|
173 in
Length, Overall
|
|
104 in
Wheelbase
|
|
71 in
Width, Max w/o mirrors
|
|
54 in
Second Shoulder Room
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
94 ft³
Passenger Volume
|
|
N/A
Liftover Height
|
|
62 in
Track Width, Front
|
|
8 in
Min Ground Clearance
|
|
20 ft³
Cargo Volume to Seat 2
|
|
N/A
Cargo Box (Area) Height
|
|
55 in
Front Hip Room
|
|
36 in
Second Leg Room
|
|
N/A
Rear Door Opening Width
|
|
56 in
Front Shoulder Room
|
|
62 in
Height, Overall
|
Safety
|
Standard
Backup Camera
|
|
Standard
Blind Spot Monitor
|
|
Standard
Stability Control
|
|
Standard
Lane Departure Warning
|
|
Standard
Rear Cross Traffic Alert
|
Steering
|
N/A
Lock to Lock Turns (Steering)
|
|
N/A
Turning Diameter - Wall to Wall
|
|
35 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Rack-Pinion
Steering Type
|
Suspension
|
Strut
Suspension Type - Front (Cont.)
|
|
Torsion Beam
Suspension Type - Rear
|
|
Torsion Beam
Suspension Type - Rear (Cont.)
|
|
Strut
Suspension Type - Front
|
Tires & Wheels
|
Aluminum
Rear Wheel Material
|
|
16 X 6.5 in
Rear Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
P215/65HR16
Rear Tire Size
|
|
16 X 6.5 in
Front Wheel Size
|
|
P215/65HR16
Front Tire Size
|
|
Aluminum
Front Wheel Material
|
|
Compact
Spare Tire Size
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
3,419 lbs
Base Curb Weight
|
|
0 lbs
Total Option Weight
|
|
N/A
Dead Weight Hitch - Max Tongue Wt.
|
|
13 gal
Fuel Tank Capacity, Approx
|
|
N/A
Curb Weight - Rear
|
|
N/A
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Maximum Trailering Capacity
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
N/A
Curb Weight
|
|
N/A
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Maximum Payload Capacity
|
|
N/A
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Curb Weight - Front
|
Compare trims
Wondering which trim is right for you?
Our 2024 Mazda CX-30 trim comparison will help you decide.
