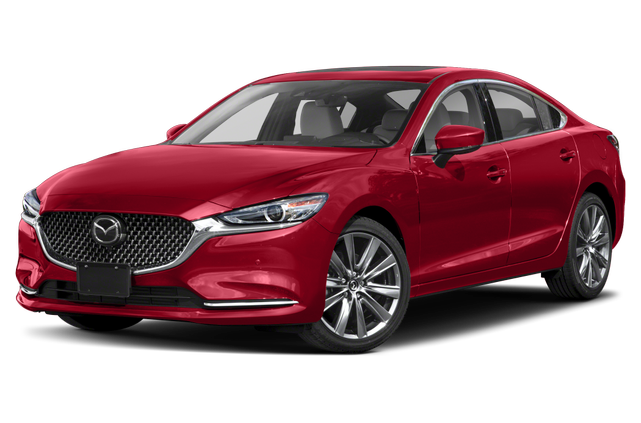

2020 Mazda Mazda6 Signature specs & colors
4dr Car
Key Specs
Color options
Interior
Parchment
Deep Chestnut
Packages
Specifications
| EPA Classification | Midsize Cars |
| Front Wheel Size | 19 X 7.5 in |
| Rear Wheel Size | 19 X 7.5 in |
| Spare Wheel Size | Compact in |
| Front Wheel Material | Aluminum |
| Rear Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| Maximum Alternator Capacity (amps) | 150 |
| Engine Type | Intercooled Turbo Regular Unleaded I-4 |
| Displacement | 2.5 L/152 |
| SAE Net Horsepower @ RPM | 227 @ 5000 |
| SAE Net Torque @ RPM | 310 @ 2000 |
| EPA Fuel Economy Est - Hwy | 31 MPG |
| Cruising Range - City | 377.20 mi |
| EPA Fuel Economy Est - City | 23 MPG |
| Fuel Economy Est-Combined | 26 MPG |
| Cruising Range - Hwy | 508.40 mi |
| EPA MPG Equivalent - City | N/A |
| EPA MPG Equivalent - Hwy | N/A |
| EPA MPG Equivalent - Combined | N/A |
| Estimated Battery Range | N/A mi |
| Drivetrain | Front Wheel Drive |
| Trans Type | 6 |
| Trans Description Cont. | Automatic w/OD |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | 3.49 |
| Second Gear Ratio (:1) | 1.99 |
| Third Gear Ratio (:1) | 1.45 |
| Fourth Gear Ratio (:1) | 1.00 |
| Fifth Gear Ratio (:1) | 0.71 |
| Sixth Gear Ratio (:1) | 0.60 |
| Reverse Ratio (:1) | 3.99 |
| Final Drive Axle Ratio (:1) | 4.09 |
| Suspension Type - Front | Strut |
| Suspension Type - Rear | Multi-Link |
| Suspension Type - Front (Cont.) | Strut |
| Suspension Type - Rear (Cont.) | Multi-Link |
| Brake Type | 4-Wheel Disc |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | N/A |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 12.6 in |
| Rear Brake Rotor Diam x Thickness | 10.9 in |
| Drum - Rear (Yes or ) | N/A |
| Fuel Tank Capacity, Approx | 16.4 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Rack-Pinion |
| Steering Ratio (:1), Overall | N/A |
| Lock to Lock Turns (Steering) | N/A |
| Turning Diameter - Curb to Curb | 36.7 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | P225/45WR19 |
| Rear Tire Size | P225/45WR19 |
| Spare Tire Size | Compact |
| Dead Weight Hitch - Max Trailer Wt. | N/A lbs |
| Dead Weight Hitch - Max Tongue Wt. | N/A lbs |
| Wt Distributing Hitch - Max Trailer Wt. | N/A lbs |
| Wt Distributing Hitch - Max Tongue Wt. | N/A lbs |
| Base Curb Weight | 3582 lbs |
| Passenger Capacity | 5 |
| Passenger Volume | 99.8 ft³ |
| Front Head Room | 37.4 in |
| Front Leg Room | 42.2 in |
| Front Shoulder Room | 55.9 in |
| Front Hip Room | 53.5 in |
| Second Head Room | 37.1 in |
| Second Leg Room | 38.7 in |
| Second Shoulder Room | 55.1 in |
| Second Hip Room | 53.5 in |
| Wheelbase | 111.4 in |
| Length, Overall | 192.7 in |
| Width, Max w/o mirrors | 72.4 in |
| Height, Overall | 57.1 in |
| Track Width, Front | 62.8 in |
| Track Width, Rear | 62.4 in |
| Min Ground Clearance | 6.5 in |
| Liftover Height | N/A in |
| Trunk Volume | 14.7 ft³ |
| MAZDA CONNECT Infotainment System Voice Command -inc: Radio Broadcast Data System program information, Aha, Pandora, Stitcher internet radio integration, SMS text message audio delivery and reply and E911 automatic emergency notification | Standard |
| 2 LCD Monitors In The Front | Standard |
| Regular Amplifier | Optional |
| Radio w/Seek-Scan, Clock and Steering Wheel Controls | Standard |
| Radio: AM/FM/HD -inc: Bose 11-speaker audio system w/Centerpoint2 and AudioPilot2, 8.0 full-color touch-screen display, Android Auto and Apple CarPlay integration, audio menu voice-command, auxillary-audio input jack, Bluetooth hands free phone and audio, Mazda navigation system, multi-function commander control, SiriusXM satellite radio w/3-month trial subscription, SiriusXM 3-year Traffic and Travel Link subscription (current information for traffic, weather forecast and weather map, sports scores, fuel prices and nearby parking or parking by destination), speed-sensing automatic volume control and 2 USB audio inputs SiriusXM satellite radio, Traffic and Travel Link subscription is not available in AK and HI. | Optional |
| Fixed Antenna | Optional |
| Fully Galvanized Steel Panels | Standard |
| Fixed Rear Window w/Regular Wiper and Defroster | Standard |
| Body-Colored Rear Bumper | Standard |
| Steel Spare Wheel | Standard |
| Body-Colored Front Bumper w/Chrome Bumper Insert | Optional |
| Chrome Side Windows Trim | Standard |
| Perimeter/Approach Lights | Standard |
| Metal-Look Grille w/Chrome Surround | Optional |
| Lip Spoiler | Optional |
| Body-Colored Door Handles | Standard |
| Rain Detecting Variable Intermittent Wipers w/Heated Wiper Park | Optional |
| Tires: P225/45R19 All Season | Optional |
| Compact Spare Tire Mounted Inside Under Cargo | Standard |
| Trunk Rear Cargo Access | Standard |
| LED Brakelights | Standard |
| Headlights-Automatic Highbeams | Standard |
| Wheels: 19" x 7.5J w/Brilliant Silver Finish -inc: Aluminum alloy | Optional |
| Express Open/Close Sliding And Tilting Glass 1st Row Sunroof w/Sunshade | Optional |
| Light Tinted Glass | Standard |
| Auto On/Off Projector Beam Led Low/High Beam Daytime Running Auto-Leveling Directionally Adaptive Auto High-Beam Headlamps w/Delay-Off | Optional |
| Body-Colored Power Heated Side Mirrors w/Driver Auto Dimming, Power Folding and Turn Signal Indicator | Optional |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Standard |
| Carpet Floor Trim and Carpet Trunk Lid/Rear Cargo Door Trim | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Standard |
| 1 12V DC Power Outlet | Standard |
| Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 1 12V DC Power Outlet | Standard |
| Heated Leather/Metal-Look Steering Wheel | Optional |
| Manual Tilt/Telescoping Steering Column | Standard |
| Distance Pacing w/Traffic Stop-Go | Standard |
| Compass | Standard |
| Digital/Analog Appearance | Standard |
| Illuminated Glove Box | Standard |
| FOB Controls -inc: Cargo Access | Standard |
| Valet Function | Standard |
| Dual Zone Front Automatic Air Conditioning | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, 2 Door Curb/Courtesy, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Manual Adjustable Rear Head Restraints | Optional |
| Trip Computer | Standard |
| 2 Seatback Storage Pockets | Standard |
| Remote Releases -Inc: Power Cargo Access and Mechanical Fuel | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Power Rear Windows | Standard |
| Redundant Digital Speedometer | Optional |
| 60-40 Folding Bench Front Facing Heated Fold Forward Seatback Rear Seat | Optional |
| Day-Night Auto-Dimming Rearview Mirror | Optional |
| Front Center Armrest w/Storage and Rear Center Armrest w/Storage | Optional |
| Front And Rear Map Lights | Standard |
| Instrument Panel Bin, Driver / Passenger And Rear Door Bins | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror | Optional |
| Ventilated Front Seats | Optional |
| Front Cupholder | Standard |
| HVAC -inc: Underseat Ducts and Console Ducts | Optional |
| Proximity Key For Doors And Push Button Start | Optional |
| Ultrasuede Simulated Suede Door Trim Insert | Optional |
| Power 1st Row Windows w/Front And Rear 1-Touch Up/Down | Standard |
| Systems Monitor | Standard |
| Immobilizer | Standard |
| Driver Foot Rest | Standard |
| Passenger Seat | Standard |
| Head-Up Display | Optional |
| 3-Level Heated/Ventilated Front Sport Bucket Seats -inc: 8-way power adjustable drivers seat w/power lumbar support w/2-position memory, 6-way power front passenger seat and height-adjustable front headrests | Optional |
| HomeLink Garage Door Transmitter | Optional |
| Air Filtration | Standard |
| Fade-To-Off Interior Lighting | Standard |
| Driver Seat | Standard |
| Interior Trim -inc: Genuine Wood/Metal-Look Instrument Panel Insert, Genuine Wood/Metal-Look Door Panel Insert, Vinyl Console Insert, Piano Black/Metal-Look Interior Accents and Ultrasuede Simulated Suede Upholstered Dashboard | Optional |
| Outside Temp Gauge | Standard |
| Rear Cupholder | Standard |
| Leather/Metal-Look Gear Shifter Material | Standard |
| Nappa Leather Seat Trim | Optional |
| Cargo Space Lights | Standard |
| Full Cloth Headliner | Standard |
| Seats w/Leatherette Back Material | Optional |
| 150 Amp Alternator | Optional |
| Front-Wheel Drive | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Quasi-Dual Stainless Steel Exhaust w/Chrome Tailpipe Finisher | Standard |
| 4.09 Axle Ratio | Optional |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake | Standard |
| Engine: SKYACTIV-G 2.5L DOHC 16-Valve I4 -inc: Dynamic pressure turbo | Optional |
| Transmission: 6-Speed SKYACTIV-DRIVE Automatic -inc: manual-shift mode and sport mode | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| Strut Front Suspension w/Coil Springs | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| Battery w/Run Down Protection | Standard |
| 16.4 Gal. Fuel Tank | Standard |
| Left Side Camera | Optional |
| Advanced Smart City Brake Support and Rear Cross Traffic Alert (RCTA) | Standard |
| Airbag Occupancy Sensor | Standard |
| Back-Up Camera | Standard |
| Electronic Stability Control (ESC) | Standard |
| Blind Spot Monitoring System (BSM) Blind Spot | Standard |
| Side Impact Beams | Standard |
| Rear Child Safety Locks | Standard |
| Tire Pressure Monitoring System Low Tire Pressure Warning | Standard |
| Front And Rear Parking Sensors | Optional |
| ABS And Driveline Traction Control | Standard |
| Curtain 1st And 2nd Row Airbags | Standard |
| Aerial View Camera System | Optional |
| Front Camera | Optional |
| Lane Keep Assist System (LKAS) Lane Keeping Assist | Standard |
| Right Side Camera | Optional |
| Lane Keep Assist System (LKAS) Lane Departure Warning | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Collision Mitigation-Front | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
