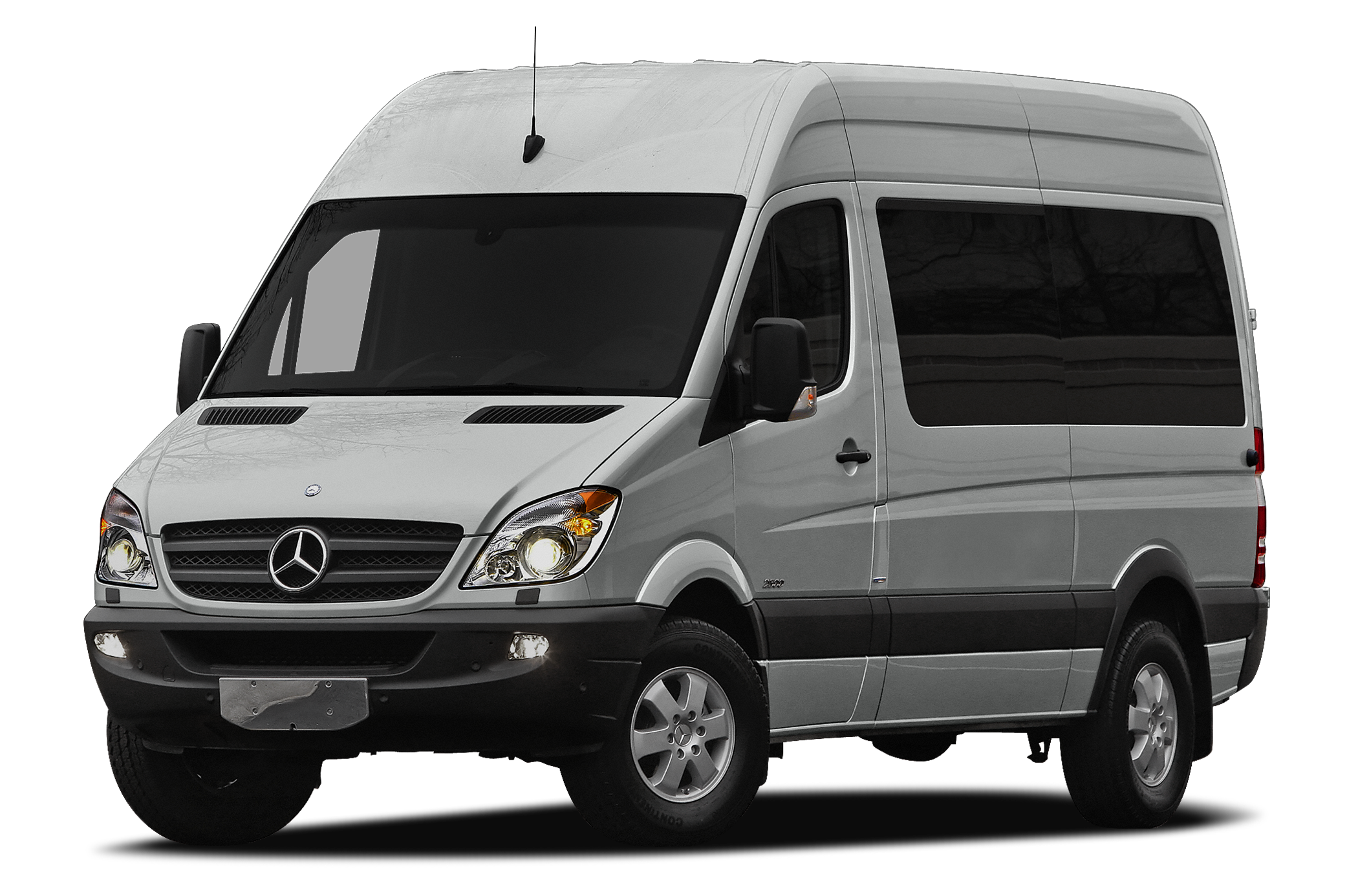

2010 Mercedes-Benz Sprinter specs & colors
Full-size Cargo Van
MSRP
$35,995
Starting MSRP
Current listing price
Current listing price
Showing the 2010 Mercedes-Benz Sprinter 2500 144"
Shop NowKey specs
Color options
Interior
Black
Packages
Specifications
Highlights
|
Turbocharged Diesel V6
Engine Type
|
|
-
MPG
|
|
188 hp
Horsepower
|
|
2
Seating Capacity
|
Brakes
|
Yes
Disc - Rear (Yes or )
|
|
Not Available
Drum - Rear (Yes or )
|
|
Power
Brake Type
|
|
Not Available
Brake ABS System (Second Line)
|
|
N/A
Rear Brake Rotor Diam x Thickness
|
|
4-Wheel
Brake ABS System
|
|
N/A
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
180
Maximum Alternator Capacity (amps)
|
Engine
|
188 @ 3800
SAE Net Horsepower @ RPM
|
|
325 @ 1400-2400
SAE Net Torque @ RPM
|
|
Turbocharged Diesel V6
Engine Type
|
|
3.0L/182
Displacement
|
|
A/T
Transmission w/Dual Shift Mode 5-Speed A/T Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
80 in
Width, Max w/o mirrors
|
|
N/A
Second Shoulder Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
N/A
Step Up Height - Front
|
|
N/A
Front Shoulder Room
|
|
318 ft³
Cargo Volume
|
|
N/A
Cab to End of Frame
|
|
65 in
Cargo Box (Area) Height
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Overhang, Rear w/o bumper
|
|
144 in
Wheelbase
|
|
N/A
Second Head Room
|
|
60 in
Side Door Opening Height
|
|
129 in
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Ground Clearance, Rear
|
|
53 in
Cargo Box Width @ Wheelhousings
|
|
96 in
Height, Overall
|
|
N/A
Ext'd Cab Cargo Volume
|
|
N/A
Overhang, Front
|
|
N/A
Front Leg Room
|
|
N/A
Second Leg Room
|
|
N/A
Front Hip Room
|
|
2
Passenger Capacity
|
|
N/A
Second Hip Room
|
|
28 in
Ground to Top of Load Floor
|
|
233 in
Length, Overall w/rear bumper
|
|
N/A
Length, Overall
|
|
51 in
Side Door Opening Width
|
|
N/A
Cargo Box Width @ Floor
|
|
61 in
Rear Door Opening Height
|
|
N/A
Cargo Area Length @ Floor to Console
|
|
N/A
Tailgate Width
|
|
N/A
Ground Clearance, Front
|
|
N/A
Front Head Room
|
|
20 in
Step Up Height - Side
|
|
62 in
Rear Door Opening Width
|
Safety
|
Standard
Brake Assist
|
Steering
|
N/A
Steering Type
|
|
N/A
Turning Diameter - Curb to Curb
|
|
48 ft
Turning Diameter - Wall to Wall
|
|
N/A
Steering Ratio (:1), Overall
|
Suspension
|
N/A
Suspension Type - Front
|
|
N/A
Axle Type - Rear
|
|
N/A
Axle Type - Front
|
|
N/A
Suspension Type - Rear
|
Tires & Wheels
|
LT245/75R16
Rear Tire Size
|
|
16 x 6.5 in
Rear Wheel Size
|
|
N/A
Spare Wheel Size
|
|
Steel
Spare Wheel Material
|
|
Steel
Rear Wheel Material
|
|
Steel
Front Wheel Material
|
|
16 x 6.5 in
Front Wheel Size
|
|
LT245/75R16
Front Tire Size
|
|
N/A
Spare Tire Size
|
Weight & Capacity
|
2,795 lbs
Curb Weight - Front
|
|
5,081 lbs
As Spec'd Curb Weight
|
|
8,550 lbs
Gross Vehicle Weight Rating
|
|
N/A
Gross Axle Weight Rating
|
|
2,286 lbs
Curb Weight - Rear
|
|
5,081 lbs
Curb Weight
|
|
N/A
Base Curb Weight
|
|
0 lbs
Total Option Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
0 lbs
Option Weight - Rear
|
|
3,469 lbs
As Spec'd Payload
|
|
13,550 lbs
Gross Combined Wt Rating
|
|
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.
|
|
750 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
3,469 lbs
Maximum Payload Capacity
|
|
0 lbs
Option Weight - Front
|
|
N/A
Maximum Trailering Capacity
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
Not Available lbs
Fifth Wheel Hitch - Max Trailer Wt.
|
|
26 gal
Fuel Tank Capacity, Approx
|
