2019 Nissan Frontier SV specs & colors

Extended Cab Pickup

Change trim
$25,920
Starting MSRP
Current listing price

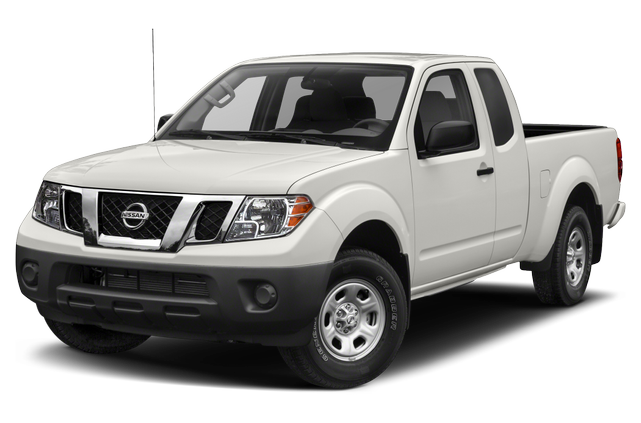

Showing the 2019 Nissan Frontier King Cab 4x2 SV Auto

Shop Now

Key specs

Color options

Interior

Grey-Violet

Medium Mocha

Packages

$1,890

Starting MSRP

  • Leather Shift Knob
  • Heated Front Seats
  • Dual Zone Automatic Air Conditioning

[K01] Value Truck Package

$1,890

Starting MSRP

  • Leather Shift Knob
  • Heated Front Seats
  • Dual Zone Automatic Air Conditioning
  • Rear View Monitor w/Rear Sonar System
  • Utili-Track System
  • 4 adjustable tie-down cleats
  • Sliding Bed Extender
  • Auto-Dimming Mirror w/Compass & Temperature
  • outside temperature display
  • Spray-In Bedliner
  • Trailer Hitch
  • Leather Steering Wheel
  • Vehicle Security System (VSS)
  • 2 Additional Speakers
  • Fog Lamps

Specifications

Spare Wheel Size Full-Size in
Spare Wheel Material Steel
Rear Wheel Size 16 X 7 in
Front Wheel Size 16 X 7 in
Rear Wheel Material Aluminum
Front Wheel Material Aluminum

Cold Cranking Amps @ 0° F (Primary) 550
Maximum Alternator Capacity (amps) 130

SAE Net Horsepower @ RPM 261 @ 5600
Displacement 4.0 L/241
SAE Net Torque @ RPM 281 @ 4000
Engine Oil Cooler None
Engine Type Regular Unleaded V-6

EPA Fuel Economy Est - Hwy 23 MPG
Fuel Economy Est-Combined 19 MPG
EPA Fuel Economy Est - City 16 MPG
Cruising Range - City 337.60 mi
Estimated Battery Range N/A mi
Cruising Range - Hwy 485.30 mi

Drivetrain Rear Wheel Drive
Reverse Ratio (:1) 2.76
Trans Description Cont. Automatic w/OD
Transfer Case Gear Ratio (:1), High N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Gear Ratio (:1), Low N/A
Fourth Gear Ratio (:1) 1.00
Second Gear Ratio (:1) 2.35
Trans Type 5
First Gear Ratio (:1) 3.84
Transfer Case Power Take Off No
Third Gear Ratio (:1) 1.53
Fifth Gear Ratio (:1) 0.84
Transfer Case Model None
Trans Power Take Off N/A
Trans Description Cont. Again N/A

Suspension Type - Rear Leaf
Axle Type - Rear Rigid Axle
Axle Type - Front Independent
Suspension Type - Front Double Wishbone

Frame Type N/A

Disc - Front (Yes or ) Yes
Brake ABS System 4-Wheel
Rear Brake Rotor Diam x Thickness 11.3 in
Brake Type 4-Wheel Disc
Drum - Rear (Yes or ) N/A
Front Brake Rotor Diam x Thickness 11.7 in
Disc - Rear (Yes or ) Yes
Brake ABS System (Second Line) 4-Wheel

Fuel Tank Capacity, Approx 21.1 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Ratio (:1), Overall N/A
Steering Type Rack-Pinion
Turning Diameter - Wall to Wall N/A ft
Turning Diameter - Curb to Curb 43.4 ft

Rear Tire Size P265/70TR16
Front Tire Size P265/70TR16
Spare Tire Size Full-Size

Dead Weight Hitch - Max Tongue Wt. 500 lbs
Maximum Trailering Capacity 6500 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. 6500 lbs
Wt Distributing Hitch - Max Tongue Wt. 650 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs

Maximum Payload Capacity N/A lbs
As Spec'd Curb Weight N/A lbs
Option Weight - Rear 0.00 lbs
Gross Axle Weight Rating N/A lbs
Gross Vehicle Weight Rating 5589.00 lbs
Curb Weight N/A lbs
Curb Weight - Front N/A lbs
As Spec'd Payload N/A lbs
Option Weight - Front 0.00 lbs
Total Option Weight 0.00 lbs
Base Curb Weight 4150 lbs
Curb Weight - Rear N/A lbs
Gross Combined Wt Rating 11230 lbs

Second Shoulder Room 54.9 in
Cargo Volume 33.5 ft³
Passenger Capacity 4
Front Hip Room 55.8 in
Cargo Box (Area) Height 18 in
Ext'd Cab Cargo Volume N/A ft³
Cargo Box Width @ Wheelhousings 44.4 in
Cargo Box Length @ Floor 73.3 in
Length, Overall w/rear bumper N/A in
Tailgate Width N/A in
Cargo Box Width @ Top, Rear 61.4 in
Front Leg Room 42.4 in
Overhang, Front N/A in
Front Head Room 39.7 in
Overhang, Rear w/o bumper 48.2 in
Length, Overall 205.5 in
Ground Clearance, Front 8.6 in
Front Shoulder Room 58.3 in
Ground to Top of Load Floor N/A in
Width, Max w/o mirrors 72.8 in
Second Hip Room 55 in
Second Leg Room 25.4 in
Cab to End of Frame N/A in
Ground Clearance, Rear 8.6 in
Wheelbase 125.9 in
Height, Overall 69.7 in
Second Head Room 36.6 in
Cargo Box Width @ Floor 61.4 in
Length, Overall w/o rear bumper N/A in

Radio: AM/FM w/Auxiliary -inc: 7" color display audio, USB connection port for iPod Interface and other compatible devices, streaming audio via Bluetooth, 4 speakers (2 front, 2 rear), Bluetooth hands-free phone system, Siri Eyes Free and steering wheel audio controls Standard
Fixed Antenna Standard
Radio w/Seek-Scan, Clock and Radio Data System Standard

Chrome Rear Step Bumper Optional
Steel Spare Wheel Standard
Black Power Side Mirrors w/Manual Folding Optional
Manual Tailgate/Rear Door Lock Optional
Body-Colored Front Bumper w/Colored Rub Strip/Fascia Accent Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Fully Galvanized Steel Panels Standard
Aero-Composite Halogen Headlamps Standard
Reverse Opening Rear Doors Standard
Tailgate Rear Cargo Access Standard
Regular Box Style Standard
Cargo Lamp w/High Mount Stop Light Standard
Sliding Rear Window Optional
Tires: P265/70R16 BSW AS Optional
Deep Tinted Glass Standard
Variable Intermittent Wipers Standard
Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim Standard
Black Door Handles Standard
Wheels: 16" Alloy Optional
Chrome Grille Standard

Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage Standard
Passenger Seat Standard
Air Filtration Standard
Manual Air Conditioning Standard
Full Cloth Headliner Standard
Front Cupholder Standard
Day-Night Rearview Mirror Standard
50-50 Folding Jump Front Facing Fold-Up Cushion Rear Seat Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 2 12V DC Power Outlets Standard
Power Door Locks w/Autolock Feature Optional
Fade-To-Off Interior Lighting Standard
Pickup Cargo Box Lights Standard
Cruise Control w/Steering Wheel Controls Standard
Manual Tilt Steering Column Optional
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer and Trip Odometer Optional
HVAC -inc: Underseat Ducts Standard
Cloth Seat Trim Standard
Driver Seat Standard
Immobilizer Optional
Manual Anti-Whiplash Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
Analog Appearance Standard
Front Map Lights Standard
Remote Keyless Entry w/Illuminated Entry and Panic Button Optional
2 12V DC Power Outlets Standard
Driver Foot Rest Standard
Fixed Rear Windows Standard
Front Center Armrest Standard
Power 1st Row Windows w/Driver 1-Touch Down Optional
Full Carpet Floor Covering Standard
Urethane Gear Shifter Material Standard
Locking Glove Box Standard
Front Bucket Seats -inc: 4-way adjustable Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert and Chrome Interior Accents Standard
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Auxiliary Mirror Optional
Rear Cupholder Standard

1430# Maximum Payload Optional
21.1 Gal. Fuel Tank Standard
2.937 Axle Ratio Optional
Transmission w/Oil Cooler Optional
Brake Actuated Limited Slip Differential Standard
Hydraulic Power-Assist Speed-Sensing Steering Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs Standard
Single Stainless Steel Exhaust Standard
130 Amp Alternator Optional
550CCA Maintenance-Free Battery w/Run Down Protection Standard
Gas-Pressurized Shock Absorbers Standard
Solid Axle Rear Suspension w/Leaf Springs Standard
GVWR: 5,589 lbs Optional
Double Wishbone Front Suspension w/Coil Springs Standard
Rear-Wheel Drive Standard
Engine: 4.0L DOHC V6 Optional
Transmission: 5-Speed Automatic w/OD Optional
Front Anti-Roll Bar Standard

Side Impact Beams Standard
Curtain 1st And 2nd Row Airbags Standard
ABS And Driveline Traction Control Standard
Electronic Stability Control (ESC) Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners Standard
Low Tire Pressure Warning Standard
Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Front Airbags Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Back-Up Camera Standard
