2011 Nissan Titan S specs & colors

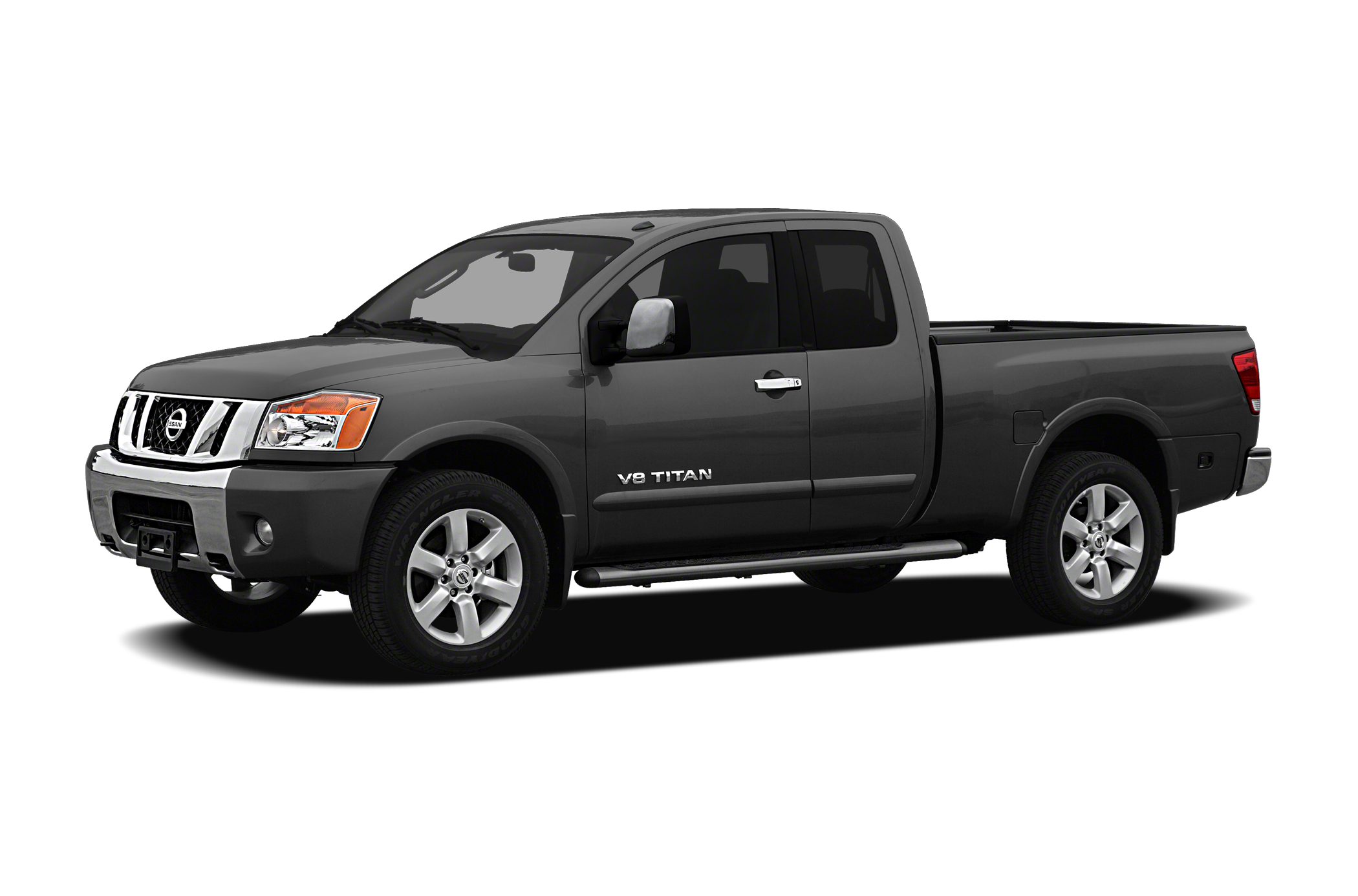

Extended Cab Pickup

Change trim

$27,410

Starting MSRP
Current listing price

2011 Nissan Titan S

Showing the 2011 Nissan Titan 2WD King Cab SWB S

Shop Now

Key specs

2-door
6 seats
317.0-hp, 5.6-liter, 8 Cylinder Engine (Gasoline Fuel)
15 combined MPG
224.6" length, 74.6" height
Rear Wheel Drive

Color options

Exterior

Code Red

Interior

Dark Pumice

Medium Grey

Packages

Specifications

Highlights

Engine Type: Gas V8
MPG: 13 City / 18 Hwy
Horsepower: 317 hp
Seating Capacity: 6

Brakes

Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): Not Available
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 13.8 x 1.2 in
Rear Brake Rotor Diam x Thickness: 12.6 x 0.6 in
Drum - Rear (Yes or ): Not Available

Electrical

Cold Cranking Amps @ 0° F (Primary): 650
Maximum Alternator Capacity (amps): 130

Engine

Engine Type: Gas V8
Displacement: 5.6L/-TBD-
SAE Net Horsepower @ RPM: 317 @ 5200
SAE Net Torque @ RPM: 385 @ 3400
Transmission Options: A/T
5-Speed A/T
MPG: 13 City / 18 Hwy
Total Cooling System Capacity: 12.8 qts

Measurements

Passenger Capacity: 6
Front Head Room: 41 in
Front Leg Room: 42 in
Front Shoulder Room: 65 in
Front Hip Room: 61 in
Second Head Room: 39 in
Second Leg Room: 33 in
Second Shoulder Room: 65 in
Second Hip Room: 60 in
Wheelbase: 140 in
Length, Overall w/o rear bumper: 225 in
Length, Overall w/rear bumper: N/A
Length, Overall: N/A
Width, Max w/o mirrors: 80 in
Height, Overall: 75 in
Overhang, Front: N/A
Overhang, Rear w/o bumper: N/A
Cab to End of Frame: N/A
Ground to Top of Load Floor: N/A
Ground Clearance, Front: 10 in
Ground Clearance, Rear: 10 in
Cargo Box Length @ Floor: 79 in
Cargo Box Width @ Top, Rear: N/A
Cargo Box Width @ Floor: 64 in
Cargo Box Width @ Wheelhousings: 50 in
Cargo Box (Area) Height: 20 in
Tailgate Width: N/A
Cargo Volume: N/A
Ext'd Cab Cargo Volume: N/A

Steering

Steering Type: Pwr Rack & Pinion
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: 46 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Multi-Leaf
Axle Type - Front: Not Available
Axle Type - Rear: Dana

Tires & Wheels

Front Tire Size: P265/70R18
Rear Tire Size: P265/70R18
Spare Tire Size: Full-Size
Front Wheel Size: 18 x 8.0 in
Rear Wheel Size: 18 x 8.0 in
Spare Wheel Size: 18 x 8.0 in
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel

Weight & Capacity

Base Curb Weight: N/A
Curb Weight - Front: 2,666 lbs
Curb Weight - Rear: 2,181 lbs
Option Weight - Front: 0 lbs
Option Weight - Rear: 0 lbs
As Spec'd Curb Weight: 4,847 lbs
As Spec'd Payload: 2,153 lbs
Maximum Payload Capacity: 2,153 lbs
Gross Combined Wt Rating: 15,099 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Wt Distributing Hitch - Max Trailer Wt.: 7,400 lbs
Wt Distributing Hitch - Max Tongue Wt.: 950 lbs
Fifth Wheel Hitch - Max Trailer Wt.: Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.: Not Available lbs
Maximum Trailering Capacity: N/A
Fuel Tank Capacity, Approx: 28 gal
Aux Fuel Tank Capacity, Approx: Not Available gal
Gross Axle Weight Rating: 7,899 lbs
Curb Weight: 4,847 lbs
Total Option Weight: 0 lbs
Gross Vehicle Weight Rating: 7,000 lbs
