2017 Nissan Titan S specs & colors

Regular Cab Pickup

Change trim

$29,580

Starting MSRP
Current listing price

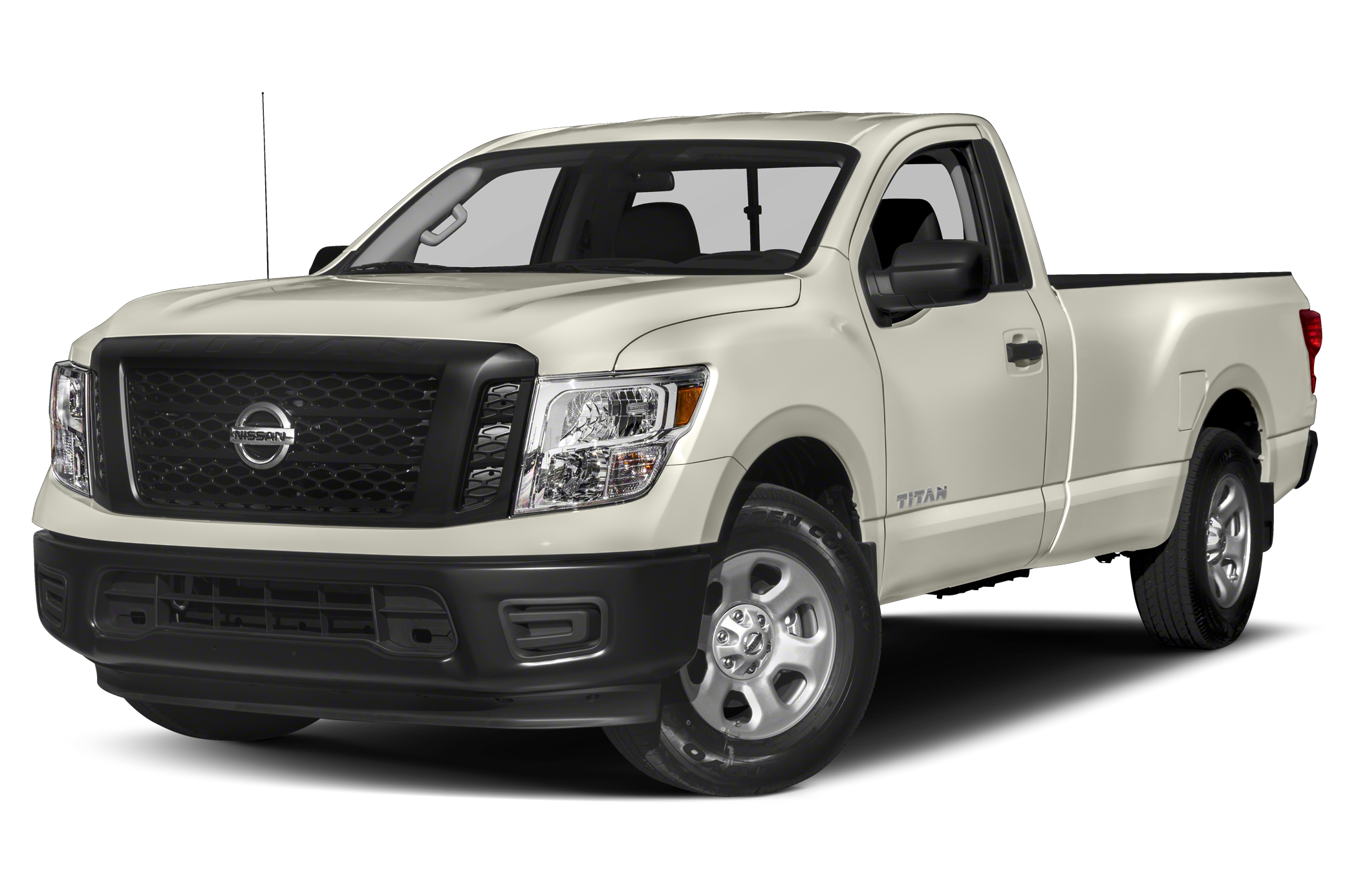

2017 Nissan Titan S

Showing the 2017 Nissan Titan 4x2 Single Cab S

Shop Now

Key specs

2-door
3 seats
390.0-hp, 5.6-liter, 8 Cylinder Engine (Gasoline Fuel)
18 combined MPG
228.1" length, 75.1" height
Rear Wheel Drive

Color options

Exterior

Brilliant Aluminum Metallic

Interior

Medium Grey

Packages

[K01] S Convenience & Utility Package

$800

Starting MSRP
- Receiver Hitch
- 4/7-pin wiring harness
- Front Overhead Console
See more detail
$800

Starting MSRP
- Receiver Hitch
- 4/7-pin wiring harness
- Front Overhead Console
- map lamp
- sunglass and storage
- 4-Pin/7-Pin Wiring Harness Connector (Rear Bumper)
- Spray-In Bedliner

Specifications

Highlights

Engine Type: Regular Unleaded V-8
MPG: 15 City / 21 Hwy
Horsepower: 390 hp
Seating Capacity: 3

Brakes

Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 14 in
Rear Brake Rotor Diam x Thickness: 14 in
Drum - Rear (Yes or ): N/A

Electrical

Maximum Alternator Capacity (amps): 200
Cold Cranking Amps @ 0° F (Primary): 710

Engine

SAE Net Torque @ RPM: 394 @ 4000
SAE Net Horsepower @ RPM: 390 @ 5800
Displacement: 5.6 L/339
Engine Type: Regular Unleaded V-8
Transmission Options: 7-Speed A/T
A/T
Transmission w/Dual Shift Mode
MPG: 15 City / 21 Hwy
Total Cooling System Capacity: N/A

Entertainment

Bluetooth®: Standard

Measurements

Passenger Capacity: 3
Front Head Room: 41 in
Front Leg Room: 42 in
Front Shoulder Room: 63 in
Front Hip Room: 61 in
Second Head Room: N/A
Second Leg Room: N/A
Second Shoulder Room: N/A
Second Hip Room: N/A
Wheelbase: 140 in
Length, Overall w/o rear bumper: N/A
Length, Overall w/rear bumper: N/A
Length, Overall: 228 in
Width, Max w/o mirrors: 80 in
Height, Overall: 75 in
Overhang, Front: N/A
Overhang, Rear w/o bumper: N/A
Cab to End of Frame: N/A
Ground to Top of Load Floor: N/A
Ground Clearance, Front: 8 in
Ground Clearance, Rear: 8 in
Cargo Box Length @ Floor: 98 in
Cargo Box Width @ Top, Rear: 64 in
Cargo Box Width @ Floor: 64 in
Cargo Box Width @ Wheelhousings: 50 in
Cargo Box (Area) Height: 21 in
Tailgate Width: N/A
Cargo Volume: N/A
Ext'd Cab Cargo Volume: N/A

Safety

Stability Control: Standard

Steering

Steering Type: Rack-Pinion
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: 48 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Axle Type - Rear: Rigid Axle
Axle Type - Front: Independent
Suspension Type - Rear: Leaf
Suspension Type - Front: Double Wishbone

Tires & Wheels

Front Wheel Material: Styled Steel
Spare Wheel Size: Full-Size in
Rear Wheel Size: 18 X 8 in
Front Wheel Size: 18 X 8 in
Spare Tire Size: Full-Size
Rear Tire Size: P265/70SR18
Front Tire Size: P265/70SR18
Spare Wheel Material: Steel
Rear Wheel Material: Styled Steel

Weight & Capacity

Maximum Trailering Capacity: 9,740 lbs
Fifth Wheel Hitch - Max Tongue Wt.: N/A
Fifth Wheel Hitch - Max Trailer Wt.: N/A
Wt Distributing Hitch - Max Tongue Wt.: 974 lbs
Wt Distributing Hitch - Max Trailer Wt.: 9,740 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Gross Combined Wt Rating: N/A
Maximum Payload Capacity: 1,930 lbs
As Spec'd Payload: 1,930 lbs
As Spec'd Curb Weight: 5,170 lbs
Option Weight - Rear: 0 lbs
Option Weight - Front: 0 lbs
Curb Weight - Rear: 2,085 lbs
Curb Weight - Front: 3,085 lbs
Base Curb Weight: 5,170 lbs
Fuel Tank Capacity, Approx: 26 gal
Aux Fuel Tank Capacity, Approx: N/A
Gross Axle Weight Rating: 7,812 lbs
Curb Weight: 5,170 lbs
Total Option Weight: 0 lbs
Gross Vehicle Weight Rating: 7,100 lbs
