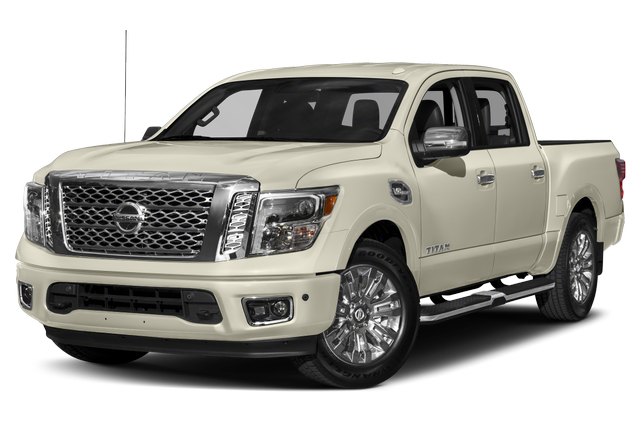

2017 Nissan Titan Platinum Reserve specs & colors

Crew Cab Pickup

Change trim

MSRP

Change trim

$52,760

Starting MSRP
Current listing price

Showing the 2017 Nissan Titan 4x2 Crew Cab Platinum Reserve

Shop Now

Color options

Exterior

Interior

Mocha

Packages

[B13] Platinum Reserve Utility Bed Package

$0

Starting MSRP

TITAN Box
Rear Bumper Step
Tailgate Electronic Lock

[X03] Monotone Paint Package

$0

Starting MSRP

Body Color Front Bumper
Body Color Rear Bumper
Body Color Overfenders

[H10] Platinum Reserve Rear DVD Entertainment Package

$2,190

Starting MSRP

Headrest DVD Entertainment System
headrest monitors
2 Wireless Headphones

See all packages

[B10] Platinum Reserve Bed Utility Package

$750

Starting MSRP

TITAN Box
Rear Utility Bed Step
Tailgate Electronic Lock

Specifications

Front Wheel Material	Aluminum
Spare Wheel Material	Aluminum
Front Wheel Size	20 X 8 in
Rear Wheel Size	20 X 8 in
Rear Wheel Material	Aluminum
Spare Wheel Size	Full-Size in

Cruising Range - City	390.00 mi
EPA Fuel Economy Est - Hwy	21 MPG
Cruising Range - Hwy	546.00 mi
Estimated Battery Range	N/A mi
EPA Fuel Economy Est - City	15 MPG
Fuel Economy Est-Combined	18 MPG

Third Gear Ratio (:1)	2.03
Transfer Case Power Take Off	No
Sixth Gear Ratio (:1)	0.86
Trans Power Take Off	N/A
Seventh Gear Ratio (:1)	0.77
Transfer Case Model	None
Transfer Case Gear Ratio (:1), Low	N/A
First Gear Ratio (:1)	4.89
Trans Description Cont. Again	N/A
Trans Type	7
Trans Description Cont.	Automatic w/OD
Drivetrain	Rear Wheel Drive
Final Drive Axle Ratio (:1)	N/A
Fifth Gear Ratio (:1)	1.00
Second Gear Ratio (:1)	3.17
Transfer Case Gear Ratio (:1), High	N/A
Fourth Gear Ratio (:1)	1.41
Reverse Ratio (:1)	4.04

Disc - Front (Yes or )	Yes
Brake ABS System (Second Line)	4-Wheel
Drum - Rear (Yes or )	N/A
Disc - Rear (Yes or )	Yes
Rear Brake Rotor Diam x Thickness	13.6 in
Brake ABS System	4-Wheel
Brake Type	4-Wheel Disc
Front Brake Rotor Diam x Thickness	13.8 in

Fifth Wheel Hitch - Max Trailer Wt.	N/A lbs
Fifth Wheel Hitch - Max Tongue Wt.	N/A lbs
Wt Distributing Hitch - Max Tongue Wt.	921 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Maximum Trailering Capacity	9210 lbs
Wt Distributing Hitch - Max Trailer Wt.	9210 lbs

Curb Weight - Front	3257 lbs
Gross Combined Wt Rating	15300 lbs
As Spec'd Curb Weight	5771.00 lbs
Gross Axle Weight Rating	7812.00 lbs
Maximum Payload Capacity	1329.00 lbs
Gross Vehicle Weight Rating	7100.00 lbs
Base Curb Weight	5771 lbs
Curb Weight - Rear	2514 lbs
As Spec'd Payload	1329.00 lbs
Option Weight - Rear	0.00 lbs
Curb Weight	5771.00 lbs
Option Weight - Front	0.00 lbs
Total Option Weight	0.00 lbs

Tailgate Width	N/A in
Ground Clearance, Rear	8.6 in
Length, Overall w/o rear bumper	N/A in
Ground to Top of Load Floor	N/A in
Width, Max w/o mirrors	80.7 in
Cargo Box Width @ Wheelhousings	50 in
Overhang, Rear w/o bumper	N/A in
Ground Clearance, Front	8.6 in
Front Leg Room	41.8 in
Height, Overall	75.6 in
Front Shoulder Room	63.3 in
Second Head Room	40.4 in
Wheelbase	139.8 in
Cargo Box Width @ Floor	61.7 in
Second Leg Room	38.5 in
Second Hip Room	60.3 in
Cargo Box (Area) Height	20.8 in
Cab to End of Frame	N/A in
Front Head Room	41 in
Length, Overall	228.1 in
Front Hip Room	60.8 in
Overhang, Front	N/A in
Cargo Box Width @ Top, Rear	61.7 in
Second Shoulder Room	63.6 in
Ext'd Cab Cargo Volume	N/A ft³
Cargo Box Length @ Floor	67 in
Cargo Volume	N/A ft³
Length, Overall w/rear bumper	N/A in
Passenger Capacity	5

Siriusxm Traffic Real-Time Traffic Display	Optional
Regular Amplifier	Optional
Radio: NissanConnect w/SiriusXM/Navi & Mobile Apps -inc: 7" color display, SiriusXM Traffic and Travel Link (weather, fuel prices, movie listings, and stock info), Nissan voice recognition for navigation and audio, USB connection port for iPod interface and other compatible devices, Bluetooth hands-free phone system, streaming audio via Bluetooth, hands-free text messaging assistant, Rockford Fosgate premium 12 speaker audio system and NissanConnect services powered by SiriusXM, Siri Eyes Free	Optional
Radio w/Seek-Scan, MP3 Player, Clock, Speed Compensated Volume Control, Aux Audio Input Jack, Steering Wheel Controls, Radio Data System and External Memory Control	Standard
2 LCD Monitors In The Front	Standard
Fixed Antenna	Standard

Power Rear Window w/Defroster	Optional
Colored Front Bumper w/2 Tow Hooks	Optional
Front Fog Lamps	Optional
Colored Wheel Well Trim	Optional
Cargo Lamp w/High Mount Stop Light	Standard
Wheels: 20" x 8" Dark Chrome Clad	Optional
Manual Tailgate/Rear Door Lock	Standard
Chrome Door Handles	Optional
Colored Rear Step Bumper	Optional
Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim	Standard
Running Boards	Optional
Full-Size Spare Tire Stored Underbody w/Crankdown	Standard
Manual-Leveling Programmable Projector Beam Led Low Beam Daytime Running Headlamps w/Delay-Off	Optional
Aluminum Spare Wheel	Optional
Deep Tinted Glass	Standard
Spray-In Bed Liner	Optional
Tires: P275/60R20 AS BSW	Optional
Metal-Look Grille w/Chrome Surround	Optional
Perimeter/Approach Lights	Optional
Galvanized Steel/Aluminum Panels	Standard
Tailgate Rear Cargo Access	Standard
Laminated Glass	Optional
Speed Sensitive Rain Detecting Variable Intermittent Wipers	Optional
Chrome Power w/Tilt Down Heated Side Mirrors w/Driver Auto Dimming, Convex Spotter, Power Folding and Turn Signal Indicator	Optional
Regular Box Style	Standard

Outside Temp Gauge	Optional
Power Door Locks w/Autolock Feature	Standard
Systems Monitor	Standard
Perimeter Alarm	Standard
Analog Appearance	Standard
Pickup Cargo Box Lights	Standard
Air Filtration	Standard
Front Map Lights	Optional
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button	Standard
Memory Settings -inc: Driver Seat, Door Mirrors and Steering Wheel	Optional
Seats w/Leatherette Back Material	Optional
4 Seatback Storage Pockets	Standard
FOB Controls -inc: Windows and Remote Engine Start	Optional
Power Rear Windows	Standard
Heated Leather/Genuine Wood Steering Wheel w/Auto Tilt-Away	Optional
Immobilizer	Standard
HVAC -inc: Underseat Ducts and Console Ducts	Optional
Dual Zone Front Automatic Air Conditioning	Optional
Day-Night Auto-Dimming Rearview Mirror	Optional
Interior Trim -inc: Simulated Wood Instrument Panel Insert, Simulated Wood Door Panel Insert, Metal-Look Console Insert and Chrome/Metal-Look Interior Accents	Optional
Illuminated Locking Glove Box	Optional
Compass	Optional
Proximity Key For Doors And Push Button Start	Optional
Cruise Control w/Steering Wheel Controls	Standard
Leather Gear Shifter Material	Optional
Full Cloth Headliner	Standard
3 12V DC Power Outlets	Optional
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Inclinometer, Oil Temperature, Transmission Fluid Temp, Trip Odometer and Trip Computer	Optional
Front Cupholder	Standard
Rear Cupholder	Standard
Trip Computer	Standard
Premium Leather Seat Trim -inc: unique Platinum Reserve badging	Optional
Smart Device Remote Engine Start	Optional
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints	Standard
Valet Function	Standard
Dashboard Storage, Driver / Passenger And Rear Door Bins and Locking 2nd Row Underseat Storage	Optional
Mini Overhead Console w/Storage, 3 12V DC Power Outlets and 2 120V AC Power Outlets	Optional
HomeLink Garage Door Transmitter	Optional
Passenger Seat	Optional
Power Tilt/Telescoping Steering Column	Optional
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down	Optional
3 12V DC Power Outlets and 2 120V AC Power Outlets	Optional
Tracker System	Optional
Full Carpet Floor Covering -inc: Rubber w/Carpet Inserts Front And Rear Floor Mats	Optional
Driver Foot Rest	Standard
Leatherette Door Trim Insert	Optional
NissanConnect Selective Service Internet Access	Optional
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror	Optional
Heated & Cooled Front Captain's Chairs -inc: center console, 8-way power adjustable driver's seat and power lumbar support w/memory function and 4-way power adjustable passenger's seat	Optional
Front Center Armrest and Rear Center Armrest	Optional
60-40 Folding Split-Bench Front Facing Heated Fold-Up Cushion Rear Seat	Optional
Driver Seat	Optional
Fade-To-Off Interior Lighting	Standard

Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher	Optional
Rear-Wheel Drive	Standard
Gas-Pressurized Shock Absorbers	Standard
1320# Maximum Payload	Optional
Class IV Towing Equipment -inc: Hitch, Brake Controller and Trailer Sway Control	Optional
GVWR: 7,100 lbs	Standard
2.937 Axle Ratio	Standard
Transmission w/Driver Selectable Mode and Sequential Shift Control	Standard
26 Gal. Fuel Tank	Standard
Front And Rear Anti-Roll Bars	Standard
Transmission: 7-Speed Automatic	Standard
80-Amp/Hr 710CCA Maintenance-Free Battery w/Run Down Protection	Standard
Double Wishbone Front Suspension w/Coil Springs	Standard
Trailer Wiring Harness	Optional
Hydraulic Power-Assist Speed-Sensing Steering	Standard
Solid Axle Rear Suspension w/Leaf Springs	Standard
Engine: 5.6L V8	Standard
Engine Oil Cooler	Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control	Standard
200 Amp Alternator	Standard

Front And Rear Parking Sensors	Optional
Curtain 1st And 2nd Row Airbags	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
Side Impact Beams	Standard
Left Side Camera	Optional
Right Side Camera	Optional
Aerial View Camera System	Optional
Airbag Occupancy Sensor	Standard
Around View Monitor Front Camera	Optional
Electronic Stability Control (ESC)	Standard
NissanConnect Services Emergency Sos	Optional
Tire Specific Low Tire Pressure Warning	Standard
Blind Spot Warning (BSW) Blind Spot	Optional
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners	Standard
Around View Monitor w/Moving Object Detection Back-Up Camera	Optional
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
Rear Child Safety Locks	Standard
and Rear Cross Traffic Alert (RCTA)	Optional
ABS And Driveline Traction Control	Standard

Compare trims

Wondering which trim is right for you?

Our 2017 Nissan Titan trim comparison will help you decide.

Engine Type	Regular Unleaded V-8
SAE Net Horsepower @ RPM	390 @ 5800
Engine Oil Cooler	Regular Duty
SAE Net Torque @ RPM	394 @ 4000
Displacement	5.6 L/339

Axle Type - Front	Independent
Axle Type - Rear	Rigid Axle
Suspension Type - Front	Double Wishbone
Suspension Type - Rear	Leaf

Fuel Tank Capacity, Approx	26 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Ratio (:1), Overall	N/A
Turning Diameter - Curb to Curb	48 ft
Steering Type	Rack-Pinion
Turning Diameter - Wall to Wall	N/A ft

Rear Tire Size	P275/60SR20
Front Tire Size	P275/60SR20
Spare Tire Size	Full-Size

Maximum Alternator Capacity (amps)	200
Cold Cranking Amps @ 0° F (Primary)	710
