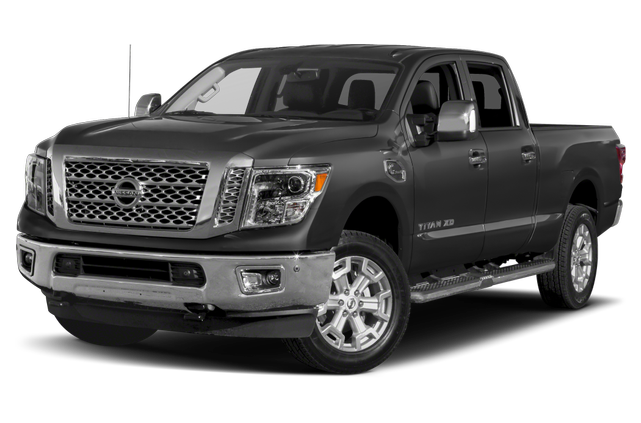

2016 Nissan Titan XD SL specs & colors
Crew Cab Pickup
Change trim
MSRP
- 2WD Crew Cab S Gas $35,290
- 4WD Crew Cab S Gas $38,290
- 2WD Crew Cab SV Gas $39,060
- 2WD Crew Cab S Diesel $40,290
- 4WD Crew Cab SV Gas $42,010
- 4WD Crew Cab S Diesel $43,290
- 2WD Crew Cab SV Diesel $44,060
- 4WD Crew Cab PRO-4X Gas $45,970
- 4WD Crew Cab SV Diesel $47,010
- 2WD Crew Cab SL Gas $47,030
- 4WD Crew Cab SL Gas $50,030
- 4WD Crew Cab PRO-4X Diesel $50,970
- 2WD Crew Cab SL Diesel $52,030
- 2WD Crew Cab Platinum Reserve Gas $52,470
- 4WD Crew Cab SL Diesel $55,030
- 4WD Crew Cab Platinum Reserve Gas $55,520
- 2WD Crew Cab Platinum Reserve Diesel $57,470
- 4WD Crew Cab Platinum Reserve Diesel $60,520
$52,030
Starting MSRP
Current listing price
Current listing price
Showing the 2016 Nissan Titan XD 2WD Crew Cab SL Diesel
Shop NowKey specs
Color options
Interior
Grey-Violet
Medium Grey
Packages
Specifications
| Rear Wheel Material | Aluminum |
| Spare Wheel Size | Full-Size in |
| Rear Wheel Size | 20 X 7.5 in |
| Front Wheel Material | Aluminum |
| Spare Wheel Material | Aluminum |
| Front Wheel Size | 20 X 7.5 in |
| Maximum Alternator Capacity (amps) | N/A |
| Cold Cranking Amps @ 0° F (Primary) | 550 |
| SAE Net Horsepower @ RPM | 310 @ 3200 |
| Engine Type | Intercooled Turbo Diesel V-8 |
| Displacement | 5.0 L/305 |
| Engine Oil Cooler | Regular Duty |
| SAE Net Torque @ RPM | 555 @ 1600 |
| Estimated Battery Range | N/A mi |
| Cruising Range - Hwy | N/A mi |
| EPA Fuel Economy Est - Hwy | N/A MPG |
| Fuel Economy Est-Combined | N/A MPG |
| EPA Fuel Economy Est - City | N/A MPG |
| Cruising Range - City | N/A mi |
| Trans Description Cont. Again | N/A |
| Trans Description Cont. | Automatic w/OD |
| Reverse Ratio (:1) | 3.54 |
| Transfer Case Model | None |
| Trans Type | 6 |
| Second Gear Ratio (:1) | 2.00 |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Power Take Off | No |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Sixth Gear Ratio (:1) | 0.63 |
| Trans Power Take Off | N/A |
| Third Gear Ratio (:1) | 1.34 |
| Transfer Case Gear Ratio (:1), High | N/A |
| Fourth Gear Ratio (:1) | 1.00 |
| Drivetrain | Rear Wheel Drive |
| First Gear Ratio (:1) | 3.74 |
| Fifth Gear Ratio (:1) | 0.77 |
| Suspension Type - Front | Double Wishbone |
| Suspension Type - Rear | Leaf |
| Axle Type - Rear | Rigid Axle |
| Axle Type - Front | Independent |
| Frame Type | N/A |
| Brake Type | 4-Wheel Disc |
| Brake ABS System (Second Line) | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 14.2 in |
| Rear Brake Rotor Diam x Thickness | 14.4 in |
| Brake ABS System | 4-Wheel |
| Drum - Rear (Yes or ) | N/A |
| Disc - Rear (Yes or ) | Yes |
| Fuel Tank Capacity, Approx | 26 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Re-Circulating Ball |
| Turning Diameter - Curb to Curb | 53.8 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Steering Ratio (:1), Overall | N/A |
| Front Tire Size | LT265/60SR20 |
| Rear Tire Size | LT265/60SR20 |
| Spare Tire Size | Full-Size |
| Wt Distributing Hitch - Max Trailer Wt. | 11915 lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | 11915 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 1191 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Maximum Payload Capacity | 1675.00 lbs |
| Option Weight - Front | 0.00 lbs |
| Curb Weight - Rear | 2935 lbs |
| Gross Vehicle Weight Rating | 8800.00 lbs |
| Curb Weight | 7125.00 lbs |
| Curb Weight - Front | 4190 lbs |
| Base Curb Weight | 7126 lbs |
| Option Weight - Rear | 0.00 lbs |
| Gross Axle Weight Rating | 9800.00 lbs |
| As Spec'd Curb Weight | 7125.00 lbs |
| As Spec'd Payload | 1675.00 lbs |
| Gross Combined Wt Rating | 19450 lbs |
| Total Option Weight | 0.00 lbs |
| Front Head Room | 41 in |
| Ground Clearance, Rear | 9.1 in |
| Cargo Volume | N/A ft³ |
| Overhang, Rear w/o bumper | N/A in |
| Second Leg Room | 38.5 in |
| Cargo Box Width @ Wheelhousings | 50 in |
| Tailgate Width | N/A in |
| Width, Max w/o mirrors | 79.5 in |
| Length, Overall w/o rear bumper | N/A in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Front Hip Room | 60.8 in |
| Overhang, Front | N/A in |
| Cargo Box Width @ Top, Rear | 61.7 in |
| Front Leg Room | 41.8 in |
| Second Head Room | 40.4 in |
| Passenger Capacity | 5 |
| Cargo Box (Area) Height | 20.8 in |
| Length, Overall w/rear bumper | N/A in |
| Cargo Box Width @ Floor | 61.7 in |
| Height, Overall | 78.7 in |
| Ground to Top of Load Floor | N/A in |
| Cargo Box Length @ Floor | 78.7 in |
| Length, Overall | 242.8 in |
| Front Shoulder Room | 63.3 in |
| Cab to End of Frame | N/A in |
| Ground Clearance, Front | 9.1 in |
| Second Hip Room | 60.3 in |
| Second Shoulder Room | 63.6 in |
| Wheelbase | 151.6 in |
| Fixed Antenna | Standard |
| Radio: NissanConnect w/Navigation & Mobile Apps -inc: 7" color display, AM/FM/CD, MP3 auxiliary input, USB connection for iPod interface and other compatible devices, Bluetooth hands-free phone system, SiriusXM Traffic, SiriusXM Travel Link (weather, fuel prices, movie listings and stock info), Nissan voice recognition for navigation and audio and NissanConnect Services powered by SiriusXM | Optional |
| Regular Amplifier | Optional |
| Rockford Fosgate Premium 12 Speaker Audio System | Optional |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System | Optional |
| Deep Tinted Glass | Standard |
| Metal-Look Grille w/Chrome Surround | Optional |
| Chrome Front Bumper w/2 Tow Hooks | Optional |
| Regular Box Style | Standard |
| Speed Sensitive Rain Detecting Variable Intermittent Wipers | Optional |
| Full-Size Spare Tire Stored Underbody w/Crankdown | Standard |
| Tailgate Rear Cargo Access | Standard |
| Tires: LT265/60R20 AS BSW | Optional |
| Laminated Glass | Optional |
| Fully Galvanized Steel Panels | Standard |
| Perimeter/Approach Lights | Optional |
| Manual Tailgate/Rear Door Lock | Standard |
| Running Boards | Optional |
| Aluminum Spare Wheel | Optional |
| Chrome Power Heated Side Mirrors w/Driver Auto Dimming, Power Folding and Turn Signal Indicator | Optional |
| Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim | Standard |
| Cargo Lamp w/High Mount Stop Light | Standard |
| Chrome Door Handles | Optional |
| Spray-In Bed Liner | Optional |
| Manual-Leveling Programmable Projector Beam Led Low Beam Daytime Running Headlamps w/Delay-Off | Optional |
| Power Rear Window w/Defroster | Optional |
| Front Fog Lamps | Optional |
| Chrome Rear Step Bumper | Optional |
| Wheels: 20" x 7.5" Painted Alloy | Optional |
| Outside Temp Gauge | Standard |
| Heated Captain's Chairs -inc: 8-way power driver seat, power adjustable lumbar and memory function | Optional |
| 1 Seatback Storage Pocket | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror | Optional |
| Front Map Lights | Optional |
| HVAC -inc: Underseat Ducts and Console Ducts | Optional |
| Leatherette Door Trim Insert | Optional |
| Dual Zone Front Automatic Air Conditioning | Optional |
| Driver Foot Rest | Standard |
| Seats w/Leatherette Back Material | Optional |
| Dashboard Storage, Driver / Passenger And Rear Door Bins and Locking 2nd Row Underseat Storage | Optional |
| Tracker System | Optional |
| Full Carpet Floor Covering | Optional |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Front Center Armrest and Rear Center Armrest | Optional |
| Perimeter Alarm | Standard |
| Leather Steering Wheel w/Auto Tilt-Away | Optional |
| Immobilizer | Standard |
| Fade-To-Off Interior Lighting | Standard |
| Smart Device Remote Engine Start | Optional |
| Front Cupholder | Standard |
| Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Inclinometer, Turbo/Supercharger Boost, Oil Temperature, Transmission Fluid Temp and Trip Odometer | Optional |
| Pickup Cargo Box Lights | Standard |
| Day-Night Auto-Dimming Rearview Mirror | Optional |
| 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat | Standard |
| Air Filtration | Standard |
| Power Rear Windows | Standard |
| Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down | Optional |
| Urethane Gear Shifter Material | Standard |
| Proximity Key For Push Button Start Only | Standard |
| Power Tilt/Telescoping Steering Column | Optional |
| Full Floor Console w/Locking Storage, Mini Overhead Console w/Storage, 3 12V DC Power Outlets and 2 120V AC Power Outlets | Optional |
| Illuminated Locking Glove Box | Optional |
| Compass | Optional |
| Leather Seat Trim | Optional |
| 3 12V DC Power Outlets and 2 120V AC Power Outlets | Optional |
| Full Cloth Headliner | Standard |
| Driver Information Center | Optional |
| Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| 3 12V DC Power Outlets | Optional |
| Power Door Locks w/Autolock Feature | Standard |
| Valet Function | Standard |
| FOB Controls -inc: Windows and Remote Start | Optional |
| Analog Appearance | Standard |
| Driver Seat | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Rear Cupholder | Standard |
| Passenger Seat | Standard |
| HomeLink Garage Door Transmitter | Optional |
| Interior Trim -inc: Simulated Wood Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Chrome/Metal-Look Interior Accents | Optional |
| Memory Settings -inc: Steering Wheel | Optional |
| 3.916 Axle Ratio | Optional |
| Gas-Pressurized Shock Absorbers | Standard |
| Hydraulic Power-Assist Speed-Sensing Steering | Standard |
| Solid Axle Rear Suspension w/Leaf Springs | Standard |
| GVWR: 8,800 lbs | Standard |
| Block Heater | Optional |
| Single Stainless Steel Exhaust | Standard |
| Trailer Wiring Harness | Optional |
| 26 Gal. Fuel Tank | Standard |
| Engine: 5.0L V8 Turbo Diesel | Optional |
| Front And Rear Anti-Roll Bars | Standard |
| Rear-Wheel Drive | Standard |
| Transmission w/Driver Selectable Mode, Sequential Shift Control and Oil Cooler | Standard |
| Class IV Towing Equipment -inc: Hitch, Brake Controller and Trailer Sway Control | Optional |
| Transmission: Aisin 6-Speed Automatic | Optional |
| 63-Amp/Hr 550CCA Maintenance-Free Battery w/Run Down Protection | Optional |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control | Standard |
| 1674# Maximum Payload | Optional |
| Engine Oil Cooler | Standard |
| Double Wishbone Front Suspension w/Coil Springs | Standard |
| RearView Monitor Back-Up Camera | Optional |
| Blind Spot | Optional |
| Rear Child Safety Locks | Standard |
| Emergency Sos | Optional |
| Electronic Stability Control (ESC) | Standard |
| Side Impact Beams | Standard |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| ABS And Driveline Traction Control | Standard |
| Front And Rear Parking Sensors | Optional |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Rear Collision Warning | Optional |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Airbag Occupancy Sensor | Standard |
| Curtain 1st And 2nd Row Airbags | Standard |
| Tire Specific Low Tire Pressure Warning | Standard |
