2021 RAM 1500 HFE specs & colors

Crew Cab Pickup

Change trim
$42,240
Starting MSRP
Current listing price

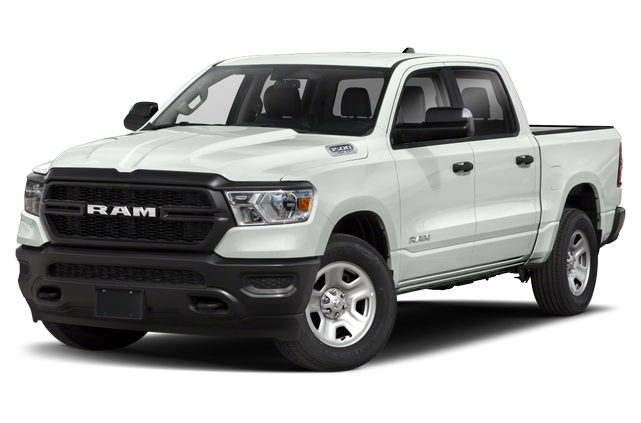

Showing the 2021 RAM 1500 HFE 4x2 Crew Cab 5'7" Box

Shop Now

Key specs

Color options

Interior

Black

Packages

$0

Starting MSRP

  • Engine: 3.0L V6 Turbo Diesel Gen 3
  • Transmission: 8-Speed Automatic (8HP75) (DFV)

Specifications

Front Wheel Size 20 X 9 in
Rear Wheel Size 20 X 9 in
Spare Wheel Size Full-Size in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 800
Maximum Alternator Capacity (amps) 250

Engine Type Intercooled Turbo Diesel V-6
Displacement 3.0 L/182
SAE Net Horsepower @ RPM 260 @ 3600
SAE Net Torque @ RPM 480 @ 1600
Engine Oil Cooler Regular Duty

EPA Fuel Economy Est - Hwy 33 MPG
Cruising Range - City 598.00 mi
EPA Fuel Economy Est - City 23 MPG
Fuel Economy Est-Combined 26 MPG
Cruising Range - Hwy 858.00 mi
Estimated Battery Range N/A mi

Drivetrain Rear Wheel Drive
Trans Type 8
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.71
Second Gear Ratio (:1) 3.14
Third Gear Ratio (:1) 2.11
Fourth Gear Ratio (:1) 1.67
Fifth Gear Ratio (:1) 1.28
Sixth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 3.29
Trans Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Model None
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Power Take Off No
Seventh Gear Ratio (:1) 0.84
Eighth Gear Ratio (:1) 0.67

Suspension Type - Front Short And Long Arm
Suspension Type - Rear Multi-Link
Axle Type - Front Independent
Axle Type - Rear Rigid Axle

Frame Type N/A

Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 14.9 in
Rear Brake Rotor Diam x Thickness 14.8 in
Drum - Rear (Yes or ) N/A

Fuel Tank Capacity, Approx 26 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 46.2 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P275/55TR20
Rear Tire Size P275/55TR20
Spare Tire Size Full-Size

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 8290 lbs
Wt Distributing Hitch - Max Tongue Wt. 829 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity 8290 lbs

Base Curb Weight 5243 lbs
Curb Weight - Front 3057 lbs
Curb Weight - Rear 2186 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 5243.00 lbs
As Spec'd Payload 1747.00 lbs
Maximum Payload Capacity 1747.00 lbs
Gross Combined Wt Rating 13900 lbs
Gross Axle Weight Rating 7800.00 lbs
Curb Weight 5243.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 6990.00 lbs

Passenger Capacity 5
Front Head Room 40.9 in
Front Leg Room 40.9 in
Front Shoulder Room 66 in
Front Hip Room 63.4 in
Second Head Room 39.8 in
Second Leg Room 45.2 in
Second Shoulder Room 65.7 in
Second Hip Room 63.4 in
Wheelbase 144.5 in
Length, Overall w/o rear bumper N/A in
Length, Overall w/rear bumper N/A in
Length, Overall 232.9 in
Width, Max w/o mirrors 82.1 in
Height, Overall 77.5 in
Overhang, Front N/A in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor N/A in
Ground Clearance, Front 8.2 in
Ground Clearance, Rear 8.2 in
Cargo Box Length @ Floor 67.4 in
Cargo Box Width @ Top, Rear 66.4 in
Cargo Box Width @ Floor 66.4 in
Cargo Box Width @ Wheelhousings 51 in
Cargo Box (Area) Height 21.4 in
Tailgate Width 60 in
Cargo Volume 53.9 ft³
Ext'd Cab Cargo Volume N/A ft³

Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Voice Activation, Radio Data System and External Memory Control Standard
1 LCD Monitor In The Front Standard
Streaming Audio Standard
6 Speakers Standard
Fixed Antenna Standard
Radio: Uconnect 3 w/5" Display Standard

Tires: 275/55R20 OWL All Season Optional
Black Front Bumper w/Black Rub Strip/Fascia Accent Standard
Laminated Glass Standard
Black Grille Standard
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Wheels: 20" x 9" Aluminum Chrome Clad Optional
Black Side Windows Trim Standard
Black Door Handles Standard
Tailgate Rear Cargo Access Standard
Steel Spare Wheel Standard
Cargo Lamp w/High Mount Stop Light Standard
Variable Intermittent Wipers Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Auto On/Off Aero-Composite Halogen Daytime Running Headlamps w/Delay-Off Standard
Fixed Rear Window Standard
Perimeter/Approach Lights Standard
Side Steps Optional
Black Power Heated Side Mirrors w/Convex Spotter and Manual Folding Optional
Regular Box Style Standard
Deep Tinted Glass Standard
Galvanized Steel/Aluminum Panels Standard
Black Rear Step Bumper Standard
Soft Tonneau Cover Optional

Cloth High-Back Bucket Seats Optional
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Standard
Cruise Control w/Steering Wheel Controls Standard
Valet Function Standard
Outside Temp Gauge Standard
Urethane Gear Shifter Material Standard
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement Standard
Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents Standard
Proximity Key For Push Button Start Only Standard
Sentry Key Immobilizer Standard
Front Center Armrest w/Storage Optional
Driver Information Center Standard
Manual Air Conditioning Standard
Full Cloth Headliner Standard
1 12V DC Power Outlet Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Manual Tilt/Telescoping Steering Column Standard
Cloth Front Seats w/Cloth Back Material Optional
Illuminated Front Cupholder Standard
Pickup Cargo Box Lights Standard
Full Floor Console w/Covered Storage, Mini Overhead Console and 1 12V DC Power Outlet Optional
Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints Optional
Power Rear Windows Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Full Carpet Floor Covering Optional
Instrument Panel Bin, Dashboard Storage, Interior Concealed Storage, Driver / Passenger And Rear Door Bins Standard
Rear Cupholder Standard
Passenger Visor Vanity Mirror w/Passenger Illumination Optional
Day-Night Rearview Mirror Standard
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter and Trip Odometer Standard
Power Door Locks w/Autolock Feature Standard
Compass Standard
Full Folding Bench Front Facing Fold-Up Cushion Cloth Rear Seat Optional
Analog Appearance Standard
Fade-To-Off Interior Lighting Standard
HVAC -inc: Underseat Ducts and Console Ducts Standard
Front Map Lights Standard

800CCA Maintenance-Free Battery Optional
Rear-Wheel Drive Standard
Front Anti-Roll Bar Optional
Engine Auto Stop-Start Feature Standard
Solid Axle Rear Suspension w/Coil Springs Standard
Transmission: 8-Speed Automatic (8HP75) (DFV) (STD) Optional
HD Shock Absorbers Standard
Engine Oil Cooler Standard
Single Stainless Steel Exhaust Standard
1750# Maximum Payload Optional
26 Gal. Fuel Tank Standard
Class III Towing Equipment -inc: Hitch and Trailer Sway Control Standard
GVWR: 6,990 lbs Optional
250 Amp Alternator Optional
Engine: 3.0L V6 Turbo Diesel Gen 3 (STD) Optional
Transmission w/Driver Selectable Mode and Sequential Shift Control w/Steering Wheel Controls Standard
Electric Power-Assist Steering Standard
Short And Long Arm Front Suspension w/Coil Springs Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake Optional
Trailer Wiring Harness Standard
3.21 Rear Axle Ratio Standard

ABS And Driveline Traction Control Standard
Side Impact Beams Standard
Rear Child Safety Locks Standard
Curtain 1st And 2nd Row Airbags Standard
Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Dual Stage Driver And Passenger Front Airbags Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Tire Specific Low Tire Pressure Warning Standard
ParkView Back-Up Camera Standard
