2012 Suzuki Grand Vitara specs & colors

Starting MSRP
Current listing price

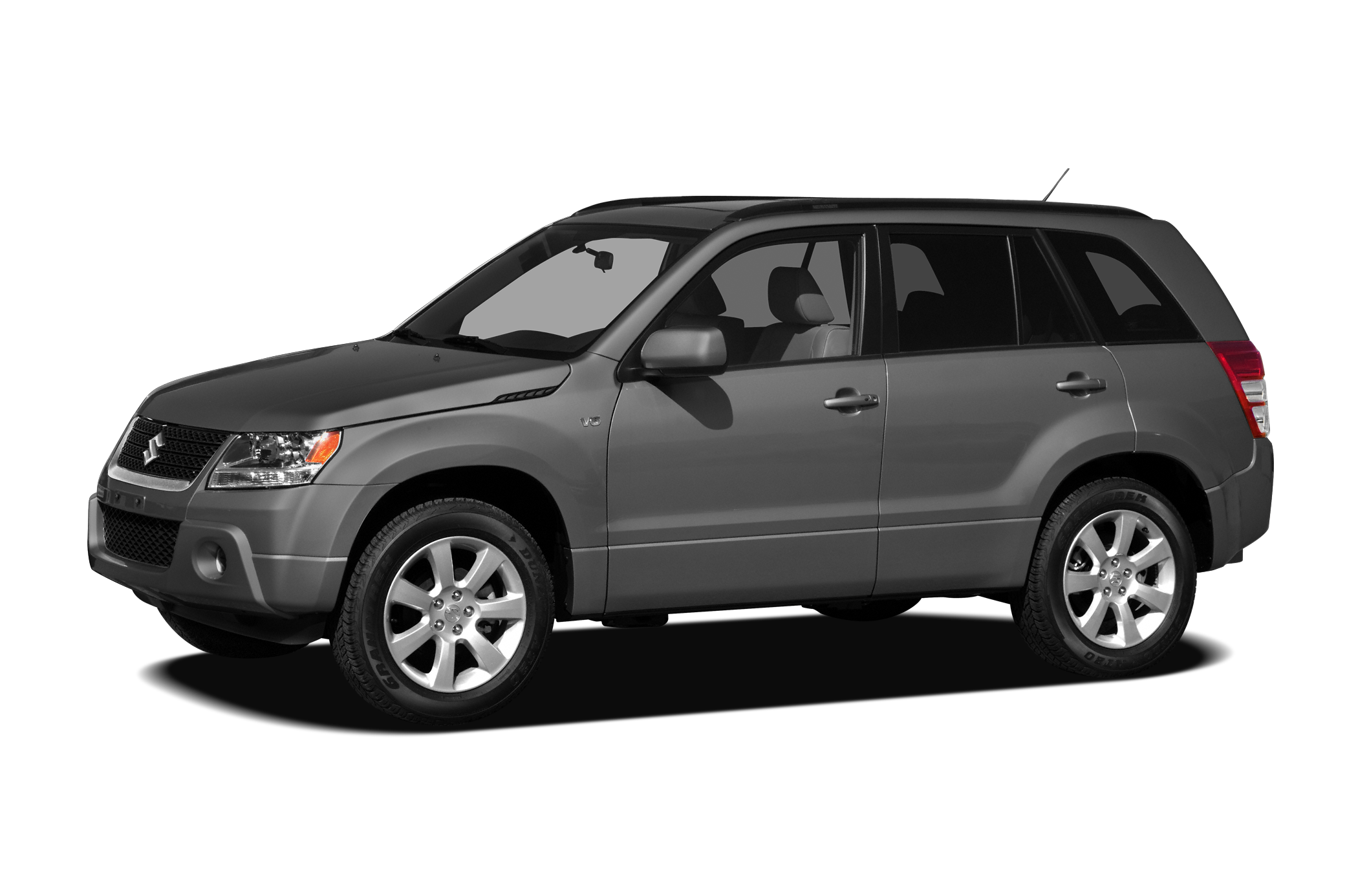

2012 Suzuki Grand Vitara

Showing the 2012 Suzuki Grand Vitara 2WD 4dr Man

Shop Now

Key specs

Color options


No colors available



EPA Classification Sport Utility
Front Wheel Size 16 x -TBD- in
Rear Wheel Size 16 x -TBD- in
Spare Wheel Size 16 x -TBD- in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) N/A
Engine Type Gas I4
Displacement 2.4L/146
SAE Net Horsepower @ RPM 166 @ 6000
SAE Net Torque @ RPM 162 @ 4000
EPA Fuel Economy Est - Hwy 26 MPG
Cruising Range - City 330.60 mi
EPA Fuel Economy Est - City 19 MPG
Fuel Economy Est-Combined 22 MPG
Cruising Range - Hwy 452.40 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi
Drivetrain Rear Wheel Drive
Trans Type 5
Trans Description Cont. Manual
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 4.545
Second Gear Ratio (:1) 2.354
Third Gear Ratio (:1) 1.693
Fourth Gear Ratio (:1) 1.241
Fifth Gear Ratio (:1) 1.000
Reverse Ratio (:1) 4.431
Final Drive Axle Ratio (:1) 3.727
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Suspension Type - Front MacPherson Strut
Suspension Type - Rear Multi-link
Suspension Type - Front (Cont.) Not Available
Suspension Type - Rear (Cont.) Not Available
Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness N/A in
Rear Brake Rotor Diam x Thickness N/A in
Drum - Rear (Yes or ) Not Available
Fuel Tank Capacity, Approx 17.4 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Pwr
Steering Ratio (:1), Overall 14.0
Lock to Lock Turns (Steering) 2.7
Turning Diameter - Curb to Curb 36.7 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P225/70R16
Rear Tire Size P225/70R16
Spare Tire Size P225/70R16
Dead Weight Hitch - Max Trailer Wt. 3000 lbs
Dead Weight Hitch - Max Tongue Wt. 300 lbs
Wt Distributing Hitch - Max Trailer Wt. Not Available lbs
Wt Distributing Hitch - Max Tongue Wt. Not Available lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight 3468 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Maximum Payload Capacity N/A lbs
Curb Weight N/A lbs
Total Option Weight 0.00 lbs
Passenger Capacity 5
Passenger Volume 111.1 ft³
Front Head Room 40.0 in
Front Leg Room 41.3 in
Front Shoulder Room 56.3 in
Front Hip Room 55.5 in
Second Head Room 38.2 in
Second Leg Room 37.2 in
Second Shoulder Room 54.9 in
Second Hip Room 44.0 in
Wheelbase 103.9 in
Length, Overall 175.8 in
Width, Max w/o mirrors 71.3 in
Height, Overall 66.3 in
Track Width, Front 60.6 in
Track Width, Rear 61.4 in
Min Ground Clearance 7.4 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 Not Available in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Liftover Height N/A in
Cargo Volume to Seat 1 70.8 ft³
Cargo Volume to Seat 2 28.4 ft³
Cargo Volume to Seat 3 Not Available ft³
Steering wheel w/audio controls Standard
Advanced front airbags w/passenger occupancy sensor Standard
Zero-maintenance self-adjusting timing chain Standard
Pwr mirrors Standard
Pwr door locks Standard
Electronic stability program (ESP) Standard
Tilt steering wheel Standard
Rear window wiper w/washer Standard
Cloth front bucket seats Standard
5-speed manual transmission Standard
AM/FM stereo w/CD/MP3 player -inc: aux input, (4) speakers Standard
Front variable intermittent wipers Standard
Rear door child safety locks Standard
Rear window defroster Standard
Dual sunvisors w/vanity mirrors, extensions Standard
Air conditioning w/automatic climate control -inc: micron air-filtration system Standard
Tire pressure monitoring system (TPMS) Standard
Pwr windows Standard
Driver information center Standard
P225/70R16 all-season tires Standard
2.4L DOHC 16-valve I4 engine Standard
Anti-lock brakes (ABS) w/brake assist Standard
Remote keyless entry w/panic button Standard
Cargo cover Standard
Fully independent suspension Standard
(3) 12V interior accessory outlets Standard
Split fold-&-tumble folding rear seats Standard
Front/rear side curtain airbags w/rollover protection Standard
Pwr-assisted fixed-ratio rack & pinion steering Standard
Hard full spare tire cover Standard
Navigation system -inc: lane assist & 3D graphic view Standard
4-wheel disc brakes Standard
Front seat-mounted side impact airbags Standard
Traction control system (TCS) Standard
16" steel wheels Standard
Auto on/off headlamps Standard
Daytime running lamps Standard
Lower anchors & tethers for children (LATCH) system Standard
Rear-wheel drive Standard
