2012 Suzuki Grand Vitara Limited specs & colors

MSRP
2WD 4dr Man
$19,649
2WD 4dr Auto Premium
$21,549
2WD 4dr Auto Ultimate Adventure
$22,449
4WD 4dr Auto Premium
$22,999
2WD 4dr Auto Limited
$23,899
4WD 4dr Auto Ultimate Adventure
$24,099
4WD 4dr Auto Limited
$25,399
$23,899
Starting MSRP
Current listing price

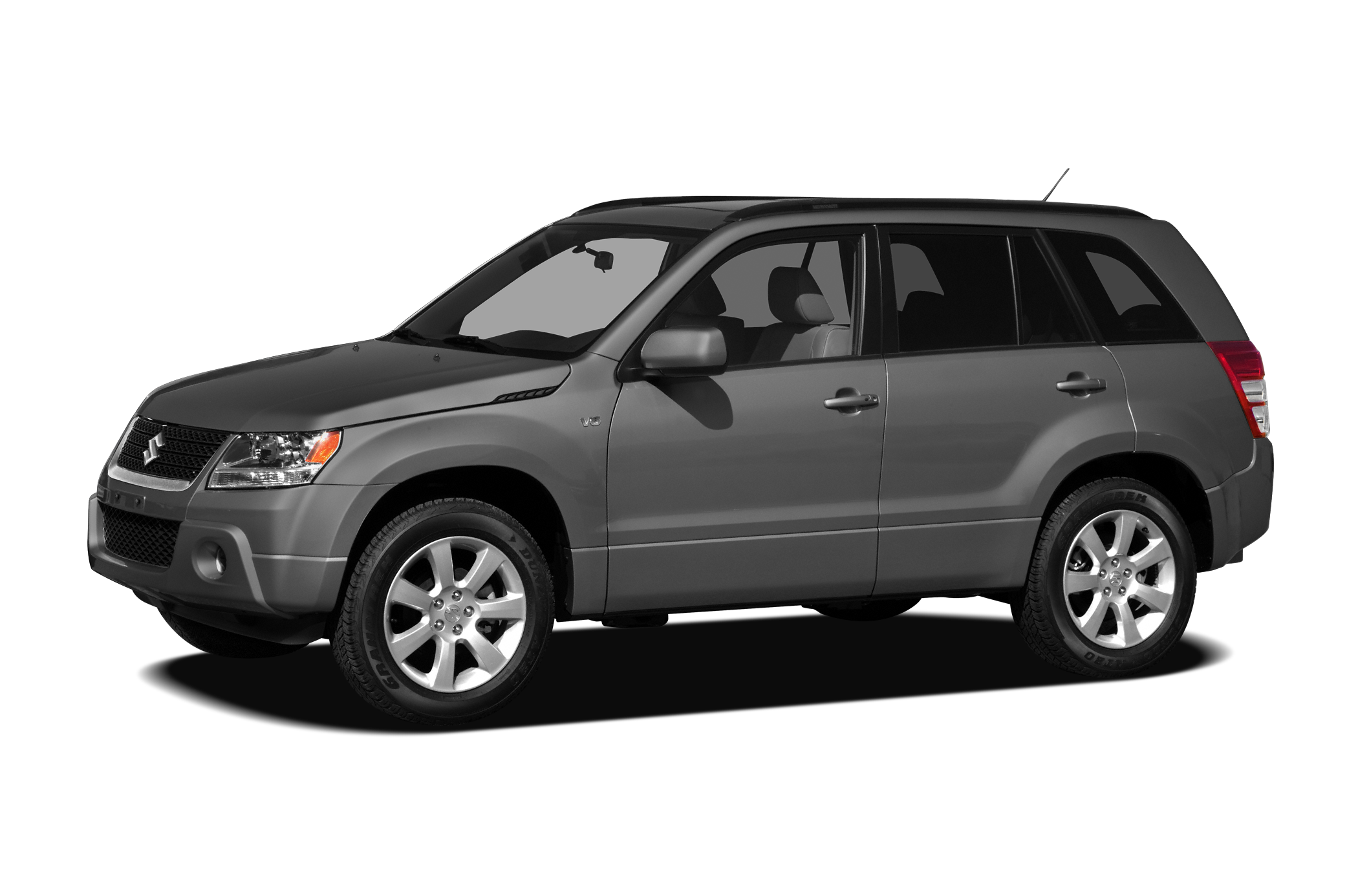

2012 Suzuki Grand Vitara Limited

Showing the 2012 Suzuki Grand Vitara 2WD 4dr Auto Limited

Shop Now

Key specs

  • 4-door
  • 5 seats
  • 166.0-hp, 2.4-liter, 4 Cylinder Engine (Gasoline Fuel)
  • 21 combined MPG
  • 177.2" length, 66.3" height
  • Rear Wheel Drive

Color options

Exterior

Volcano Red Metallic

Interior
No colors available

Packages

Specifications

Highlights

Engine Type
Gas I4
MPG
19 City / 25 Hwy
Horsepower
166 hp
Seating Capacity
5

Brakes

Disc - Front (Yes or )
Yes
Brake ABS System
4-Wheel
Drum - Rear (Yes or )
Not Available
Disc - Rear (Yes or )
Yes
Front Brake Rotor Diam x Thickness
N/A
Brake Type
Pwr
Rear Brake Rotor Diam x Thickness
N/A
Brake ABS System (Second Line)
N/A

Electrical

Cold Cranking Amps @ 0° F (Primary)
N/A
Maximum Alternator Capacity (amps)
N/A

Engine

Engine Type
Gas I4
SAE Net Horsepower @ RPM
166 @ 6000
SAE Net Torque @ RPM
162 @ 4000
Displacement
2.4L/146
Transmission Options
A/T
4-Speed A/T
MPG
19 City / 25 Hwy
Total Cooling System Capacity
10 qts

Measurements

Front Hip Room
56 in
Front Head Room
38 in
Rear Door Opening Height
N/A
Cargo Area Length @ Floor to Seat 3
Not Available in
Wheelbase
104 in
Front Shoulder Room
56 in
Track Width, Rear
61 in
Passenger Capacity
5
Liftover Height
N/A
Second Head Room
38 in
Length, Overall
177 in
Second Hip Room
44 in
Track Width, Front
61 in
Height, Overall
66 in
Cargo Volume to Seat 1
71 ft³
Front Leg Room
41 in
Cargo Volume to Seat 2
28 ft³
Cargo Area Length @ Floor to Seat 1
N/A
Rear Door Opening Width
N/A
Cargo Volume to Seat 3
Not Available ft³
Cargo Area Width @ Beltline
N/A
Cargo Area Length @ Floor to Seat 2
N/A
Cargo Box Width @ Wheelhousings
N/A
Second Shoulder Room
55 in
Width, Max w/o mirrors
71 in
Cargo Box (Area) Height
N/A
Second Leg Room
37 in
Passenger Volume
109 ft³
Min Ground Clearance
7 in

Safety

Stability Control
Standard
Brake Assist
Standard

Steering

Steering Type
Pwr
Lock to Lock Turns (Steering)
3
Turning Diameter - Curb to Curb
37 ft
Steering Ratio (:1), Overall
14
Turning Diameter - Wall to Wall
N/A

Suspension

Suspension Type - Front (Cont.)
Not Available
Suspension Type - Rear
Multi-link
Suspension Type - Front
MacPherson Strut
Suspension Type - Rear (Cont.)
Not Available

Tires & Wheels

Rear Wheel Size
18 x -TBD- in
Front Tire Size
P225/60R18
Front Wheel Material
Aluminum
Spare Wheel Material
Steel
Spare Wheel Size
16 x -TBD- in
Spare Tire Size
P225/70R16
Rear Wheel Material
Aluminum
Rear Tire Size
P225/60R18
Front Wheel Size
18 x -TBD- in

Weight & Capacity

Curb Weight
N/A
Base Curb Weight
3,479 lbs
Curb Weight - Front
N/A
Maximum Trailering Capacity
N/A
Total Option Weight
0 lbs
Aux Fuel Tank Capacity, Approx
N/A
Maximum Payload Capacity
N/A
Wt Distributing Hitch - Max Trailer Wt.
Not Available lbs
Curb Weight - Rear
N/A
Dead Weight Hitch - Max Tongue Wt.
300 lbs
Wt Distributing Hitch - Max Tongue Wt.
Not Available lbs
Dead Weight Hitch - Max Trailer Wt.
3,000 lbs
Fuel Tank Capacity, Approx
17 gal
