2002 Toyota Highlander specs & colors

Sport Utility

Change trim

$26,860

Starting MSRP
Current listing price

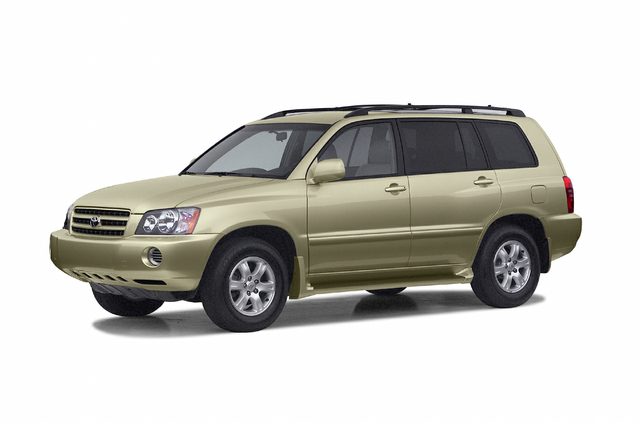

2002 Toyota Highlander

Showing the 2002 Toyota Highlander 4dr V6 4WD (Natl)

Shop Now

Key specs

4-door
5 seats
220.0-hp, 3.0-liter, V6 Cylinder Engine (Gasoline Fuel)
0 combined MPG
184.4" length, 68.3" height
Four Wheel Drive

Color options

Exterior

Bluestone Metallic

Interior

Ash

Onyx

Packages

Specifications

Highlights

Engine Type: Gas V6
MPG: 18 City / 22 Hwy
Horsepower: 220 hp
Seating Capacity: 5

Brakes

Front Brake Rotor Diam x Thickness: 11.6 x 1.1 in
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): N/A
Disc - Rear (Yes or ): Yes
Drum - Rear (Yes or ): Not Available
Rear Brake Rotor Diam x Thickness: 10.2 x 0.4 in
Disc - Front (Yes or ): Yes

Electrical

Cold Cranking Amps @ 0° F (Primary): 582
Maximum Alternator Capacity (amps): 100

Engine

SAE Net Horsepower @ RPM: 220 @ 5800
Displacement: 3.0L/183
Engine Type: Gas V6
SAE Net Torque @ RPM: 222 @ 4400
Transmission Options: A/T
4-Speed A/T
MPG: 18 City / 22 Hwy
Total Cooling System Capacity: 9.9 qts

Measurements

Passenger Volume: 106 ft³
Passenger Capacity: 5
Rear Door Opening Height: 34 in
Min Ground Clearance: 7 in
Track Width, Rear: 61 in
Cargo Area Length @ Floor to Seat 2: 42 in
Width, Max w/o mirrors: 72 in
Cargo Volume to Seat 1: 81 ft³
Cargo Area Length @ Floor to Seat 3: Not Available in
Second Head Room: 40 in
Second Shoulder Room: 57 in
Cargo Volume to Seat 3: Not Available ft³
Second Hip Room: 55 in
Cargo Box Width @ Wheelhousings: 39 in
Front Head Room: 40 in
Cargo Box (Area) Height: 36 in
Front Leg Room: 41 in
Front Hip Room: 55 in
Front Shoulder Room: 58 in
Height, Overall: 67 in
Liftover Height: 29 in
Second Leg Room: 36 in
Cargo Volume to Seat 2: 39 ft³
Track Width, Front: 62 in
Cargo Area Length @ Floor to Seat 1: 76 in
Wheelbase: 107 in
Length, Overall: 184 in
Cargo Area Width @ Beltline: 50 in
Rear Door Opening Width: 36 in

Steering

Turning Diameter - Curb to Curb: 37 ft
Steering Ratio (:1), Overall: 16
Steering Type: Pwr Rack & Pinion
Turning Diameter - Wall to Wall: 41 ft
Lock to Lock Turns (Steering): 3

Suspension

Suspension Type - Rear (Cont.): MacPherson
Suspension Type - Rear: Independent
Suspension Type - Front (Cont.): MacPherson
Suspension Type - Front: Independent

Tires & Wheels

Rear Tire Size: P225/70R16
Front Wheel Material: Steel
Rear Wheel Material: Steel
Front Tire Size: P225/70R16
Spare Wheel Material: Steel
Spare Wheel Size: 16 x 6.5 in
Rear Wheel Size: 16 x 6.5 in
Front Wheel Size: 16 x 6.5 in
Spare Tire Size: P225/70R16

Weight & Capacity

Maximum Payload Capacity: N/A
Curb Weight: N/A
Dead Weight Hitch - Max Trailer Wt.: 2,000 lbs
Maximum Trailering Capacity: N/A
Base Curb Weight: 3,880 lbs
Curb Weight - Front: N/A
Wt Distributing Hitch - Max Trailer Wt.: 3,500 lbs
Total Option Weight: 0 lbs
Curb Weight - Rear: N/A
Fuel Tank Capacity, Approx: 20 gal
Aux Fuel Tank Capacity, Approx: N/A
Dead Weight Hitch - Max Tongue Wt.: 200 lbs
Wt Distributing Hitch - Max Tongue Wt.: 350 lbs
