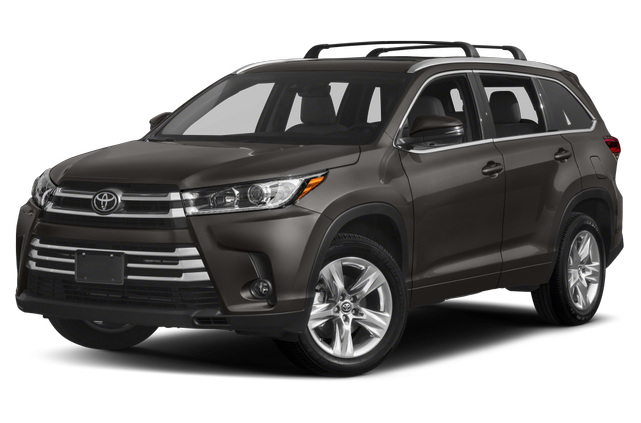

2017 Toyota Highlander Limited specs & colors
Sport Utility
MSRP
- LE I4 FWD (Natl)
- $30,630
- LE I4 FWD (GS)
- $30,630
- LE I4 FWD (SE)
- $30,630
- LE V6 FWD (Natl)
- $32,680
- LE V6 FWD (SE)
- $32,680
- LE V6 FWD (GS)
- $32,680
- LE V6 AWD (Natl)
- $34,140
- LE V6 AWD (GS)
- $34,140
- LE V6 AWD (SE)
- $34,140
- LE Plus V6 FWD (Natl)
- $35,060
- LE Plus V6 FWD (GS)
- $35,060
- LE Plus V6 FWD (SE)
- $35,060
- LE Plus V6 AWD (GS)
- $36,520
- LE Plus V6 AWD (SE)
- $36,520
- LE Plus V6 AWD (Natl)
- $36,520
- XLE V6 FWD (Natl)
- $38,520
- XLE V6 FWD (GS)
- $38,520
- XLE V6 FWD (SE)
- $38,520
- SE V6 FWD (SE)
- $39,690
- SE V6 FWD (GS)
- $39,690
- SE V6 FWD (Natl)
- $39,690
- XLE V6 AWD (Natl)
- $39,980
- XLE V6 AWD (GS)
- $39,980
- XLE V6 AWD (SE)
- $39,980
- SE V6 AWD (SE)
- $41,150
- SE V6 AWD (Natl)
- $41,150
- SE V6 AWD (GS)
- $41,150
- Limited V6 FWD (GS)
- $41,680
- Limited V6 FWD (SE)
- $41,680
- Limited V6 FWD (Natl)
- $41,680
- Limited V6 AWD (Natl)
- $43,140
- Limited V6 AWD (GS)
- $43,140
- Limited V6 AWD (SE)
- $43,140
- Limited Platinum V6 FWD (GS)
- $44,800
- Limited Platinum V6 FWD (SE)
- $44,800
- Limited Platinum V6 FWD (Natl)
- $44,800
- Limited Platinum V6 AWD (Natl)
- $46,260
- Limited Platinum V6 AWD (SE)
- $46,260
- Limited Platinum V6 AWD (GS)
- $46,260
$43,140
Starting MSRP
Current listing price
Current listing price
Showing the 2017 Toyota Highlander Limited V6 AWD (Natl)
Shop NowKey specs
Color options
Interior
Black
Light Gray
Bisque
Cashmere
Packages
$553
Starting MSRP
- Door Edge Guards
- Body Side Molding (TMS)
- Alloy Wheel Locks
See more detail $553
Starting MSRP
- Door Edge Guards
- Body Side Molding (TMS)
- Alloy Wheel Locks
- Rear Bumper Protector (TMS)
$699
Starting MSRP
- Tow Hitch
- Wiring Harness
$249
Starting MSRP
- All Weather Floor Liners
- Cargo Liner
$374
Starting MSRP
- Carpet Cargo Mat
- All Weather Floor Liners
- Carpet Floor Mats
$225
Starting MSRP
- Carpet Cargo Mat
- Carpet Floor Mats
$309
Starting MSRP
- Cargo Liner
- Carpet Floor Mats
- Cargo Net - Envelope
See more detail $309
Starting MSRP
- Cargo Liner
- Carpet Floor Mats
- Cargo Net - Envelope
- First Aid Kit
Specifications
Highlights
|
Regular Unleaded V-6
Engine Type
|
|
20 City / 26 Hwy
MPG
|
|
295 hp
Horsepower
|
|
8
Seating Capacity
|
Brakes
|
4-Wheel Disc
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
13 in
Front Brake Rotor Diam x Thickness
|
|
12 in
Rear Brake Rotor Diam x Thickness
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
150
Maximum Alternator Capacity (amps)
|
Engine
|
Regular Unleaded V-6
Engine Type
|
|
3.5 L/211
Displacement
|
|
295 @ 6600
SAE Net Horsepower @ RPM
|
|
263 @ 4700
SAE Net Torque @ RPM
|
|
8-Speed A/T
A/T Transmission w/Dual Shift Mode Transmission Options
|
|
20 City / 26 Hwy
MPG
|
|
N/A
Total Cooling System Capacity
|
Entertainment
|
Optional
Bluetooth®
|
Measurements
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Rear Door Opening Width
|
|
8 in
Min Ground Clearance
|
|
N/A
Rear Door Opening Height
|
|
64 in
Track Width, Rear
|
|
64 in
Track Width, Front
|
|
68 in
Height, Overall
|
|
76 in
Width, Max w/o mirrors
|
|
193 in
Length, Overall
|
|
110 in
Wheelbase
|
|
46 in
Third Hip Room
|
|
55 in
Third Shoulder Room
|
|
28 in
Third Leg Room
|
|
7
Passenger Capacity
|
|
142 ft³
Passenger Volume
|
|
36 in
Third Head Room
|
|
57 in
Second Hip Room
|
|
60 in
Second Shoulder Room
|
|
38 in
Second Leg Room
|
|
40 in
Second Head Room
|
|
57 in
Front Hip Room
|
|
59 in
Front Shoulder Room
|
|
44 in
Front Leg Room
|
|
40 in
Front Head Room
|
|
14 ft³
Cargo Volume to Seat 3
|
|
42 ft³
Cargo Volume to Seat 2
|
|
83 ft³
Cargo Volume to Seat 1
|
|
N/A
Liftover Height
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Area Width @ Beltline
|
Safety
|
Standard
Stability Control
|
|
Optional
Blind Spot Monitor
|
|
Optional
Rear Cross Traffic Alert
|
|
Standard
Lane Departure Warning
|
|
Standard
Backup Camera
|
Steering
|
Rack-Pinion
Steering Type
|
|
N/A
Steering Ratio (:1), Overall
|
|
N/A
Lock to Lock Turns (Steering)
|
|
39 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Strut
Suspension Type - Front
|
|
Double Wishbone
Suspension Type - Rear
|
|
Strut
Suspension Type - Front (Cont.)
|
|
Double Wishbone
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
P245/55TR19
Front Tire Size
|
|
P245/55TR19
Rear Tire Size
|
|
Compact
Spare Tire Size
|
|
19 X 7.5 in
Front Wheel Size
|
|
19 X 7.5 in
Rear Wheel Size
|
|
Compact in
Spare Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
Aluminum
Rear Wheel Material
|
|
Steel
Spare Wheel Material
|
Weight & Capacity
|
19 gal
Fuel Tank Capacity, Approx
|
|
4,655 lbs
Base Curb Weight
|
|
N/A
Curb Weight - Front
|
|
N/A
Curb Weight - Rear
|
|
N/A
Maximum Payload Capacity
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
5,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
500 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
5,000 lbs
Maximum Trailering Capacity
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
0 lbs
Total Option Weight
|
|
N/A
Curb Weight
|
