2003 Volkswagen GTI 20th Anniv Edition specs & colors
2dr Car
MSRP
- 2dr HB 1.8T 5-spd Manual
- $19,065
- 2dr HB 1.8T Auto
- $20,140
- 2dr HB VR6 6-spd Manual
- $21,995
- 2dr HB 20th Anniv Edition 6-spd Man
- $23,225
$23,225
Starting MSRP
Current listing price
Current listing price

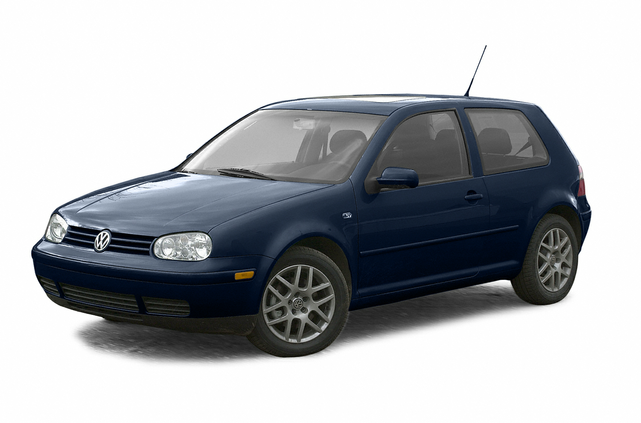

Showing the 2003 Volkswagen GTI 2dr HB 20th Anniv Edition 6-spd Man
Shop 2003 Volkswagen GTI
Key specs
Color options
Interior
Graphite Cordovan
Packages
Specifications
Highlights
|
Gas I4
Engine Type
|
|
23 City / 30 Hwy
MPG
|
|
180 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
N/A
Brake ABS System (Second Line)
|
|
10.1 x 0.87 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
12.3 x 0.98 in
Front Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
Electrical
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
|
120
Maximum Alternator Capacity (amps)
|
Engine
|
1.8L/109
Displacement
|
|
Gas I4
Engine Type
|
|
180 @ 5500
SAE Net Horsepower @ RPM
|
|
173 @ 1950
SAE Net Torque @ RPM
|
|
M/T
6-Speed M/T Transmission Options
|
|
23 City / 30 Hwy
MPG
|
|
8.5 qts
Total Cooling System Capacity
|
Measurements
|
3 in
Min Ground Clearance
|
|
57 in
Height, Overall
|
|
54 in
Front Shoulder Room
|
|
59 in
Track Width, Rear
|
|
42 in
Front Leg Room
|
|
60 in
Track Width, Front
|
|
37 in
Front Head Room
|
|
56 in
Front Hip Room
|
|
N/A
Trunk Volume
|
|
N/A
Liftover Height
|
|
5
Passenger Capacity
|
|
86 ft³
Passenger Volume
|
|
99 in
Wheelbase
|
|
42 ft³
Cargo Volume with Rear Seat Down
|
|
165 in
Length, Overall
|
|
68 in
Width, Max w/o mirrors
|
|
37 in
Second Head Room
|
|
34 in
Second Leg Room
|
|
18 ft³
Cargo Volume with Rear Seat Up
|
|
53 in
Second Shoulder Room
|
|
58 in
Second Hip Room
|
Steering
|
N/A
Turning Diameter - Wall to Wall
|
|
16
Steering Ratio (:1), Overall
|
|
Pwr Rack & Pinion
Steering Type
|
|
3
Lock to Lock Turns (Steering)
|
|
36 ft
Turning Diameter - Curb to Curb
|
Suspension
|
Independent
Suspension Type - Front
|
|
MacPherson Strut
Suspension Type - Front (Cont.)
|
|
Independent
Suspension Type - Rear
|
|
Torsion Beam
Suspension Type - Rear (Cont.)
|
Tires & Wheels
|
P225/40ZR18
Front Tire Size
|
|
Alloy
Rear Wheel Material
|
|
P225/40ZR18
Rear Tire Size
|
|
18 x 7.5 in
Rear Wheel Size
|
|
P225/40ZR18
Spare Tire Size
|
|
Steel
Spare Wheel Material
|
|
Alloy
Front Wheel Material
|
|
18 x 7.5 in
Front Wheel Size
|
|
18 x 7.5 in
Spare Wheel Size
|
Weight & Capacity
|
Not Available lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
2,916 lbs
Base Curb Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
Not Available lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
Not Available lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
15 gal
Fuel Tank Capacity, Approx
|
|
Not Available lbs
Wt Distributing Hitch - Max Trailer Wt.
|
