2003 Volkswagen Passat W8 specs & colors

4dr Car

Change trim

$37,900

Starting MSRP
Current listing price

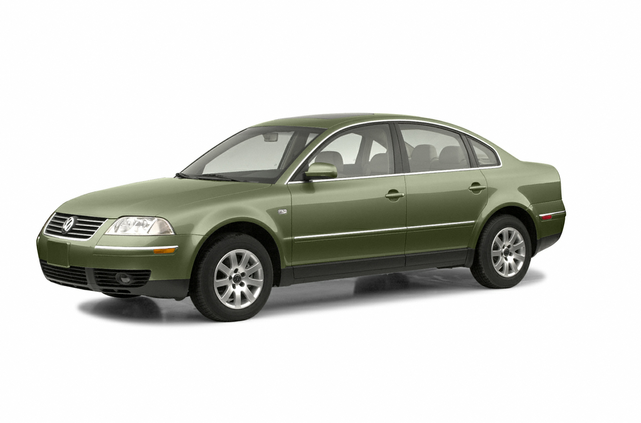

2003 Volkswagen Passat W8

Showing the 2003 Volkswagen Passat 4dr Sdn W8 4MOTION Auto

Shop Now

No inventory available.
Shop 2003 Volkswagen Passat

Key specs

4-door
5 seats
270.0-hp, 4.0-liter, 8 Cylinder Engine (Gasoline Fuel)
0 combined MPG
185.2" length, 57.6" height
All Wheel Drive

Color options

Exterior

Silverstone Gray Metallic

Interior

Slate Blue

Crystal Blue

Cypress / Dark Cypress

Packages

Specifications

Highlights

Engine Type: Gas W8
MPG: 18 City / 25 Hwy
Horsepower: 270 hp
Seating Capacity: 5

Brakes

Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): N/A
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 12.6 x 1.18 in
Rear Brake Rotor Diam x Thickness: 10.6 x 0.87 in
Drum - Rear (Yes or ): Not Available

Electrical

Maximum Alternator Capacity (amps): 120
Cold Cranking Amps @ 0° F (Primary): N/A

Engine

SAE Net Torque @ RPM: 273 @ 2750
SAE Net Horsepower @ RPM: 270 @ 6000
Displacement: 4.0L/244
Engine Type: Gas W8
Transmission Options: A/T
Transmission w/Dual Shift Mode
5-Speed A/T
MPG: 18 City / 25 Hwy
Total Cooling System Capacity: 8.5 qts

Measurements

Passenger Volume: 92 ft³
Passenger Capacity: 5
Front Head Room: 38 in
Front Leg Room: 42 in
Front Shoulder Room: 56 in
Front Hip Room: 58 in
Second Head Room: 37 in
Second Leg Room: 35 in
Second Shoulder Room: 55 in
Second Hip Room: 57 in
Wheelbase: 106 in
Length, Overall: 185 in
Width, Max w/o mirrors: 69 in
Height, Overall: 58 in
Track Width, Front: 60 in
Track Width, Rear: 59 in
Min Ground Clearance: 6 in
Trunk Volume: 10 ft³
Liftover Height: N/A

Steering

Steering Type: Pwr Rack & Pinion
Steering Ratio (:1), Overall: 15
Lock to Lock Turns (Steering): 3
Turning Diameter - Curb to Curb: 38 ft
Turning Diameter - Wall to Wall: N/A

Suspension

Suspension Type - Front: Four-link
Suspension Type - Rear: Independent
Suspension Type - Front (Cont.): Not Available
Suspension Type - Rear (Cont.): Double Wishbone

Tires & Wheels

Front Tire Size: P215/55HR16
Rear Tire Size: P215/55HR16
Spare Tire Size: T125/70R18
Front Wheel Size: 16 x 7 in
Rear Wheel Size: 16 x 7 in
Spare Wheel Size: N/A
Front Wheel Material: Alloy
Rear Wheel Material: Alloy
Spare Wheel Material: Steel

Weight & Capacity

Wt Distributing Hitch - Max Tongue Wt.: N/A
Wt Distributing Hitch - Max Trailer Wt.: N/A
Dead Weight Hitch - Max Tongue Wt.: N/A
Dead Weight Hitch - Max Trailer Wt.: N/A
Base Curb Weight: 3,953 lbs
Fuel Tank Capacity, Approx: 21 gal
Aux Fuel Tank Capacity, Approx: N/A
