2003 Volkswagen Passat GLX specs & colors

Starting MSRP
Current listing price

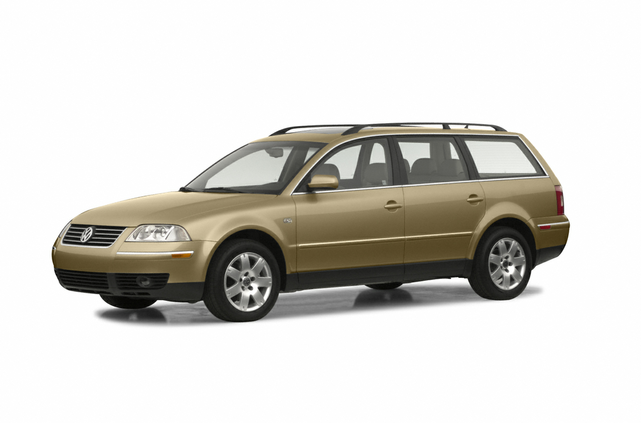

2003 Volkswagen Passat GLX

Showing the 2003 Volkswagen Passat 4dr Wgn GLX V6 Auto

Shop Now

Key specs

Color options


Slate Blue


Crystal Blue

Cypress / Dark Cypress



EPA Classification Mid-Size
Spare Wheel Size 16 x 7 in
Front Wheel Size 16 x 7 in
Rear Wheel Size 16 x 7 in
Rear Wheel Material Alloy
Front Wheel Material Alloy
Spare Wheel Material Steel
Maximum Alternator Capacity (amps) 90
Cold Cranking Amps @ 0° F (Primary) N/A
Displacement 2.8L/169
Engine Type Gas V6
SAE Net Torque @ RPM 206 @ 3200
SAE Net Horsepower @ RPM 190 @ 6000
EPA MPG Equivalent - City N/A
EPA Fuel Economy Est - City 19 MPG
EPA Fuel Economy Est - Hwy 27 MPG
Estimated Battery Range N/A mi
Cruising Range - City 311.60 mi
Fuel Economy Est-Combined N/A MPG
EPA MPG Equivalent - Combined N/A
EPA MPG Equivalent - Hwy N/A
Cruising Range - Hwy 442.80 mi
First Gear Ratio (:1) 3.66
Second Gear Ratio (:1) 1.99
Fourth Gear Ratio (:1) 1.00
Reverse Ratio (:1) 4.10
Final Drive Axle Ratio (:1) 3.09
Trans Type 5
Trans Description Cont. Again w/Tiptronic
Trans Description Cont. Automatic w/OD
Drivetrain Front Wheel Drive
Fifth Gear Ratio (:1) 0.74
Third Gear Ratio (:1) 1.41
Suspension Type - Front Four-link
Suspension Type - Rear Independent
Suspension Type - Rear (Cont.) Torsion Beam
Suspension Type - Front (Cont.) Not Available
Brake Type Pwr
Front Brake Rotor Diam x Thickness 11.3 x 0.98 in
Disc - Front (Yes or ) Yes
Brake ABS System 4-Wheel
Drum - Rear (Yes or ) Not Available
Disc - Rear (Yes or ) Yes
Rear Brake Rotor Diam x Thickness 9.6 x 0.39 in
Brake ABS System (Second Line) N/A
Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 16.4 gal
Steering Ratio (:1), Overall 14.3
Steering Type Pwr Rack & Pinion
Turning Diameter - Wall to Wall N/A ft
Lock to Lock Turns (Steering) 2.8
Turning Diameter - Curb to Curb 37.4 ft
Rear Tire Size P205/55HR16
Front Tire Size P205/55HR16
Spare Tire Size P205/55HR16
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Base Curb Weight 3616 lbs
Front Head Room 37.8 in
Cargo Volume to Seat 3 Not Available ft³
Second Leg Room 35.3 in
Track Width, Front 59.6 in
Rear Door Opening Width N/A in
Cargo Box Width @ Wheelhousings N/A in
Height, Overall 59.0 in
Front Leg Room 41.5 in
Front Shoulder Room 55.8 in
Rear Door Opening Height N/A in
Cargo Volume to Seat 2 39.0 ft³
Track Width, Rear 59.6 in
Passenger Capacity 5
Min Ground Clearance 5.8 in
Cargo Box (Area) Height N/A in
Second Shoulder Room 54.6 in
Passenger Volume 93 ft³
Cargo Volume to Seat 1 56.5 ft³
Cargo Area Length @ Floor to Seat 3 N/A in
Front Hip Room 57.7 in
Liftover Height N/A in
Cargo Area Width @ Beltline N/A in
Length, Overall 184.3 in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Trunk Volume N/A ft³
Second Hip Room 56.7 in
Width, Max w/o mirrors 68.7 in
Second Head Room 37.9 in
Wheelbase 106.4 in
Center console-inc: front/rear ash trays, (2) cup holders, (2) pwr outlets Standard
5-speed automatic transmission w/Tiptronic & OD Optional
Illuminated lockable glove box Standard
Rear heating/air conditioning ducts Standard
Rear window defroster Standard
Theft-deterrent steering column Standard
Front door storage pockets w/rubber liners Standard
Traction control-inc: Anti-slip regulation (ASR) Standard
Dual-note horn Standard
Front/rear coil springs/stabilizer bars Standard
Cruise control Standard
Tinted green glass Standard
2.8L DOHC SMPI 30-valve V6 engine Optional
Child seat lower attachment points & top tether, rear outboard seating positions (LatCH) Standard
Front/rear passenger assist handles Standard
Roof rails Standard
82 amp/hr battery Optional
Fully carpet-lined luggage compartment w/light Standard
Sliding luggage compartment cover Standard
Collapsible steering column Standard
Electronic Differential Lock (EDL) Standard
Self-dimming rearview mirror w/switch Optional
Rear intermittent wiper/washer Standard
Gray-tinted upper windshield stripe Standard
Front color-keyed 3-point height-adjustable seat belts Standard
Front four-link suspension Standard
90-amp alternator Standard
Fully reclining 8-way pwr leather heated front bucket seats w/driver-side 3-position memory, adjustable headrests, lumbar support Optional
Multi-function trip computer-inc: trip time/length, average speed/fuel consumption, outside temp Standard
16" x 7.0" alloy wheels w/anti-theft wheel locks Optional
Full-size steel spare wheel Standard
Leather-wrapped 4-spoke tilt padded steering wheel w/height-adjustable/ telescopic steering column, cruise/audio controls Optional
City 19/hwy 27 (2.8L engine/5-speed auto trans) Standard
Digital electronic ignition w/dual knock sensors Standard
Genuine wood interior trim Optional
Monsoon sound system Optional
Headlights-on warning tone Standard
Pwr windows-inc: driver-side 1-touch up/down feature, pinch protection Standard
Dual illuminated visor vanity mirrors w/covers Standard
Integrated armrests in door panels Standard
Side Curtain Protection Standard
Pwr tilt/slide sunroof-inc: tinted glass, sunshade, pinch protection, driver door pwr convenient closing Optional
Traction control-inc: Anti-slip regulation (ASR) Standard
(4) trunk tie-down hooks Standard
Body-color pwr folding heated side mirrors w/auto tilt-down Optional
Rear seat interlock Standard
Audible/visible anti-theft vehicle alarm system for doors/hood/trunk/radio/ starter Standard
Pwr rack & pinion steering Standard
Molded door trim w/leatherette inserts Optional
Electronic climate control air conditioning w/pollen/dust filters Optional
Heated front windshield washer nozzles Optional
Rain sensing/speed-sensitive 2-speed windshield wipers w/variable intermittent wipe feature Optional
Front/rear seat belt emergency tensioning retractors Standard
Central pwr locking system-inc: automatic door locks, key-operated window open/close, selective unlocking at driver door Standard
4-wheel anti-lock braking system (ABS) Standard
Front wheel drive Standard
Instrumentation-inc: speedometer, odometer, trip odometer, tachometer, fuel/ temp gauges, warning lights, digital clock, brake wear indicator Standard
Immobilizer theft-deterrent system Standard
16.4 gallon fuel tank Standard
Bumper-integrated front fog lamps Optional
Front/rear telescopic gas shock absorbers Standard
60/40 split folding rear seat-inc: adjustable headrests, center armrest Standard
LEV certified (2.8L engine/5-speed auto trans) Standard
Driver/front passenger airbag supplemental restraint system Standard
CD changer preparation-inc: wiring harness, mounting shelf in trunk Standard
Body-color door handles Standard
4-wheel anti-lock braking system (ABS) Standard
Black grille w/center logo Standard
Homelink Optional
(2) front/(2) rear reading lights Standard
Anti-intrusion side door beams Standard
Premium AM/FM stereo w/cassette/CD player-inc: (8) speakers, CD changer control Standard
Remote folding keys w/programmable seat & mirror settings Optional
Leather hand brake grip Optional
Body-color bumpers w/black lower section Standard
Sun visor extention Optional
Pwr remote trunk/fuel door releases Standard
Child safety locks on rear doors Standard
Wood shift knob Optional
Rear color-keyed outboard 3-point seat belts Standard
Daytime running lights Standard
Daytime running lights Standard
Front/rear carpeted floor mats Standard
Front seatback storage pockets Standard
P205/55HR16 all-season SBR tires Optional
Body-color body-side moldings Standard
Slidable folding front center armrest w/storage compartment Standard
Independent torsion beam axle rear suspension Standard
Pwr 4-wheel disc brakes w/vented front Standard
Front center dome light w/time delay Standard
Full-size spare tire Standard
Interior ambient lights Optional
Driver/front passenger side-impact airbags Standard
