2003 Volkswagen Passat W8 specs & colors
Station Wagon
MSRP
- 4dr Sdn GL Manual
- $21,750
- 4dr Wgn GL Manual
- $22,550
- 4dr Sdn GL Auto
- $22,825
- 4dr Sdn GLS Manual
- $22,885
- 4dr Wgn GL Auto
- $23,625
- 4dr Wgn GLS Manual
- $23,685
- 4dr Sdn GLS Auto
- $23,960
- 4dr Wgn GLS Auto
- $24,760
- 4dr Sdn GLS V6 Manual
- $25,385
- 4dr Wgn GLS V6 Manual
- $26,185
- 4dr Sdn GLS V6 Auto
- $26,460
- 4dr Wgn GLS V6 Auto
- $27,260
- 4dr Sdn GLX V6 Manual
- $28,750
- 4dr Wgn GLX V6 Manual
- $29,550
- 4dr Sdn GLX V6 Auto
- $29,825
- 4dr Wgn GLX V6 Auto
- $30,625
- 4dr Sdn GLX V6 4MOTION Auto
- $31,575
- 4dr Wgn GLX V6 4MOTION Auto
- $32,375
- 4dr Sdn W8 4MOTION Auto
- $37,900
- 4dr Wgn W8 4MOTION Auto
- $38,700
- 4dr Sdn W8 4MOTION 6-spd Manual
- $39,400
- 4dr Wgn W8 4MOTION 6-spd Manual
- $40,200
$38,700
Starting MSRP
Current listing price
Current listing price

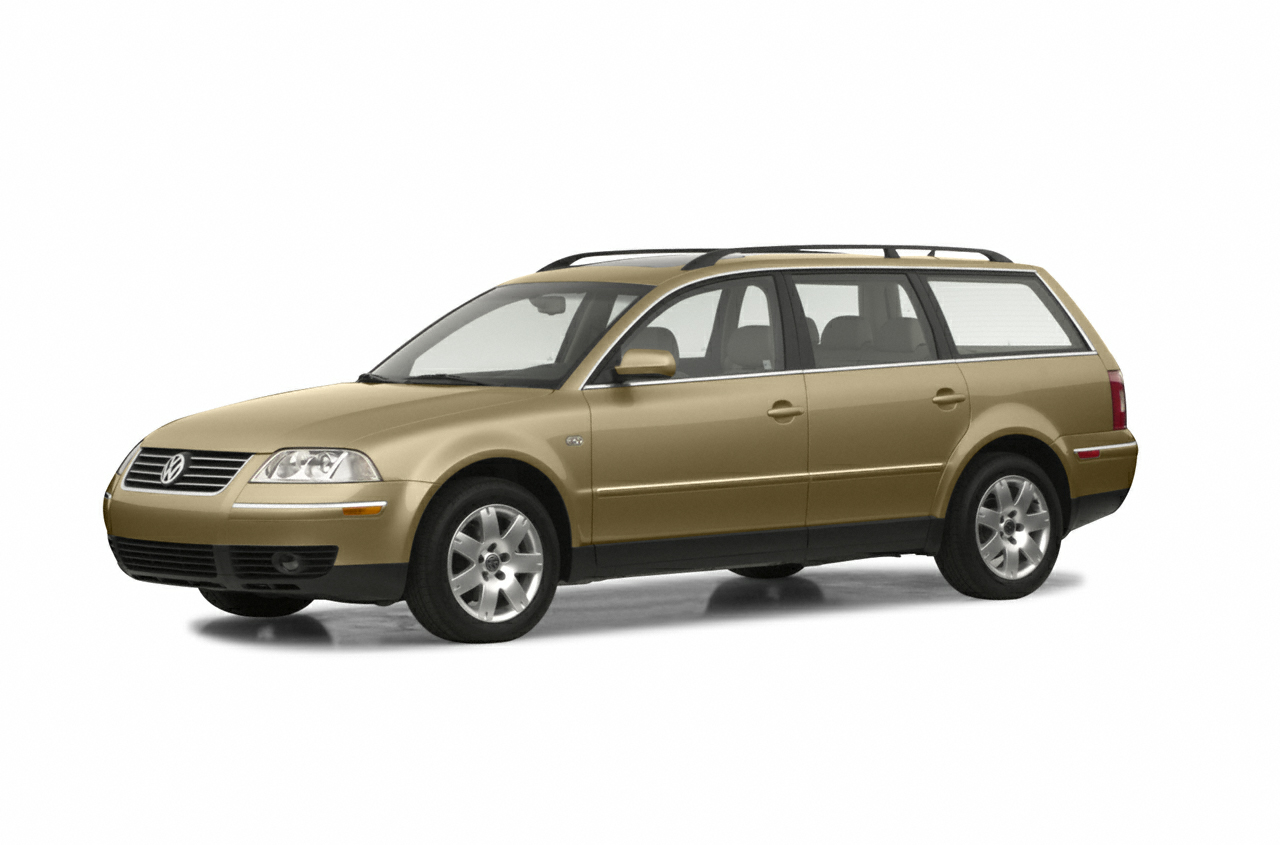

Showing the 2003 Volkswagen Passat 4dr Wgn W8 4MOTION Auto
Shop 2003 Volkswagen Passat
Key specs
Color options
Interior
Slate Blue
Crystal Blue
Cypress / Dark Cypress
Packages
Specifications
Highlights
|
Gas W8
Engine Type
|
|
18 City / 25 Hwy
MPG
|
|
270 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
Pwr
Brake Type
|
|
4-Wheel
Brake ABS System
|
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Front (Yes or )
|
|
Yes
Disc - Rear (Yes or )
|
|
12.6 x 1.18 in
Front Brake Rotor Diam x Thickness
|
|
10.6 x 0.87 in
Rear Brake Rotor Diam x Thickness
|
|
Not Available
Drum - Rear (Yes or )
|
Electrical
|
120
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
273 @ 2750
SAE Net Torque @ RPM
|
|
270 @ 6000
SAE Net Horsepower @ RPM
|
|
4.0L/244
Displacement
|
|
Gas W8
Engine Type
|
|
A/T
Transmission w/Dual Shift Mode 5-Speed A/T Transmission Options
|
|
18 City / 25 Hwy
MPG
|
|
8.5 qts
Total Cooling System Capacity
|
Measurements
|
56 in
Front Shoulder Room
|
|
42 in
Front Leg Room
|
|
38 in
Front Head Room
|
|
N/A
Trunk Volume
|
|
Not Available ft³
Cargo Volume to Seat 3
|
|
36 ft³
Cargo Volume to Seat 2
|
|
55 ft³
Cargo Volume to Seat 1
|
|
N/A
Liftover Height
|
|
N/A
Cargo Box (Area) Height
|
|
N/A
Cargo Box Width @ Wheelhousings
|
|
N/A
Cargo Area Width @ Beltline
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Area Length @ Floor to Seat 1
|
|
N/A
Rear Door Opening Width
|
|
N/A
Rear Door Opening Height
|
|
6 in
Min Ground Clearance
|
|
59 in
Track Width, Rear
|
|
60 in
Track Width, Front
|
|
59 in
Height, Overall
|
|
69 in
Width, Max w/o mirrors
|
|
184 in
Length, Overall
|
|
106 in
Wheelbase
|
|
57 in
Second Hip Room
|
|
55 in
Second Shoulder Room
|
|
35 in
Second Leg Room
|
|
38 in
Second Head Room
|
|
58 in
Front Hip Room
|
|
93 ft³
Passenger Volume
|
|
5
Passenger Capacity
|
Steering
|
15
Steering Ratio (:1), Overall
|
|
Pwr Rack & Pinion
Steering Type
|
|
3
Lock to Lock Turns (Steering)
|
|
38 ft
Turning Diameter - Curb to Curb
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
Double Wishbone
Suspension Type - Rear (Cont.)
|
|
Not Available
Suspension Type - Front (Cont.)
|
|
Independent
Suspension Type - Rear
|
|
Four-link
Suspension Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
Alloy
Rear Wheel Material
|
|
Alloy
Front Wheel Material
|
|
N/A
Spare Wheel Size
|
|
16 x 7 in
Rear Wheel Size
|
|
16 x 7 in
Front Wheel Size
|
|
T125/70R18
Spare Tire Size
|
|
P215/55HR16
Rear Tire Size
|
|
P215/55HR16
Front Tire Size
|
Weight & Capacity
|
N/A
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Dead Weight Hitch - Max Trailer Wt.
|
|
4,069 lbs
Base Curb Weight
|
|
21 gal
Fuel Tank Capacity, Approx
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
