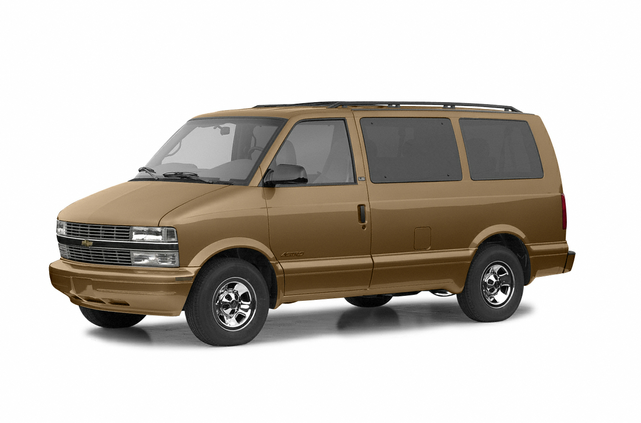

2002 Chevrolet Astro specs & colors
Mini-van, Cargo
Change trim
MSRP
- 111.2" WB RWD $21,272
- 111.2" WB RWD YF7 Upfitter $22,329
- 111.2" WB AWD $23,672
- 111" WB RWD $24,145
- 111.2" WB AWD YF7 Upfitter $24,729
- 111" WB AWD $25,960
Key specs
Color options
Interior
Navy
Pewter Gray
Packages
Specifications
| Rear Door Type | Panel |
| Rear Wheel Size | 15.0 x 6.5 in |
| Front Wheel Material | Steel |
| Rear Wheel Material | Steel |
| Front Wheel Size | 15.0 x 6.5 in |
| Spare Wheel Material | Steel |
| Spare Wheel Size | 16 x 4 in |
| Cold Cranking Amps @ 0° F (Primary) | 600 |
| Maximum Alternator Capacity (amps) | 105 |
| SAE Net Horsepower @ RPM | 190 @ 4400 |
| Engine Type | Gas V6 |
| SAE Net Torque @ RPM | 250 @ 2800 |
| Engine Oil Cooler | Yes |
| Displacement | 4.3L/262 |
| Fuel Economy Est-Combined | N/A MPG |
| Cruising Range - City | 459.00 mi |
| Cruising Range - Hwy | 594.00 mi |
| Estimated Battery Range | N/A mi |
| EPA Fuel Economy Est - Hwy | 22 MPG |
| EPA Fuel Economy Est - City | 17 MPG |
| Fourth Gear Ratio (:1) | 0.70 |
| Third Gear Ratio (:1) | 1.00 |
| Trans Description Cont. | Automatic w/OD |
| Transfer Case Gear Ratio (:1), High | Not Available |
| Transfer Case Gear Ratio (:1), Low | Not Available |
| First Gear Ratio (:1) | 3.06 |
| Drivetrain | Rear Wheel Drive |
| Trans Description Cont. Again | Not Available |
| Trans Power Take Off | Not Available |
| Transfer Case Power Take Off | Not Available |
| Reverse Ratio (:1) | 2.29 |
| Transfer Case Model | Not Available |
| Final Drive Axle Ratio (:1) | N/A |
| Second Gear Ratio (:1) | 1.63 |
| Trans Type | 4 |
| Axle Type - Rear | Semi-floating |
| Suspension Type - Rear | Single-Stage Spring |
| Suspension Type - Front | Independent Coil |
| Axle Type - Front | Independent |
| Frame Type | Integral body |
| Side Door Type | Sliding |
| Brake ABS System (Second Line) | Not Available |
| Rear Brake Rotor Diam x Thickness | Not Available in |
| Disc - Rear (Yes or ) | Not Available |
| Disc - Front (Yes or ) | Yes |
| Brake ABS System | 4-Wheel |
| Front Brake Rotor Diam x Thickness | 11.86 x 1.04 in |
| Drum - Rear (Yes or ) | Yes |
| Brake Type | Power |
| Aux Fuel Tank Capacity, Approx | Not Available gal |
| Fuel Tank Capacity, Approx | 27 gal |
| Turning Diameter - Wall to Wall | 44.2 ft |
| Turning Diameter - Curb to Curb | 40.5 ft |
| Steering Ratio (:1), Overall | N/A |
| Steering Type | Variable Power |
| Rear Tire Size | P215/75R15 |
| Front Tire Size | P215/75R15 |
| Spare Tire Size | T145/80D16 |
| Maximum Trailering Capacity | N/A lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | Not Available lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | Not Available lbs |
| Dead Weight Hitch - Max Trailer Wt. | 2000 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 5400 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 200 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 540 lbs |
| Curb Weight - Front | 2398 lbs |
| Gross Vehicle Weight Rating | 5600.00 lbs |
| As Spec'd Payload | 1831.00 lbs |
| Total Option Weight | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| Gross Axle Weight Rating | 5950.00 lbs |
| Option Weight - Front | 0.00 lbs |
| Gross Combined Wt Rating | 9000 lbs |
| Base Curb Weight | N/A lbs |
| As Spec'd Curb Weight | 3769.00 lbs |
| Maximum Payload Capacity | 1831.00 lbs |
| Curb Weight | 3769.00 lbs |
| Curb Weight - Rear | 1371 lbs |
| Second Leg Room | N/A in |
| Ground Clearance, Rear | 7.4 in |
| Passenger Capacity | 2 |
| Step Up Height - Side | 20.7 in |
| Rear Door Opening Height | 42.0 in |
| Second Hip Room | N/A in |
| Front Hip Room | 64.9 in |
| Front Leg Room | 41.6 in |
| Ground Clearance, Front | 6.8 in |
| Cargo Area Length @ Floor to Console | 126.0 in |
| Step Up Height - Front | 18.9 in |
| Front Shoulder Room | 64.0 in |
| Height, Overall | 75.3 in |
| Overhang, Rear w/o bumper | N/A in |
| Second Head Room | N/A in |
| Cargo Box Width @ Wheelhousings | 51.6 in |
| Width, Max w/o mirrors | 77.5 in |
| Cargo Volume | 170.4 ft³ |
| Ground to Top of Load Floor | 26.7 in |
| Cargo Box (Area) Height | 47.2 in |
| Cargo Area Width @ Beltline | 57.2 in |
| Overhang, Front | 32.5 in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Side Door Opening Height | 46.8 in |
| Second Shoulder Room | N/A in |
| Length, Overall w/rear bumper | 189.8 in |
| Cargo Box Width @ Top, Rear | N/A in |
| Cab to End of Frame | N/A in |
| Rear Door Opening Width | 57.2 in |
| Wheelbase | 111.2 in |
| Length, Overall | N/A in |
| Cargo Box Width @ Floor | N/A in |
| Cargo Area Length @ Floor to Seat 1 | 98.6 in |
| Front Head Room | 39.2 in |
| Side Door Opening Width | 34.5 in |
| Tailgate Width | N/A in |
| Front stabilizer bar | Standard |
| Pwr front disc/rear drum brakes | Standard |
| Winch-type spare tire carrier mounted under floor at rear | Standard |
| P215/75R15 all-season SBR BSW tires | Standard |
| 4-speed automatic transmission w/OD | Standard |
| Molded gray grille | Standard |
| City 17/hwy 22 (4.3L engine/4-speed auto trans) | Standard |
| Front passenger assist handles | Standard |
| Stainless steel muffler & tailpipe | Standard |
| Dual electric high/low note horn | Standard |
| Embossed black full width front rubber mat | Standard |
| 600 CCA battery w/115 minute reserve capacity | Standard |
| Driver & front passenger airbags | Standard |
| Glove box w/(2) beverage holders on engine cover | Standard |
| 4.3L (262) MFI V6 Vortec 4300 engine | Standard |
| Sliding door child security lock | Standard |
| Delayed illuminated entry lamps | Standard |
| Steel single-stage spring rear suspension | Standard |
| Front heater w/ducts behind front seats | Standard |
| Intermittent windshield wiper system | Standard |
| Variable pwr-assisted steering | Standard |
| Urethane steering wheel w/anti-theft locking feature | Standard |
| 4-wheel anti-lock brake system | Standard |
| Screw-operated scissor-type jack w/ratchet handle, extension, 2 wheel blocks | Standard |
| Tinted glass on all windows | Standard |
| 105 amp alternator | Standard |
| Gauges-inc: analog speedometer, odometer, trip odometer, voltmeter, fuel level, engine temp, oil pressure | Standard |
| Transmission tow/haul mode selector button on shift lever | Standard |
| Side door guard beams-inc: driver/passenger/sliding door | Standard |
| Independent coil spring front suspension | Standard |
| Dual manual lap/shoulder safety belts w/adjustable shoulder belts | Standard |
| ETR AM/FM stereo-inc: seek-scan, clock, (2) speakers | Standard |
| 4-wheel anti-lock brake system | Standard |
| 27 gallon fuel tank | Standard |
| Color-keyed front compartment cloth headliner | Standard |
| Headlamps-on/key-in ignition/driver seatbelt/turn signal warning tones | Standard |
| 5600# GVWR (2800 front/3150 rear), springs (2800 front/3150 rear), axles (2800 front/3150 rear) | Standard |
| Dual vinyl reclining front high-back bucket seats | Standard |
| Brake/transmission shift interlock | Standard |
| Halogen sealed beam headlamps w/flash to pass feature, automatic lamp control | Standard |
| Passlock security system | Standard |
| Dual black below-eye-line foldaway mirrors | Standard |
| Rear wheel drive | Standard |
| Dual vinyl color-keyed padded sunvisors | Standard |
| Front/rear license plate mounting | Standard |
| Front/rear body-color bumpers w/rear step pad | Standard |
| 15" x 6.5" styled steel silver wheels | Standard |
| Cigarette lighter & (2) additional pwr outlets mounted on engine cover | Standard |
| Compact spare tire | Standard |
| HD flashers | Standard |
| RH sliding cargo door | Standard |
| Lighting-inc: stepwell, storage compartment, front/middle entry, adjustable reading, rear dome, dome defeat switch | Standard |
| Dual rear load doors | Standard |
| Front air conditioning | Standard |
