2006 Chevrolet Silverado 3500 SRW Wrk Trk specs & colors

$23,185
Starting MSRP
Current listing price

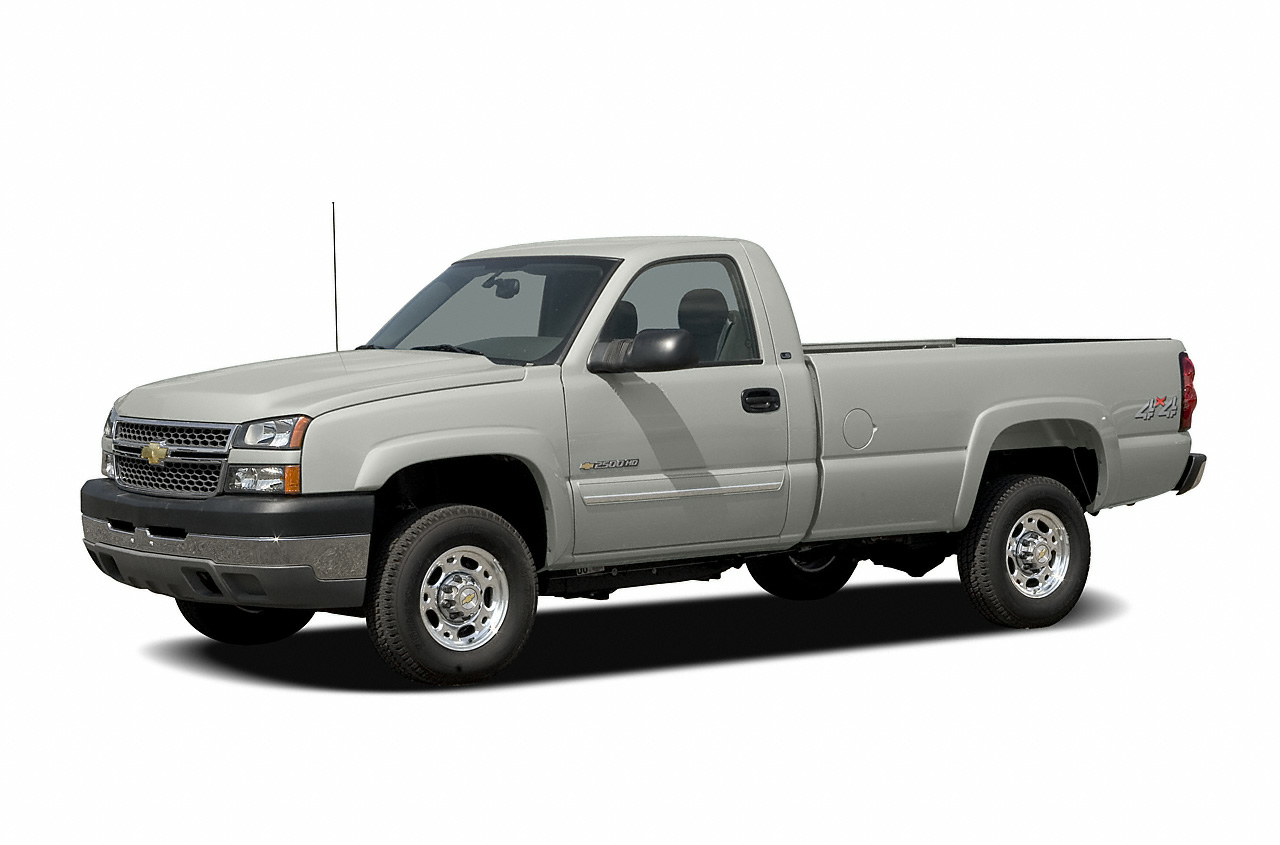

2006 Chevrolet Silverado 3500 SRW Wrk Trk

Showing the 2006 Chevrolet Silverado 3500 Reg Cab 133" WB 2WD SRW Wrk Trk

Shop Now

Key specs

Color options

Interior

Taupe


Sage


Pewter Gray


Packages

Specifications

Front Wheel Size 16 x 7.0 in
Rear Wheel Size 16 x 7.0 in
Spare Wheel Size Not Available in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Not Available
Cold Cranking Amps @ 0° F (Primary) 600
Maximum Alternator Capacity (amps) 105
Engine Type Gas V8
Displacement 6.0L/364
SAE Net Horsepower @ RPM 300 @ 4400
SAE Net Torque @ RPM 360 @ 4000
Engine Oil Cooler Yes
EPA Fuel Economy Est - Hwy Not Available MPG
Cruising Range - City 0.00 mi
EPA Fuel Economy Est - City Not Available MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 0.00 mi
Estimated Battery Range N/A mi
Drivetrain Rear Wheel Drive
Trans Type 4
Trans Description Cont. HD Automatic w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 2.48
Second Gear Ratio (:1) 1.48
Third Gear Ratio (:1) 1.00
Fourth Gear Ratio (:1) 0.75
Reverse Ratio (:1) 2.08
Trans Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Not Available
Transfer Case Gear Ratio (:1), High Not Available
Transfer Case Gear Ratio (:1), Low Not Available
Transfer Case Power Take Off Not Available
Suspension Type - Front Torsion Bar
Suspension Type - Rear 3-Stage Spring
Axle Type - Front Not Available
Axle Type - Rear Full-Floating
Frame Type Ladder
Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.8 x 1.5 in
Rear Brake Rotor Diam x Thickness 12.8 x 1.2 in
Drum - Rear (Yes or ) Not Available
Fuel Tank Capacity, Approx 34 gal
Aux Fuel Tank Capacity, Approx Not Available gal
Steering Type Pwr
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 43.7 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size LT265/75R16
Rear Tire Size LT265/75R16
Spare Tire Size Not Available
Dead Weight Hitch - Max Trailer Wt. 7500 lbs
Dead Weight Hitch - Max Tongue Wt. 1000 lbs
Wt Distributing Hitch - Max Trailer Wt. 10300 lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight N/A lbs
Curb Weight - Front 2719 lbs
Curb Weight - Rear 2224 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 4943.00 lbs
As Spec'd Payload 4657.00 lbs
Maximum Payload Capacity 4657.00 lbs
Gross Combined Wt Rating 16000 lbs
Gross Axle Weight Rating N/A lbs
Curb Weight 4943.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 9600.00 lbs
Passenger Capacity 3
Front Head Room 41.0 in
Front Leg Room 41.3 in
Front Shoulder Room 65.2 in
Front Hip Room 61.4 in
Second Head Room N/A in
Second Leg Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Wheelbase 133.0 in
Length, Overall w/o rear bumper 224.5 in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Width, Max w/o mirrors 79.7 in
Height, Overall 76.7 in
Overhang, Front 37.0 in
Overhang, Rear w/o bumper 52.2 in
Cab to End of Frame N/A in
Ground to Top of Load Floor 35.8 in
Ground Clearance, Front 10.6 in
Ground Clearance, Rear 13.6 in
Cargo Box Length @ Floor N/A in
Cargo Box Width @ Top, Rear N/A in
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Tailgate Width N/A in
Cargo Volume N/A ft³
Ext'd Cab Cargo Volume Not Available ft³
Alternator, 105 amps (Not available with (VYU) Snow Plow Prep Package) Standard
Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry Standard
Mirrors, outside rearview, foldaway, manual, Black, adjustable (Standard on (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only. - Not available with (C7W) GVWR, 11,400 lbs. (5171 kg).) 11,400 lbs. (5171 kg).) Standard
Lamps, dual cargo area lamps Standard
Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt Standard
Wheels, 4 - 16" x 7.0" (40.6 cm x 17.8 cm) 8-lug steel (single rear wheel) (Center cap is Argent. Standard with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only.) Standard
Bumper, front, chrome, with Gray lower Standard
Tools, mechanical jack and wheel wrench, spare tire assist hook, floor-mounted in back of cab Standard
Tire carrier, outside spare, winch-type mounted under frame at rear Standard
Frame, ladder-type, hydroformed Standard
Rear wheel drive Standard
Seat trim, vinyl Standard
Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models.) Standard
Mirror, inside rearview, manual day/night Standard
Suspension, front, independent torsion bar, and stabilizer bar Standard
Glass, Solar-Ray light tinted, all windows Standard
Floor covering, rubberized vinyl, Black Standard
Daytime running lamps, includes automatic exterior lamp control Standard
Cigarette lighter, on instrument panel Standard
Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining with outboard head restraints Standard
Single rear wheels (Standard on (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only - Not available with (C7W), GVWR 11,400 lbs. (5171 kg)) Standard
Grille, color-keyed surround, with chrome accent bar Standard
Transmission, 4-speed automatic, heavy-duty, electronically controlled with overdrive, tow/haul mode and (KNP) Cooling, external transmission oil cooler (Requires (LQ4) Engine, Vortec 6000 V8 SFI. - Standard on (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only) Standard
Paint, solid Standard
Pickup bed, delete Standard
Wipers, intermittent, front wet-arm with pulse washers Standard
Cooling, external engine oil cooler, heavy-duty air-to-oil, integral to driver side of radiator tank Standard
Suspension, rear, 3-stage springs Standard
Cooling, internal transmission oil cooler, water-to-oil, integral to driver side of radiator tank (Included and only available with (MT1) Transmission 4-speed automatic, heavy-duty. -Included with (MW7) Transmission, Allison 1000 6-speed automatic) Standard
Daytime running lamps, includes automatic exterior lamp control Standard
Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.) Standard
Sound system, ETR AM/FM stereo, includes seek-and-scan, and digital clock Standard
Theft-deterrent system, PASSlock II Standard
Sound system feature, 4-speakers Standard
Rear axle, 4.10 ratio (Refer to Engine/Axle Chart for availability) Standard
Engine, Vortec 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm, 360 lb.-ft. [486.6 N-m] @ 4000 rpm) Standard
Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer Standard
Differential, locking, heavy-duty, rear (Standard on (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only) Standard
Air dam, Gray Standard
Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder, turn signal on Standard
Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side Standard
Brakes, 4-wheel antilock, 4-wheel disc Standard
Steering wheel, includes theft-deterrent locking feature Standard
Battery, heavy-duty, 600 cold-cranking amps, includes rundown protection and retained accessory power (Not standard with (LLY) Engine, Duramax 6600 Turbo Diesel V8 or (LBZ) Engine, Duramax 6600 Turbo Diesel V8) Standard
Steering column, Tilt-Wheel, adjustable, includes brake/transmission shift interlock Standard
Driver Information Center, monitors numerous different systems depending on vehicle equipment Standard
Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models) Standard
Cooling, external transmission oil cooler, auxiliary, heavy-duty air-to-oil (Included and only available with (MT1) Transmission, 4-speed automatic, heavy-duty. - Included and only available with (MW7) Transmission, Allison 1000 6-speed automatic) Standard
Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control Standard
Brakes, 4-wheel antilock, 4-wheel disc Standard
Steering, power Standard
Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks Standard
Tires, LT265/75R16E, on-/off-road, blackwall (Requires CC35903 Models, CK35903 and (C4M) GVWR, 9900 lbs. (4491 kg), C*35943 and (C4M) GVWR, 9900 lbs. (4491 kg), or CC35953 Models and (GEC) 9800 lbs. or (C4M) 9900 lbs., or CK35953 Models and (C4M) GVWR, 9900 lbs. (4491 kg). -Includes 5 tires with (E63) Pickup bed, Fleetside box. - Includes 4 tires with (ZW9) Pickup bed, delete.) Standard
Wheel flares, front only (With (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. includes rear wheel flares unless (ZW9) Pickup box delete is ordered.) Standard
Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.) Standard
Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger Standard
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
