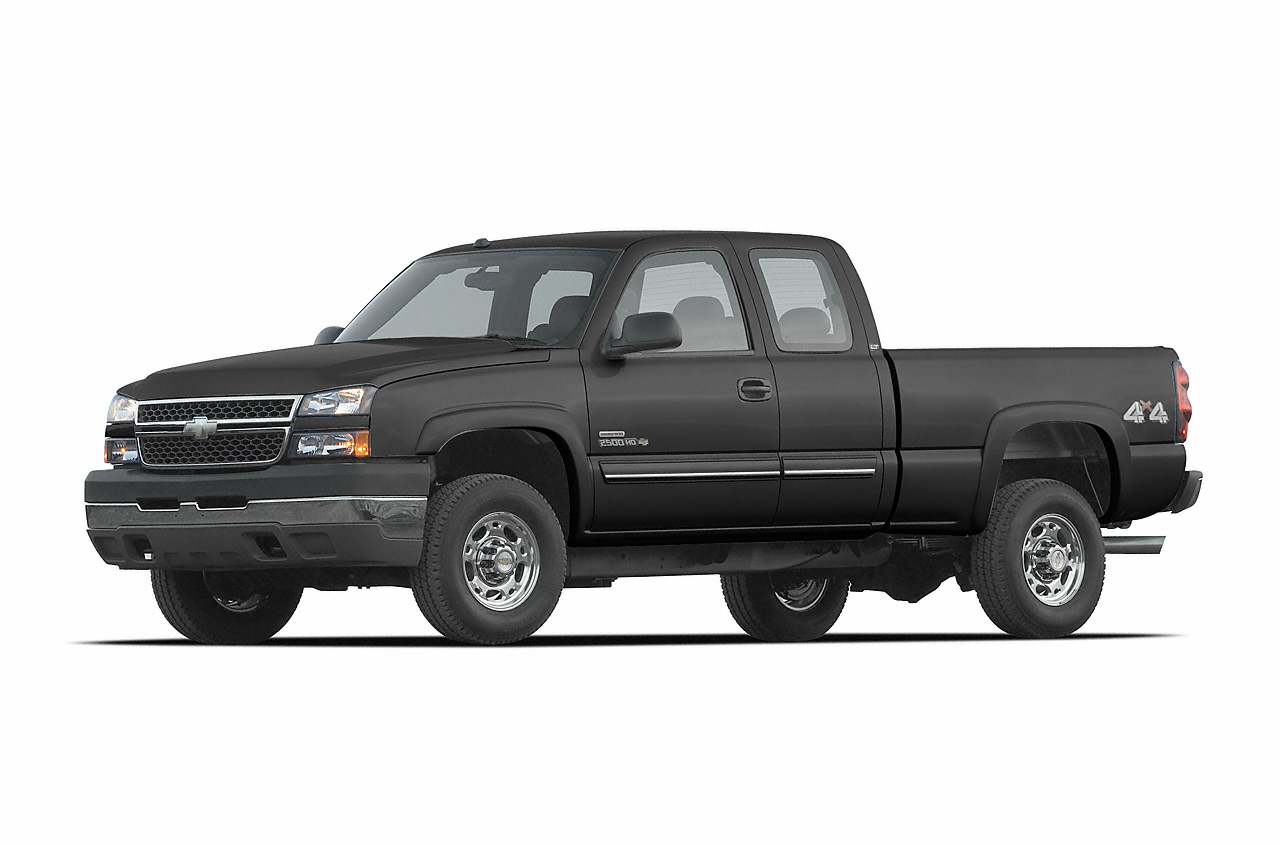

2006 Chevrolet Silverado 3500 SRW LT3

Showing the 2006 Chevrolet Silverado 3500 Ext Cab 157.5" WB 4WD SRW LT3

Shop Now

Key specs

Color options

Interior

Taupe


Sage


Pewter Gray


Packages

Specifications

Front Wheel Size 16 x 7.0 in
Rear Wheel Size 16 x 7.0 in
Spare Wheel Size 16 x 7.0 in
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) 600
Maximum Alternator Capacity (amps) 105
Engine Type Gas V8
Displacement 6.0L/364
SAE Net Horsepower @ RPM 300 @ 4400
SAE Net Torque @ RPM 360 @ 4000
Engine Oil Cooler Yes
EPA Fuel Economy Est - Hwy Not Available MPG
Cruising Range - City 0.00 mi
EPA Fuel Economy Est - City Not Available MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy 0.00 mi
Estimated Battery Range N/A mi
Drivetrain 4-Wheel Drive
Trans Type 4
Trans Description Cont. HD Automatic w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 2.48
Second Gear Ratio (:1) 1.48
Third Gear Ratio (:1) 1.00
Fourth Gear Ratio (:1) 0.75
Reverse Ratio (:1) 2.08
Trans Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Transfer Case Model New Venture 261
Transfer Case Gear Ratio (:1), High 1.00
Transfer Case Gear Ratio (:1), Low 2.72
Transfer Case Power Take Off Not Available
Suspension Type - Front Torsion Bar
Suspension Type - Rear 3-Stage Spring
Axle Type - Front Not Available
Axle Type - Rear Full-Floating
Frame Type Ladder
Brake Type Pwr
Brake ABS System 4-Wheel
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.8 x 1.5 in
Rear Brake Rotor Diam x Thickness 12.8 x 1.2 in
Drum - Rear (Yes or ) Not Available
Fuel Tank Capacity, Approx 34 gal
Aux Fuel Tank Capacity, Approx Not Available gal
Steering Type Pwr
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb N/A ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size LT265/75R16
Rear Tire Size LT265/75R16
Spare Tire Size LT265/75R16
Dead Weight Hitch - Max Trailer Wt. 7500 lbs
Dead Weight Hitch - Max Tongue Wt. 1000 lbs
Wt Distributing Hitch - Max Trailer Wt. 9600 lbs
Wt Distributing Hitch - Max Tongue Wt. 1440 lbs
Fifth Wheel Hitch - Max Trailer Wt. 9600 lbs
Fifth Wheel Hitch - Max Tongue Wt. 2400 lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight N/A lbs
Curb Weight - Front 3372 lbs
Curb Weight - Rear 2779 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 6151.00 lbs
As Spec'd Payload 3749.00 lbs
Maximum Payload Capacity 3749.00 lbs
Gross Combined Wt Rating 16000 lbs
Gross Axle Weight Rating 11300.00 lbs
Curb Weight 6151.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 9900.00 lbs
Passenger Capacity 6
Front Head Room 41.0 in
Front Leg Room 41.3 in
Front Shoulder Room 65.2 in
Front Hip Room 61.4 in
Second Head Room 38.4 in
Second Leg Room 33.7 in
Second Shoulder Room 66.3 in
Second Hip Room 61.5 in
Wheelbase 157.5 in
Length, Overall w/o rear bumper 249.0 in
Length, Overall w/rear bumper N/A in
Length, Overall N/A in
Width, Max w/o mirrors 79.7 in
Height, Overall 76.7 in
Overhang, Front 37.0 in
Overhang, Rear w/o bumper 52.2 in
Cab to End of Frame N/A in
Ground to Top of Load Floor 35.1 in
Ground Clearance, Front 10.6 in
Ground Clearance, Rear 13.6 in
Cargo Box Length @ Floor 97.6 in
Cargo Box Width @ Top, Rear 61.9 in
Cargo Box Width @ Floor 64.8 in
Cargo Box Width @ Wheelhousings 50.0 in
Cargo Box (Area) Height 19.5 in
Tailgate Width 61.9 in
Cargo Volume 73.9 ft³
Ext'd Cab Cargo Volume N/A ft³
Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm Optional
Engine, Vortec 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm, 360 lb.-ft. [486.6 N-m] @ 4000 rpm) Standard
Air dam, Gray Standard
Seats, rear 60/40 split-bench, flat folding, 3-passenger (includes child seat top tether anchor) Standard
Paint, solid Standard
Cooling, external transmission oil cooler, auxiliary, heavy-duty air-to-oil (Included and only available with (MT1) Transmission, 4-speed automatic, heavy-duty. - Included and only available with (MW7) Transmission, Allison 1000 6-speed automatic) Standard
Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer Standard
Steering, power Standard
Cigarette lighter, on instrument panel Standard
Bumper, rear, chrome step, includes pad (Not available with (ZW9) Pickup bed, delete.) Optional
Wheels, 4 - 16" x 7.0" (40.6 cm x 17.8 cm) 8-lug steel (single rear wheel (Center cap is Chrome. Standard with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only.) Standard
Suspension, front, independent torsion bar, and stabilizer bar Standard
Seat adjuster, power, driver 6-way (With (AN3) Seats, front power reclining full-feature buckets, includes 10-way adjuster) Optional
Transmission, 4-speed automatic, heavy-duty, electronically controlled with overdrive, tow/haul mode and (KNP) Cooling, external transmission oil cooler (Requires (LQ4) Engine, Vortec 6000 V8 SFI) Standard
Seat adjuster, power, front passenger 10-way (Included and only available with (AN3) Seats, front power reclining full-feature buckets.) Optional
Lamps, dual cargo area lamps Standard
Driver Information Center, monitors numerous different systems depending on vehicle equipment Standard
Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster Optional
Brakes, 4-wheel antilock, 4-wheel disc Standard
Cooling, internal transmission oil cooler, water-to-oil, integral to driver side of radiator tank (Included and only available with (MT1) Transmission 4-speed automatic, heavy-duty. -Included with (MW7) Transmission, Allison 1000 6-speed automatic) Standard
Floor covering, color-keyed carpeting and rubberized vinyl floormats Optional
Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator Optional
Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.) Standard
Door locks, power Optional
Suspension, rear, 3-stage springs Standard
Daytime running lamps, includes automatic exterior lamp control Standard
Wheel flares, front only (With (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. includes rear wheel flares unless (ZW9) Pickup box delete is ordered.) Standard
Grille, color-keyed surround, with chrome accent bar Standard
Seats, front power reclining full-feature buckets, includes adjustable head restraints, floor console, driver and passenger 2-way power lumbar, driver and front passenger 10-way power adjustable, dual inboard armrests, heated driver and passenger cushion and back, 2-position driver-side memory and storage pockets Optional
Sound system feature, Bose Premium speaker system Optional
Daytime running lamps, includes automatic exterior lamp control Standard
Console, overhead mini, includes map lights (Not available with (CF5) Sunroof, power) Optional
Windows, rear quarter swing-out (Standard with Extended Cab Models only) Standard
Air conditioning, dual-zone, automatic, individual climate settings for driver and right front passenger (Must be substituted with (CJ3) Air Air conditioning, dual-zone, manual when (VYU) Snow Plow Prep Package is ordered.) Optional
Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side Standard
Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt Standard
Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.) Standard
Defogger, rear-window, electric (Not available with (A28) Window, rear sliding) Optional
Transfer case, electronic shift, includes push-button controls (Requires 4WD Models. - Requires (MT1) Transmission, 4-speed automatic, heavy-duty or (MW7) Transmission, Allison 1000 6-speed automatic.) Optional
Tire carrier, outside spare, winch-type mounted under frame at rear Standard
Fog lamps, front, halogen Optional
Recovery hooks, front, frame-mounted (Standard on 4WD Models only.) Standard
Glass, Solar-Ray deep tinted (all windows except light tinted glass on windshield, driver and front passenger) (With Extended Cab Models includes rear window and rear quarter windows. - With (C49) Defogger, rear window, electric, includes light-tinted rear window) Optional
Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control Standard
Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks Standard
Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models) Standard
Single rear wheels (Standard on (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only - Not available with (C7W), GVWR 11,400 lbs. (5171 kg)) Standard
Wipers, intermittent, front wet-arm with pulse washers Standard
Console, floor, includes storage compartment and dual cupholders Optional
Sound system feature, steering wheel mounted radio controls, Radio and Driver Information Center (DIC). Provides access to enhanced Driver Information Center (DIC) features and information Optional
Mirrors, outside rearview, manual folding, power, heated, Black (Upgradeable to (DL3) Mirrors, outside rearview, power folding, power heated when (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. is ordered or (DPN) Mirrors, vertical camper, outside rearview.) Optional
Theft-deterrent system, PASSlock II Standard
Bumper, front, chrome, with Gray lower Standard
Cooling, external engine oil cooler, heavy-duty air-to-oil, integral to driver side of radiator tank Standard
Alternator, 105 amps (Not available with (VYU) Snow Plow Prep Package) Standard
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models.) Standard
Sound system, ETR AM/FM stereo with 6-disc CD changer, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, TheftLock, Radio Data System (RDS), and Bose speaker system (includes 6-speakers, Bose amplifier and Bose Subwoofer) Optional
Brakes, 4-wheel antilock, 4-wheel disc Standard
Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder, turn signal on Standard
Tires, LT265/75R16E, on-/off-road, blackwall (Requires C*35943 and (C4M) GVWR, 9900 lbs. (4491 kg) or CK35953 Models and (C4M) GVWR, 9900 lbs. (4491 kg) or CC35953 Models and (GEC) 9800 lbs. or (C4M) 9900 lbs. -Includes 5 tires with (E63) Pickup bed, Fleetside box. - Includes 4 tires with (ZW9) Pickup bed, delete.) Standard
Steering column, Tilt-Wheel, adjustable, includes brake/transmission shift interlock Standard
Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry Standard
Seat trim, Leather (Not available on Regular Cab Models. - Extended Cab includes front leather seating surfaces with rear vinyl bench. - Crew Cab includes front and rear leather appointed seating surfaces) Optional
Frame, ladder-type, hydroformed Standard
Steering wheel, leather-wrapped rim, Black, includes theft-deterrent locking feature Optional
Windows, power, includes driver and passenger express-down Optional
Tools, mechanical jack and wheel wrench, spare tire assist hook, floor-mounted in back of cab Standard
Pickup bed, Fleetside box Standard
Battery, heavy-duty, 600 cold-cranking amps, includes rundown protection and retained accessory power (Not standard with (LLY) Engine, Duramax 6600 Turbo Diesel V8 or (LBZ) Engine, Duramax 6600 Turbo Diesel V8) Standard
Differential, locking, heavy-duty, rear (Standard on (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg) only) Standard
Four wheel drive Standard
Rear axle, 4.10 ratio (Refer to Engine/Axle Chart for availability) Standard
