2006 Chevrolet Silverado 3500 DRW Wrk Trk specs & colors

Crew Cab Pickup

Change trim

MSRP
Change trim
$28,035
Starting MSRP
Current listing price

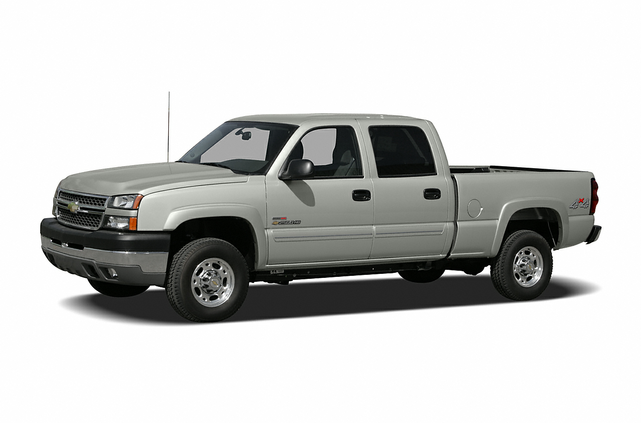

2006 Chevrolet Silverado 3500 DRW Wrk Trk

Showing the 2006 Chevrolet Silverado 3500 Crew Cab 167" WB 2WD DRW Wrk Trk

Shop Now

Key specs

Color options

Interior

Taupe

Sage

Pewter Gray

Packages

Specifications

Front Wheel Material Steel
Spare Wheel Size 16 x 6.5 in
Front Wheel Size 16 x 6.5 in
Rear Wheel Size 16 x 6.5 in
Spare Wheel Material Steel
Rear Wheel Material Steel
Maximum Alternator Capacity (amps) 105
Cold Cranking Amps @ 0° F (Primary) 600
Displacement 6.0L/364
Engine Oil Cooler Yes
SAE Net Torque @ RPM 360 @ 4000
Engine Type Gas V8
SAE Net Horsepower @ RPM 300 @ 4400
Fuel Economy Est-Combined N/A MPG
Cruising Range - City 0.00 mi
Cruising Range - Hwy 0.00 mi
Estimated Battery Range N/A mi
EPA Fuel Economy Est - City Not Available MPG
EPA Fuel Economy Est - Hwy Not Available MPG
Trans Description Cont. Again Not Available
Reverse Ratio (:1) 5.04
Trans Description Cont. Manual w/OD
Transfer Case Power Take Off Not Available
Fourth Gear Ratio (:1) 1.00
Transfer Case Gear Ratio (:1), Low Not Available
Fifth Gear Ratio (:1) 0.75
First Gear Ratio (:1) 5.61
Drivetrain Rear Wheel Drive
Trans Type 5
Trans Power Take Off Not Available
Transfer Case Gear Ratio (:1), High Not Available
Third Gear Ratio (:1) 1.67
Second Gear Ratio (:1) 3.04
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Not Available
Suspension Type - Front Torsion Bar
Axle Type - Front Not Available
Axle Type - Rear Full-Floating
Suspension Type - Rear 3-Stage Spring
Frame Type Ladder
Front Brake Rotor Diam x Thickness 12.8 x 1.5 in
Disc - Front (Yes or ) Yes
Brake ABS System 4-Wheel
Brake Type Pwr
Rear Brake Rotor Diam x Thickness 12.8 x 1.2 in
Drum - Rear (Yes or ) Not Available
Brake ABS System (Second Line) Not Available
Disc - Rear (Yes or ) Yes
Aux Fuel Tank Capacity, Approx Not Available gal
Fuel Tank Capacity, Approx 34 gal
Turning Diameter - Curb to Curb 53.5 ft
Steering Ratio (:1), Overall N/A
Steering Type Pwr
Turning Diameter - Wall to Wall N/A ft
Front Tire Size LT215/85R16
Spare Tire Size LT215/85R16
Rear Tire Size LT215/85R16
Fifth Wheel Hitch - Max Tongue Wt. 2375 lbs
Dead Weight Hitch - Max Trailer Wt. 7500 lbs
Dead Weight Hitch - Max Tongue Wt. 1000 lbs
Maximum Trailering Capacity N/A lbs
Fifth Wheel Hitch - Max Trailer Wt. 9500 lbs
Wt Distributing Hitch - Max Trailer Wt. 9500 lbs
Wt Distributing Hitch - Max Tongue Wt. 1425 lbs
Gross Vehicle Weight Rating 11400.00 lbs
Option Weight - Rear 0.00 lbs
Total Option Weight 0.00 lbs
Curb Weight 6054.00 lbs
Option Weight - Front 0.00 lbs
Gross Axle Weight Rating 13220.00 lbs
Maximum Payload Capacity 5346.00 lbs
As Spec'd Curb Weight 6054.00 lbs
Curb Weight - Front 3196 lbs
Curb Weight - Rear 2858 lbs
As Spec'd Payload 5346.00 lbs
Gross Combined Wt Rating 16000 lbs
Base Curb Weight N/A lbs
Length, Overall N/A in
Cargo Box Width @ Floor 64.8 in
Cargo Volume 73.9 ft³
Cargo Box Width @ Top, Rear 61.9 in
Width, Max w/o mirrors 96.1 in
Cargo Box Length @ Floor 97.6 in
Tailgate Width 61.9 in
Ext'd Cab Cargo Volume N/A ft³
Ground Clearance, Front 9.1 in
Overhang, Front 37.0 in
Overhang, Rear w/o bumper 52.2 in
Second Head Room 39.0 in
Passenger Capacity 6
Front Hip Room 61.4 in
Length, Overall w/rear bumper N/A in
Second Hip Room 62.9 in
Length, Overall w/o rear bumper 258.5 in
Ground to Top of Load Floor 35.2 in
Height, Overall 77.3 in
Front Leg Room 41.3 in
Wheelbase 167.0 in
Second Leg Room 39.1 in
Second Shoulder Room 65.1 in
Cab to End of Frame N/A in
Cargo Box Width @ Wheelhousings 50.0 in
Front Shoulder Room 65.2 in
Cargo Box (Area) Height 19.5 in
Ground Clearance, Rear 12.1 in
Front Head Room 41.0 in
Floor covering, rubberized vinyl, Black Standard
Theft-deterrent system, PASSlock II Standard
Alternator, 105 amps (Not available with (VYU) Snow Plow Prep Package) Standard
Battery, heavy-duty, 600 cold-cranking amps, includes rundown protection and retained accessory power (Not standard with (LLY) Engine, Duramax 6600 Turbo Diesel V8 or (LBZ) Engine, Duramax 6600 Turbo Diesel V8) Standard
Seat trim, vinyl Standard
Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger Standard
Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder, turn signal on Standard
Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models.) Standard
Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer Standard
Brakes, 4-wheel antilock, 4-wheel disc Standard
Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side Standard
Mirror, inside rearview, manual day/night Standard
Lamps, amber roof marker (Standard on (C7W) GVWR, 11,400 lbs. (5171 kg) only.) Standard
Tires, LT215/85R16D, all-season, blackwall (Requires and standard on CK35903 and (C7W) GVWR, 11,400 lbs. (5171 kg), CC35953 or CC35943 Models. -Not available with CK35903 Models and (VYU) Snow Plow Prep Package. - Includes 7 Tires with (E63) Pickup bed, Fleetside box. - Includes 6 Tires with (ZW9) Pickup bed, delete. - Not available with (C6Y) GVWR, 9600 lbs, (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs.) Standard
Steering column, Tilt-Wheel, adjustable, includes brake/transmission shift interlock Standard
Steering, power Standard
Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining with outboard head restraints Standard
Rear axle, 4.10 ratio (Refer to Engine/Axle Chart for availability) Standard
Sound system, ETR AM/FM stereo, includes seek-and-scan, and digital clock Standard
Transmission, 5-speed manual (Requires (LQ4) Engine, Vortec 6000 V8 SFI. Not available with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg).) Standard
Daytime running lamps, includes automatic exterior lamp control Standard
Rear wheel drive Standard
Tools, mechanical jack and wheel wrench, spare tire assist hook, floor-mounted in back of cab Standard
Lamps, dual cargo area lamps Standard
Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models) Standard
Bumper, front, chrome, with Gray lower Standard
Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry Standard
Engine, Vortec 6000 V8 SFI (300 HP [223.8 kW] @ 4400 rpm, 360 lb.-ft. [486.6 N-m] @ 4000 rpm) Standard
Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.) Standard
Suspension, front, independent torsion bar, and stabilizer bar Standard
Seats, rear 60/40 split-bench, flat folding, 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab Models.) Standard
Paint, solid Standard
Exhaust, aluminized stainless-steel muffler and tailpipe Standard
Suspension, rear, 3-stage springs Standard
Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control Standard
Cigarette lighter, on instrument panel Standard
Dual rear wheels (Standard on (C7W) GVWR, 11,400 lbs. (5171 kg) only. - Not available with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg)) Standard
Frame, ladder-type, hydroformed Standard
Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt Standard
Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks Standard
Bumper, rear, painted step, includes pad (Not available with (ZW9) Pickup bed, delete) Standard
Cooling, external engine oil cooler, heavy-duty air-to-oil, integral to driver side of radiator tank Standard
Daytime running lamps, includes automatic exterior lamp control Standard
Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.) Standard
Glass, Solar-Ray light tinted, all windows Standard
Driver Information Center, monitors numerous different systems depending on vehicle equipment Standard
Grille, color-keyed surround, with chrome accent bar Standard
Air dam, Gray Standard
Brakes, 4-wheel antilock, 4-wheel disc Standard
Steering wheel, includes theft-deterrent locking feature Standard
Pickup bed, Fleetside box (Not available with CC35903 Models.) Standard
Sound system feature, 4-speakers Standard
Wheel flares, front only (With (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. includes rear wheel flares unless (ZW9) Pickup box delete is ordered.) Standard
Wheels, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug steel, painted (dual rear) includes, painted center caps and steel spare (Requires and only available with (C7W) GVWR, 11,400 lbs. (5171 kg) (dual rear wheel)) Standard
Mirrors, outside rearview, foldaway, manual, Black, adjustable (Standard on (C7W) GVWR, 11,400 lbs. (5171 kg) only. - Not available with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg).) Standard
Wipers, intermittent, front wet-arm with pulse washers Standard
Tire carrier, outside spare, winch-type mounted under frame at rear Standard
