2021 Chevrolet Silverado 3500 LTZ specs & colors

Crew Cab Pickup

Change trim
$52,700
Starting MSRP
Current listing price

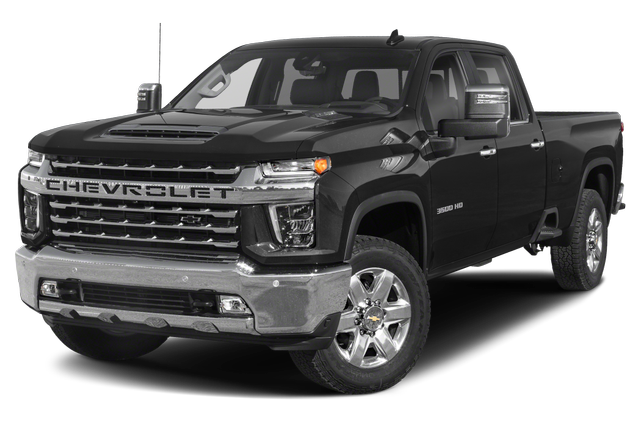

Showing the 2021 Chevrolet Silverado 3500 2WD Crew Cab 172" LTZ

Shop Now

Key specs

Color options

Interior

Ebony

Gideon / Very Dark Atmosphere

Packages

$0

Starting MSRP

  • includes standard equipment

Specifications

Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Front Wheel Size 18 x 8 in
Spare Wheel Material Steel
Rear Wheel Size 18 x 8 in
Spare Wheel Size 18 x 8 in

Maximum Alternator Capacity (amps) 170
Cold Cranking Amps @ 0° F (Primary) 720

Displacement 6.6L/-TBD-
SAE Net Torque @ RPM 464 @ 4000
Engine Oil Cooler Yes
Engine Type Gas V8
SAE Net Horsepower @ RPM 401 @ 5200

Cruising Range - Hwy N/A mi
EPA Fuel Economy Est - City N/A MPG
Cruising Range - City N/A mi
Fuel Economy Est-Combined N/A MPG
EPA Fuel Economy Est - Hwy N/A MPG
Estimated Battery Range N/A mi

Final Drive Axle Ratio (:1) N/A
Transfer Case Model N/A
Drivetrain Rear Wheel Drive
First Gear Ratio (:1) 4.03
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Gear Ratio (:1), High N/A
Fifth Gear Ratio (:1) 0.85
Trans Description Cont. Again N/A
Sixth Gear Ratio (:1) 0.67
Second Gear Ratio (:1) 2.36
Reverse Ratio (:1) 3.06
Trans Type 6
Trans Description Cont. Automatic
Fourth Gear Ratio (:1) 1.15
Transfer Case Power Take Off N/A
Trans Power Take Off N/A
Third Gear Ratio (:1) 1.53

Axle Type - Front Independent
Suspension Type - Rear 3-Stage Multi-Leaf
Axle Type - Rear N/A
Suspension Type - Front Short/Long Arm w/Torsion Bars

Frame Type Hydroformed

Drum - Rear (Yes or ) N/A
Disc - Rear (Yes or ) Yes
Brake Type Pwr
Front Brake Rotor Diam x Thickness 14 x 1.6 in
Brake ABS System (Second Line) N/A
Brake ABS System 4-Wheel
Disc - Front (Yes or ) Yes
Rear Brake Rotor Diam x Thickness 14.1 x 1.3 in

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 36 gal

Steering Type Pwr Recirculating Ball
Turning Diameter - Curb to Curb 57.0 ft
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A

Spare Tire Size LT275/70R18
Rear Tire Size LT275/70R18
Front Tire Size LT275/70R18

Maximum Trailering Capacity 20000 lbs
Wt Distributing Hitch - Max Trailer Wt. 14500 lbs
Wt Distributing Hitch - Max Tongue Wt. 1450 lbs
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Fifth Wheel Hitch - Max Trailer Wt. 16700 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Tongue Wt. 4175 lbs

Gross Combined Wt Rating 24000 lbs
Curb Weight 6877.00 lbs
Curb Weight - Rear 3143 lbs
As Spec'd Curb Weight 7047.00 lbs
Total Option Weight 0.00 lbs
Base Curb Weight N/A lbs
Option Weight - Front 0.00 lbs
Curb Weight - Front 3734 lbs
Maximum Payload Capacity 4273.00 lbs
Gross Axle Weight Rating 12050.00 lbs
As Spec'd Payload 4103.00 lbs
Gross Vehicle Weight Rating 11150.00 lbs
Option Weight - Rear 0.00 lbs

Length, Overall 266 in
Cargo Box Length @ Floor 98.27 in
Height, Overall 80.67 in
Cargo Box Width @ Top, Rear N/A in
Front Leg Room 44.53 in
Length, Overall w/o rear bumper N/A in
Passenger Capacity 6
Overhang, Front N/A in
Second Leg Room 43.4 in
Second Hip Room 60.24 in
Ground to Top of Load Floor 38.8 in
Second Shoulder Room 65.3 in
Front Hip Room 61.18 in
Cargo Box (Area) Height 21 in
Length, Overall w/rear bumper N/A in
Width, Max w/o mirrors 81.85 in
Cargo Volume 83.5 ft³
Tailgate Width N/A in
Cargo Box Width @ Floor 71.4 in
Overhang, Rear w/o bumper N/A in
Ground Clearance, Rear 11.14 in
Ground Clearance, Front 11.14 in
Front Shoulder Room 66.02 in
Front Head Room 43.03 in
Cargo Box Width @ Wheelhousings 50.55 in
Ext'd Cab Cargo Volume N/A ft³
Second Head Room 40.12 in
Cab to End of Frame N/A in
Wheelbase 172 in

Audio system feature, 6-speaker system Standard
SiriusXM Radio Optional
HD Radio Optional
Wireless Phone Projection for Apple CarPlay and Android Auto Optional
4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.) Optional
SiriusXM with 360L Equipped with SiriusXM with 360L. Enjoy a trial subscription of the All Access package for the full 360L experience, with a greater variety of SiriusXM content, a more personalized experience and easier navigation. With the All Access package, you can also enjoy your favorites everywhere you go, with the SiriusXM app, online and at home on compatible connected devices. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.) Optional
Audio system, Chevrolet Infotainment 3 Plus system, 8" diagonal HD color touchscreen, AM/FM stereo Bluetooth audio streaming for 2 active devices, wireless Apple CarPlay and Android Auto capable, voice recognition, in-vehicle apps, cloud connected personalization for select infotainment and vehicle settings. Subscription required for enhanced and connected services after trial period. (STD) (Includes (PZ8) Hitch Guidance with Hitch View.) Optional
Bluetooth for phone connectivity to vehicle infotainment system Standard

BedStep, Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.) Standard
Taillamps, LED with signature Optional
Moldings, beltline, stainless steel Optional
Wheelhouse liners, rear (Not available with dual rear wheels.) Optional
Tailgate and bed rail protection cap, top Standard
Cargo tie downs (12), fixed, rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.) Standard
Chrome front grille bar with "CHEVROLET". Includes Chrome grille inserts with small Gold bowtie emblem. Optional
Door handles, chrome Optional
Fog lamps, front, LED Optional
Single Rear Wheels (STD) Standard
CornerStep, rear bumper Standard
Tailgate, gate function manual with EZ Lift includes power lock and release (Upgraded to (QT6) Power up/down tailgate when (PCZ) LTZ Convenience Package is ordered. Deleted when (ZW9) pickup bed delete is ordered.) Optional
Mirrors, outside power-adjustable vertical trailering with heated and auto-dimming upper glass, (driver and passenger) lower convex mirrors, turn signal indicators, puddle lamps, perimeter lighting, auxiliary lighting, power folding/extending (extends 3.31" [84.25mm]) Optional
Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.) Standard
Mirror caps, chrome Optional
Bumper, rear chrome Optional
Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel Standard
Tires, LT275/70R18E all-terrain, blackwall (STD) (Requires single rear wheels.) Standard
Wheels, 18" (45.7 cm) machined aluminum with Silver painted accents, 6-spoke (STD) (Requires single rear wheels.) Optional
Headlamps, LED reflector (high intensity) with LED signature curtain Daytime Running Lamps Optional
Tire, spare LT275/70R18 all-terrain, blackwall (STD) (Included and only available with (QF6) LT275/70R18E all-terrain, blackwall tires or (QF9) LT275/65R20 all-terrain, blackwall tires with (E63) Durabed, pickup bed single rear wheel models. Available to order when (ZW9) pickup bed delete and (QF6) LT275/70R18E all-terrain, blackwall tires are ordered with single rear wheel models.) Optional
Bumper, front chrome Optional
Glass, deep-tinted Optional

Steering wheel, leather-wrapped Optional
Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable) (STD) (Not available with (PCZ) LTZ Convenience Package, (PDF) LTZ Plus Package, (PDK) LTZ Premium Package or (PDL) LTZ Texas Edition.) Optional
Instrument cluster, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure Standard
Advanced Trailering System includes checklist, trailer maintenance reminders, trailer security alerts, trailer mileage, tow/haul reminder, trailer electrical diagnostics and Trailer Tire Pressure Monitor System module (With (ZW9) pickup bed delete no provision for a trailer tire pressure monitor system will exist but all the other (U1D) features will remain.) Optional
Steering column, manual tilt and telescoping Optional
Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted Standard
Compass, located in instrument cluster Optional
Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.) Optional
USB ports, dual, charge-only (2nd row) Optional
Driver Information Center, 4.2" diagonal color display includes driver personalization Optional
Air vents, rear, heating/cooling Standard
Door locks, power Standard
Air conditioning, dual-zone automatic climate control. Optional
Steering column, lock control, electrical Optional
Theft-deterrent system, unauthorized entry Optional
Power outlet, front auxiliary, 12-volt Standard
Steering wheel, heated Optional
Seat trim, Perforated leather-appointed front outboard seating positions Optional
Seat adjuster, driver 10-way power including lumbar Optional
Remote vehicle starter system Optional
Floor mats, rubberized-vinyl rear (Deleted when LPO floor liners are ordered. Not available with (BKE) Floor liners.) Optional
Power outlet, instrument panel, 120-volt (400 watts shared with (KC9) bed mounted power outlet) Optional
Window, power front, passenger express up/down Optional
Seat adjuster, passenger 10-way power including lumbar Optional
Windows, power rear, express down Standard
Window, power front, drivers express up/down Standard
Exterior Temperature Display located in radio display Standard
Defogger, rear-window electric Optional
Driver memory, recalls driver "presets" for power driver seat and outside mirrors Optional
Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) instrument panel mounted power outlet) (Deleted when (ZW9) pickup bed delete is ordered.) Optional
Seating, heated driver and front outboard passenger Optional
Floor covering, color-keyed carpeting Optional
Floor mats, rubberized vinyl, front (Deleted when LPO floor liners are ordered. Not available with (BKF) Floor liners.) Optional
Steering wheel audio controls Optional
USB Ports (Instrument Panel with bench seat), 2 also includes 1 SD card reader (first row). With (A50) Bucket Seats, ports are inside console and also includes auxiliary jack Optional
Mirror, inside rearview auto-dimming Optional
Keyless Open and Start Optional
Cruise control, electronic with set and resume speed, steering wheel-mounted Optional
Power outlet, rear auxiliary, 12-volt Optional
Seat, Up-level Rear with Storage Package, 60/40 folding bench for Crew Cab models, includes full-length bench seat, seatback storage on left and right side, center fold out armrest with 2 cupholders, full cab width under-seat storage, (includes child seat top tether anchor) Optional

Rear wheel drive Standard
Cooling, external engine oil cooler Standard
Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors Standard
Capless Fuel Fill (Requires (L8T) 6.6L V8 gas engine. Not available with (ZW9) pickup bed delete.) Standard
Suspension Package Standard
Rear axle, 3.73 ratio (Requires (L8T) 6.6L V8 gas engine. Not available with (L5P) Duramax 6.6L Turbo-Diesel V8 engine.) Standard
Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power (Included and only available with (L8T) 6.6L V8 gas engine.) Standard
Engine, 6.6L V8 with Direct Injection and Variable Valve Timing, gasoline (401 hp [299 kW] @ 5200 rpm, 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD) Standard
Air filtration monitoring Standard
Cooling, auxiliary external transmission oil cooler Standard
Brake lining wear indicator Standard
Durabed, pickup bed (STD) Standard
Trailer brake controller, integrated Optional
Alternator, 170 amps (Requires (L8T) 6.6L V8 gas engine.) Standard
Transmission, 6-speed automatic, heavy-duty (STD) (Requires (L8T) 6.6L V8 gas engine.) Standard
Auto-locking rear differential Standard
Steering, Digital Variable Steering Assist this system automatically adjusts steering based on speed, road conditions, and other inputs to reduce driver effort and fatigue Optional
GVWR, 11,150 lbs. (5058 kg) with single rear wheels (STD) (Included and only available with CC30943 model and (L8T) 6.6L V8 gas engine. Requires single rear wheels.) Standard
Air filter, heavy-duty Standard
Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section Standard
Recovery hooks, front, frame-mounted, Black (Not included when (VQY) Chrome recovery hooks, LPO is ordered.) Optional

Trailering Package includes trailer hitch, 7-pin connector and (CTT) Hitch Guidance (Deleted when (ZW9) pickup bed delete is ordered.) Standard

Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available with (ZW9) pickup bed delete.) Standard

OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.) Optional
Daytime Running Lamps with automatic exterior lamp control Standard
Rear Seat Reminder Standard
StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist Standard
Hitch Guidance with Hitch View (Not available with (ZW9) pickup bed delete.) Optional
Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire) Standard
Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.) Standard
Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver Standard
HD Rear Vision Camera (Deleted when (ZW9) pickup bed delete is ordered.) Optional
Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.) Standard
