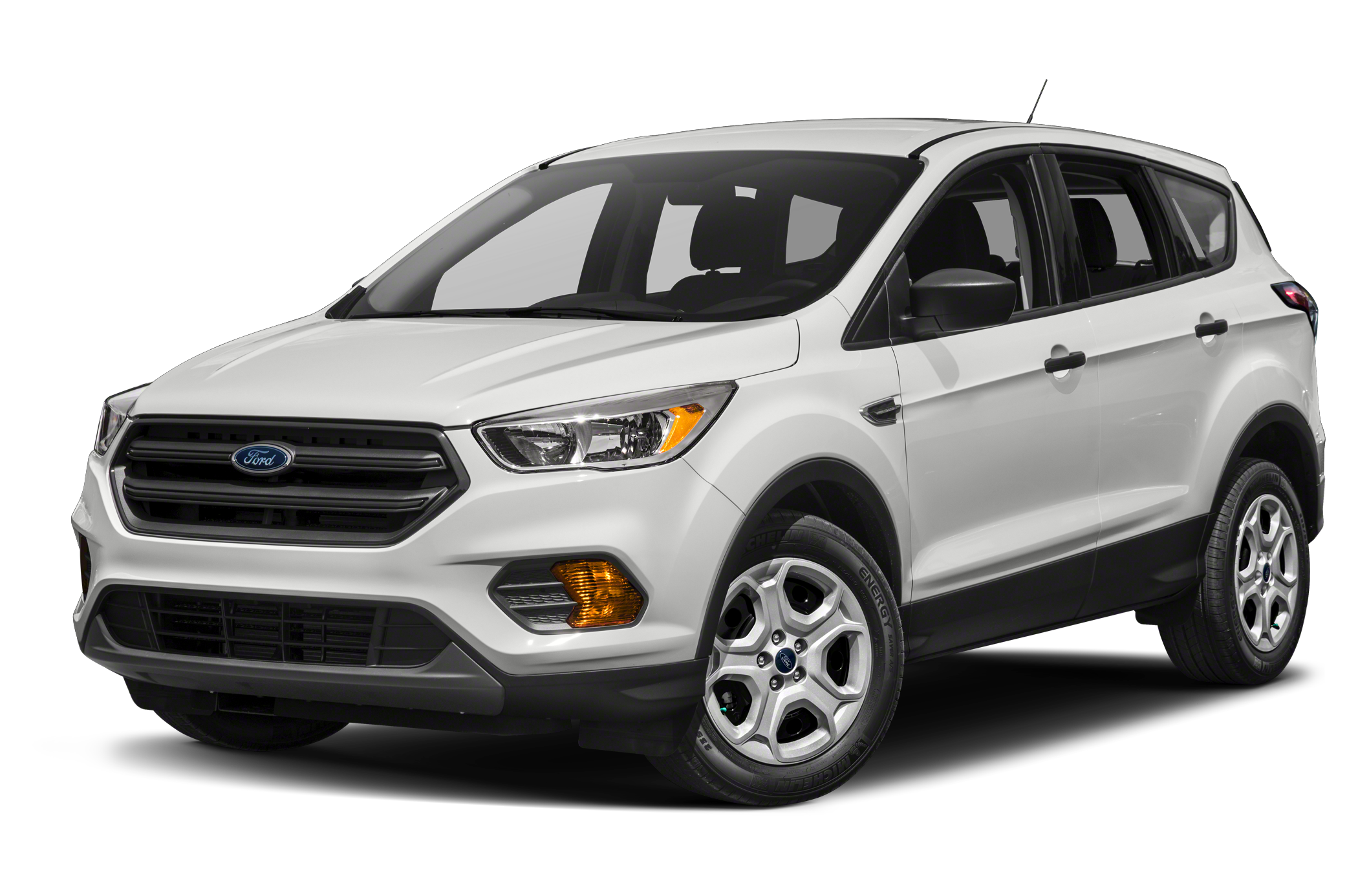

2017 Ford Escape S specs & colors

$23,750
Starting MSRP
Current listing price

Showing the 2017 Ford Escape S FWD

Shop Now

Key specs

Color options

Interior

Black


Packages

$0

Starting MSRP

Specifications

EPA Classification Small SUV 2WD

Rear Wheel Size 17 X 7.5 in
Front Wheel Size 17 X 7.5 in
Spare Wheel Material Steel
Front Wheel Material Steel
Rear Wheel Material Steel
Spare Wheel Size Compact in

Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) N/A

SAE Net Torque @ RPM 170 @ 4500
SAE Net Horsepower @ RPM 168 @ 6000
Displacement 2.5 L/152
Engine Type Regular Unleaded I-4

EPA Fuel Economy Est - Hwy 29 MPG
Estimated Battery Range N/A mi
EPA Fuel Economy Est - City 21 MPG
Cruising Range - City 329.70 mi
Fuel Economy Est-Combined 24 MPG
EPA MPG Equivalent - Combined N/A
Cruising Range - Hwy 455.30 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A

Transfer Case Gear Ratio (:1), Low N/A
Trans Type 6
Sixth Gear Ratio (:1) 0.74
Transfer Case Gear Ratio (:1), High N/A
Fifth Gear Ratio (:1) 1.00
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.58
Final Drive Axle Ratio (:1) 3.51
Trans Description Cont. Automatic w/OD
Reverse Ratio (:1) 2.94
Drivetrain Front Wheel Drive
Second Gear Ratio (:1) 2.96
Third Gear Ratio (:1) 1.91
Fourth Gear Ratio (:1) 1.44

Suspension Type - Rear (Cont.) Short And Long Arm
Suspension Type - Front Strut
Suspension Type - Front (Cont.) Strut
Suspension Type - Rear Short And Long Arm

Brake ABS System 4-Wheel
Drum - Rear (Yes or ) N/A
Brake ABS System (Second Line) N/A
Rear Brake Rotor Diam x Thickness 12 in
Front Brake Rotor Diam x Thickness 12.8 in
Disc - Rear (Yes or ) Yes
Brake Type 4-Wheel Disc
Disc - Front (Yes or ) Yes

Aux Fuel Tank Capacity, Approx N/A gal
Fuel Tank Capacity, Approx 15.7 gal

Steering Type Rack-Pinion
Lock to Lock Turns (Steering) N/A
Turning Diameter - Curb to Curb 38.8 ft
Turning Diameter - Wall to Wall N/A ft
Steering Ratio (:1), Overall N/A

Spare Tire Size Compact
Rear Tire Size P235/55HR17
Front Tire Size P235/55HR17

Dead Weight Hitch - Max Tongue Wt. 150 lbs
Dead Weight Hitch - Max Trailer Wt. 1500 lbs
Wt Distributing Hitch - Max Trailer Wt. 1500 lbs
Maximum Trailering Capacity 1500 lbs
Wt Distributing Hitch - Max Tongue Wt. 150 lbs

Maximum Payload Capacity N/A lbs
Curb Weight - Rear N/A lbs
Total Option Weight 0.00 lbs
Base Curb Weight 3515 lbs
Curb Weight N/A lbs
Curb Weight - Front N/A lbs

Wheelbase 105.9 in
Cargo Box (Area) Height N/A in
Passenger Volume 98.1 ft³
Passenger Capacity 5
Liftover Height N/A in
Width, Max w/o mirrors 72.4 in
Second Shoulder Room 55.3 in
Track Width, Front 61.5 in
Front Head Room 39.9 in
Cargo Area Length @ Floor to Seat 3 N/A in
Length, Overall 178.1 in
Cargo Volume to Seat 3 34.3 ft³
Front Shoulder Room 56 in
Cargo Area Length @ Floor to Seat 1 N/A in
Second Leg Room 36.8 in
Cargo Area Length @ Floor to Seat 2 N/A in
Rear Door Opening Width N/A in
Cargo Box Width @ Wheelhousings N/A in
Track Width, Rear 61.6 in
Second Head Room 39 in
Cargo Volume to Seat 1 67.8 ft³
Cargo Area Width @ Beltline N/A in
Min Ground Clearance 7.9 in
Second Hip Room 52.4 in
Front Leg Room 43.1 in
Front Hip Room 54.8 in
Rear Door Opening Height N/A in
Height, Overall 66.3 in
Cargo Volume to Seat 2 34.3 ft³

Radio w/Seek-Scan, Clock and Radio Data System Standard
SYNC Communications & Entertainment System -inc: enhanced voice recognition communication, 911 Assist, 4.2" LCD screen in center stack, AppLink and smart charging USB port Standard
Integrated Roof Antenna Standard
Radio: AM/FM Single CD/MP3 -inc: 6 speakers and speed compensated volume Standard
1 LCD Monitor In The Front Standard

Black Rear Bumper Standard
Fixed Rear Window w/Fixed Interval Wiper, Heated Wiper Park and Defroster Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Auto On/Off Aero-Composite Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off Standard
Tires: P235/55R17 A/S BSW -inc: Low-Rolling- Resistance, mini spare tire Standard
Wheels: 17" Steel Wheel w/Sparkle Silver Cover Standard
Black Door Handles Standard
Liftgate Rear Cargo Access Standard
Steel Spare Wheel Standard
Variable Intermittent Wipers Standard
Body-Colored Front Bumper w/Metal-Look Rub Strip/Fascia Accent Standard
Black Power Side Mirrors w/Convex Spotter and Manual Folding Standard
Black Side Windows Trim Standard
Light Tinted Glass Standard
Fully Galvanized Steel Panels Standard
Gray Bodyside Cladding and Gray Wheel Well Trim Standard
Black Grille Standard
Spare Tire Mounted Inside Under Cargo Standard
LED Brakelights Standard

SYNC Selective Service Internet Access Standard
Metal-Look Gear Shifter Material Standard
Day-Night Rearview Mirror Standard
Illuminated Glove Box Standard
Analog Appearance Standard
Interior Concealed Storage, Driver / Passenger And Rear Door Bins, 2nd Row Underseat Storage and Audio Media Storage Standard
Outside Temp Gauge Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Metal-Look Interior Accents Standard
Front Map Lights Standard
FOB Controls -inc: Cargo Access Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Carpet Floor Trim Standard
Compass Standard
Air Filtration Standard
Manual Tilt/Telescoping Steering Column Standard
Power Door Locks w/Autolock Feature Standard
Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints Standard
Power Rear Windows and Fixed 3rd Row Windows Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Standard
Driver Seat Standard
Driver And Passenger Visor Vanity Mirrors Standard
Securilock Anti-Theft Ignition (pats) Immobilizer Standard
Cargo Area Concealed Storage Standard
Full Cloth Headliner Standard
Front Facing Manual Reclining Fold Forward Seatback Rear Seat Standard
HVAC -inc: Underseat Ducts Standard
Front Center Armrest Standard
Power 1st Row Windows w/Driver 1-Touch Up/Down Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 4 12V DC Power Outlets Standard
Rear Cupholder Standard
Fade-To-Off Interior Lighting Standard
Cargo Space Lights Standard
Trip Computer Standard
Seats w/Cloth Back Material Standard
Cruise Control w/Steering Wheel Controls Standard
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer Standard
4 12V DC Power Outlets Standard
Manual Air Conditioning Standard
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats Standard
Driver Foot Rest Standard
Driver Information Center Standard
Front Cupholder Standard
Cloth Buckets w/60/40 Split Rear Seat -inc: 6-way manual driver's seat, 4-way manual passenger seat Standard
Cloth Door Trim Insert Standard

3.51 Axle Ratio Standard
Front And Rear Anti-Roll Bars Standard
Brake Actuated Limited Slip Differential Standard
Engine: 2.5L i-VCT (STD) Standard
GVWR: 4,620 lbs Standard
Front-Wheel Drive Standard
Gas-Pressurized Shock Absorbers Standard
Transmission: 6-Speed Automatic w/SelectShift (STD) Standard
Quasi-Dual Stainless Steel Exhaust Standard
Strut Front Suspension w/Coil Springs Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake Standard
Battery w/Run Down Protection Standard
Transmission w/Driver Selectable Mode and Oil Cooler Standard
15.7 Gal. Fuel Tank Standard
Short And Long Arm Rear Suspension w/Coil Springs Standard
Electric Power-Assist Speed-Sensing Steering Standard

Driver Knee Airbag Standard
Airbag Occupancy Sensor Standard
Safety Canopy System Curtain 1st And 2nd Row Airbags Standard
Low Tire Pressure Warning Standard
Rear Child Safety Locks Standard
Dual Stage Driver And Passenger Front Airbags Standard
Back-Up Camera Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute Standard
Side Impact Beams Standard
ABS And Driveline Traction Control Standard
AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
