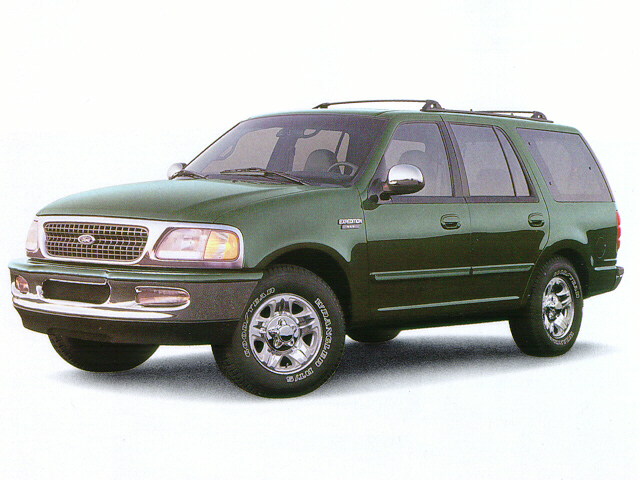

1997 Ford Expedition XLT specs & colors
Sport Utility
MSRP
- 119" XLT
- $27,620
- 119" XLT 4WD
- $30,220
- 119" Eddie Bauer
- $31,590
- 119" Eddie Bauer 4WD
- $34,225
Key specs
Color options
Interior
Graphite
Oxford White / Lt Graphite
Saddle
Packages
$0
Starting MSRP
- base vehicle only
$1,770
Starting MSRP
- captain's chairs w/floor console
- popular equipment group
- speed control
See more detail $1,770
Starting MSRP
- captain's chairs w/floor console
- popular equipment group
- speed control
- forged aluminum wheels
Specifications
Highlights
|
GAS V8
Engine Type
|
|
15 City / 20 Hwy
MPG
|
|
230 hp
215 hp Horsepower
|
|
5
Seating Capacity
|
Brakes
|
Not Available
Drum - Rear (Yes or )
|
|
Four Wheel
Brake ABS System
|
|
Power
Brake Type
|
|
Yes
Disc - Rear (Yes or )
|
|
Yes
Disc - Front (Yes or )
|
|
Not Available
Brake ABS System (Second Line)
|
|
12.13 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
13.15 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
Electrical
|
130
Maximum Alternator Capacity (amps)
|
|
650
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
290 @ 3250
SAE Net Torque @ RPM
|
|
GAS V8
Engine Type
|
|
215 @ 4400
SAE Net Horsepower @ RPM
|
|
4.6L (281)
Displacement
|
|
A/T
4-Speed A/T Transmission Options
|
|
15 City / 20 Hwy
MPG
|
|
13 qts
Total Cooling System Capacity
|
Measurements
|
Not Available in
Side Door Opening Width
|
|
62 in
Front Hip Room
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
19 in
Step Up Height - Front
|
|
74 in
Height, Overall
|
|
Not Available in
Third Shoulder Room
|
|
6
Passenger Capacity
|
|
82 in
Cargo Area Length @ Floor to Seat 1
|
|
52 in
Cargo Area Length @ Floor to Seat 2
|
|
N/A
Cargo Box Width @ Floor
|
|
63 ft³
Cargo Volume to Seat 2
|
|
64 in
Front Shoulder Room
|
|
119 in
Wheelbase
|
|
N/A
Tailgate Width
|
|
N/A
Cargo Area Length @ Floor to Seat 3
|
|
N/A
Ext'd Cab Cargo Volume
|
|
12 ft³
Cargo Volume to Seat 3
|
|
29 in
Ground to Top of Load Floor
|
|
64 in
Second Shoulder Room
|
|
7 in
Ground Clearance, Front
|
|
Not Available ft³
Cargo Volume to Seat 4
|
|
41 in
Front Leg Room
|
|
Not Available in
Third Hip Room
|
|
Not Available in
Side Door Opening Height
|
|
Not Available in
Step Up Height - Side
|
|
39 in
Overhang, Front
|
|
8 in
Ground Clearance, Rear
|
|
39 in
Rear Door Opening Height
|
|
40 in
Front Head Room
|
|
Not Available in
Third Leg Room
|
|
118 ft³
Cargo Volume to Seat 1
|
|
N/A
Cargo Area Width @ Beltline
|
|
40 in
Second Head Room
|
|
39 in
Second Leg Room
|
|
57 in
Rear Door Opening Width
|
|
79 in
Width, Max w/o mirrors
|
|
Not Available in
Cargo Area Length @ Floor to Console
|
|
N/A
Cab to End of Frame
|
|
N/A
Cargo Box (Area) Height
|
|
49 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Length, Overall
|
|
62 in
Second Hip Room
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Cargo Volume
|
|
205 in
Length, Overall w/rear bumper
|
|
Not Available in
Third Head Room
|
Steering
|
42 ft
Turning Diameter - Wall to Wall
|
|
Speed-Sensitive Pwr
Steering Type
|
|
40 ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
Suspension
|
Coil Spring
Suspension Type - Rear
|
|
Semi-Floating
Axle Type - Rear
|
|
Indep Coil Spring
Suspension Type - Front
|
|
Independent SLA
Axle Type - Front
|
Tires & Wheels
|
Steel
Spare Wheel Material
|
|
Styled Steel
Front Wheel Material
|
|
P255/70R16
Rear Tire Size
|
|
Styled Steel
Rear Wheel Material
|
|
P255/70R16
Spare Tire Size
|
|
P255/70R16
Front Tire Size
|
|
16 x 7.0 in
Rear Wheel Size
|
|
16 x 7.0 in
Front Wheel Size
|
|
16 x 7.0 in
Spare Wheel Size
|
Weight & Capacity
|
4,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
0 lbs
Option Weight - Rear
|
|
400 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
800 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
26 gal
Fuel Tank Capacity, Approx
|
|
0 lbs
Option Weight - Front
|
|
Not Available gal
Aux Fuel Tank Capacity, Approx
|
|
1,950 lbs
Maximum Payload Capacity
|
|
4,800 lbs
As Spec'd Curb Weight
|
|
8,000 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
4,800 lbs
Curb Weight
|
|
7,500 lbs
Gross Axle Weight Rating
|
|
2,256 lbs
Curb Weight - Rear
|
|
0 lbs
Total Option Weight
|
|
2,544 lbs
Curb Weight - Front
|
|
N/A
Base Curb Weight
|
|
1,950 lbs
As Spec'd Payload
|
|
11,000 lbs
Gross Combined Wt Rating
|
|
6,750 lbs
Gross Vehicle Weight Rating
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
|
N/A
Maximum Trailering Capacity
|
