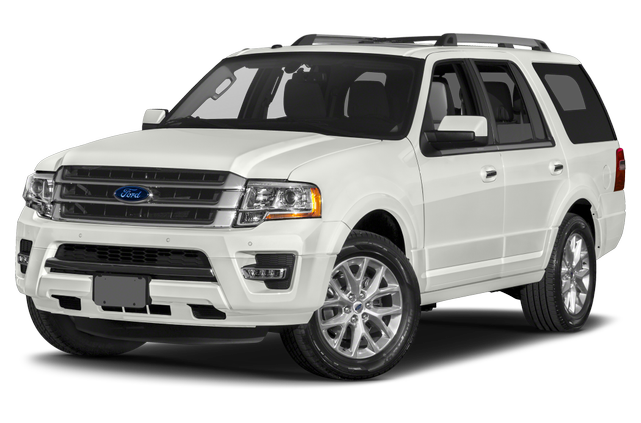

2017 Ford Expedition Limited specs & colors
Sport Utility
Key specs
Color options
Interior
Black
Black / Gray
Packages
$495
Starting MSRP
- magnetic accent-color rear tailgate applique
- unique door switch plates
- I/P center finish panel and lower finish panel
$2,785
Starting MSRP
- Power-Deployable Running Boards
- Voice-Activated Touch-Screen Navigation System
- Power Moonroof
$0
Starting MSRP
Specifications
| Front Wheel Size | 20 X 8.5 in |
| Rear Wheel Size | 20 X 8.5 in |
| Spare Wheel Size | Full-Size in |
| Front Wheel Material | Aluminum |
| Rear Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Cold Cranking Amps @ 0° F (Primary) | 650 |
| Maximum Alternator Capacity (amps) | 250 |
| Engine Type | Twin Turbo Regular Unleaded V-6 |
| Displacement | 3.5 L/213 |
| SAE Net Horsepower @ RPM | 365 @ 5000 |
| SAE Net Torque @ RPM | 420 @ 2500 |
| Engine Oil Cooler | None |
| EPA Fuel Economy Est - Hwy | 20 MPG |
| Cruising Range - City | 420.00 mi |
| EPA Fuel Economy Est - City | 15 MPG |
| Fuel Economy Est-Combined | 17 MPG |
| Cruising Range - Hwy | 560.00 mi |
| Estimated Battery Range | N/A mi |
| Drivetrain | Four Wheel Drive |
| Trans Type | 6 |
| Trans Description Cont. | Automatic w/OD |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | 4.17 |
| Second Gear Ratio (:1) | 2.34 |
| Third Gear Ratio (:1) | 1.54 |
| Fourth Gear Ratio (:1) | 1.14 |
| Fifth Gear Ratio (:1) | 0.87 |
| Sixth Gear Ratio (:1) | 0.69 |
| Reverse Ratio (:1) | 3.40 |
| Trans Power Take Off | N/A |
| Final Drive Axle Ratio (:1) | N/A |
| Transfer Case Model | Electronic |
| Transfer Case Gear Ratio (:1), High | N/A |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Transfer Case Power Take Off | No |
| Suspension Type - Front | Double Wishbone |
| Suspension Type - Rear | Multi-Link |
| Axle Type - Front | Independent |
| Axle Type - Rear | Independent |
| Frame Type | N/A |
| Brake Type | 4-Wheel Disc |
| Brake ABS System | 4-Wheel |
| Brake ABS System (Second Line) | 4-Wheel |
| Disc - Front (Yes or ) | Yes |
| Disc - Rear (Yes or ) | Yes |
| Front Brake Rotor Diam x Thickness | 13.5 in |
| Rear Brake Rotor Diam x Thickness | 13.2 in |
| Drum - Rear (Yes or ) | N/A |
| Fuel Tank Capacity, Approx | 28 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Rack-Pinion |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Curb to Curb | 40.8 ft |
| Turning Diameter - Wall to Wall | N/A ft |
| Front Tire Size | P275/55SR20 |
| Rear Tire Size | P275/55SR20 |
| Spare Tire Size | Full-Size |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 6600 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 660 lbs |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Maximum Trailering Capacity | 6600 lbs |
| Base Curb Weight | 5789 lbs |
| Curb Weight - Front | 2926 lbs |
| Curb Weight - Rear | 2863 lbs |
| Option Weight - Front | 0.00 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Curb Weight | 5789.00 lbs |
| As Spec'd Payload | 1731.00 lbs |
| Maximum Payload Capacity | 1731.00 lbs |
| Gross Combined Wt Rating | 12500 lbs |
| Gross Axle Weight Rating | N/A lbs |
| Curb Weight | 5789.00 lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 7520.00 lbs |
| Passenger Capacity | 8 |
| Front Head Room | 39.6 in |
| Front Leg Room | 41.1 in |
| Front Shoulder Room | 63.2 in |
| Front Hip Room | 60.2 in |
| Second Head Room | 39.8 in |
| Second Leg Room | 39.1 in |
| Second Shoulder Room | 63.7 in |
| Second Hip Room | 59.9 in |
| Third Head Room | 38.3 in |
| Third Leg Room | 37.7 in |
| Third Shoulder Room | 51.9 in |
| Third Hip Room | 50.2 in |
| Wheelbase | 119 in |
| Length, Overall w/rear bumper | N/A in |
| Length, Overall | 206.5 in |
| Width, Max w/o mirrors | 78.8 in |
| Height, Overall | 77.2 in |
| Track Width, Front | 67 in |
| Track Width, Rear | 67.2 in |
| Overhang, Front | N/A in |
| Overhang, Rear w/o bumper | N/A in |
| Cab to End of Frame | N/A in |
| Ground to Top of Load Floor | N/A in |
| Ground Clearance, Front | N/A in |
| Ground Clearance, Rear | N/A in |
| Min Ground Clearance | 8.7 in |
| Rear Door Opening Height | N/A in |
| Rear Door Opening Width | N/A in |
| Cargo Area Length @ Floor to Seat 1 | 82.5 in |
| Cargo Area Length @ Floor to Seat 2 | 44.4 in |
| Cargo Area Length @ Floor to Seat 3 | 13.1 in |
| Cargo Box Width @ Top, Rear | N/A in |
| Cargo Area Width @ Beltline | N/A in |
| Cargo Box Width @ Floor | N/A in |
| Cargo Box Width @ Wheelhousings | 49.2 in |
| Cargo Box (Area) Height | 34.6 in |
| Liftover Height | 34.8 in |
| Tailgate Width | N/A in |
| Cargo Volume | N/A ft³ |
| Cargo Volume to Seat 1 | 108.3 ft³ |
| Cargo Volume to Seat 2 | 55 ft³ |
| Cargo Volume to Seat 3 | 18.6 ft³ |
| Ext'd Cab Cargo Volume | N/A ft³ |
| SiriusXM Satellite Radio -inc: Not available in Alaska or Hawaii | Optional |
| Radio: Premium Sony Sound System w/Single-Disc/MP3 -inc: HD radio, input jack, 12 speakers, 2 4.2" screens in instrument cluster and 8" touch-screen in center stack | Optional |
| Window Grid Antenna | Standard |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Multi-Source Rear Controls and Radio Data System | Optional |
| Digital Signal Processor | Optional |
| Automatic Equalizer | Optional |
| SYNC 3 Communications & Entertainment System -inc: enhanced voice recognition, 8" center LCD capacitive touch-screen w/swiping and pinch-to-zoom capabilities (when ordered w/navigation system), AppLink, 911 Assist and (2) smart charging USB ports, SYNC AppLink lets you control some of your favorite compatible mobile apps w/your voice, It is compatible w/select smartphone platforms, Commands may vary by phone and AppLink software | Optional |
| Regular Amplifier | Optional |
| Deep Tinted Glass | Standard |
| Auto On/Off Projector Beam Halogen Headlamps w/Delay-Off | Optional |
| Chrome Door Handles | Optional |
| Front Fog Lamps | Standard |
| Steel Spare Wheel | Standard |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Power Liftgate Rear Cargo Access | Optional |
| Roof Rack | Standard |
| Chrome Grille | Optional |
| Body-Colored Front Bumper w/Body-Colored Rub Strip/Fascia Accent and 2 Tow Hooks | Optional |
| Black Side Windows Trim and Black Front Windshield Trim | Standard |
| Flip-Up Rear Window w/Fixed Interval Wiper, Heated Wiper Park and Defroster | Standard |
| Wheels: 20" Polished Aluminum | Optional |
| Speed Sensitive Rain Detecting Variable Intermittent Wipers | Optional |
| Body-Colored Power Heated Side Mirrors w/Driver Auto Dimming, Convex Spotter, Power Folding and Turn Signal Indicator | Optional |
| Running Boards | Standard |
| Perimeter/Approach Lights | Standard |
| Tires: P275/55R20 AT BSW | Optional |
| Body-Colored Bodyside Cladding and Body-Colored Fender Flares | Optional |
| Galvanized Steel/Aluminum Panels | Standard |
| Body-Colored Rear Step Bumper w/Body-Colored Rub Strip/Fascia Accent | Optional |
| Full-Size Spare Tire Stored Underbody w/Crankdown | Standard |
| Driver Seat | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Front Center Armrest | Standard |
| Cargo Space Lights | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button | Standard |
| Memory Settings -inc: Door Mirrors and Pedals | Optional |
| Front Cigar Lighter(s) | Standard |
| HVAC -inc: Underseat Ducts, Auxiliary Rear Heater and Headliner/Pillar Ducts | Standard |
| Fixed 60-40 Split-Bench Vinyl 3rd Row Seat Front, Power Fold Into Floor and 2 Fixed Head Restraints | Optional |
| Cruise Control w/Steering Wheel Controls | Standard |
| FOB Controls -inc: Remote Start | Optional |
| Fade-To-Off Interior Lighting | Standard |
| 40-20-40 Folding Split-Bench Front Facing Heated Manual Reclining Fold Forward Seatback Leather Rear Seat | Optional |
| Keypad | Standard |
| 3 12V DC Power Outlets | Standard |
| Dual Zone Front Automatic Air Conditioning | Optional |
| Compass | Standard |
| Manual Adjustable Front Head Restraints and Fixed Rear Head Restraints | Standard |
| Power 1st Row Windows w/Driver 1-Touch Up/Down | Standard |
| 2 Seatback Storage Pockets | Optional |
| Garage Door Transmitter | Optional |
| Securilock Anti-Theft Ignition (pats) Immobilizer | Standard |
| Power Tilt/Telescoping Steering Column | Optional |
| Power Rear Windows and Power Vented 3rd Row Windows | Optional |
| Front Cupholder | Standard |
| Outside Temp Gauge | Standard |
| Day-Night Auto-Dimming Rearview Mirror | Standard |
| Interior Trim -inc: Simulated Wood/Metal-Look Instrument Panel Insert, Simulated Wood/Metal-Look Door Panel Insert, Simulated Wood/Metal-Look Console Insert and Chrome Interior Accents | Optional |
| Passenger Seat | Standard |
| Power Adjustable Pedals | Optional |
| 3 12V DC Power Outlets and 1 120V AC Power Outlet | Optional |
| Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Optional |
| Dashboard Storage, Driver / Passenger And Rear Door Bins | Standard |
| Leather Door Trim Insert | Optional |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Standard |
| Trip Computer | Optional |
| Carpet Floor Trim | Standard |
| Remote Releases -Inc: Keyfob Rear Window | Standard |
| Rear Cupholder | Standard |
| Trunk/Hatch Auto-Latch | Optional |
| Heated & Cooled Perforated Leather Fr Bucket Seats -inc: 8 passenger seating, 10-way power driver and passenger seats w/power recline and 2-way power lumbar and driver seat memory | Optional |
| Leather Gear Shifter Material | Optional |
| Full Floor Console w/Covered Storage, Full Overhead Console w/Storage, Conversation Mirror, 3 12V DC Power Outlets and 1 120V AC Power Outlet | Optional |
| Rear HVAC w/Separate Controls | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror | Standard |
| Analog Appearance | Standard |
| Seats w/Leatherette Back Material | Optional |
| Proximity Key For Doors And Push Button Start | Optional |
| Driver Information Center | Standard |
| Perimeter Alarm | Standard |
| Leather Steering Wheel | Standard |
| Full Cloth Headliner | Standard |
| Illuminated Glove Box | Standard |
| Front And Rear Map Lights | Standard |
| Electronic Transfer Case | Optional |
| Part And Full-Time Four-Wheel Drive | Optional |
| Class IV Towing Equipment -inc: Hitch, Brake Controller and Trailer Sway Control | Optional |
| Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher | Standard |
| Trailer Wiring Harness | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Auto Locking Hubs | Optional |
| Transmission: 6-Speed Automatic w/SelectShift (STD) | Standard |
| 28 Gal. Fuel Tank | Standard |
| 250 Amp Alternator | Standard |
| 72-Amp/Hr 650CCA Maintenance-Free Battery w/Run Down Protection | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| 3.31 Axle Ratio (STD) | Optional |
| 1620# Maximum Payload | Optional |
| Front And Rear Anti-Roll Bars | Standard |
| Engine: 3.5L EcoBoost V6 (STD) | Standard |
| Double Wishbone Front Suspension w/Coil Springs | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control and Hill Hold Control | Optional |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| Transmission w/Driver Selectable Mode and HD Oil Cooler | Optional |
| GVWR: 7,520 lbs Payload Package | Optional |
| Airbag Occupancy Sensor | Standard |
| Rear Child Safety Locks | Standard |
| Low Tire Pressure Warning | Standard |
| AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC) | Standard |
| Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute | Standard |
| Side Impact Beams | Standard |
| ABS And Driveline Traction Control | Standard |
| Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags | Standard |
| Front And Rear Parking Sensors | Optional |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Back-Up Camera | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
Compare trims
Wondering which trim is right for you?
Our 2017 Ford Expedition trim comparison will help you decide.
