2010 Ford Expedition EL King Ranch specs & colors

Sport Utility

Change trim

$51,240

Starting MSRP
Current listing price

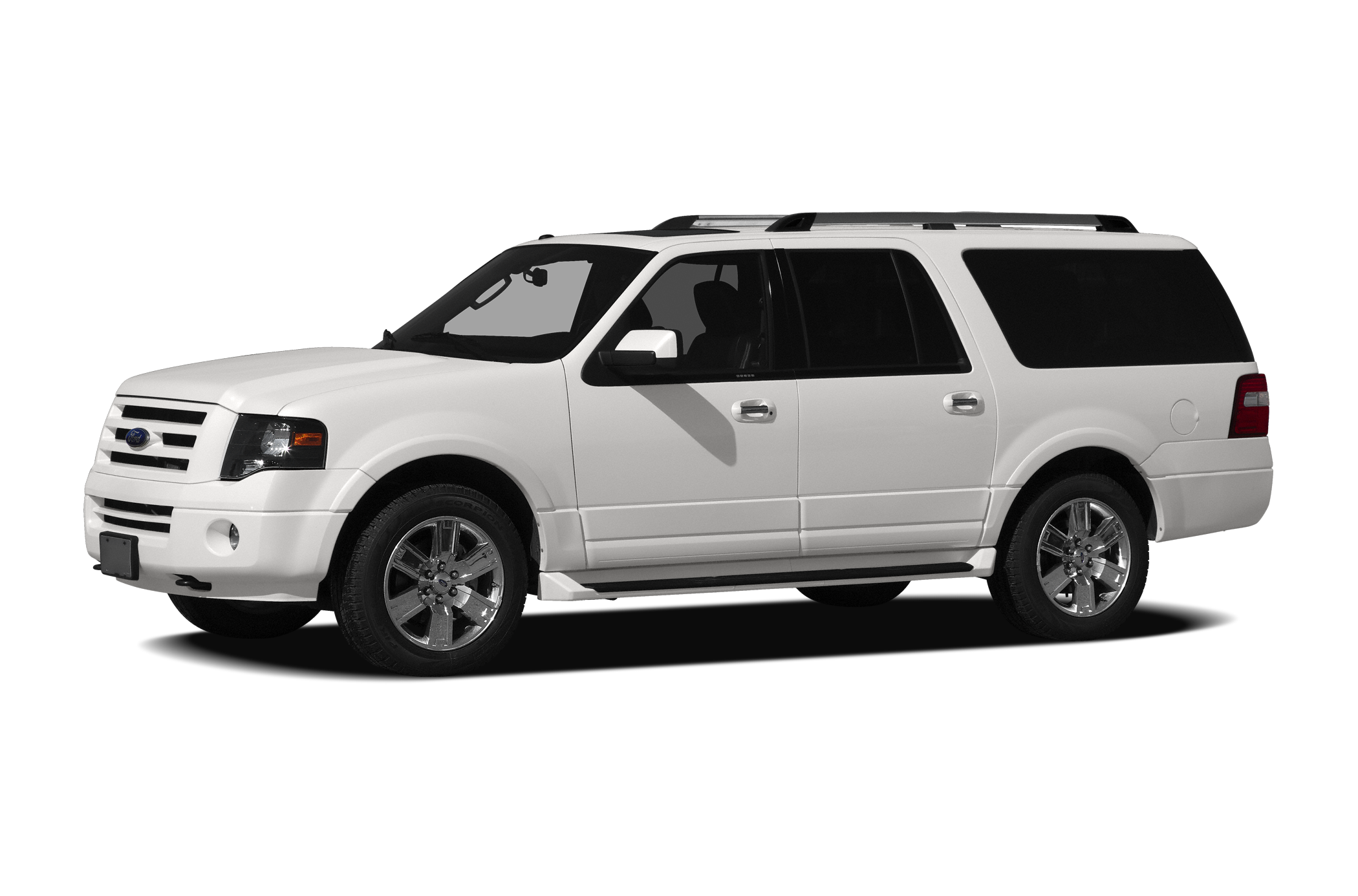

2010 Ford Expedition EL King Ranch

Showing the 2010 Ford Expedition EL 4WD 4dr King Ranch

Shop Now

Key specs

4-door
7 seats
310.0-hp, 5.4-liter, 8 Cylinder Engine (Flex Fuel Capability)
14 combined MPG
Vehicle length and height not available
Four Wheel Drive

Color options

Exterior

Dark Blue Pearl

Interior

Charcoal black

Packages

400A RAPID SPEC ORDER CODE

$0

Starting MSRP
- base vehicle
401A RAPID SPEC ORDER CODE

$6,375

Starting MSRP
- moonroof w/sunshade
- navigation
- rear seat DVD
See more detail
$6,375

Starting MSRP
- moonroof w/sunshade
- navigation
- rear seat DVD
- 20" chrome clad aluminum wheels
- P275/55R20 all-season BSW tires
- pwr running boards

Specifications

Highlights

Engine Type: Gas/Ethanol V8
MPG: 12 City / 17 Hwy
Horsepower: 310 hp
Seating Capacity: 7

Brakes

Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): Not Available
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 13.0 x 1.18 in
Rear Brake Rotor Diam x Thickness: 13.5 x 0.9 in
Drum - Rear (Yes or ): Not Available

Electrical

Cold Cranking Amps @ 0° F (Primary): 650
Maximum Alternator Capacity (amps): 150

Engine

Engine Type: Gas/Ethanol V8
Displacement: 5.4L/330
SAE Net Horsepower @ RPM: 310 @ 5100
SAE Net Torque @ RPM: 365 @ 3600
Transmission Options: 6-Speed A/T
A/T
MPG: 12 City / 17 Hwy
Total Cooling System Capacity: 13 qts

Entertainment

Bluetooth®: Optional

Measurements

Passenger Capacity: 8
Front Head Room: 40 in
Front Leg Room: 41 in
Front Shoulder Room: 63 in
Front Hip Room: 60 in
Second Head Room: 40 in
Second Leg Room: 39 in
Second Shoulder Room: 64 in
Second Hip Room: 60 in
Third Head Room: 38 in
Third Leg Room: 38 in
Third Shoulder Room: 67 in
Third Hip Room: 52 in
Wheelbase: 131 in
Length, Overall w/rear bumper: 221 in
Length, Overall: N/A
Width, Max w/o mirrors: 79 in
Height, Overall: 78 in
Overhang, Front: 39 in
Overhang, Rear w/o bumper: N/A
Cab to End of Frame: N/A
Ground to Top of Load Floor: 36 in
Ground Clearance, Front: 9 in
Ground Clearance, Rear: 9 in
Rear Door Opening Height: 34 in
Rear Door Opening Width: 57 in
Side Door Opening Height: N/A
Side Door Opening Width: N/A
Step Up Height - Front: N/A
Step Up Height - Side: N/A
Cargo Area Length @ Floor to Console: N/A
Cargo Area Length @ Floor to Seat 1: 98 in
Cargo Area Length @ Floor to Seat 2: 60 in
Cargo Area Length @ Floor to Seat 3: 29 in
Cargo Box Width @ Top, Rear: N/A
Cargo Area Width @ Beltline: N/A
Cargo Box Width @ Floor: N/A
Cargo Box Width @ Wheelhousings: 51 in
Cargo Box (Area) Height: N/A
Tailgate Width: N/A
Cargo Volume: N/A
Cargo Volume to Seat 1: 131 ft³
Cargo Volume to Seat 2: 86 ft³
Cargo Volume to Seat 3: 43 ft³
Cargo Volume to Seat 4: Not Available ft³
Ext'd Cab Cargo Volume: N/A

Safety

Stability Control: Standard
Navigation System: Optional
Brake Assist: Standard

Steering

Steering Type: Variable Pwr Rack & Pinion
Steering Ratio (:1), Overall: N/A
Turning Diameter - Curb to Curb: 44 ft
Turning Diameter - Wall to Wall: 45 ft

Suspension

Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Multi-Link
Axle Type - Front: Independent
Axle Type - Rear: Independent

Tires & Wheels

Front Tire Size: P255/70R18
Rear Tire Size: P255/70R18
Spare Tire Size: N/A
Front Wheel Size: 18 x 7.5 in
Rear Wheel Size: 18 x 7.5 in
Spare Wheel Size: 18 x 7.5 in
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel

Weight & Capacity

Base Curb Weight: N/A
Curb Weight - Front: 3,138 lbs
Curb Weight - Rear: 2,990 lbs
Option Weight - Front: 0 lbs
Option Weight - Rear: 0 lbs
As Spec'd Curb Weight: 6,128 lbs
As Spec'd Payload: 1,592 lbs
Maximum Payload Capacity: 1,592 lbs
Gross Combined Wt Rating: 15,000 lbs
Dead Weight Hitch - Max Trailer Wt.: 5,000 lbs
Dead Weight Hitch - Max Tongue Wt.: 500 lbs
Wt Distributing Hitch - Max Trailer Wt.: 8,700 lbs
Wt Distributing Hitch - Max Tongue Wt.: 1,305 lbs
Fifth Wheel Hitch - Max Trailer Wt.: Not Available lbs
Fifth Wheel Hitch - Max Tongue Wt.: Not Available lbs
Maximum Trailering Capacity: N/A
Fuel Tank Capacity, Approx: 34 gal
Aux Fuel Tank Capacity, Approx: Not Available gal
Gross Axle Weight Rating: 7,950 lbs
Curb Weight: 6,128 lbs
Total Option Weight: 0 lbs
Gross Vehicle Weight Rating: 7,720 lbs
