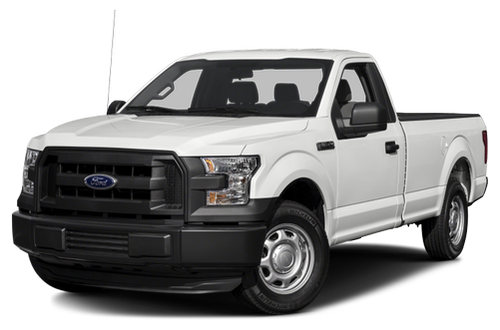

2016 Ford F-150 XL specs & colors

Regular Cab Pickup

Change trim

MSRP

2WD Reg Cab 122.5" XL $26,540
2WD Reg Cab 141" XL $26,840
2WD SuperCab 145" XL $30,600
4WD Reg Cab 122.5" XL $31,185
4WD Reg Cab 141" XL $31,485
2WD SuperCab 163" XL $31,710
2WD Reg Cab 122.5" XLT $31,905
2WD Reg Cab 141" XLT $32,210
2WD SuperCrew 145" XL $33,055
4WD SuperCab 145" XL $34,025
2WD SuperCrew 157" XL $34,165
2WD SuperCab 145" XLT $34,790
4WD Reg Cab 122.5" XLT $35,330
4WD Reg Cab 141" XLT $35,630
4WD SuperCab 163" XL $35,870
2WD SuperCab 163" XLT $35,895
4WD SuperCrew 145" XL $36,565
2WD SuperCrew 145" XLT $37,140
4WD SuperCab 145" XLT $38,215
2WD SuperCrew 157" XLT $38,250
4WD SuperCrew 157" XL $38,325
2WD SuperCab 145" Lariat $40,065
4WD SuperCab 163" XLT $40,070
2WD SuperCab 163" Lariat $40,365
4WD SuperCrew 145" XLT $40,635
2WD SuperCrew 145" Lariat $42,425
4WD SuperCrew 157" XLT $42,425
2WD SuperCrew 157" Lariat $42,725
4WD SuperCab 145" Lariat $43,490
4WD SuperCab 163" Lariat $44,540
4WD SuperCrew 145" Lariat $45,845
4WD SuperCrew 157" Lariat $46,895
2WD SuperCrew 145" King Ranch $50,050
2WD SuperCrew 157" King Ranch $50,350
2WD SuperCrew 145" Platinum $52,515
2WD SuperCrew 157" Platinum $52,815
4WD SuperCrew 145" King Ranch $53,475
4WD SuperCrew 157" King Ranch $53,775
4WD SuperCrew 145" Platinum $55,940
4WD SuperCrew 157" Platinum $56,235
2WD SuperCrew 145" Limited *Late Avail* $58,885
4WD SuperCrew 145" Limited *Late Avail* $62,310

Change trim

$26,540

Starting MSRP
Current listing price

Showing the 2016 Ford F-150 2WD Reg Cab 122.5" XL

Shop Now

Color options

Exterior

Interior

Graphite Grey

Ginger

Packages

XL Chrome Appearance Package

$775

Starting MSRP

Wheels: 17" Silver Painted Aluminum
Fog Lamps (Fleet)
Front & Rear Chrome Bumpers

Trailer Tow Package

$895

Starting MSRP

Towing capability up to 11,100 lbs
Note: Ordering the Trailer Tow Package does not include Trailer Tow Mirrors
Trailer Tow Mirrors are a standalone option and must be ordered separately

XL Power Equipment Group

$0

Starting MSRP

Power Door Locks
flip key and integrated key transmitter keyless-entry (includes Autolock)
MyKey

See all packages

Equipment Group 100A Base

$0

Starting MSRP

Trailer Tow Package (Consumer)

$895

Starting MSRP

Towing capability up to 11,100 lbs
Note: Ordering the Trailer Tow Package does not include Trailer Tow Mirrors
Trailer Tow Mirrors are a standalone option and must be ordered separately

XL Sport Appearance Package

$775

Starting MSRP

Box Side Decal
Wheels: 17" Silver Painted Aluminum
Fog Lamps (Fleet)

Equipment Group 101A Mid

$2,055

Starting MSRP

BoxLink
4 premium locking cleats
XL Power Equipment Group

Specifications

Front Wheel Size	17 X 7.5 in
Rear Wheel Size	17 X 7.5 in
Spare Wheel Size	Full-Size in
Front Wheel Material	Steel
Rear Wheel Material	Steel
Spare Wheel Material	Steel

Cold Cranking Amps @ 0° F (Primary)	610
Maximum Alternator Capacity (amps)	200

Engine Type	Regular Unleaded V-6
Displacement	3.5 L/213
SAE Net Horsepower @ RPM	282 @ 6250
SAE Net Torque @ RPM	253 @ 4250
Engine Oil Cooler	None

EPA Fuel Economy Est - Hwy	25 MPG
Cruising Range - City	414.00 mi
EPA Fuel Economy Est - City	18 MPG
Fuel Economy Est-Combined	20 MPG
Cruising Range - Hwy	575.00 mi
Estimated Battery Range	N/A mi

Drivetrain	Rear Wheel Drive
Trans Type	6
Trans Description Cont.	Automatic w/OD
Trans Description Cont. Again	N/A
First Gear Ratio (:1)	4.17
Second Gear Ratio (:1)	2.34
Third Gear Ratio (:1)	1.52
Fourth Gear Ratio (:1)	1.14
Fifth Gear Ratio (:1)	0.86
Sixth Gear Ratio (:1)	0.69
Reverse Ratio (:1)	3.40
Trans Power Take Off	N/A
Final Drive Axle Ratio (:1)	N/A
Transfer Case Model	None
Transfer Case Gear Ratio (:1), High	N/A
Transfer Case Gear Ratio (:1), Low	N/A
Transfer Case Power Take Off	No

Suspension Type - Front	Double Wishbone
Suspension Type - Rear	Leaf
Axle Type - Front	Independent
Axle Type - Rear	Rigid Axle

Frame Type

N/A

Brake Type	4-Wheel Disc
Brake ABS System	4-Wheel
Brake ABS System (Second Line)	4-Wheel
Disc - Front (Yes or )	Yes
Disc - Rear (Yes or )	Yes
Front Brake Rotor Diam x Thickness	13.8 in
Rear Brake Rotor Diam x Thickness	13.7 in
Drum - Rear (Yes or )	N/A

Fuel Tank Capacity, Approx	23 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Type	Rack-Pinion
Steering Ratio (:1), Overall	N/A
Turning Diameter - Curb to Curb	40.7 ft
Turning Diameter - Wall to Wall	N/A ft

Front Tire Size	P245/70SR17
Rear Tire Size	P245/70SR17
Spare Tire Size	Full-Size

Dead Weight Hitch - Max Trailer Wt.	5000 lbs
Dead Weight Hitch - Max Tongue Wt.	500 lbs
Wt Distributing Hitch - Max Trailer Wt.	5000 lbs
Wt Distributing Hitch - Max Tongue Wt.	500 lbs
Fifth Wheel Hitch - Max Trailer Wt.	4900 lbs
Fifth Wheel Hitch - Max Tongue Wt.	1225 lbs
Maximum Trailering Capacity	5000 lbs

Base Curb Weight	4049 lbs
Curb Weight - Front	2362 lbs
Curb Weight - Rear	1687 lbs
Option Weight - Front	0.00 lbs
Option Weight - Rear	0.00 lbs
As Spec'd Curb Weight	4049.00 lbs
As Spec'd Payload	1961.00 lbs
Maximum Payload Capacity	1961.00 lbs
Gross Combined Wt Rating	9400 lbs
Gross Axle Weight Rating	6300.00 lbs
Curb Weight	4049.00 lbs
Total Option Weight	0.00 lbs
Gross Vehicle Weight Rating	6010.00 lbs

Passenger Capacity	3
Front Head Room	40.8 in
Front Leg Room	43.9 in
Front Shoulder Room	66.7 in
Front Hip Room	62.5 in
Second Head Room	N/A in
Second Leg Room	N/A in
Second Shoulder Room	N/A in
Second Hip Room	N/A in
Wheelbase	122 in
Length, Overall w/o rear bumper	N/A in
Length, Overall w/rear bumper	N/A in
Length, Overall	209.3 in
Width, Max w/o mirrors	79.9 in
Height, Overall	75.5 in
Overhang, Front	37.8 in
Overhang, Rear w/o bumper	N/A in
Cab to End of Frame	N/A in
Ground to Top of Load Floor	34.7 in
Ground Clearance, Front	8.8 in
Ground Clearance, Rear	8.8 in
Cargo Box Length @ Floor	78 in
Cargo Box Width @ Top, Rear	65.2 in
Cargo Box Width @ Floor	65.2 in
Cargo Box Width @ Wheelhousings	50.6 in
Cargo Box (Area) Height	21.4 in
Tailgate Width	60.3 in
Cargo Volume	62.3 ft³
Ext'd Cab Cargo Volume	N/A ft³

Radio: AM/FM Stereo w/4 Speakers -inc: auxiliary audio input jack (not available w/SYNC)	Standard
1 LCD Monitor In The Front	Standard
Fixed Antenna	Standard
Radio w/Aux Audio Input Jack	Standard

Black Rear Step Bumper	Standard
Light Tinted Glass	Standard
Wheels: 17" Silver Steel (STD)	Standard
Fixed Rear Window	Standard
Tailgate Rear Cargo Access	Standard
Black Manual Side Mirrors w/Convex Spotter and Manual Folding	Standard
Black Grille	Standard
Full-Size Spare Tire Stored Underbody w/Crankdown	Standard
Manual Tailgate/Rear Door Lock	Standard
Aluminum Panels	Standard
Steel Spare Wheel	Standard
Cargo Lamp w/High Mount Stop Light	Standard
Black Side Windows Trim	Standard
Regular Box Style	Standard
Black Front Bumper w/Black Rub Strip/Fascia Accent	Standard
Black Door Handles	Standard
Variable Intermittent Wipers	Standard
Auto On/Off Aero-Composite Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off	Standard
Tires: P245/70R17 BSW A/S (STD)	Standard

Analog Appearance	Standard
Front Center Armrest	Standard
Day-Night Rearview Mirror	Standard
2 12V DC Power Outlets	Standard
Interior Trim -inc: Cabback Insulator and Chrome Interior Accents	Standard
Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins	Standard
Manual Tilt/Telescoping Steering Column	Standard
Full Vinyl/Rubber Floor Covering	Standard
Air Filtration	Standard
Passenger Visor Vanity Mirror	Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement	Standard
Fade-To-Off Interior Lighting	Standard
Pickup Cargo Box Lights	Standard
Manual Air Conditioning	Standard
Manual Adjustable Front Head Restraints	Standard
Manual 1st Row Windows	Standard
Securilock Anti-Theft Ignition (pats) Immobilizer	Standard
Urethane Gear Shifter Material	Standard
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp and Trip Odometer	Standard
Front Cupholder	Standard
Full Cloth Headliner	Standard
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement	Standard
Compass	Standard
Cloth 40/20/40 Front Seat -inc: 2-way manual driver/passenger adjustment and armrest	Standard
Outside Temp Gauge	Standard

4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake	Standard
Single Stainless Steel Exhaust	Standard
200 Amp Alternator	Standard
Electric Power-Assist Speed-Sensing Steering	Standard
1920# Maximum Payload	Standard
Trailer Wiring Harness	Standard
Rear-Wheel Drive	Standard
23 Gal. Fuel Tank	Standard
3.55 Axle Ratio (STD)	Standard
HD Shock Absorbers	Standard
70-Amp/Hr 610CCA Maintenance-Free Battery w/Run Down Protection	Standard
Transmission: Electronic 6-Speed Automatic -inc: tow/haul mode (STD)	Standard
Towing Equipment -inc: Trailer Sway Control	Standard
Solid Axle Rear Suspension w/Leaf Springs	Standard
Double Wishbone Front Suspension w/Coil Springs	Standard
Engine: 3.5L V6 Ti-VCT FFV (STD)	Standard
GVWR: 6,010 lbs Payload Package	Standard
Front Anti-Roll Bar	Standard

Tire Specific Low Tire Pressure Warning	Standard
Electronic Stability Control (ESC) And Roll Stability Control (RSC)	Standard
Side Impact Beams	Standard
Airbag Occupancy Sensor	Standard
Safety Canopy System Curtain 1st Row Airbags	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
ABS And Driveline Traction Control	Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners	Standard
