2016 Ford F-150 XLT specs & colors

Regular Cab Pickup

Change trim
$35,330
Starting MSRP
Current listing price

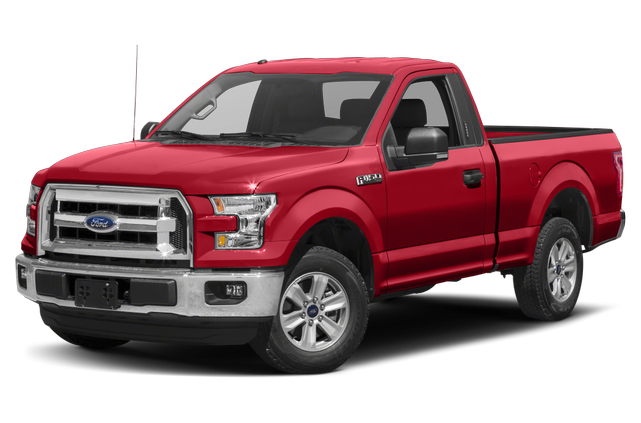

Showing the 2016 Ford F-150 4WD Reg Cab 122.5" XLT

Shop Now

Key specs

Color options

Interior

Ebony

Boxster Red

Packages

$895

Starting MSRP

  • Towing capability up to 11,100 lbs
  • Note: Ordering the Trailer Tow Package does not include Trailer Tow Mirrors
  • Trailer Tow Mirrors are a standalone option and must be ordered separately

Trailer Tow Package

$895

Starting MSRP

  • Towing capability up to 11,100 lbs
  • Note: Ordering the Trailer Tow Package does not include Trailer Tow Mirrors
  • Trailer Tow Mirrors are a standalone option and must be ordered separately
  • (Option Code: 54M or 54Y/59S)
  • Auxiliary Transmission Oil Cooler
  • Pro Trailer Backup Assist
  • tailgate LED and 4.2" LCD productivity screen in instrument cluster
  • Class IV Trailer Hitch Receiver
  • smart trailer tow connector and 4-pin/7-pin wiring harness
  • Upgraded Front Stabilizer Bar

$2,100

Starting MSRP

  • Radio: Single-CD w/SiriusXM Satellite
  • SiriusXM US satellite service is available in the 48 contiguous United States and D.C
  • 7 speakers

Equipment Group 301A Mid

$2,100

Starting MSRP

  • Radio: Single-CD w/SiriusXM Satellite
  • SiriusXM US satellite service is available in the 48 contiguous United States and D.C
  • 7 speakers
  • Rear View Camera w/Dynamic Hitch Assist
  • Class IV Trailer Hitch Receiver
  • towing capability up to 5,000 lbs
  • smart trailer tow connector and 4-pin/7-pin wiring harness
  • Leather-Wrapped Steering Wheel
  • 8-Way Power Driver's Seat
  • Rear Window Defroster
  • 4.2" Productivity Screen in Instrument Cluster
  • compass
  • Power Glass Heated Sideview Mirrors
  • manual folding
  • turn signal
  • auto-dimming feature (driver's side) and black skull caps
  • Auto-Dimming Rearview Mirror
  • Power-Adjustable Pedals
  • Fixed Backlight w/Privacy Glass

$770

Starting MSRP

  • 4x4 FX4 Off-Road Bodyside Decal
  • Hill Descent Control
  • Front & Rear Off-Road Tuned Shock Absorbers

FX4 Off-Road Package

$770

Starting MSRP

  • 4x4 FX4 Off-Road Bodyside Decal
  • Hill Descent Control
  • Front & Rear Off-Road Tuned Shock Absorbers
  • Skid Plates (Fleet)
  • fuel tank
  • transfer case and front differential
See all packages

$0

Starting MSRP

Specifications

Front Wheel Size 17 X 7.5 in
Rear Wheel Size 17 X 7.5 in
Spare Wheel Size Full-Size in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel

Cold Cranking Amps @ 0° F (Primary) 610
Maximum Alternator Capacity (amps) 200

Engine Type Regular Unleaded V-6
Displacement 3.5 L/213
SAE Net Horsepower @ RPM 282 @ 6250
SAE Net Torque @ RPM 253 @ 4250
Engine Oil Cooler None

EPA Fuel Economy Est - Hwy 23 MPG
Cruising Range - City 391.00 mi
EPA Fuel Economy Est - City 17 MPG
Fuel Economy Est-Combined 19 MPG
Cruising Range - Hwy 529.00 mi
Estimated Battery Range N/A mi

Drivetrain Four Wheel Drive
Trans Type 6
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 4.17
Second Gear Ratio (:1) 2.34
Third Gear Ratio (:1) 1.52
Fourth Gear Ratio (:1) 1.14
Fifth Gear Ratio (:1) 0.86
Sixth Gear Ratio (:1) 0.69
Reverse Ratio (:1) 3.40
Trans Power Take Off N/A
Final Drive Axle Ratio (:1) N/A
Transfer Case Model Electronic
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Transfer Case Power Take Off No

Suspension Type - Front Double Wishbone
Suspension Type - Rear Leaf
Axle Type - Front Independent
Axle Type - Rear Rigid Axle

Frame Type N/A

Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) 4-Wheel
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 13.8 in
Rear Brake Rotor Diam x Thickness 13.7 in
Drum - Rear (Yes or ) N/A

Fuel Tank Capacity, Approx 23 gal
Aux Fuel Tank Capacity, Approx N/A gal

Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 40.7 ft
Turning Diameter - Wall to Wall N/A ft

Front Tire Size P265/70SR17
Rear Tire Size P265/70SR17
Spare Tire Size Full-Size

Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 5000 lbs
Wt Distributing Hitch - Max Tongue Wt. 500 lbs
Fifth Wheel Hitch - Max Trailer Wt. 4900 lbs
Fifth Wheel Hitch - Max Tongue Wt. 1225 lbs
Maximum Trailering Capacity 5000 lbs

Base Curb Weight 4303 lbs
Curb Weight - Front 2556 lbs
Curb Weight - Rear 1747 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 4303.00 lbs
As Spec'd Payload 1747.00 lbs
Maximum Payload Capacity 1747.00 lbs
Gross Combined Wt Rating 9700 lbs
Gross Axle Weight Rating 6300.00 lbs
Curb Weight 4303.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 6050.00 lbs

Passenger Capacity 3
Front Head Room 40.8 in
Front Leg Room 43.9 in
Front Shoulder Room 66.7 in
Front Hip Room 62.5 in
Second Head Room N/A in
Second Leg Room N/A in
Second Shoulder Room N/A in
Second Hip Room N/A in
Wheelbase 122 in
Length, Overall w/o rear bumper N/A in
Length, Overall w/rear bumper N/A in
Length, Overall 209.3 in
Width, Max w/o mirrors 79.9 in
Height, Overall 76.9 in
Overhang, Front 37.8 in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor 34.8 in
Ground Clearance, Front 9.4 in
Ground Clearance, Rear 9.4 in
Cargo Box Length @ Floor 78 in
Cargo Box Width @ Top, Rear 65.2 in
Cargo Box Width @ Floor 65.2 in
Cargo Box Width @ Wheelhousings 50.6 in
Cargo Box (Area) Height 21.4 in
Tailgate Width 60.3 in
Cargo Volume 62.3 ft³
Ext'd Cab Cargo Volume N/A ft³

2 LCD Monitors In The Front Optional
Radio w/Clock Optional
Fixed Antenna Standard
SYNC Voice Recognition Communications -inc: Enhanced voice recognition communication and entertainment system, 911 assist, 4.2" LCD display in center stack, Applink, 1 smart charging USB port, VHR, SYNC services, Bluetooth and steering wheel audio controls, Compass display in instrument cluster Optional
Radio: AM/FM Stereo/Single-CD Player -inc: 4 speakers Optional

Black Door Handles Standard
Chrome Rear Step Bumper Optional
Variable Intermittent Wipers Standard
Black Power Side Mirrors w/Convex Spotter and Manual Folding Optional
Front Fog Lamps Optional
Fixed Rear Window Standard
Cargo Lamp w/High Mount Stop Light Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Optional
Chrome Grille Optional
Perimeter/Approach Lights Optional
Full-Size Spare Tire Stored Underbody w/Crankdown Standard
Deep Tinted Glass Optional
Tires: P265/70R17 OWL A/T (STD) Standard
Tailgate Rear Cargo Access Standard
Black Side Windows Trim Standard
Wheels: 17" Silver Painted Aluminum Optional
Auto On/Off Aero-Composite Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off Standard
Steel Spare Wheel Standard
Aluminum Panels Standard
Chrome Front Bumper w/Body-Colored Rub Strip/Fascia Accent and 2 Tow Hooks Optional
Regular Box Style Standard

Analog Appearance Standard
Driver And Passenger Visor Vanity Mirrors Optional
Manual Tilt/Telescoping Steering Column Standard
Manual Air Conditioning Standard
2 12V DC Power Outlets Standard
2 Seatback Storage Pockets Optional
Keypad Optional
Rear Map Lights Optional
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Optional
Power Door Locks w/Autolock Feature Optional
Air Filtration Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Cloth 40/20/40 Front Seat -inc: 4-way adjustable driver/passenger headrests, manual driver/passenger lumbar and armrest w/storage Optional
Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp and Trip Odometer Standard
Urethane Gear Shifter Material Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert, Cabback Insulator and Chrome Interior Accents Optional
Full Carpet Floor Covering -inc: Carpet Front Floor Mats Optional
Compass Standard
Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins and 1st Row Underseat Storage Optional
Securilock Anti-Theft Ignition (pats) Immobilizer Standard
Day-Night Rearview Mirror Standard
Fade-To-Off Interior Lighting Standard
Full Cloth Headliner Standard
Pickup Cargo Box Lights Standard
Perimeter Alarm Optional
Front Cupholder Standard
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button Optional
Cruise Control w/Steering Wheel Controls Optional
4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement Standard
Outside Temp Gauge Standard

Single Stainless Steel Exhaust Standard
1700# Maximum Payload Standard
Electronic Transfer Case Standard
Engine: 3.5L V6 Ti-VCT FFV (STD) Standard
3.55 Axle Ratio (STD) Standard
Auto Locking Hubs Standard
23 Gal. Fuel Tank Standard
Front Anti-Roll Bar Standard
Double Wishbone Front Suspension w/Coil Springs Standard
HD Shock Absorbers Standard
200 Amp Alternator Standard
Solid Axle Rear Suspension w/Leaf Springs Standard
70-Amp/Hr 610CCA Maintenance-Free Battery w/Run Down Protection Standard
Towing Equipment -inc: Trailer Sway Control Standard
Electric Power-Assist Speed-Sensing Steering Standard
Trailer Wiring Harness Standard
Transmission: Electronic 6-Speed Automatic -inc: tow/haul mode (STD) Standard
Part-Time Four-Wheel Drive Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake Standard
GVWR: 6,050 lbs Payload Package Standard

Airbag Occupancy Sensor Standard
Dual Stage Driver And Passenger Front Airbags Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Side Impact Beams Standard
Safety Canopy System Curtain 1st Row Airbags Standard
ABS And Driveline Traction Control Standard
Tire Specific Low Tire Pressure Warning Standard
Electronic Stability Control (ESC) And Roll Stability Control (RSC) Standard
Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute Optional
Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners Standard
