2026 GMC Sierra EV Extended Range Denali specs & colors
Crew Cab Pickup
MSRP
- e4WD Crew Cab Standard Range Elevation
- $62,400
- e4WD Crew Cab Standard Range Denali
- $69,700
- e4WD Crew Cab Extended Range Elevation
- $70,600
- e4WD Crew Cab Extended Range Denali
- $77,900
- e4WD Crew Cab Extended Range AT4
- $79,300
- e4WD Crew Cab Max Range AT4
- $89,600
- e4WD Crew Cab Max Range Denali
- $98,600
$77,900
Starting MSRP
Current listing price
Current listing price

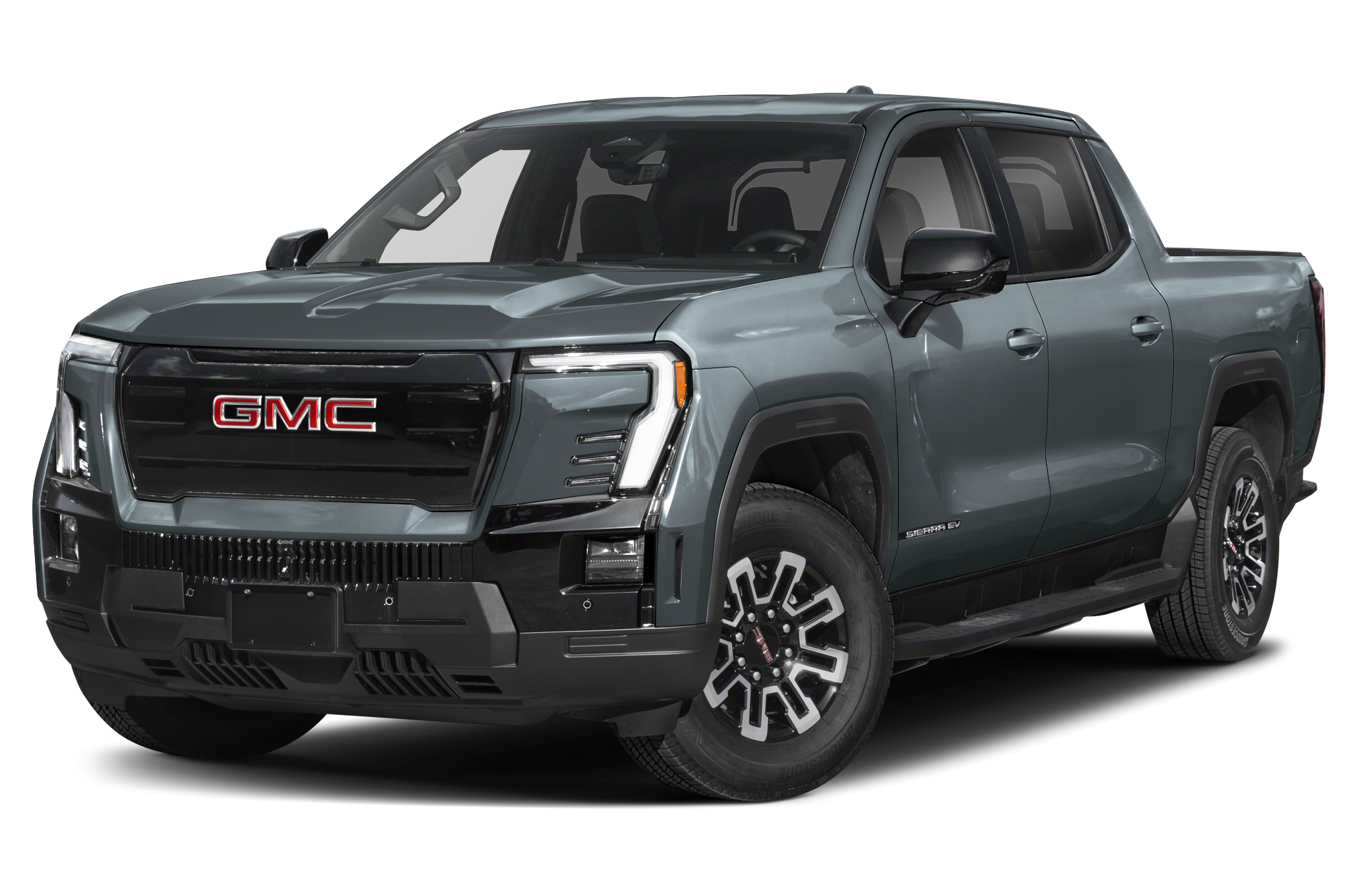

Showing the 2026 GMC Sierra EV e4WD Crew Cab Extended Range Denali
Shop NowKey specs
Color options
Interior
After Dark (Black)
Desert Dune
Packages
$0
Starting MSRP
- includes standard equipment
Specifications
Highlights
|
Electric
Engine Type
|
|
-
MPG
|
|
645 hp
Horsepower
|
|
5
Seating Capacity
|
Brakes
|
N/A
Brake ABS System (Second Line)
|
|
Yes
Disc - Rear (Yes or )
|
|
14.5 x -TBD- in
Front Brake Rotor Diam x Thickness
|
|
N/A
Brake ABS System
|
|
13.5 x -TBD- in
Rear Brake Rotor Diam x Thickness
|
|
Yes
Disc - Front (Yes or )
|
|
Pwr
Brake Type
|
|
N/A
Drum - Rear (Yes or )
|
Electrical
|
N/A
Maximum Alternator Capacity (amps)
|
|
N/A
Cold Cranking Amps @ 0° F (Primary)
|
Engine
|
Electric
Engine Type
|
|
785
SAE Net Torque @ RPM
|
|
N/A
Displacement
|
|
645
SAE Net Horsepower @ RPM
|
|
1-Speed A/T
A/T Transmission Options
|
|
-
MPG
|
|
N/A
Total Cooling System Capacity
|
Measurements
|
44 in
Front Head Room
|
|
78 in
Height, Overall
|
|
5
Passenger Capacity
|
|
N/A
Ground to Top of Load Floor
|
|
44 in
Second Leg Room
|
|
N/A
Cab to End of Frame
|
|
37 in
Overhang, Front
|
|
N/A
Cargo Box Width @ Top, Rear
|
|
71 in
Cargo Box Length @ Floor
|
|
N/A
Overhang, Rear w/o bumper
|
|
N/A
Tailgate Width
|
|
22 in
Cargo Box (Area) Height
|
|
N/A
Ext'd Cab Cargo Volume
|
|
61 in
Second Hip Room
|
|
39 in
Second Head Room
|
|
84 in
Width, Max w/o mirrors
|
|
64 in
Front Shoulder Room
|
|
65 in
Cargo Box Width @ Floor
|
|
8 in
Ground Clearance, Front
|
|
N/A
Length, Overall w/o rear bumper
|
|
8 in
Ground Clearance, Rear
|
|
146 in
Wheelbase
|
|
233 in
Length, Overall
|
|
61 in
Front Hip Room
|
|
63 in
Second Shoulder Room
|
|
57.8 (Bed)/11 (eTrunk) ft³
Cargo Volume
|
|
49 in
Cargo Box Width @ Wheelhousings
|
|
N/A
Length, Overall w/rear bumper
|
|
45 in
Front Leg Room
|
Safety
|
Standard
Stability Control
|
|
Standard
Rear Cross Traffic Alert
|
|
Optional
Automatic Parking
|
|
Optional
Backup Camera
|
|
Standard
Navigation System
|
|
Standard
Third Row Seating
|
|
Optional
Navigation System
|
Steering
|
44.0 (2-Wheel Steer) ft
Turning Diameter - Curb to Curb
|
|
N/A
Steering Ratio (:1), Overall
|
|
Column-mounted electric power steering
Steering Type
|
|
N/A
Turning Diameter - Wall to Wall
|
Suspension
|
N/A
Axle Type - Rear
|
|
Coil Suspension
Suspension Type - Rear
|
|
Coil Suspension
Suspension Type - Front
|
|
N/A
Axle Type - Front
|
Tires & Wheels
|
LT275/50R22
Front Tire Size
|
|
22 x 9 in
Front Wheel Size
|
|
Steel
Spare Wheel Material
|
|
18 X 8 in
Spare Wheel Size
|
|
22 x 9 in
Rear Wheel Size
|
|
Aluminum
Front Wheel Material
|
|
LT275/50R22
Rear Tire Size
|
|
Aluminum
Rear Wheel Material
|
|
LT225/65R18
Spare Tire Size
|
Weight & Capacity
|
N/A
As Spec'd Payload
|
|
N/A
Base Curb Weight
|
|
500 lbs
Dead Weight Hitch - Max Tongue Wt.
|
|
N/A
Curb Weight
|
|
N/A
Curb Weight - Rear
|
|
N/A
As Spec'd Curb Weight
|
|
N/A
Maximum Payload Capacity
|
|
9,900 lbs
Gross Vehicle Weight Rating
|
|
N/A
Fuel Tank Capacity, Approx
|
|
5,000 lbs
Dead Weight Hitch - Max Trailer Wt.
|
|
N/A
Gross Combined Wt Rating
|
|
N/A
Curb Weight - Front
|
|
N/A
Fifth Wheel Hitch - Max Tongue Wt.
|
|
0 lbs
Option Weight - Front
|
|
0 lbs
Option Weight - Rear
|
|
12,500 lbs
Maximum Trailering Capacity
|
|
0 lbs
Total Option Weight
|
|
N/A
Aux Fuel Tank Capacity, Approx
|
|
1,250 lbs
Wt Distributing Hitch - Max Tongue Wt.
|
|
12,500 lbs
Wt Distributing Hitch - Max Trailer Wt.
|
|
N/A
Gross Axle Weight Rating
|
|
N/A
Fifth Wheel Hitch - Max Trailer Wt.
|
