2017 Honda Pilot LX specs & colors

$30,745
Starting MSRP
Current listing price

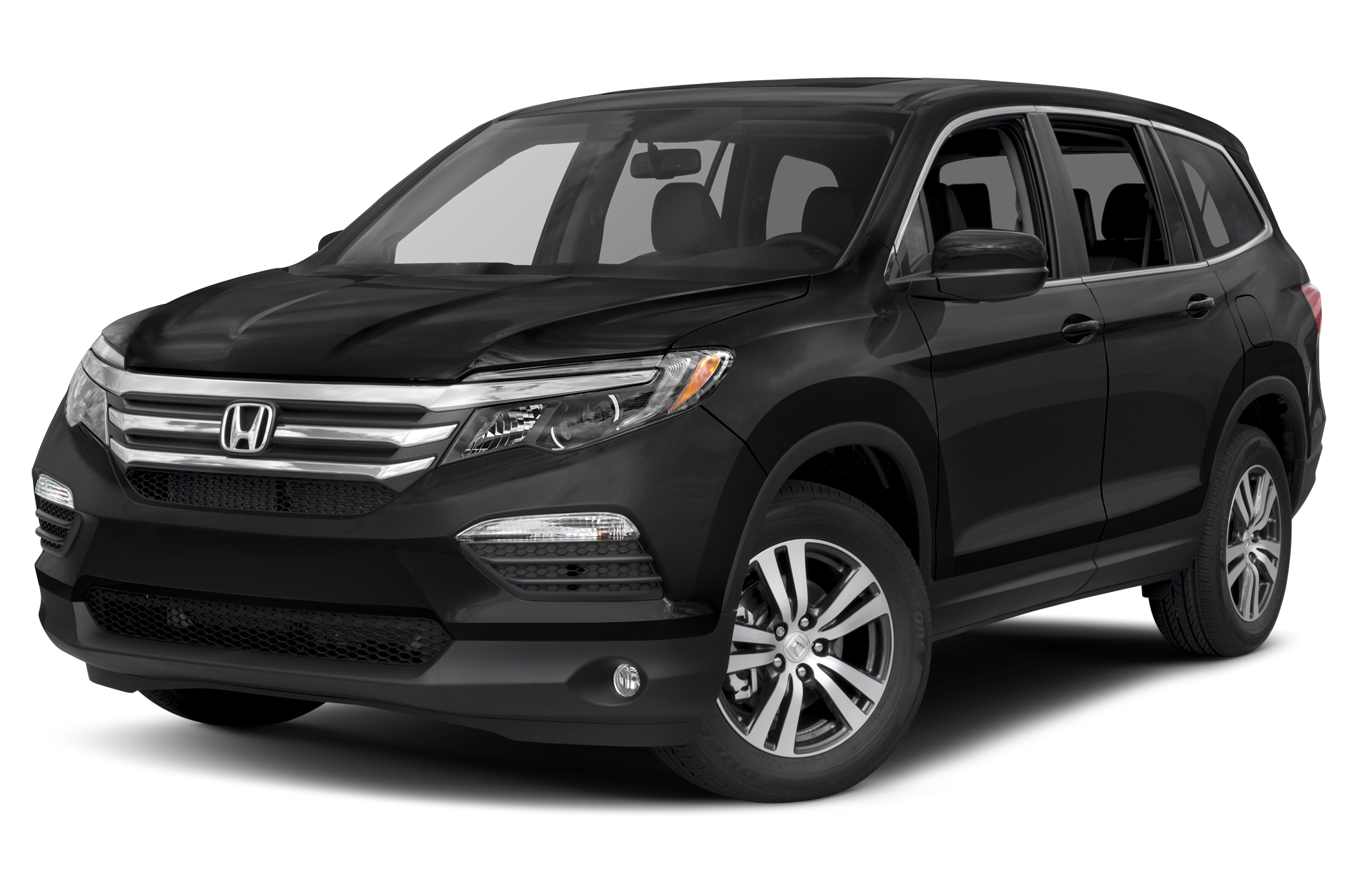

2017 Honda Pilot LX

Showing the 2017 Honda Pilot LX 2WD

Shop Now

Key specs

Color options

Interior

Vanilla / Blue


Gray


Beige


Packages

$423

Starting MSRP

  • Wheel Locks
  • Folding Cargo Tray
  • High Wall All Season Floor Mats

$410

Starting MSRP

  • Wheel Locks
  • All Season Floor Mats
  • Splash Guard Set

$435

Starting MSRP

  • All Season Floor Mats
  • Folding Cargo Tray
  • Splash Guard Set
See all packages

$314

Starting MSRP

  • Wheel Locks
  • Folding Cargo Tray
  • Splash Guard Set

$407

Starting MSRP

  • Wheel Locks
  • All Season Floor Mats
  • Folding Cargo Tray,

Specifications

EPA Classification Small SUV 2WD
Front Wheel Size 18 X 8 in
Rear Wheel Size 18 X 8 in
Spare Wheel Size Compact in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Steel
Cold Cranking Amps @ 0° F (Primary) N/A
Maximum Alternator Capacity (amps) N/A
Engine Type Regular Unleaded V-6
Displacement 3.5 L/212
SAE Net Horsepower @ RPM 280 @ 6000
SAE Net Torque @ RPM 262 @ 4700
EPA Fuel Economy Est - Hwy 27 MPG
Cruising Range - City 370.50 mi
EPA Fuel Economy Est - City 19 MPG
Fuel Economy Est-Combined 22 MPG
Cruising Range - Hwy 526.50 mi
EPA MPG Equivalent - City N/A
EPA MPG Equivalent - Hwy N/A
EPA MPG Equivalent - Combined N/A
Estimated Battery Range N/A mi
Drivetrain Front Wheel Drive
Trans Type 6
Trans Description Cont. Automatic w/OD
Trans Description Cont. Again N/A
First Gear Ratio (:1) 3.36
Second Gear Ratio (:1) 2.10
Third Gear Ratio (:1) 1.49
Fourth Gear Ratio (:1) 1.06
Fifth Gear Ratio (:1) 0.75
Sixth Gear Ratio (:1) 0.56
Reverse Ratio (:1) 2.27
Final Drive Axle Ratio (:1) 4.25
Transfer Case Gear Ratio (:1), High N/A
Transfer Case Gear Ratio (:1), Low N/A
Suspension Type - Front Strut
Suspension Type - Rear Multi-Link
Suspension Type - Front (Cont.) Strut
Suspension Type - Rear (Cont.) Multi-Link
Brake Type 4-Wheel Disc
Brake ABS System 4-Wheel
Brake ABS System (Second Line) N/A
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 12.6 in
Rear Brake Rotor Diam x Thickness 13 in
Drum - Rear (Yes or ) N/A
Fuel Tank Capacity, Approx 19.5 gal
Aux Fuel Tank Capacity, Approx N/A gal
Steering Type Rack-Pinion
Steering Ratio (:1), Overall N/A
Lock to Lock Turns (Steering) N/A
Turning Diameter - Curb to Curb 39.4 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size P245/60HR18
Rear Tire Size P245/60HR18
Spare Tire Size Compact
Dead Weight Hitch - Max Trailer Wt. N/A lbs
Dead Weight Hitch - Max Tongue Wt. N/A lbs
Wt Distributing Hitch - Max Trailer Wt. N/A lbs
Wt Distributing Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight 4054 lbs
Curb Weight - Front N/A lbs
Curb Weight - Rear N/A lbs
Maximum Payload Capacity N/A lbs
Curb Weight N/A lbs
Total Option Weight 0.00 lbs
Passenger Capacity 8
Passenger Volume 152.9 ft³
Front Head Room 40.1 in
Front Leg Room 40.9 in
Front Shoulder Room 62 in
Front Hip Room 59.1 in
Second Head Room 40.2 in
Second Leg Room 38.4 in
Second Shoulder Room 62 in
Second Hip Room 57.3 in
Third Head Room 38.9 in
Third Leg Room 31.9 in
Third Shoulder Room 57.6 in
Third Hip Room 44.6 in
Wheelbase 111 in
Length, Overall 194.5 in
Width, Max w/o mirrors 78.6 in
Height, Overall 69.8 in
Track Width, Front 66.3 in
Track Width, Rear 66.3 in
Min Ground Clearance N/A in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Cargo Area Length @ Floor to Seat 1 N/A in
Cargo Area Length @ Floor to Seat 2 N/A in
Cargo Area Length @ Floor to Seat 3 N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Liftover Height N/A in
Cargo Volume to Seat 1 83.9 ft³
Cargo Volume to Seat 2 46.8 ft³
Cargo Volume to Seat 3 16.5 ft³
Radio: AM/FM Audio System -inc: 200-Watt, 7 speakers including subwoofer, 5" color LCD screen, Bluetooth HandsFreeLink, Bluetooth streaming audio, MP3/auxiliary input jack, Radio Data System (RDS), Speed-Sensitive Volume Control (SVC) and USB audio interface w/1.5-Amp charging port in center console Standard
Radio w/Seek-Scan, Clock and Steering Wheel Controls Standard
2 LCD Monitors In The Front Standard
Window Grid Antenna Standard
Wheels: 18" Alloy Standard
Auto Off Projector Beam Halogen Daytime Running Headlamps w/Delay-Off Standard
Tailgate/Rear Door Lock Included w/Power Door Locks Standard
Wheels w/Machined Accents Standard
Liftgate Rear Cargo Access Standard
Lip Spoiler Standard
Fixed Rear Window w/Fixed Interval Wiper and Defroster Standard
Black Door Handles Standard
Chrome Side Windows Trim and Black Front Windshield Trim Standard
Front Windshield -inc: Sun Visor Strip Standard
LED Brakelights Standard
Galvanized Steel/Aluminum Panels Standard
Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent Standard
Steel Spare Wheel Standard
Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent Standard
Speed Sensitive Variable Intermittent Wipers Standard
Black Bodyside Cladding and Black Wheel Well Trim Standard
Tires: P245/60R18 105H AS Standard
Compact Spare Tire Stored Underbody w/Crankdown Standard
Black Power Side Mirrors w/Manual Folding Standard
Chrome Grille Standard
Deep Tinted Glass Standard
Driver And Passenger Visor Vanity Mirrors Standard
Cloth Door Trim Insert Standard
Front Center Armrest and Rear Center Armrest w/Storage Standard
Cargo Space Lights Standard
1 Seatback Storage Pocket Standard
Perimeter Alarm Standard
4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement Standard
Trip Computer Standard
2 12V DC Power Outlets Standard
FOB Controls -inc: Windows Standard
Driver Information Center Standard
Cruise Control w/Steering Wheel Controls Standard
Immobilizer Standard
HVAC -inc: Underseat Ducts, Headliner/Pillar Ducts and Console Ducts Standard
Illuminated Locking Glove Box Standard
Analog Appearance Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents Standard
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats Standard
Rear Cupholder Standard
Fade-To-Off Interior Lighting Standard
Cargo Area Concealed Storage Standard
Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry and Panic Button Standard
Front And Rear Map Lights Standard
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer Standard
Carpet Floor Trim Standard
Cloth Seat Trim Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down Standard
Power Rear Windows and Fixed 3rd Row Windows Standard
Power Door Locks w/Autolock Feature Standard
Proximity Key For Push Button Start Only Standard
Manual Air Conditioning Standard
Instrument Panel Bin, Interior Concealed Storage, Driver / Passenger And Rear Door Bins Standard
Day-Night Rearview Mirror Standard
Air Filtration Standard
Front Bucket Seats -inc: head restraints at all seating positions Standard
Fixed 60-40 Split-Bench 3rd Row Seat Front and Manual Fold Into Floor Standard
6-Way Driver Seat -inc: Manual Recline, Height Adjustment and Fore/Aft Movement Standard
60-40 Folding Split-Bench Front Facing Manual Reclining Fold Forward Seatback Rear Seat w/Manual Fore/Aft Standard
Remote Releases -Inc: Mechanical Fuel and Keyfob Rear Window Standard
Manual Tilt/Telescoping Steering Column Standard
Full Cloth Headliner Standard
Driver Foot Rest Standard
Valet Function Standard
Urethane Gear Shifter Material Standard
Front Cupholder Standard
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 2 12V DC Power Outlets Standard
Multi-Link Rear Suspension w/Coil Springs Standard
GVWR: 5,545 lbs Standard
4.25 Axle Ratio Standard
19.5 Gal. Fuel Tank Standard
Transmission: 6-Speed Automatic Standard
1 Skid Plate Standard
Engine: 3.5L V6 24-Valve SOHC i-VTEC Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control Standard
Front-Wheel Drive Standard
Strut Front Suspension w/Coil Springs Standard
Single Stainless Steel Exhaust Standard
Front And Rear Anti-Roll Bars Standard
Brake Actuated Limited Slip Differential Standard
Electric Power-Assist Speed-Sensing Steering Standard
Transmission w/Driver Selectable Mode Standard
Gas-Pressurized Shock Absorbers Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners Standard
ABS And Driveline Traction Control Standard
VSA Electronic Stability Control (ESC) Standard
Dual Stage Driver And Passenger Front Airbags Standard
Side Impact Beams Standard
Dual Stage Driver And Passenger Seat-Mounted Side Airbags Standard
Back-Up Camera Standard
Tire Specific Low Tire Pressure Warning Standard
Airbag Occupancy Sensor Standard
Rear Child Safety Locks Standard
HondaLink Assist Emergency Sos Standard
Curtain 1st, 2nd And 3rd Row Airbags Standard
