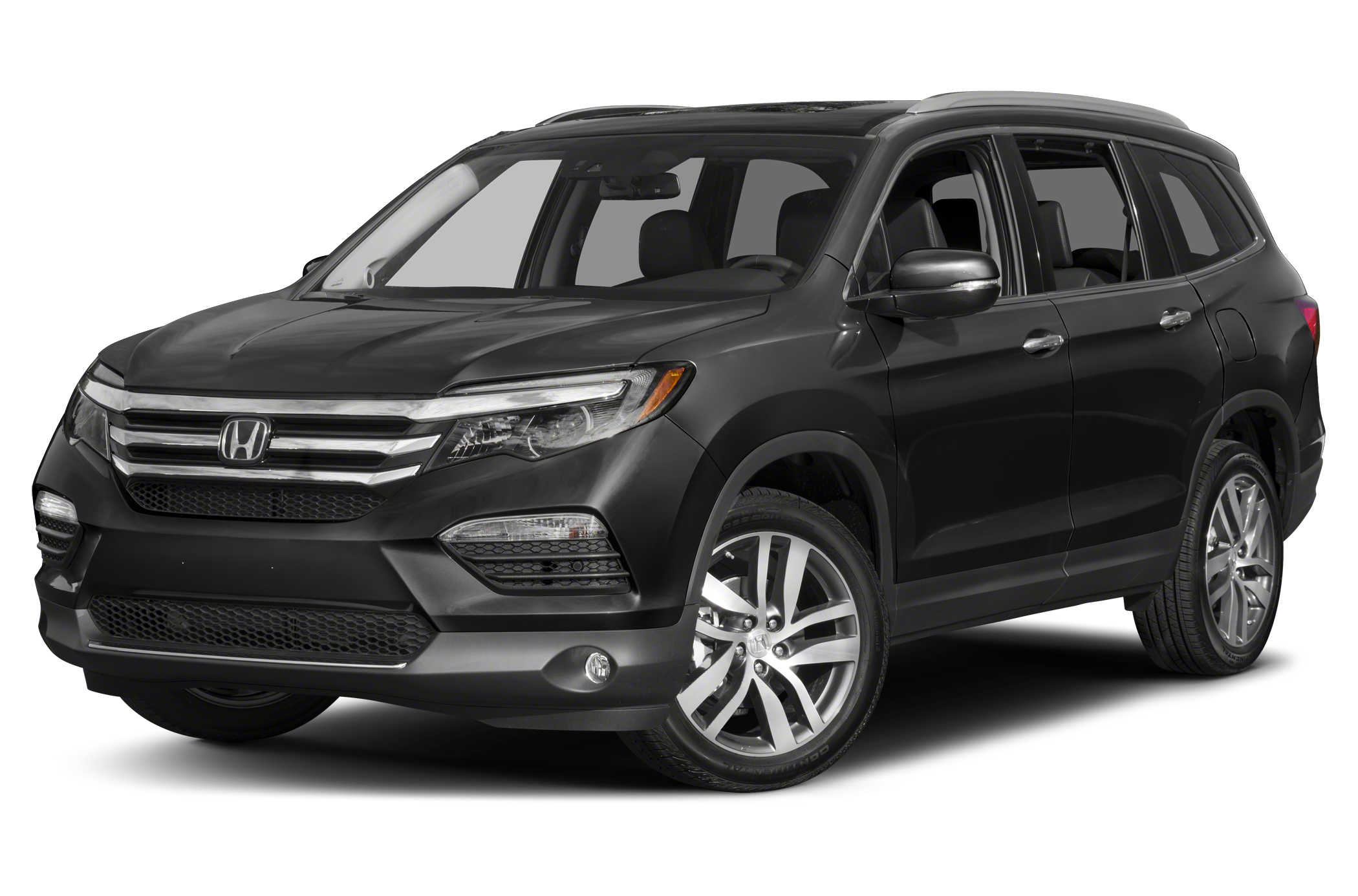

2017 Honda Pilot Touring specs & colors

Sport Utility

Change trim

MSRP

LX 2WD $30,745
LX AWD $32,545
EX 2WD $33,180
EX w/Honda Sensing 2WD $34,180
EX AWD $34,980
EX w/Honda Sensing AWD $35,980
EX-L 2WD $36,605
EX-L w/Navigation 2WD $37,605
EX-L w/Honda Sensing 2WD $37,605
EX-L w/RES 2WD $38,205
EX-L AWD $38,405
EX-L w/Navigation AWD $39,405
EX-L w/Honda Sensing AWD $39,405
EX-L w/RES AWD $40,005
Touring 2WD $41,820
Touring AWD $43,620
Elite AWD $47,220

Change trim

$41,820

Starting MSRP
Current Listing Price

Showing the 2017 Honda Pilot Touring 2WD

Shop Now

Color options

Exterior

Interior

Vanilla / Blue

Gray

Beige

Packages

Protection Package II

$314

Starting MSRP

Wheel Locks
Folding Cargo Tray
Splash Guard Set

All Season Protection Package II

$407

Starting MSRP

Wheel Locks
All Season Floor Mats
Folding Cargo Tray,

Protection Package

$410

Starting MSRP

Wheel Locks
All Season Floor Mats
Splash Guard Set

See all packages

All Season High Wall Propack I

$451

Starting MSRP

Folding Cargo Tray
High Wall All Season Floor Mats
Splash Guard Set

All Season Protection Package I

$435

Starting MSRP

All Season Floor Mats
Folding Cargo Tray
Splash Guard Set

All Season High Wall Propack II

$423

Starting MSRP

Wheel Locks
Folding Cargo Tray
High Wall All Season Floor Mats

All Season High Wall Propack

$426

Starting MSRP

Wheel Locks
High Wall All Season Floor Mats
Splash Guard Set

Specifications

EPA Fuel Economy Est - Hwy	27 MPG
Cruising Range - City	390.00 mi
EPA Fuel Economy Est - City	20 MPG
Fuel Economy Est-Combined	23 MPG
Cruising Range - Hwy	526.50 mi
EPA MPG Equivalent - City	N/A
EPA MPG Equivalent - Hwy	N/A
EPA MPG Equivalent - Combined	N/A
Estimated Battery Range	N/A mi

Drivetrain	Front Wheel Drive
Trans Type	9
Trans Description Cont.	Automatic w/OD
Trans Description Cont. Again	N/A
First Gear Ratio (:1)	4.71
Second Gear Ratio (:1)	2.84
Third Gear Ratio (:1)	1.91
Fourth Gear Ratio (:1)	1.38
Fifth Gear Ratio (:1)	1.00
Sixth Gear Ratio (:1)	0.81
Reverse Ratio (:1)	3.83
Final Drive Axle Ratio (:1)	4.33
Transfer Case Gear Ratio (:1), High	N/A
Transfer Case Gear Ratio (:1), Low	N/A
Seventh Gear Ratio (:1)	0.70
Eighth Gear Ratio (:1)	0.58
Ninth Gear Ratio (:1)	N/A

Brake Type	4-Wheel Disc
Brake ABS System	4-Wheel
Brake ABS System (Second Line)	N/A
Disc - Front (Yes or )	Yes
Disc - Rear (Yes or )	Yes
Front Brake Rotor Diam x Thickness	12.6 in
Rear Brake Rotor Diam x Thickness	13 in
Drum - Rear (Yes or )	N/A

Dead Weight Hitch - Max Trailer Wt.	N/A lbs
Dead Weight Hitch - Max Tongue Wt.	N/A lbs
Wt Distributing Hitch - Max Trailer Wt.	N/A lbs
Wt Distributing Hitch - Max Tongue Wt.	N/A lbs
Maximum Trailering Capacity	N/A lbs

Passenger Capacity	8
Passenger Volume	151.7 ft³
Front Head Room	39.5 in
Front Leg Room	40.9 in
Front Shoulder Room	62 in
Front Hip Room	59.1 in
Second Head Room	39.9 in
Second Leg Room	38.4 in
Second Shoulder Room	62 in
Second Hip Room	57.3 in
Third Head Room	38.9 in
Third Leg Room	31.9 in
Third Shoulder Room	57.6 in
Third Hip Room	44.6 in
Wheelbase	111 in
Length, Overall	194.5 in
Width, Max w/o mirrors	78.6 in
Height, Overall	69.8 in
Track Width, Front	66.3 in
Track Width, Rear	66.3 in
Min Ground Clearance	N/A in
Rear Door Opening Height	N/A in
Rear Door Opening Width	N/A in
Cargo Area Length @ Floor to Seat 1	N/A in
Cargo Area Length @ Floor to Seat 2	N/A in
Cargo Area Length @ Floor to Seat 3	N/A in
Cargo Area Width @ Beltline	N/A in
Cargo Box Width @ Wheelhousings	N/A in
Cargo Box (Area) Height	N/A in
Liftover Height	N/A in
Cargo Volume to Seat 1	83.8 ft³
Cargo Volume to Seat 2	46.8 ft³
Cargo Volume to Seat 3	16.5 ft³

540w Regular Amplifier	Optional
SiriusXM Radio -inc: SiriusXM services require a subscription after any trial period, If you decide to continue your SiriusXM service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM at 1-866-635-2349 to cancel, See our Customer Agreement for complete terms at www.siriusxm.com, Fees and programming subject to change, XM satellite service is available only to those at least 18 years and older in the 48 contiguous United States and D.C	Optional
Radio w/Seek-Scan, Clock and Steering Wheel Controls	Optional
Window Grid Antenna	Standard
2 Wireless Headphones	Optional
Performance Speakers	Optional
Entertainment System w/Blu-Ray	Optional
Digital Signal Processor	Optional
2 LCD Monitors In The Front and 1 LCD Row Monitor In The Rear	Optional
A/V Remote	Optional
Radio: AM/FM Premium Audio System -inc: 540-Watt, 10 speakers including subwoofer, Bluetooth HandsFreeLink, Bluetooth streaming audio, MP3/auxiliary input jack, MP3/Windows Media Audio (WMA) playback capability, Radio Data System (RDS), Speed-Sensitive Volume Control (SVC), USB audio interface w/1.5-Amp and 2.5-Amp charging ports in front and 2.5-Amp USB charging ports in center console and 2nd-row, 8" display audio w/high-resolution WVGA (800x480) electrostatic touch-screen and customizable feature settings, HondaLink, Apple CarPlay, Android Auto, SMS text message function, Pandora compatibility, Song By Voice (SBV) and 2nd-row HDMI interface	Optional

Body-Colored Power w/Tilt Down Side Mirrors w/Manual Folding and Turn Signal Indicator	Optional
Chrome Side Windows Trim and Black Front Windshield Trim	Standard
Tailgate/Rear Door Lock Included w/Power Door Locks	Standard
Laminated Glass	Optional
Speed Sensitive Variable Intermittent Wipers	Standard
Galvanized Steel/Aluminum Panels	Standard
Power Liftgate Rear Cargo Access	Optional
Wheels: 20" Alloy	Optional
Lip Spoiler	Standard
Express Open/Close Sliding And Tilting Glass 1st Row Sunroof w/Sunshade	Optional
Front Fog Lamps	Optional
Deep Tinted Glass	Standard
LED Brakelights	Standard
Roof Rack Rails Only	Optional
Chrome Grille	Standard
Auto On/Off Projector Beam Halogen Daytime Running Headlamps w/Delay-Off	Optional
Black Bodyside Cladding and Black Wheel Well Trim	Standard
Front Windshield -inc: Sun Visor Strip	Standard
Fixed Rear Window w/Fixed Interval Wiper and Defroster	Standard
Chrome Door Handles	Optional
Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent	Standard
Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent	Standard
Steel Spare Wheel	Standard
Compact Spare Tire Stored Underbody w/Crankdown	Standard
Wheels w/Machined Accents	Standard
Tires: P245/50R20 102H AS	Optional

Front Cupholder	Standard
Honda Satellite-Linked Navigation System -inc: voice recognition and Honda HD digital traffic	Optional
Trunk/Hatch Auto-Latch	Optional
Systems Monitor	Standard
HomeLink Garage Door Transmitter	Optional
Cargo Space Lights	Standard
FOB Controls -inc: Cargo Access, Windows, Sunroof/Convertible Roof and Remote Engine Start	Optional
Front And Rear Map Lights	Standard
Voice Activated Dual Zone Front Automatic Air Conditioning	Optional
Memory Settings -inc: Door Mirrors	Optional
Leather Door Trim Insert	Optional
Heated Front Bucket Seats -inc: 10-way power driver's seat adjustment w/power lumbar support w/2-position memory, 4-way power passenger's seat adjustment, 1-touch 2nd-row seats and head restraints at all seating positions	Optional
HVAC -inc: Underseat Ducts, Headliner/Pillar Ducts and Console Ducts	Standard
Rear HVAC w/Separate Controls	Optional
Driver Seat	Optional
Fade-To-Off Interior Lighting	Standard
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats	Standard
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer	Standard
Valet Function	Standard
Outside Temp Gauge	Optional
Illuminated Locking Glove Box	Standard
Driver Foot Rest	Standard
60-40 Folding Split-Bench Front Facing Manual Reclining Fold Forward Seatback Rear Seat w/Manual Fore/Aft	Standard
Instrument Panel Bin, Interior Concealed Storage, Driver / Passenger And Rear Door Bins	Standard
Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry and Panic Button	Standard
Interior Trim -inc: Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents	Standard
Immobilizer	Standard
Compass	Optional
Air Filtration	Standard
Leather/Metal-Look Steering Wheel	Optional
Power Rear Windows, Fixed 3rd Row Windows and w/Manual Sun Blinds	Optional
Carpet Floor Trim	Standard
Proximity Key For Doors And Push Button Start	Optional
Power Door Locks w/Autolock Feature	Standard
Cargo Area Concealed Storage	Standard
Full Cloth Headliner	Standard
Perimeter Alarm	Standard
Front Center Armrest and Rear Center Armrest w/Storage	Standard
Passenger Seat	Optional
Rear Cupholder	Standard
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination	Optional
Trip Computer	Standard
Cruise Control w/Steering Wheel Controls	Standard
Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down	Standard
Manual Tilt/Telescoping Steering Column	Standard
Day-Night Auto-Dimming Rearview Mirror	Optional
3 12V DC Power Outlets	Optional
3 12V DC Power Outlets and 1 120V AC Power Outlet	Optional
Distance Pacing	Optional
Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage, Conversation Mirror, 3 12V DC Power Outlets and 1 120V AC Power Outlet	Optional
Analog Appearance	Standard
2 Seatback Storage Pockets	Optional
Remote Releases -Inc: Power Cargo Access and Mechanical Fuel	Optional
Leather-Trimmed Seats	Optional
Leather/Metal-Look Gear Shifter Material	Optional
Fixed 60-40 Split-Bench 3rd Row Seat Front and Manual Fold Into Floor	Standard

19.5 Gal. Fuel Tank	Standard
Engine Auto Stop-Start Feature	Optional
Front And Rear Anti-Roll Bars	Standard
GVWR: 5,545 lbs	Standard
1 Skid Plate	Standard
Electric Power-Assist Speed-Sensing Steering	Standard
Transmission w/Driver Selectable Mode	Standard
Transmission: 9-Speed Automatic -inc: Shift-By-Wire (SBW) and paddle shifters	Optional
Gas-Pressurized Shock Absorbers	Standard
Front-Wheel Drive	Standard
Single Stainless Steel Exhaust w/Chrome Tailpipe Finisher	Optional
Engine: 3.5L V6 24-Valve SOHC i-VTEC	Standard
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control	Standard
Strut Front Suspension w/Coil Springs	Standard
4.334 Axle Ratio	Optional
Multi-Link Rear Suspension w/Coil Springs	Standard

ABS And Driveline Traction Control	Standard
Collision Mitigation Braking System	Optional
Dual Stage Driver And Passenger Seat-Mounted Side Airbags	Standard
Right Side Camera	Optional
Collision Mitigation-Front	Optional
Side Impact Beams	Standard
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners	Standard
Dual Stage Driver And Passenger Front Airbags	Standard
Back-Up Camera	Standard
Lane Keeping Assist System Lane Keeping Assist	Optional
VSA Electronic Stability Control (ESC)	Standard
Lane Keeping Assist System Lane Departure Warning	Optional
Rear Child Safety Locks	Standard
Airbag Occupancy Sensor	Standard
Curtain 1st, 2nd And 3rd Row Airbags	Standard
Tire Specific Low Tire Pressure Warning	Standard
Front And Rear Parking Sensors	Optional

Compare trims

Wondering which trim is right for you?

Our 2017 Honda Pilot trim comparison will help you decide.

Front Wheel Size	20 X 8 in
Rear Wheel Size	20 X 8 in
Spare Wheel Size	Compact in
Front Wheel Material	Aluminum
Rear Wheel Material	Aluminum
Spare Wheel Material	Steel

Engine Type	Regular Unleaded V-6
Displacement	3.5 L/212
SAE Net Horsepower @ RPM	280 @ 6000
SAE Net Torque @ RPM	262 @ 4700

Fuel Tank Capacity, Approx	19.5 gal
Aux Fuel Tank Capacity, Approx	N/A gal

Steering Type	Rack-Pinion
Steering Ratio (:1), Overall	N/A
Lock to Lock Turns (Steering)	N/A
Turning Diameter - Curb to Curb	39.4 ft
Turning Diameter - Wall to Wall	N/A ft

Front Tire Size	P245/50HR20
Rear Tire Size	P245/50HR20
Spare Tire Size	Compact

Cold Cranking Amps @ 0° F (Primary)	N/A
Maximum Alternator Capacity (amps)	N/A

Suspension Type - Front	Strut
Suspension Type - Rear	Multi-Link
Suspension Type - Front (Cont.)	Strut
Suspension Type - Rear (Cont.)	Multi-Link

Base Curb Weight	4140 lbs
Curb Weight - Front	N/A lbs
Curb Weight - Rear	N/A lbs
Maximum Payload Capacity	N/A lbs
Curb Weight	N/A lbs
Total Option Weight	0.00 lbs
