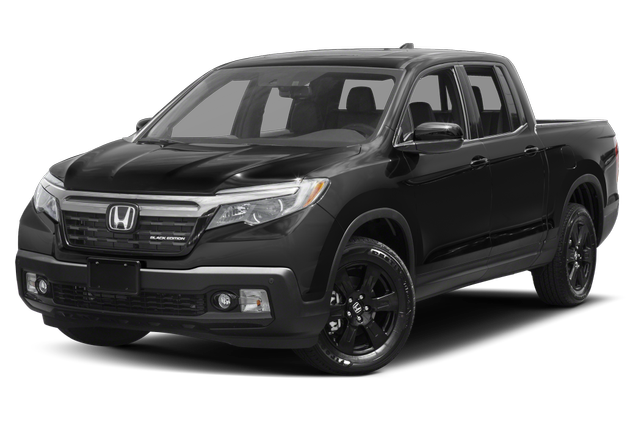

Showing the 2017 Honda Ridgeline Black Edition 4x4 Crew Cab 5.3' Bed
Shop NowInterior
Onyx
$263
Starting MSRP
$258
Starting MSRP
$4,619
Starting MSRP
| Spare Wheel Size | Compact in |
| Spare Wheel Material | Steel |
| Front Wheel Size | 18 X 7.5 in |
| Front Wheel Material | Aluminum |
| Rear Wheel Size | 18 X 7.5 in |
| Rear Wheel Material | Aluminum |
| Cold Cranking Amps @ 0° F (Primary) | N/A |
| Maximum Alternator Capacity (amps) | N/A |
| SAE Net Horsepower @ RPM | 280 @ 6000 |
| Displacement | 3.5 L/212 |
| SAE Net Torque @ RPM | 262 @ 4700 |
| Engine Type | Regular Unleaded V-6 |
| Engine Oil Cooler | None |
| Fuel Economy Est-Combined | 21 MPG |
| EPA Fuel Economy Est - City | 18 MPG |
| Estimated Battery Range | N/A mi |
| EPA Fuel Economy Est - Hwy | 25 MPG |
| Cruising Range - City | 351.00 mi |
| Cruising Range - Hwy | 487.50 mi |
| Drivetrain | All Wheel Drive |
| Transfer Case Model | None |
| Fourth Gear Ratio (:1) | 1.06 |
| Transfer Case Gear Ratio (:1), High | N/A |
| Trans Power Take Off | N/A |
| Trans Description Cont. | Automatic w/OD |
| Reverse Ratio (:1) | 2.27 |
| Third Gear Ratio (:1) | 1.49 |
| Second Gear Ratio (:1) | 2.10 |
| Fifth Gear Ratio (:1) | 0.75 |
| Trans Description Cont. Again | N/A |
| First Gear Ratio (:1) | 3.36 |
| Trans Type | 6 |
| Sixth Gear Ratio (:1) | 0.56 |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Transfer Case Power Take Off | No |
| Final Drive Axle Ratio (:1) | N/A |
| Suspension Type - Rear | Multi-Link |
| Axle Type - Front | Independent |
| Axle Type - Rear | Independent |
| Suspension Type - Front | Strut |
| Frame Type | N/A |
| Brake Type | 4-Wheel Disc |
| Disc - Rear (Yes or ) | Yes |
| Rear Brake Rotor Diam x Thickness | 13 in |
| Front Brake Rotor Diam x Thickness | 12.6 in |
| Brake ABS System (Second Line) | 4-Wheel |
| Brake ABS System | 4-Wheel |
| Drum - Rear (Yes or ) | N/A |
| Disc - Front (Yes or ) | Yes |
| Fuel Tank Capacity, Approx | 19.5 gal |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Steering Type | Rack-Pinion |
| Turning Diameter - Curb to Curb | 44.4 ft |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Wall to Wall | N/A ft |
| Spare Tire Size | Compact |
| Front Tire Size | P245/60HR18 |
| Rear Tire Size | P245/60HR18 |
| Fifth Wheel Hitch - Max Trailer Wt. | N/A lbs |
| Maximum Trailering Capacity | 5000 lbs |
| Fifth Wheel Hitch - Max Tongue Wt. | N/A lbs |
| Dead Weight Hitch - Max Tongue Wt. | 500 lbs |
| Wt Distributing Hitch - Max Trailer Wt. | 5000 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 500 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 5000 lbs |
| Option Weight - Rear | 0.00 lbs |
| As Spec'd Payload | N/A lbs |
| As Spec'd Curb Weight | N/A lbs |
| Total Option Weight | 0.00 lbs |
| Gross Vehicle Weight Rating | 6019.00 lbs |
| Maximum Payload Capacity | N/A lbs |
| Curb Weight | N/A lbs |
| Curb Weight - Front | N/A lbs |
| Option Weight - Front | 0.00 lbs |
| Curb Weight - Rear | N/A lbs |
| Gross Combined Wt Rating | 9986 lbs |
| Base Curb Weight | 4515 lbs |
| Gross Axle Weight Rating | N/A lbs |
| Front Shoulder Room | 62 in |
| Ground Clearance, Front | 7.9 in |
| Front Hip Room | 59.1 in |
| Cargo Box Width @ Floor | 60 in |
| Ext'd Cab Cargo Volume | N/A ft³ |
| Passenger Capacity | 5 |
| Width, Max w/o mirrors | 78.6 in |
| Wheelbase | 125.2 in |
| Cargo Volume | 33.9 ft³ |
| Second Hip Room | 56.6 in |
| Tailgate Width | 51 in |
| Length, Overall | 210 in |
| Cargo Box Length @ Floor | 64 in |
| Cargo Box (Area) Height | 16.7 in |
| Cargo Box Width @ Wheelhousings | 50 in |
| Length, Overall w/rear bumper | N/A in |
| Ground Clearance, Rear | 7.9 in |
| Front Leg Room | 40.9 in |
| Front Head Room | 39.5 in |
| Height, Overall | 70.8 in |
| Cargo Box Width @ Top, Rear | 60 in |
| Second Leg Room | 36.7 in |
| Overhang, Front | N/A in |
| Ground to Top of Load Floor | N/A in |
| Second Head Room | 38.8 in |
| Length, Overall w/o rear bumper | N/A in |
| Second Shoulder Room | 61.5 in |
| Overhang, Rear w/o bumper | N/A in |
| Cab to End of Frame | N/A in |
| Bluetooth Handsfreelink Wireless Phone Connectivity | Standard |
| Radio w/Seek-Scan, Clock, Steering Wheel Controls, Voice Activation and External Memory Control | Standard |
| Turn-By-Turn Navigation Directions | Optional |
| Audio Theft Deterrent | Standard |
| Integrated Roof Antenna | Standard |
| Honda HD Digital Traffic Real-Time Traffic Display | Optional |
| 2 LCD Monitors In The Front | Standard |
| SIRIUS XM Radio | Optional |
| Radio: AM/FM/MP3 w/Nav System & Trunk-Bed Audio -inc: 540-watts, Audio system w/8 speakers including subwoofer, Apple CarPlay/Android Auto, HondaLink, SMS text message function, HD radio, Pandora compatibility, Radio Data System (RDS), speed-sensitive volume control (SVC), auxiliary input jack, 1.5-amp charging port in front/1.0 charging port in center console, 2.5-amp charging ports in 2nd row and Bluetooth streaming audio, Honda Satellite-Linked Navigation System, voice recognition, Honda HD Digital Traffic and Song By Voice, Bluetooth HandsFreeLink | Optional |
| Integrated Storage | Standard |
| Regular Composite Box Style | Standard |
| Front Fog Lamps | Optional |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Body-Colored Power w/Tilt Down Heated Side Mirrors w/Power Folding and Turn Signal Indicator | Optional |
| Black Door Handles | Standard |
| Dark Chrome Grille | Optional |
| Express Open/Close Sliding And Tilting Glass 1st Row Sunroof w/Sunshade | Optional |
| Wheels: 18" Exclusive Black-Painted Alloy | Optional |
| Tailgate w/Swing-Out Rear Cargo Access | Standard |
| Power Rear Window w/Defroster | Optional |
| Rain Detecting Variable Intermittent Wipers | Optional |
| Tires: P245/60R18 105H AS | Standard |
| Headlights-Automatic Highbeams | Optional |
| Compact Spare Tire w/Box Carrier | Standard |
| Steel Spare Wheel | Standard |
| Body-Colored Rear Step Bumper | Standard |
| Black Side Windows Trim, Black Front Windshield Trim and Black Rear Window Trim | Standard |
| Body-Colored Front Bumper w/Black Bumper Insert and 1 Tow Hook | Optional |
| Auto On/Off Projector Beam Led Low Beam Daytime Running Auto High-Beam Headlamps w/Delay-Off | Optional |
| Deep Tinted Glass | Standard |
| Cargo Lamp w/High Mount Stop Light | Standard |
| Fully Galvanized Steel Panels | Standard |
| LED Brakelights | Standard |
| Rear HVAC w/Separate Controls | Optional |
| Voice Activated Dual Zone Front Automatic Air Conditioning | Optional |
| Redundant Digital Speedometer | Standard |
| Air Filtration | Standard |
| Proximity Key For Doors And Push Button Start | Optional |
| Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down | Standard |
| Heated Front Bucket Seats -inc: 10-way power adjustable driver's seat including power lumbar support, 2-position memory and passenger seat w/4-way power adjustment | Optional |
| HVAC -inc: Underseat Ducts and Console Ducts | Standard |
| Driver And Front Passenger Armrests and Rear Center Armrest w/Storage | Standard |
| Front Cupholder | Standard |
| Fade-To-Off Interior Lighting | Standard |
| 3 12V DC Power Outlets | Standard |
| Compass | Optional |
| Front And Rear Map Lights | Standard |
| 3 12V DC Power Outlets and 1 120V AC Power Outlet | Optional |
| Full Cloth Headliner | Standard |
| Analog Appearance | Standard |
| Partial Floor Console w/Covered Storage, Mini Overhead Console w/Storage, Conversation Mirror, 3 12V DC Power Outlets and 1 120V AC Power Outlet | Optional |
| Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| Instrument Panel Covered Bin, Dashboard Storage, Driver And Passenger Door Bins, 2nd Row Underseat Storage and Audio Media Storage | Standard |
| Metal-Look Gear Shifter Material | Standard |
| Perimeter Alarm | Standard |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, 4 Door Curb/Courtesy, Illuminated Entry, Illuminated Ignition Switch and Panic Button | Standard |
| Distance Pacing | Optional |
| Cruise Control w/Steering Wheel Controls | Standard |
| HomeLink Garage Door Transmitter | Optional |
| Illuminated Locking Glove Box | Standard |
| Leather Seat Trim | Optional |
| Manual Tilt/Telescoping Steering Column | Standard |
| Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats | Standard |
| Remote Releases -Inc: Mechanical Fuel | Standard |
| Driver Seat | Optional |
| Rear Cupholder | Standard |
| Pickup Cargo Box Lights | Standard |
| 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination | Optional |
| Outside Temp Gauge | Optional |
| Interior Trim -inc: Piano Black Instrument Panel Insert, Piano Black Door Panel Insert, Piano Black Console Insert and Metal-Look Interior Accents | Optional |
| Valet Function | Standard |
| Immobilizer | Standard |
| 2 Seatback Storage Pockets | Optional |
| Memory Settings -inc: Driver Seat and Door Mirrors | Optional |
| Power Rear Windows | Standard |
| Heated Leather/Piano Black Steering Wheel | Optional |
| Day-Night Auto-Dimming Rearview Mirror | Optional |
| FOB Controls -inc: Windows and Remote Start | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Driver Foot Rest | Standard |
| Driver Information Center | Standard |
| Trip Computer | Standard |
| Passenger Seat | Optional |
| 19.5 Gal. Fuel Tank | Standard |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| Engine: 3.5L 24V SOHC i-VTEC V6 | Standard |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Trailer Wiring Harness | Standard |
| 1499# Maximum Payload | Optional |
| Permanent Locking Hubs | Standard |
| Brake Actuated Limited Slip Differential | Standard |
| Strut Front Suspension w/Coil Springs | Standard |
| 4.25 Axle Ratio | Standard |
| Transmission w/Driver Selectable Mode and HD Oil Cooler | Standard |
| Transmission: 6-Speed Automatic | Standard |
| Class III Towing Equipment -inc: Hitch and Trailer Sway Control | Standard |
| Single Stainless Steel Exhaust | Standard |
| GVWR: 6,019 lbs | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Automatic Full-Time All-Wheel | Standard |
| Gas-Pressurized Shock Absorbers | Standard |
| 1 Skid Plate | Standard |
| Battery w/Run Down Protection | Standard |
| Airbag Occupancy Sensor | Standard |
| Tire Specific Low Tire Pressure Warning | Standard |
| Blind Spot | Optional |
| VSA Electronic Stability Control (ESC) | Standard |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Lane Keeping Assist System Lane Keeping Assist | Optional |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Side Impact Beams | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Front And Rear Parking Sensors | Optional |
| ABS And Driveline Traction Control | Standard |
| Collision Mitigation-Front | Optional |
| Back-Up Camera | Standard |
| Rear Child Safety Locks | Standard |
| Collision Mitigation Braking System and Rear Collision Warning | Optional |
| Curtain 1st And 2nd Row Airbags | Standard |
| Lane Keeping Assist System Lane Departure Warning | Optional |
