2002 Hummer H1 specs & colors

$101,706
Starting MSRP
Current listing price

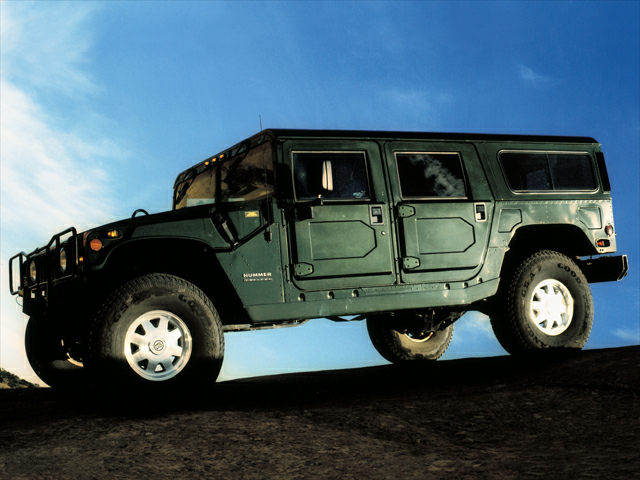

2002 Hummer H1

Showing the 2002 Hummer H1 4-Passenger Open Top Hard Doors

Shop Now

Key specs

Color options

Interior

Onyx


Packages

Specifications

Rear Door Type Liftgate
Front Wheel Size 17 x -TBD- in
Rear Wheel Size 17 x -TBD- in
Spare Wheel Size Not Available in
Front Wheel Material Aluminum
Rear Wheel Material Aluminum
Spare Wheel Material Not Available
Cold Cranking Amps @ 0° F (Primary) 600
Maximum Alternator Capacity (amps) 124
Engine Type Turbo Diesel V8
Displacement 6.5L/396
SAE Net Horsepower @ RPM 195 @ 3400
SAE Net Torque @ RPM 430 @ 1800
Engine Oil Cooler Yes
EPA Fuel Economy Est - Hwy N/A MPG
Cruising Range - City N/A mi
EPA Fuel Economy Est - City N/A MPG
Fuel Economy Est-Combined N/A MPG
Cruising Range - Hwy N/A mi
Estimated Battery Range N/A mi
Drivetrain 4-Wheel Drive
Trans Type 4
Trans Description Cont. HD Automatic w/OD
Trans Description Cont. Again Not Available
First Gear Ratio (:1) 2.48
Second Gear Ratio (:1) 1.48
Third Gear Ratio (:1) 1.00
Fourth Gear Ratio (:1) 0.75
Reverse Ratio (:1) 2.08
Trans Power Take Off Not Available
Final Drive Axle Ratio (:1) N/A
Transfer Case Model New Venture #242
Transfer Case Gear Ratio (:1), High 1.00
Transfer Case Gear Ratio (:1), Low 2.72
Transfer Case Power Take Off Not Available
Suspension Type - Front Coil Spring
Suspension Type - Rear Coil Spring
Axle Type - Front Indep Dbl A-Frame
Axle Type - Rear Indep Dbl A-Frame
Frame Type Box Ladder
Side Door Type Not Available
Brake Type Pwr
Brake ABS System Yes
Brake ABS System (Second Line) Not Available
Disc - Front (Yes or ) Yes
Disc - Rear (Yes or ) Yes
Front Brake Rotor Diam x Thickness 10.5 x -TBD- in
Rear Brake Rotor Diam x Thickness 10.5 x -TBD- in
Drum - Rear (Yes or ) Not Available
Fuel Tank Capacity, Approx 25 gal
Aux Fuel Tank Capacity, Approx 17 gal
Steering Type Power Variable Ratio
Steering Ratio (:1), Overall N/A
Turning Diameter - Curb to Curb 51 ft
Turning Diameter - Wall to Wall N/A ft
Front Tire Size 37X12.5R17
Rear Tire Size 37X12.5R17
Spare Tire Size Not Available
Dead Weight Hitch - Max Trailer Wt. 5000 lbs
Dead Weight Hitch - Max Tongue Wt. 500 lbs
Wt Distributing Hitch - Max Trailer Wt. 7986 lbs
Wt Distributing Hitch - Max Tongue Wt. 799 lbs
Fifth Wheel Hitch - Max Trailer Wt. N/A lbs
Fifth Wheel Hitch - Max Tongue Wt. N/A lbs
Maximum Trailering Capacity N/A lbs
Base Curb Weight N/A lbs
Curb Weight - Front 3748 lbs
Curb Weight - Rear 3066 lbs
Option Weight - Front 0.00 lbs
Option Weight - Rear 0.00 lbs
As Spec'd Curb Weight 6814.00 lbs
As Spec'd Payload N/A lbs
Maximum Payload Capacity N/A lbs
Gross Combined Wt Rating 15,300 lbs
Gross Axle Weight Rating 10900.00 lbs
Curb Weight 6814.00 lbs
Total Option Weight 0.00 lbs
Gross Vehicle Weight Rating 10,300 lbs
Passenger Capacity 4
Front Head Room 44.4 in
Front Leg Room 38.1 in
Front Shoulder Room 77.1 in
Front Hip Room 23.1 in
Second Head Room 42.9 in
Second Leg Room 29.9 in
Second Shoulder Room 77.1 in
Second Hip Room 22.4 in
Wheelbase 130.0 in
Length, Overall w/rear bumper 184.5 in
Length, Overall N/A in
Width, Max w/o mirrors 86.5 in
Height, Overall 77.0 in
Overhang, Front N/A in
Overhang, Rear w/o bumper N/A in
Cab to End of Frame N/A in
Ground to Top of Load Floor N/A in
Ground Clearance, Front 16.0 in
Ground Clearance, Rear 16.0 in
Rear Door Opening Height N/A in
Rear Door Opening Width N/A in
Side Door Opening Height N/A in
Side Door Opening Width N/A in
Step Up Height - Front N/A in
Step Up Height - Side N/A in
Cargo Area Length @ Floor to Console N/A in
Cargo Area Length @ Floor to Seat 1 76.5 in
Cargo Area Length @ Floor to Seat 2 44.0 in
Cargo Area Length @ Floor to Seat 3 Not Available in
Cargo Box Width @ Top, Rear N/A in
Cargo Area Width @ Beltline N/A in
Cargo Box Width @ Floor N/A in
Cargo Box Width @ Wheelhousings N/A in
Cargo Box (Area) Height N/A in
Tailgate Width N/A in
Cargo Volume N/A ft³
Cargo Volume to Seat 1 Not Available ft³
Cargo Volume to Seat 2 58.3 ft³
Cargo Volume to Seat 3 Not Available ft³
Cargo Volume to Seat 4 Not Available ft³
Ext'd Cab Cargo Volume N/A ft³
Driveline protection-inc: three tubular steel cages Standard
Remote keyless entry-inc: pwr door locks Standard
TT4 traction control system Standard
Pwr windows w/driver-side express down feature Standard
Dura-wall runflat tire system Standard
124 amp alternator Standard
4100# capacity front/6800# capacity rear GAWR Standard
Galvanized steel doors Standard
HD rear bumper Standard
Air compressor-inc: air line w/quick connects Standard
Central Tire Inflation System (CTIS)-inc: on-board air compressor, in-dash tire pressure gauge Standard
6.5L (396) turbo-diesel V8 engine Standard
Driver/front passenger armrests Standard
Torque-biasing differentials Standard
Brush guard Standard
Cruise control Standard
Pwr-assisted variable-ratio steering Standard
Welded steel box-section frame w/5 crossmembers Standard
4-wheel hydraulic inboard-mounted pwr disc brakes Standard
Rocker panel protection-inc: dual aluminum plates Standard
Heat & sound insulation Standard
3-point seat belts for all seating positions Standard
Flow-through ventilation Standard
Trailer towing pkg-inc: heavy duty bumper towing shackles, wiring harness Standard
Dual pwr heated mirrors Standard
Deluxe rearview mirror Standard
3486# payload Standard
10,300# GVW Standard
Heat-treated/corrosion-resistant aluminum alloy body Standard
Helicopter lift hooks Standard
AM/FM stereo radio w/cassette/in-dash 6-disc CD changer-inc: Monsoon premium audio system Standard
Black door lock bezels Standard
17" one-piece cast aluminum wheels w/beadlock system Standard
2-speed transfer case Standard
Full-time four wheel drive Standard
Serpentine drive belt Standard
TT4 traction control system Standard
Sliding rear window Standard
Padded interior Standard
Air conditioning w/auxiliary air/heat Standard
Utility lighting pkg Standard
Side door impact beams Standard
HD multiple-cooling systems-inc: engine coolant, engine oil, transmission oil, transfer case oil, pwr steering fluid Standard
Dual fuel tanks (25 gallon main/17 gallon auxiliary) Standard
130" WB Standard
4-wheel anti-lock brakes Standard
HD hydraulic shock absorbers Standard
Halogen headlights Standard
Instrumentation-inc: speedometer, odometer, tachometer, fuel level, engine coolant temp, oil pressure, voltmeter Standard
4-wheel anti-lock brakes Standard
4-wheel independent double A-frame suspension w/HD open-end coil springs Standard
H1 badging Standard
Tonneau cover Standard
Sealed central venting system Standard
LT37/12.50R17 SBR BSW Goodyear Wrangler GS-A tires Standard
Canvas top Standard
Windshield wiper/washer system Standard
4-passenger seating-inc: (4) high-back bucket seats Standard
HD 4-speed automatic transmission w/OD Standard
Glove box Standard
